Outdoor ordering system for restaurant, Aluminum structure and waterproof , suitable for McDonald's, KFC and other fast food restaurants, beverage stores, convenience stores, etc.
Item No :
49FL-ST100-ASize :
620*1250*100Brightness :
3500resolution ratio :
1920*1080Material :
Aluminum alloy + iron columnColor :
Black / Silver / Grey / CustomWaterproof grade :
IP65Weight :
60kg
Drive-Thru menu boards is a fashion service model for ordering and picking up food through the car window. Product information is displayed similar as in-store advertisements, to provide customers with efficient and convenient services.

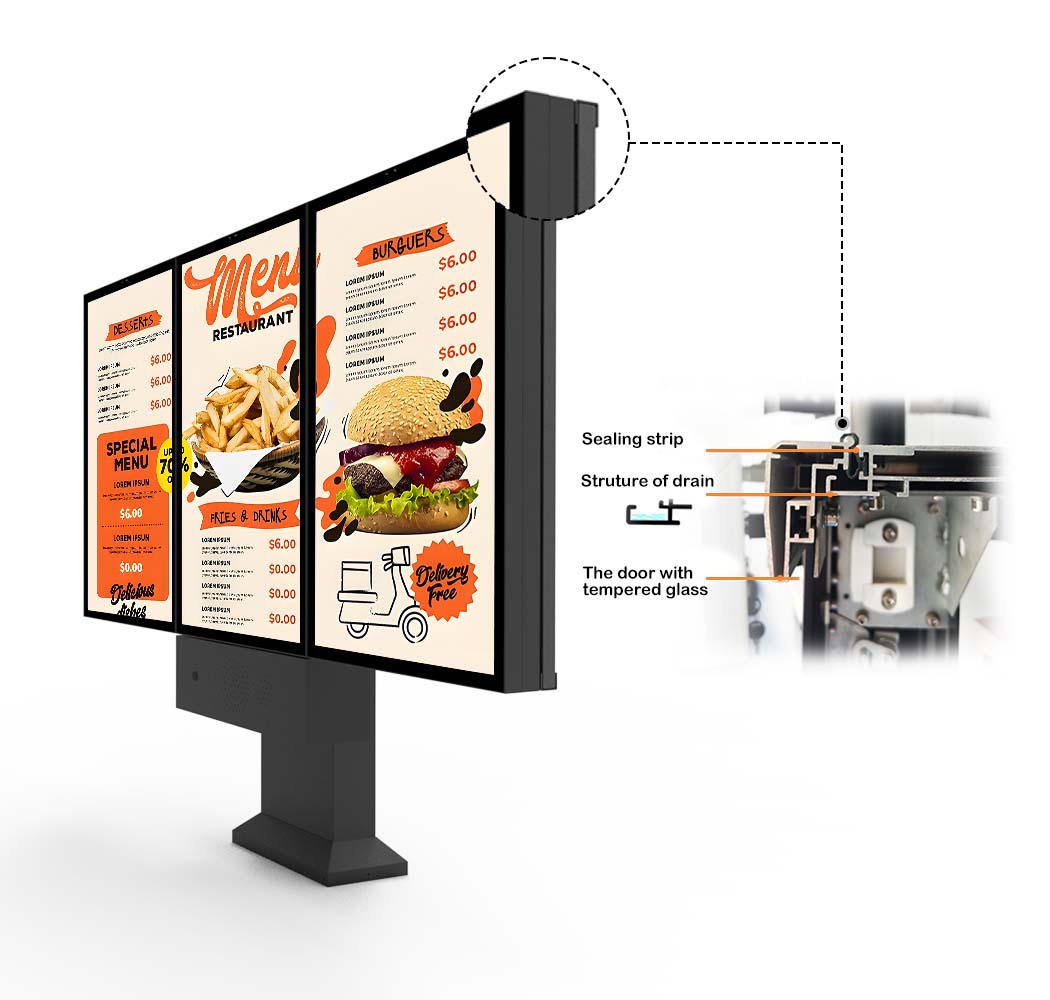

All aluminum construction
Advertising machine shell all made of aluminum alloy, anti-corrosion and anti-rust
Suitable for various harsh environments
IP65 waterproof and dustproof, outdoor resistance to high and low temperatures -30°+60°
Environmental Monitoring System
Real-time remote viewing of digital signage usage
Application Scenarios

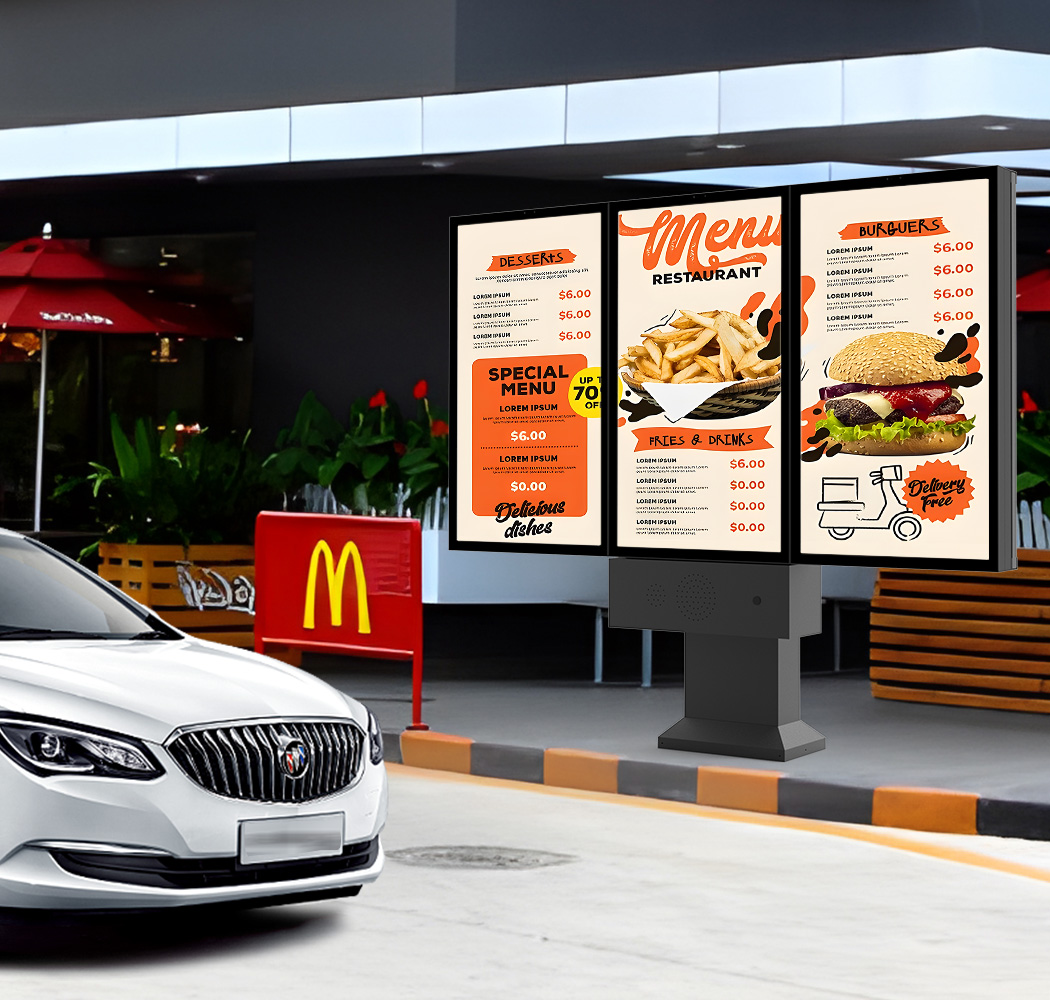

Suitable for McDonald's,KFC entrance, store entrance, mall entrance, etc.
Project Case
Specification
Display |
Panel Size | 43”/49”/55” |
Resolution | 1920x1080/4K | |
LCD Manufacturer | BOE/LG/AUO( Industrial grade panel, 105°C TN heat resistant panel, wide workingtemperature-30~+110°C) | |
Viewing angle | 89/89/89/89(L/R/U/D) | |
Contrast ratio | 1200:1 | |
Brightness | 2500nits as standard (3500nits/4500nits can be customized) | |
Aspect Ratio | 16:9 | |
Active Area | 1210 x 680 mm | |
Operational Life Cycle-MTBF(hours) | 50K hours | |
Grey to Grey ResponseTime (ms) | 6Ms | |
Power |
Input Voltage | AC110- 240±10%, 50/ 60 HZ |
Leakage Protection | 30mA/0.1S | |
Built-in Power Socket | 1 pCs (EU/US/UK/AU/Swiss Standard optional, more sockets are optional) | |
Timer Switch | 1 pes | |
Max Power Consumption(W) | TBD | |
Endosure Material |
Enclosure Material | Fully Aluminum Housing ( Anti-corrosion &. rust-proof with 15 years lifetime) |
Glass Type | 6mmm tempered glass as standard | |
6mm Tempered glass as standard with Double side AR surface treatment with hightransparency, reducing reflection/ UV/IR (optional) | ||
6mmn ternpered glass with AG coating, anti-glare surface treatrent reduce reflection(optional) | ||
Double Laminated AR Glass 3mm+3mr is optional (optional) | ||
Glass Characteristics | Transmmissivity > 93%, Reflectivity < 2% | |
Optical Bonding (Optional) | Tempered Glass & LCD Display&Touch optical bonding technology is optional | |
protection Grade | IP65 | |
Thickness | 100mm | |
Emironrment |
Operating Environment |
Fully Outdoor for All Weathers |
Operating Temp. |
-30℃~+1110°C |
|
Operating Humidity |
5%~98% |
|
Operating Altitude (m) |
≦2000 |
|
Built-in HDMIinput MonitorVideo Board |
HDMI input |
1 pcs, Support 1920*1080, 4K resolution is optional |
Signal Output |
VoyOne or LVDS |
|
Free Remote ContentManage ent Software (ForAndroid only) |
Editing Playlist, timing, playback | |
Edit Multi Zones play different contents | ||
One Video/image splicing to ultiple screens by software, no need for extra controller/matrix/HDMl splitter | ||
Support live stream, URL, Youtube Video, PDF. WORD, TXT. etc | ||
Remote Management by mobile, pC thru wif/lan network | ||
Support 4K high-resolution video, Max uploading video 2GB, Max uploading image 20MB | ||
Support Simple UsB sticker plug-play looping images/videos | ||
Cloud base software is supported | ||
Free of charge | ||
PCAP TouchScree(Optional) |
Touch Type | PCAP Touch |
Touch Max Resolution |
4980*4980 |
|
Transparency |
> 90%, up to 100% |
|
Scanning Speed |
> 50s scans/s |
|
Responsive Time |
<12ms |
|
Touch Precision |
0.625mm |
|
Minimnum Touch |
5mm |
|
Cormmunication |
USB port |
|
Media & Connectivity&Other |
Optional functions |
Heater |
Camera/webcam |
||
Customized external Sensor |
||
AC air conditioner |
||
Microphone |
||
Emergency button |
