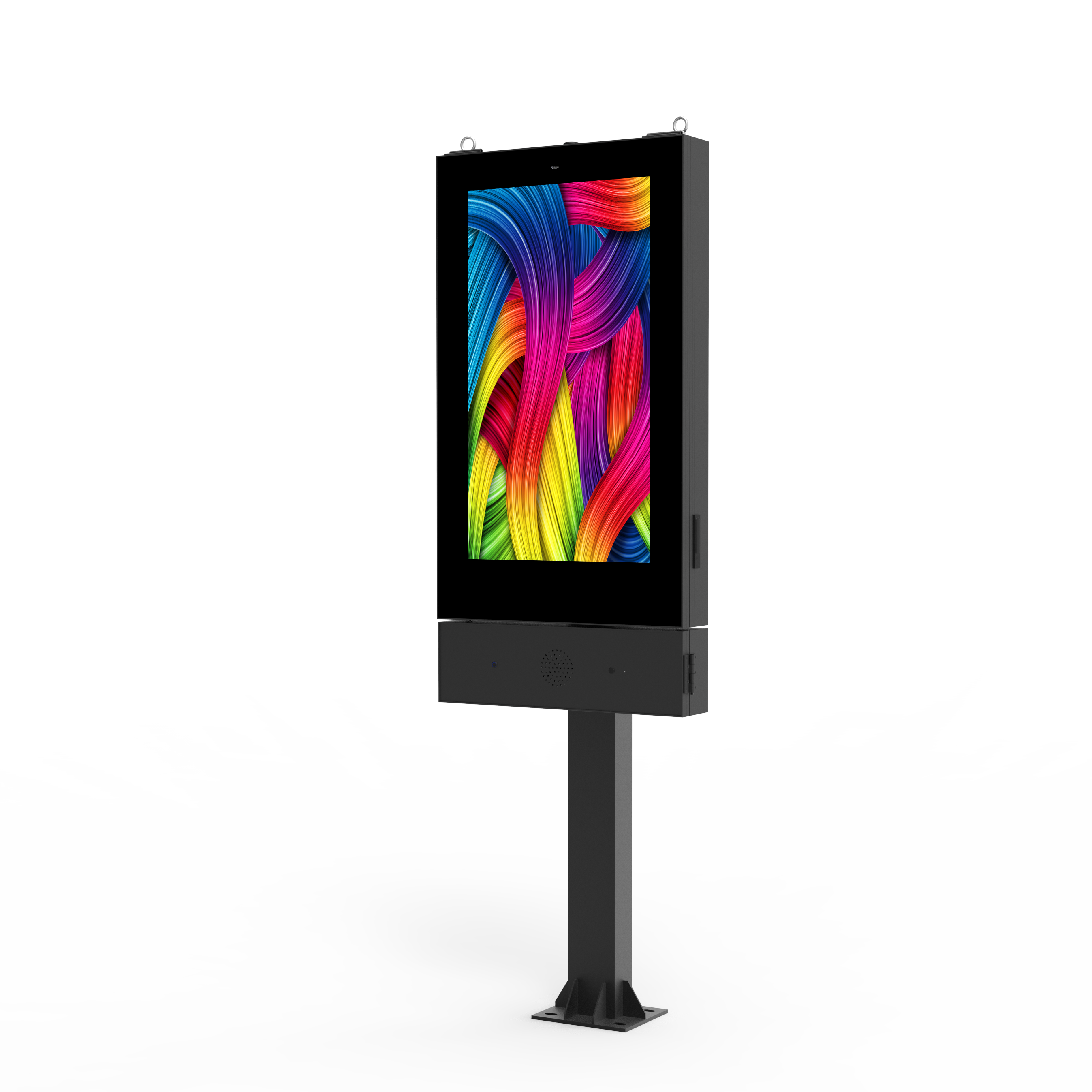

Drive-Thru Digital Menu Board

In the fast-food industry, the speed and convenience of drive-thru service are crucial for enhancing customer experience and optimizing operational efficiency. However, traditional drive-thru service models often have numerous limitations, especially during peak hours when customers may face long wait times. To address these challenges and meet the needs of modern customers, CNLC has introduced our advanced Drive-thru Digital Menu Board. This is not just a digital menu board but a self-service kiosk featuring a unique separation of the screen and audio system, as well as an integrated set of functionalities including surveillance camera, speaker system, manual buttons, and sensor technology.

A Tailored Display Series for Outdoor QSR and Retail Scenarios

1.Solution Overview

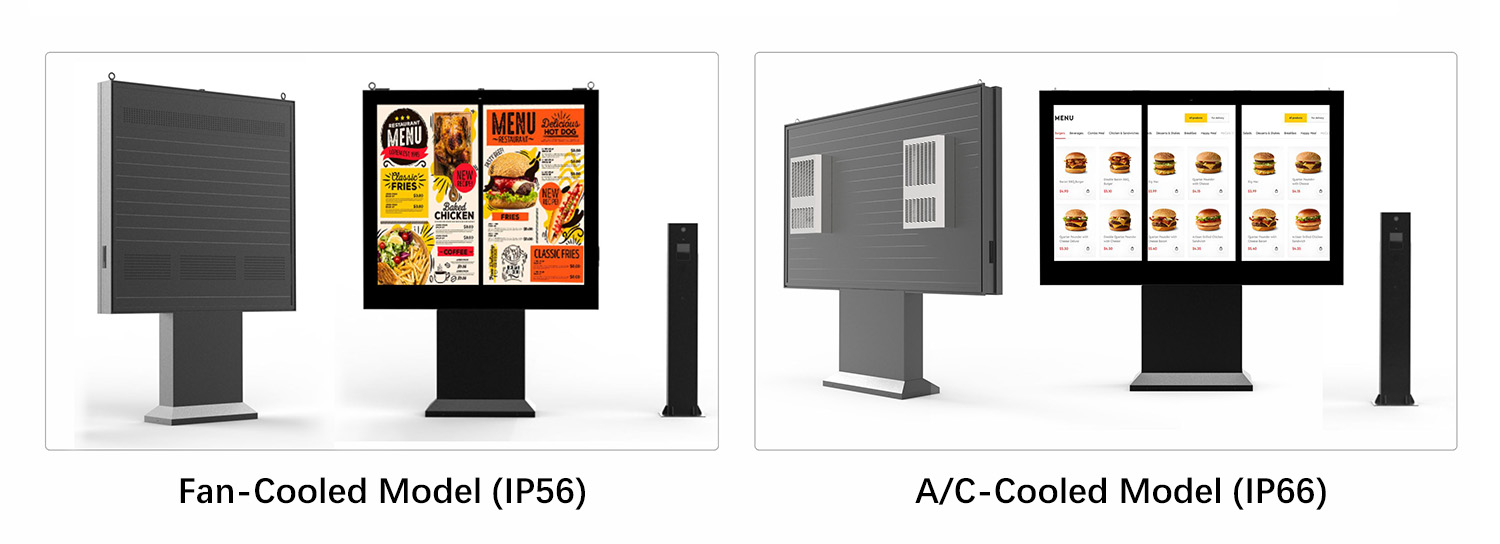

CNLC now introduces two enhanced Drive-Thru Digital Menu Board configurations, engineered for different outdoor climates and operational demands:

⭐ Fan-Cooled Model (IP56)

Optimized for standard outdoor environments, high-temperature regions, and cost-effective drive-thru deployment.

⭐ A/C-Cooled Model (IP66)

Built for extreme heat, sandstorms, high humidity, coastal areas, and other harsh outdoor conditions.

2.Product Comparison Table

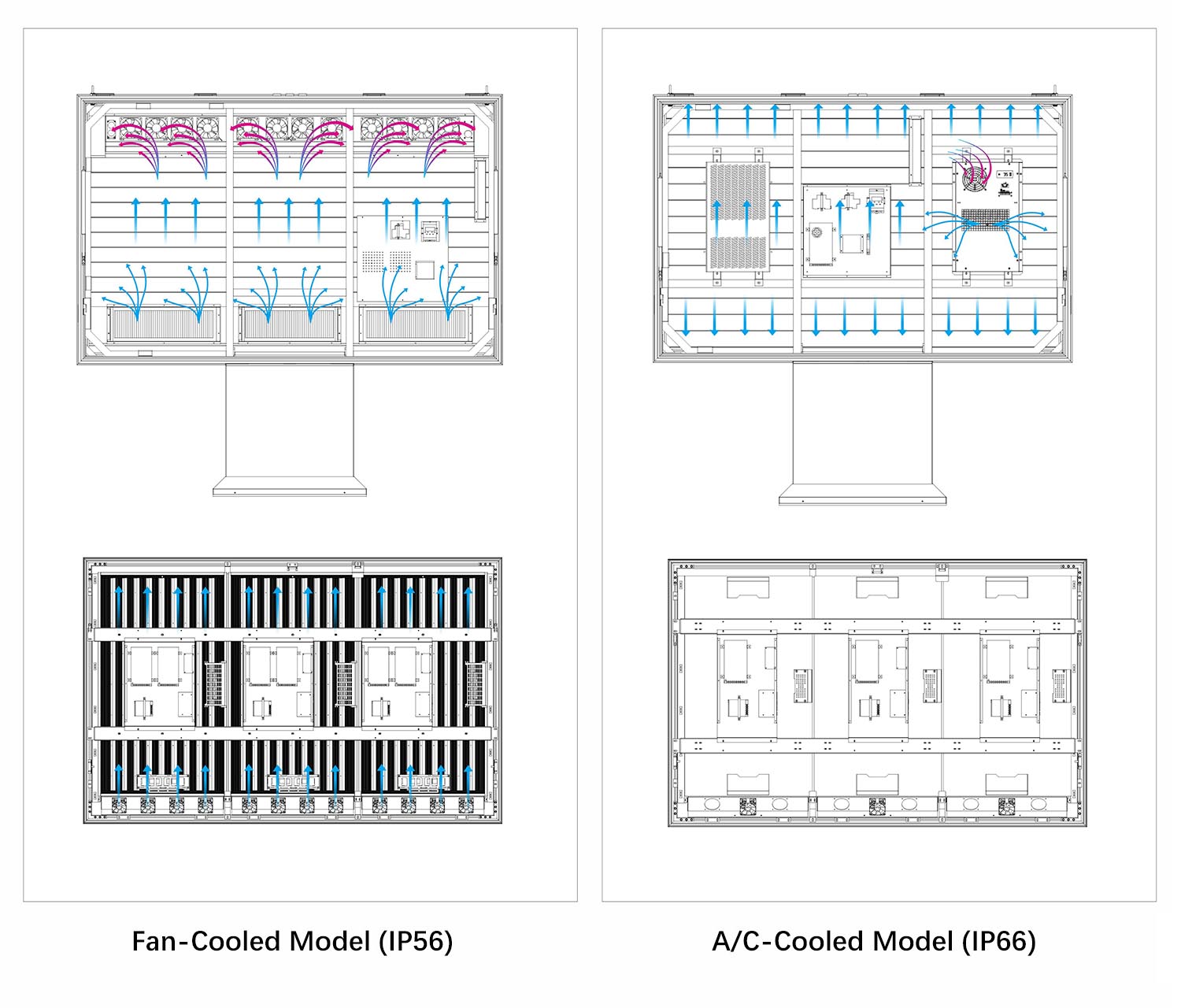

3.Smart Thermal Management

CNLC Drive-Thru Digital Menu Boards feature a dual-airflow cooling structure with an optional industrial A/C system, ensuring stable performance under intense sunlight and tough outdoor conditions.

Fan-Cooled Model (IP56)

Cooling Logic: Dual-Airflow Heat Dissipation

• External air enters through the bottom inlet and passes a dust filter

• Front air duct removes heat from the LCD–glass area

• Main internal air duct cools power boards, drivers, and control boards

• Hot air exhausts through the top or rear vents

• Smart temperature sensors automatically control fan speed

Structural Advantages

• Aluminum display module delivers excellent thermal conductivity

• Front air duct reduces glass–LCD temperature gap, preventing LCD black spots

• Suitable for 30–55°C outdoor temperature

Benefits

✔ No heat buildup in front of the display
✔ Lightweight structure with low maintenance
✔ Stable 24/7 operation in high-brightness drive-thru environments

A/C-Cooled Model (IP66)

Cooling Logic: Sealed Loop + Industrial Air Conditioner

• Fully sealed enclosure prevents dust, moisture, and salt intrusion

• Industrial-grade A/C keeps the internal temperature at a constant level

• Cooled air circulates around all critical components

• Heat is discharged through the condenser and compressor system

Best For

• Extreme heat, desert climates

• High humidity, tropical environments

• Coastal regions with salt corrosion

• Heavy rainfall or sandstorm areas

Benefits

✔ High stability even in 55–60°C climates
✔ IP66 dustproof & rainproof protection
✔ Strong corrosion resistance for long-term outdoor deployment

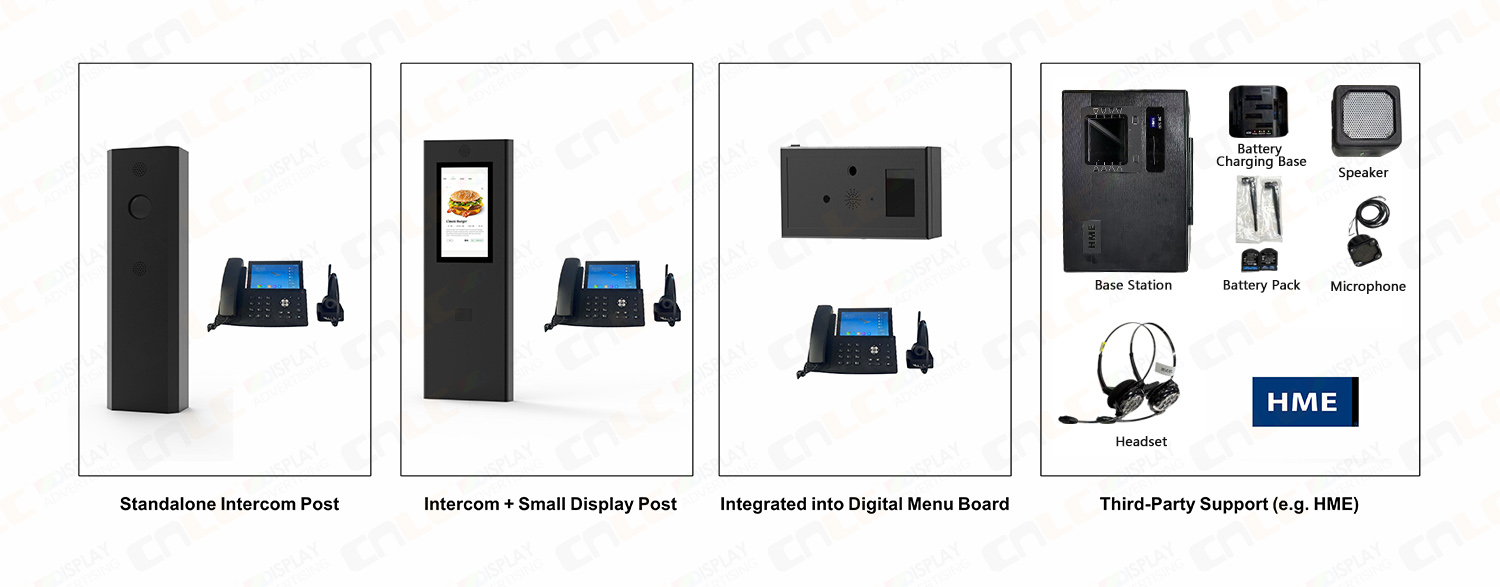

4.Voice Ordering System Options

• Standalone Intercom Post
  ‒ Equipped with HD camera, industrial mic/speaker, sensor & button
  ‒ Modular installation, supports wired or wireless configuration

• Intercom + Small Display Post
  ‒ For 2-stage ordering: a preview screen at the speaker post + main menu screen after

• Integrated into Digital Menu Board
  ‒ Seamlessly built into the screen structure to save space and simplify setup

• Third-Party Support (e.g. HME)
  ‒ Our enclosures are compatible with HME and other brands
  ‒ Custom bracket and port designs available for OEM system integration

5.Drive-Thru Ordering Workflow with Single Voice Ordering System

CNLC also offers a streamlined ordering process with the single voice intercom system, designed to optimize communication and service speed:

1.Vehicle Detection – The integrated sensor detects an approaching vehicle and activates the voice ordering system.

2.Voice Ordering – The customer places an order through the standalone intercom post, ensuring clear two-way communication with staff.

3.Order Confirmation – Staff confirm the order in real-time, reducing errors and improving accuracy.

4.Food Preparation – The kitchen receives the order instantly and begins preparation.

5.Pick-Up & Payment – The customer proceeds to the pick-up window to complete payment and collect their order.

This simple yet efficient workflow minimizes wait time, improves order accuracy, and enhances the overall drive-thru experience.
