3500nits High Brightness Outdoor LCD Display with Aluminum Housing & Heat Dissipation

High brightness LCD display
High brightness LCD display
High brightness LCD display
High brightness LCD display
High brightness LCD display
High brightness LCD display

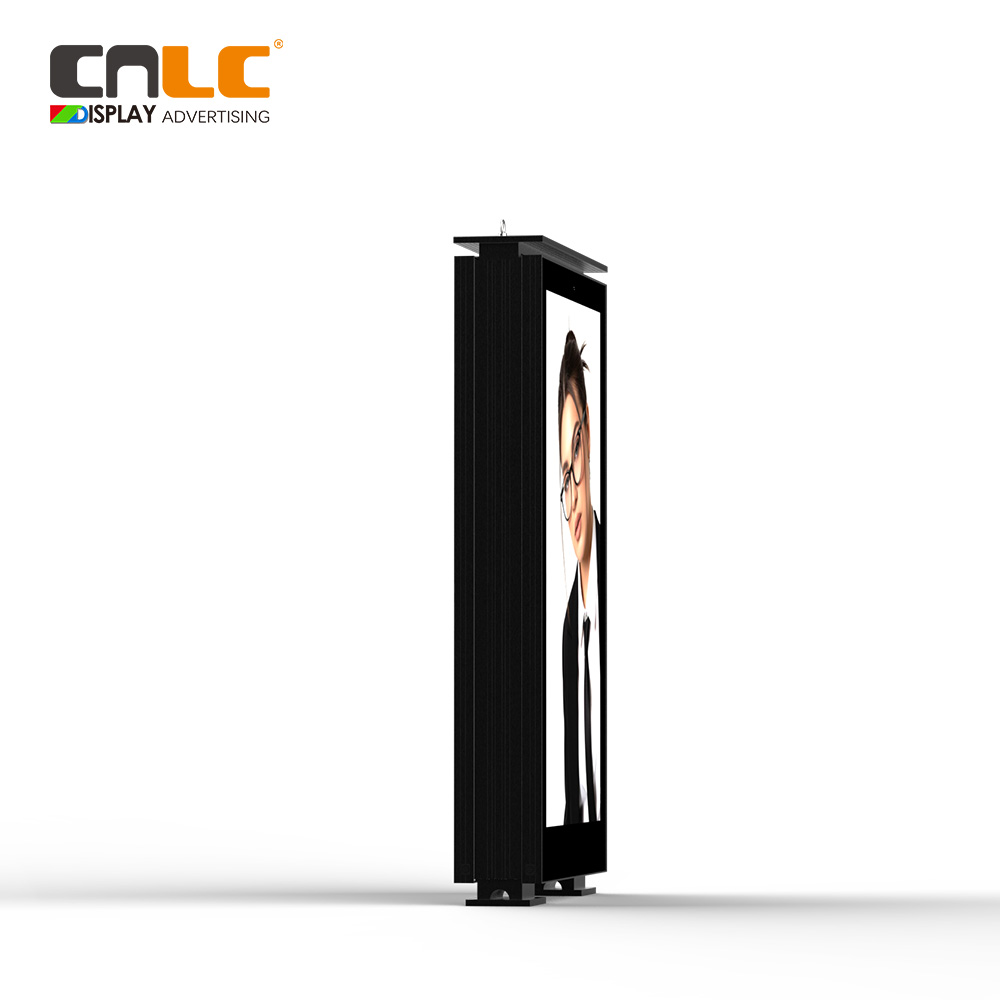

3500nits High Brightness Outdoor LCD Display with Aluminum Housing & Heat Dissipation

This durable outdoor LCD digital signage features a vandal-resistant IK10 anti-reflective glass, precision-engineered aluminum housing, and efficient heat dissipation system. Designed for public spaces and smart cities, it offers customizable base options to match various installation needs and environments.

  • Item No :

    LC-OU-270VA

  • Size :

    Customize

  • Brightness :

    3500 cd/m²

  • resolution ratio :

    2k / 4k

  • Material :

    Aluminum Structure

  • Color :

    Black / Silver / Grey / Customize

  • Waterproof grade :

    IP65
Inquire Now
Smart city outdoor LCD signage with 3500 nits high brightness for digital advertising applications

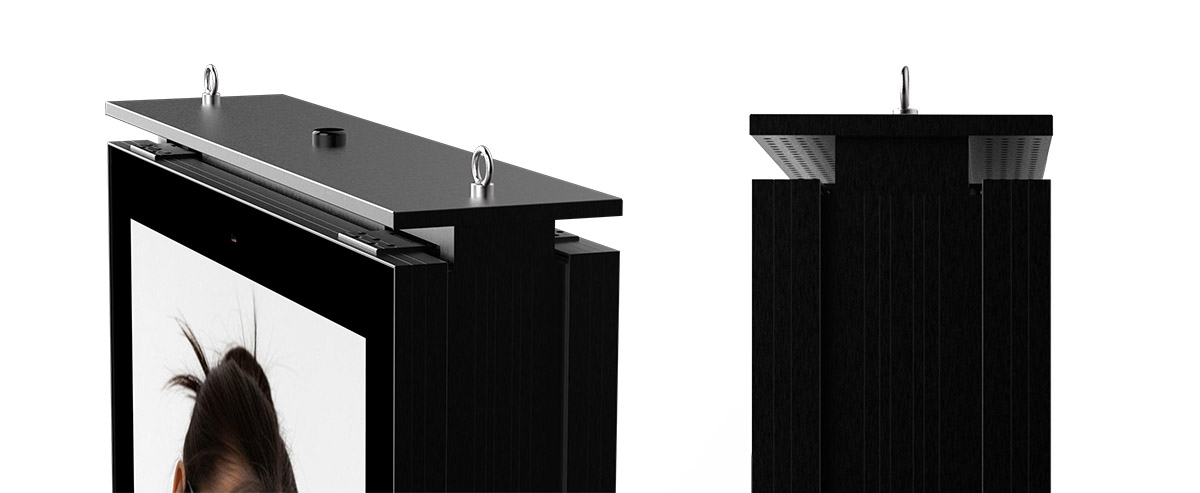

Aluminum Housing for Outdoor LCD Displays

Our outdoor LCD display features a durable aluminum housing that offers superior corrosion resistance and heat dissipation. This lightweight yet robust design ensures long-lasting performance in all weather conditions, while enhancing the display's sleek, modern appearance.Precision aluminum housing structure of outdoor LCD digital signage with durable weather protection

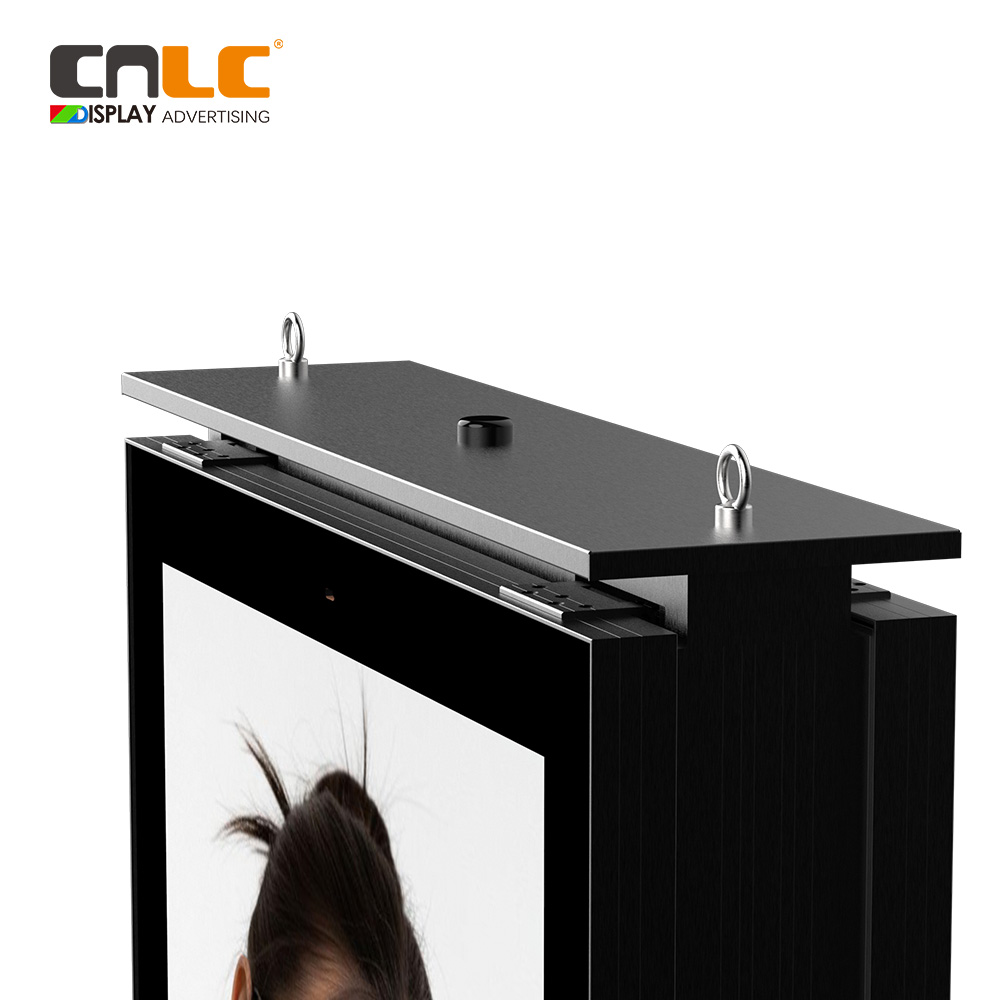

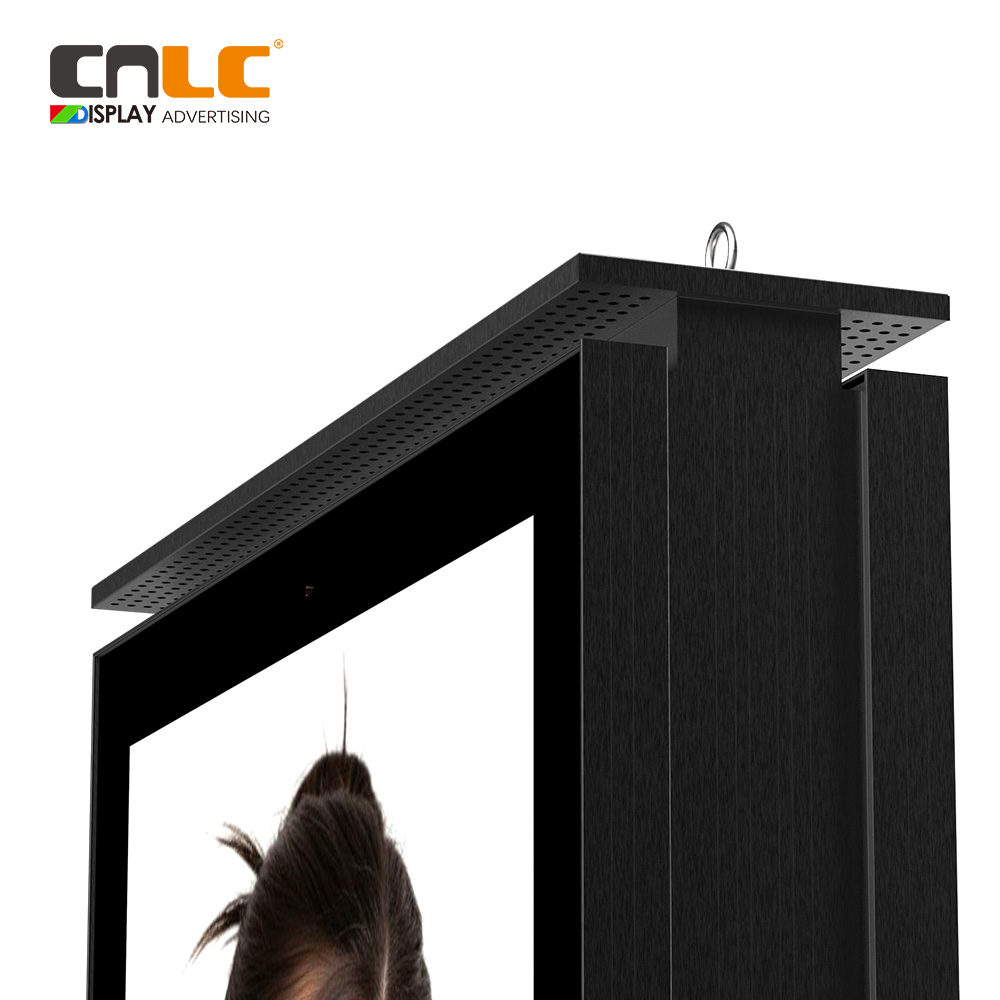

Precision Aluminum Module for Outdoor LCD Totem Kiosk

Crafted with precision-engineered aluminum modules, this outdoor LCD totem kiosk delivers exceptional heat dissipation and strong corrosion resistance. The lightweight yet robust structure ensures long-term stability and reliable performance in all-weather conditions. Its sleek aluminum finish not only enhances durability but also elevates the overall aesthetic for modern outdoor applications.
Precision Aluminum Module for Outdoor LCD Totem Kiosk

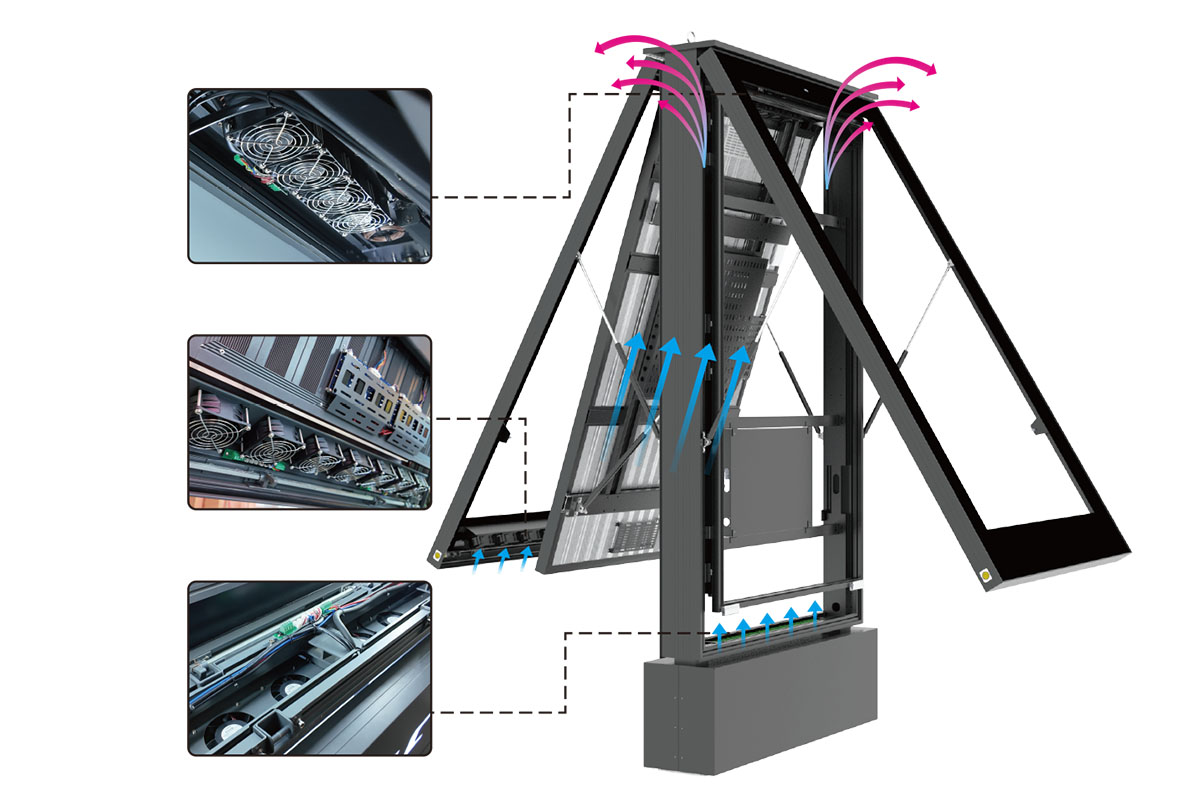

Efficient Cooling System for Outdoor LCD Digital Signage

Designed for demanding outdoor environments, this outdoor LCD digital signage features a top-mounted fan and front air duct system that work together to enhance heat dissipation. This dual-cooling design keeps internal temperatures stable, ensures reliable operation under direct sunlight, and extends the product’s overall lifespan.


Efficient CoAdvanced thermal management system for maintaining stable outdoor LCD display performance Efficient Heat Dissipation System for 24/7 Outdooroling System for Outdoor LCD Digital Signage

IK10 Anti-Vandal & Anti-Reflective Glass

Equipped with IK10-rated tempered glass, this outdoor LCD display resists strong impacts and vandalism, ensuring safety in public environments. The anti-reflective coating enhances screen visibility by reducing glare from sunlight and ambient lighting.



IK10 impact resistant glass protection for outdoor digital signage display


IP65-Rated Protection

With an IP65 rating, this outdoor LCD display is protected against dust ingress and powerful water jets from any direction. It ensures reliable operation in rain, wind, and dusty environments, making it ideal for year-round outdoor use.



Weatherproof outdoor LCD display with IP65 protection against dust and water



 Stable Performance in Extreme Temperatures



◆ Designed for demanding outdoor environments, our outdoor LCD display maintains stable brightness, reliable operation, and long-term performance under both high and low temperature conditions. Every unit is validated in our environmental testing chamber to ensure dependable performance before delivery.

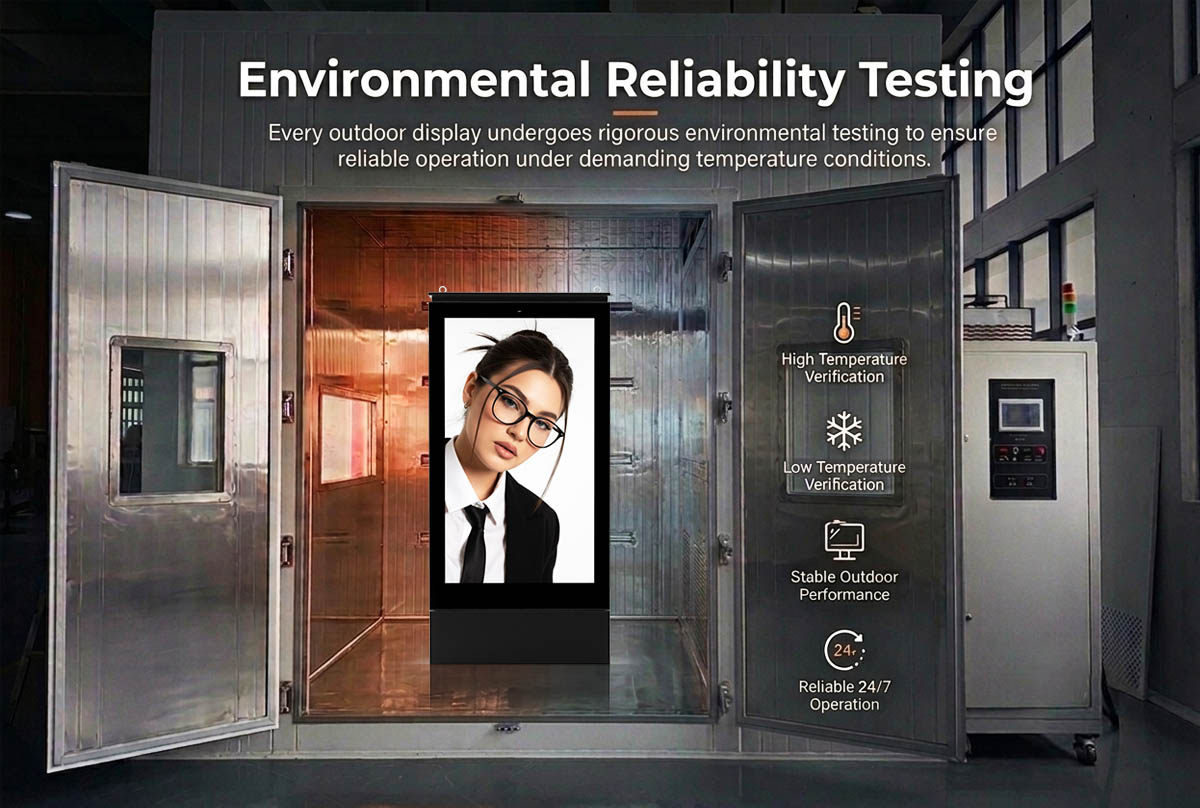

test-outdoor-display.jpg High and low temperature reliability testing of outdoor LCD digital signage

Customizable Base Options with Fixed Display


Designed for durability and long-term use, this outdoor LCD display features a fixed screen structure for enhanced stability. It supports multiple base designs—floor-standing, pedestal, and custom-built—to meet varied installation requirements and modern design standards.Ideal for retail environments, public venues, transportation terminals, and smart city infrastructure.

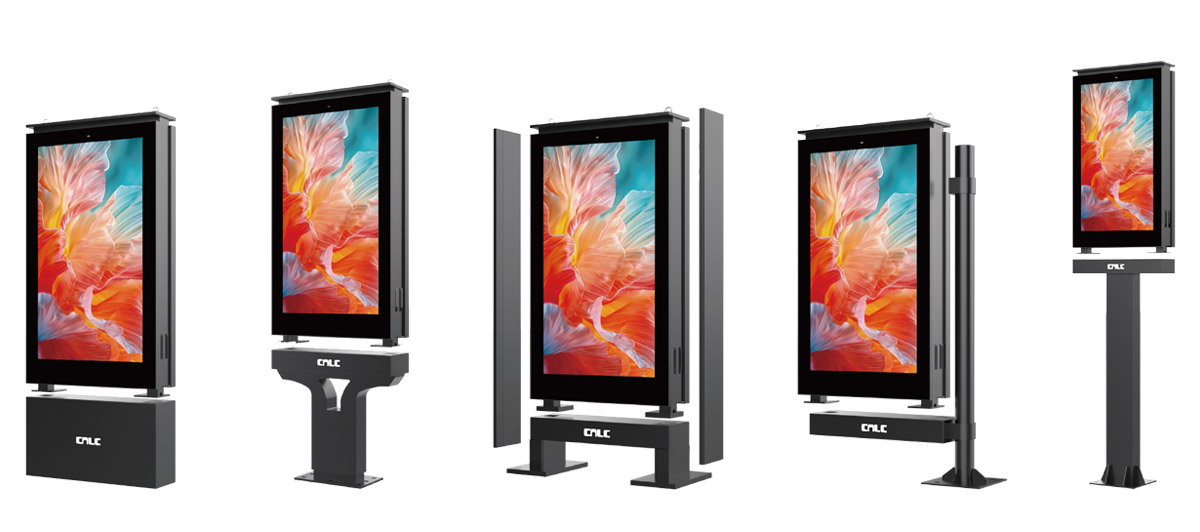

Multiple installation base options for customized outdoor LCD display deployment




TECHNICAL SPECIFICATIONS

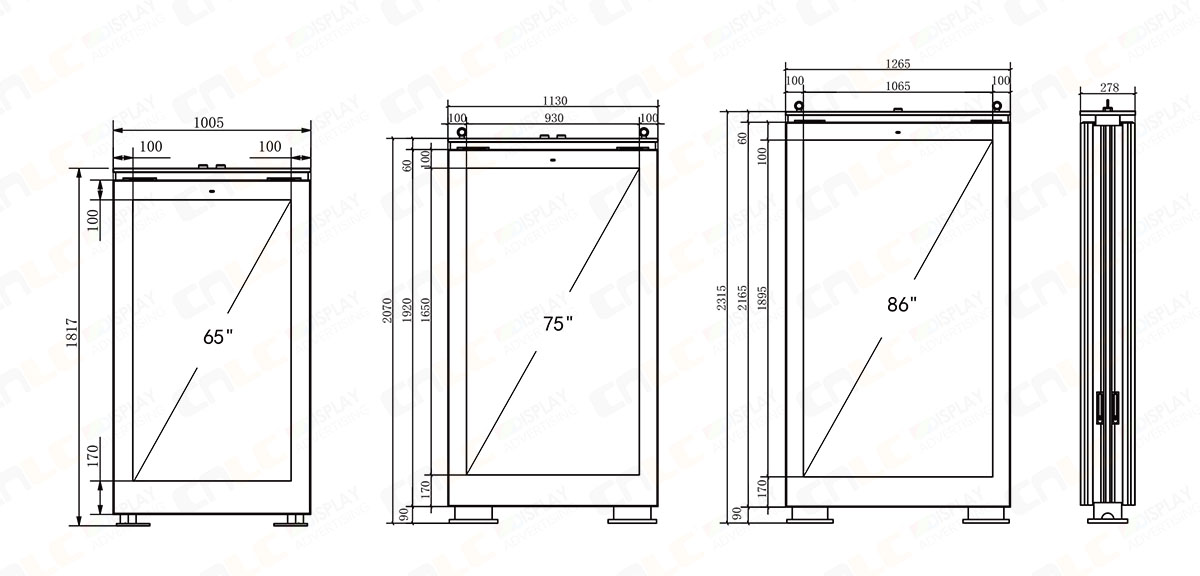

Technical dimensions of 3500 nits outdoor LCD digital signage display


LCD Panel    65"LG 75"LG
   86"LG
 Display Size(mm)  805*1430 930*1650 1065*1895
 Overall Size (mm)  1005*1817*278 1130*2070*278 1265*2315*278
Base height(mm)   70 70 70
 Power Consumption(w) 1050W 1150W 1800W
Resolution 1920*1080 / 3840*2160 (Optional)
LCD panel brand LG  industrial grade
Brightness 3500nits / 4500nits
Contrast Ratio Original LG glass : 1200:1
Smart Temp System Yes
Material of Enclosure Aluminum
IP Rating IP65
Thicknessof Tempered Glass
 6mm /8mm(Laminated Glass) IK10
Operating Temp -20 to 50 ℃
Rated Voltage
 110V/220V (Optional)
Operating System
 Windows / Android(optional)
More Choices
 Optional double-sided LCD or one LCD and one light box are available
Input Interface
 HDMI/USB
Running Time 7/24
Certificates IP65、IK10、CE、FCC、RoHS
