1. Solution Overview
CNLC LED Display Enclosure Solution provides a structurally optimized and weather-resistant housing system for both single-sided and double-sided outdoor LED displays. Engineered with high-precision aluminum profiles, these enclosures ensure mechanical stability, efficient thermal management, and long-term durability under harsh environmental conditions. The solution offers flexible customization to meet the structural, dimensional, and maintenance requirements of diverse outdoor LED display projects.
We offer flexible configurations to meet various project needs:
| Model Type | Description |
| Single-Sided LED Enclosure | Slim-profile aluminum enclosure designed for single-face LED displays, suitable for freestanding outdoor installations such as totems and roadside signage. |
| Double-Sided LED Enclosure | Sturdy dual-face enclosure providing visibility from both directions. Ideal for pedestrian streets, bus shelters, and open plazas requiring 360° audience coverage. |
Key Specifications:
| Parameter | Specification |
| Structure Material | High-precision Aluminum Alloy |
| IP Rating | IP56 or higher (customizable) |
| IK Rating | K10 Anti-vandal Glass (Optional) |
| Sizes | Customizable for screen dimensions |
| Colors | Black / Grey / Silver / Custom |
| Installation | Floor-standing / Wall-mounted |
CNLC enclosures are built with a robust aluminum structure that combines high strength with excellent corrosion resistance, ensuring long-term stability even in the most challenging outdoor conditions. The reinforced framework provides exceptional durability while remaining lightweight for easier handling and installation. With an IP56-rated waterproof and dustproof design and optional IK10 anti-vandal glass, the enclosures deliver reliable protection against severe weather, dust, and impact.
Structural Features:
✅ Reinforced aluminum construction with superior strength and corrosion resistance

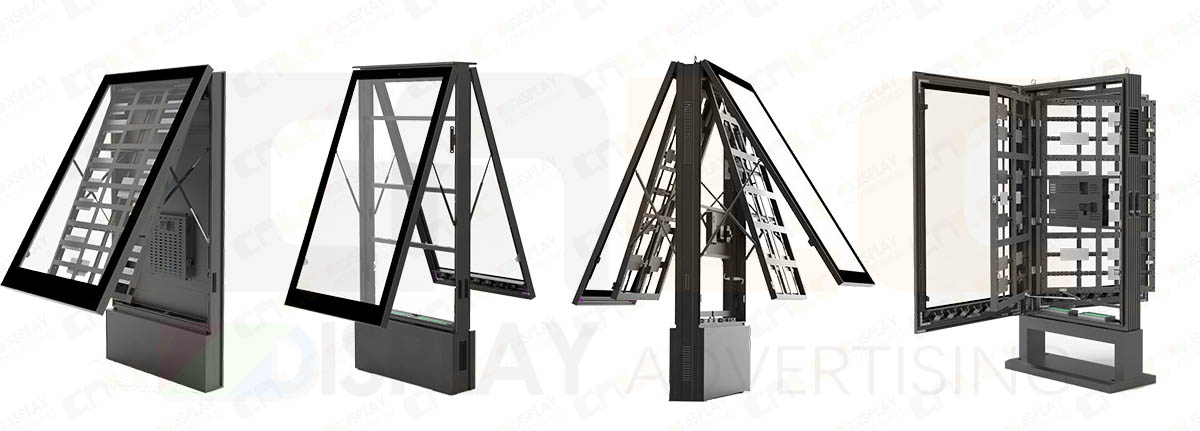

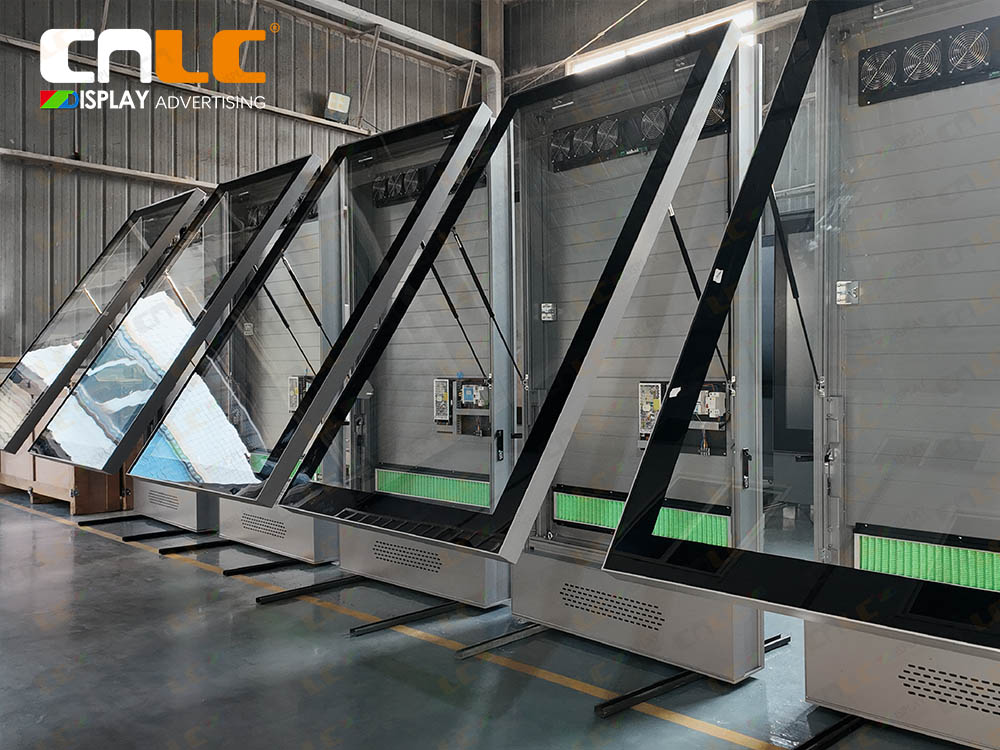

✅ Secure hydraulic supports and locking mechanisms for easy, safe access
✅ IP56 weatherproof and dustproof protection with optional IK10 anti-vandal glass
Thermal Management:
✅ Optimized ventilation channels designed for maximum heat dissipation
✅ High-efficiency front and rear fans to maintain stable internal temperatures
✅ Screen-facing airflow system to reduce panel surface heat buildup
✅ Integrated dust filters for enhanced protection in sandy or dusty environments
These design elements ensure outstanding structural integrity, effective heat control, and long-term reliability, reducing maintenance needs while keeping displays operating at peak performance in harsh outdoor environments.
We provide complete technical support, including:

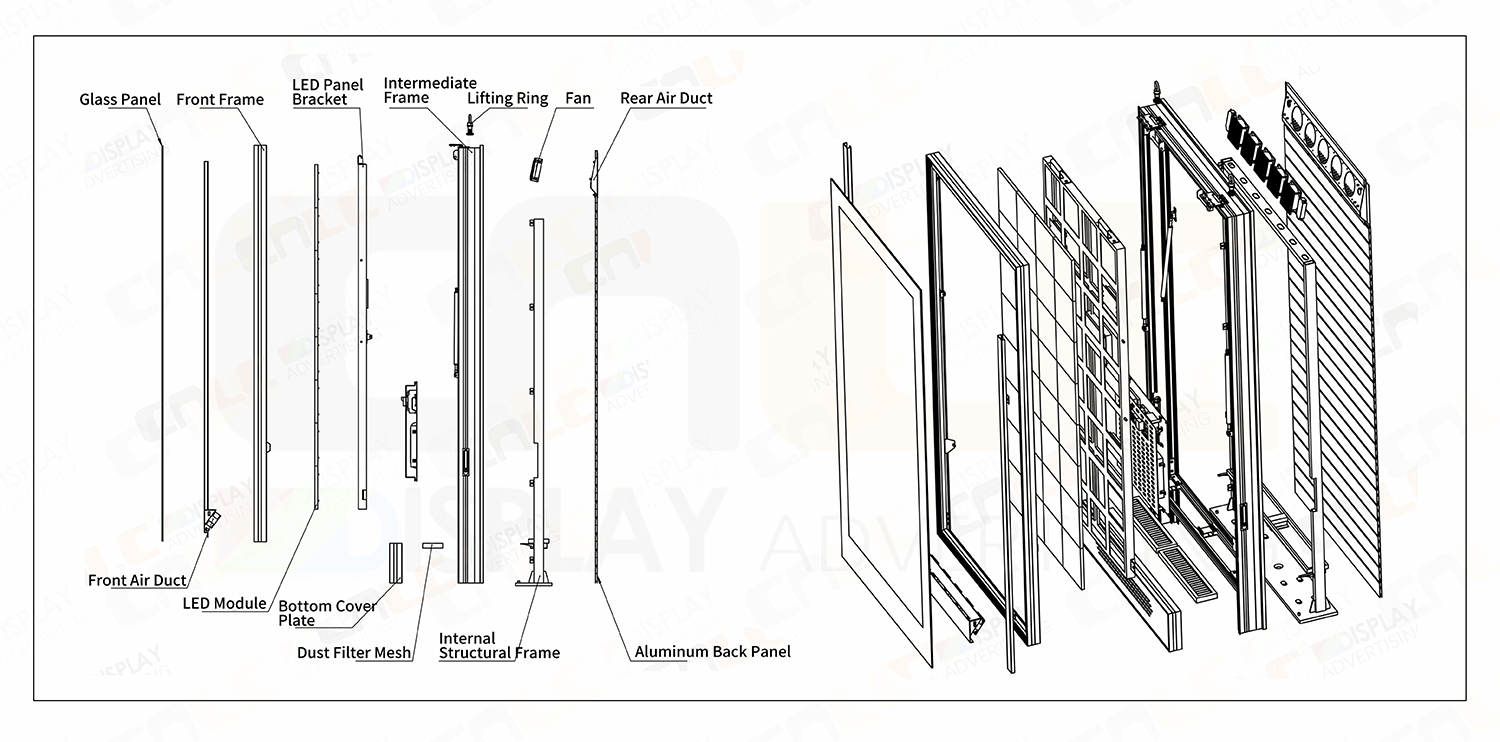

✔ Exploded structural drawings

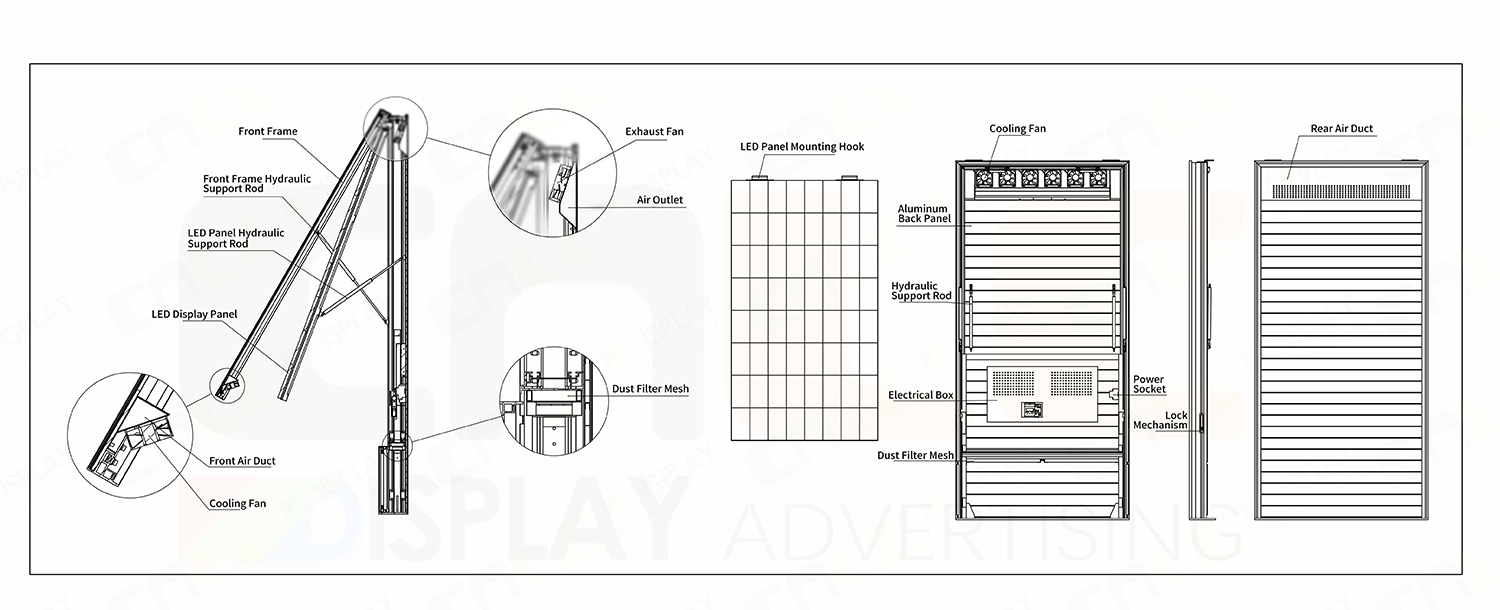

✔ Detailed dimension diagrams
✔ Installation guidance drawings
All drawings are designed to simplify on-site assembly and ensure precise project matching.

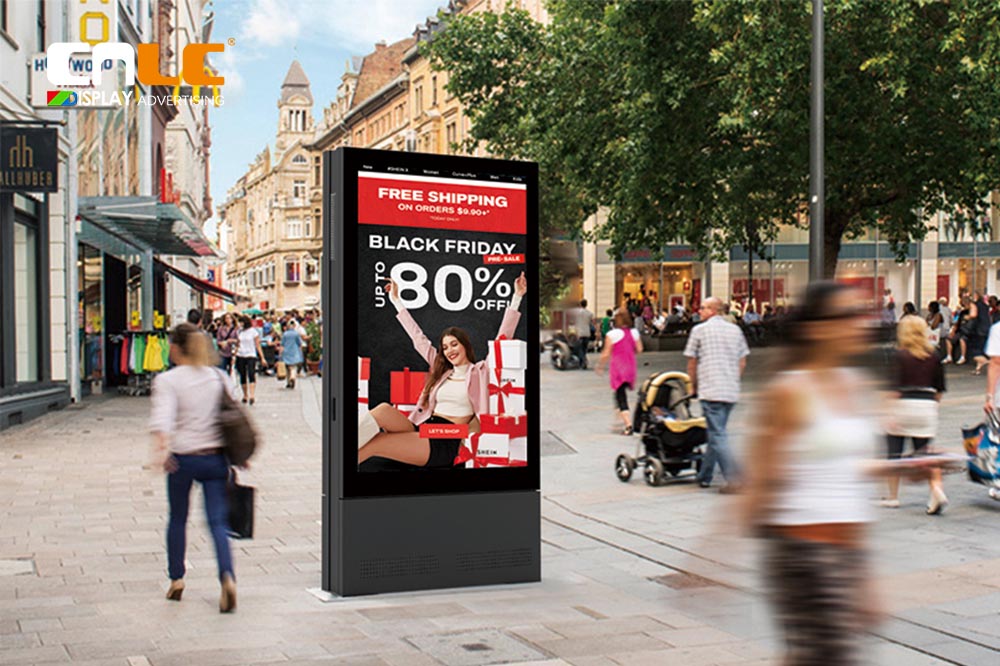

Outdoor LED Billboards

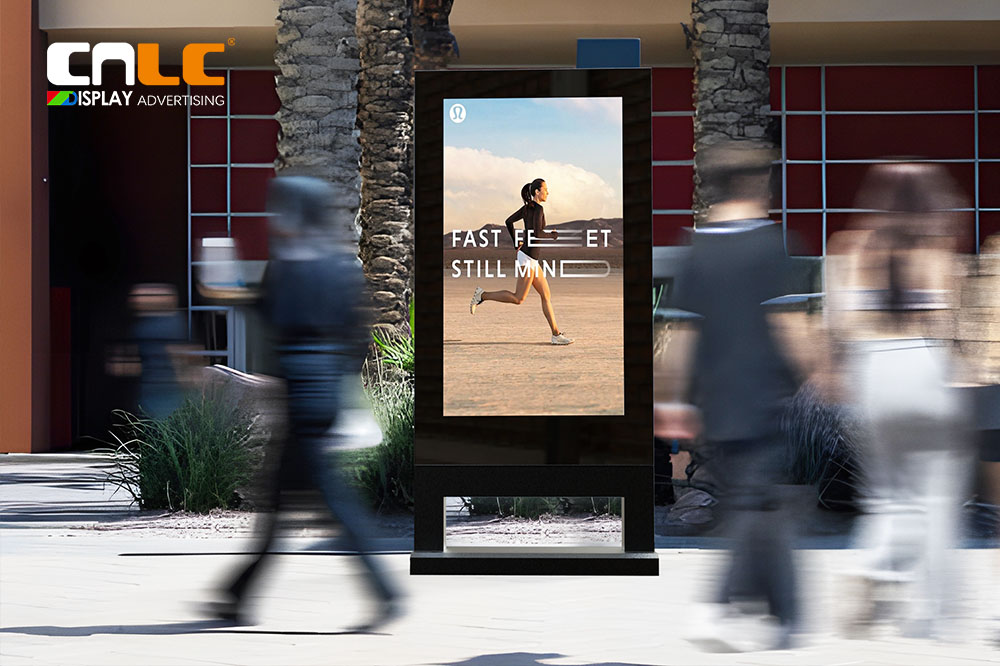

LED Totem Displays
Street Furniture with LED Screens
Transport Hubs, Public Squares, Commercial Districts
✔ Robust structure for long-term outdoor performance
✔ Professional thermal management system
✔ Lightweight aluminum material reduces transportation and installation complexity
✔ Designed for rapid maintenance and component access
✔ Customizable for various LED pixel pitches and screen configurations
