🔥 Designed for Desert Heat | ❄️ Industrial A/C Integrated | 🧩 Durable High-Precision Aluminum Enclosure

1. Market Challenges in Saudi Arabia

• High Ambient Temperatures exceeding 50°C during summer

• Sandstorms & UV radiation cause electronic component failure

• Nighttime temperatures in some regions drop below 0°C (e.g. Tabuk, Al-Jawf)

• Poor heat management = black screen, shortened lifespan, and power waste

2. CNLC Intelligent Cooling System Solution

All models feature our proprietary cooling architecture, which includes:

• Integrated A/C Module at the base (split design for easy servicing)

• Internal airflow control: cold air goes up, hot air discharged sideways

• The built-in smart temperature control system automatically maintains optimal LCD surface temperature.

• 10mm screen-front intake gap with a front exhaust fan ensures surface cooling.

• Aluminum enclosure with IP56 protection against dust and sand

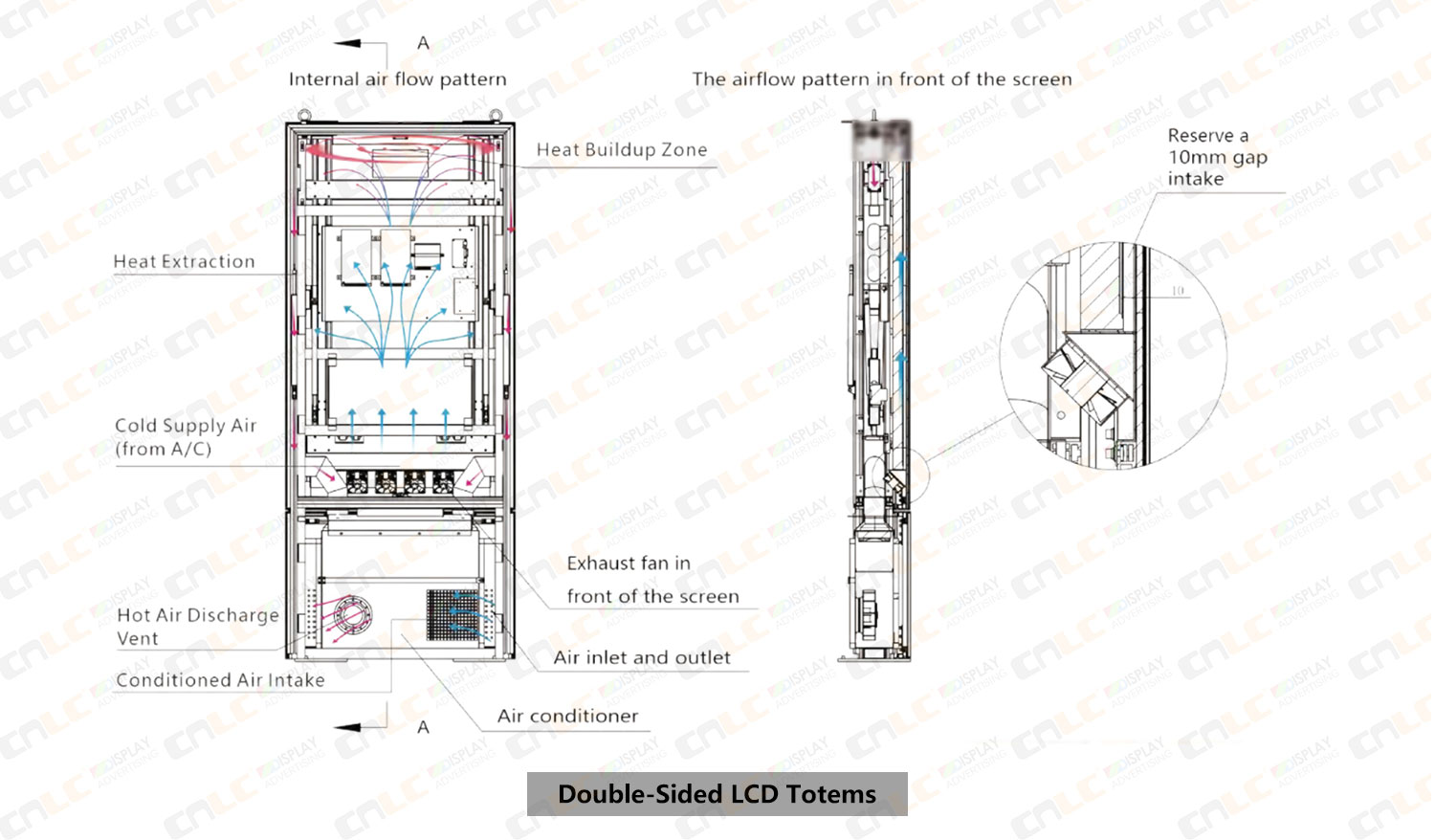

Cooling flow demonstration:

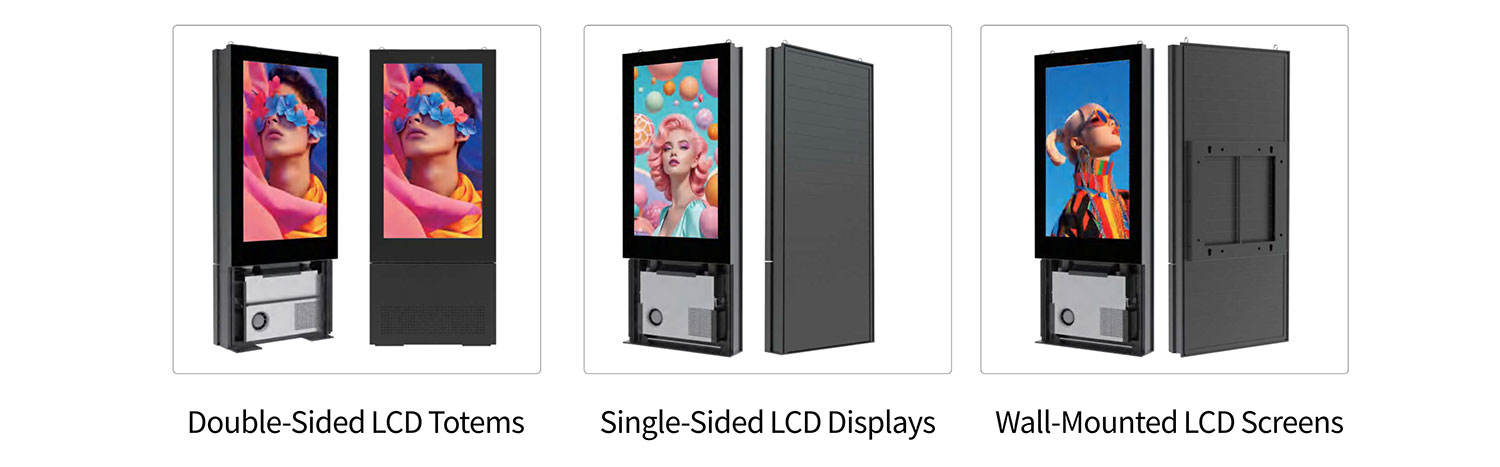

3. Product Lineup & Structure Details

Model C – Dual-Sided Free-Standing LCD Totem

Double the visibility, full climate control.
Best for airports, transport centers, and malls.

• ✅Dual 55” screens with independent cooling loops

• ✅3500 nits per side, daylight visible

• ✅Capacitive touch (both sides optional)

• ✅ Smart air conditioning system with real-time temp adjustment

• ✅ Remote control and monitoring supported

• ✅ Slim dual-sided design with sealed housing and IP56 rating

Cooling system shared with totem models

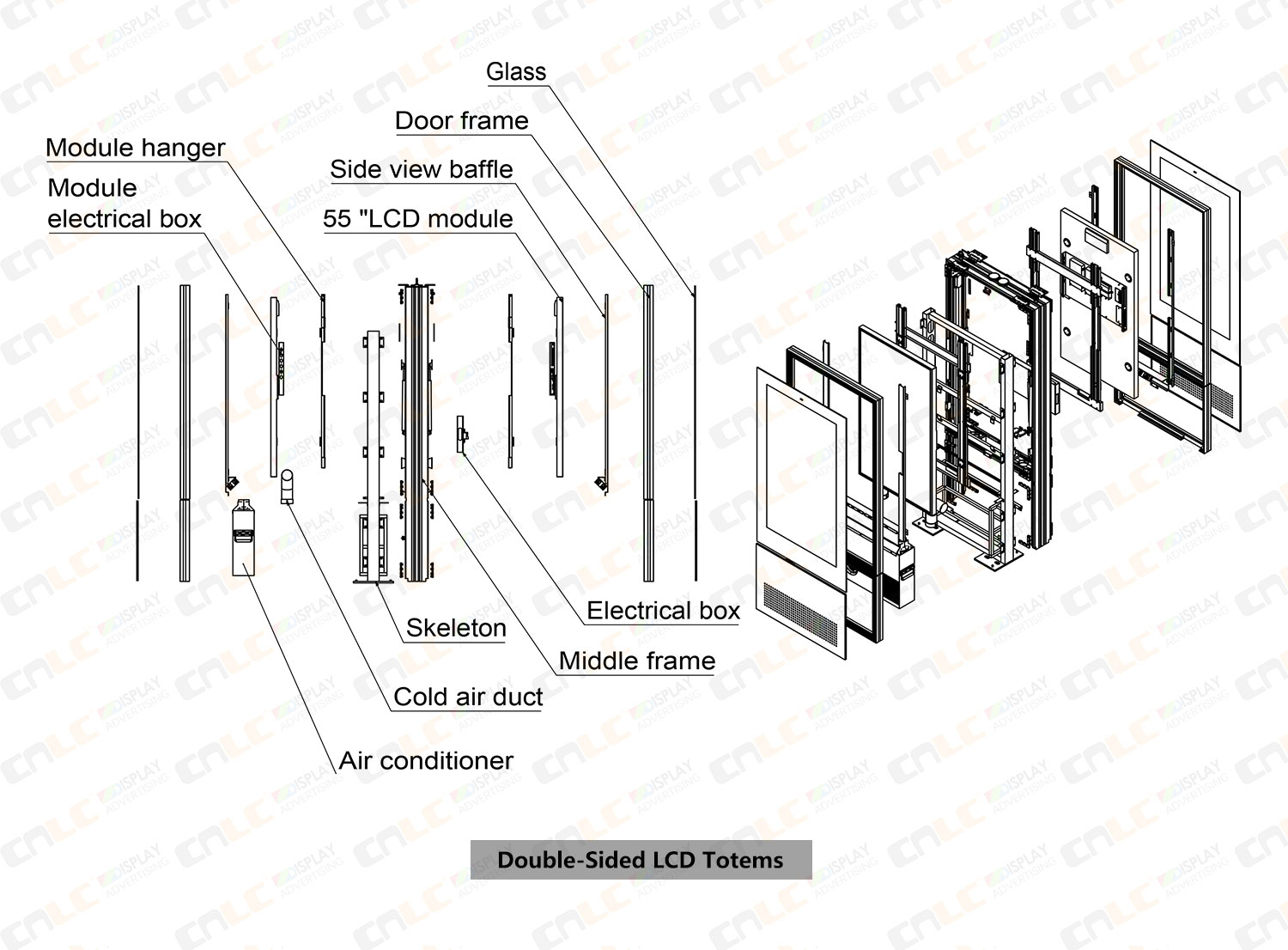

Exploded view available

Model B – Single-Sided Free-Standing LCD Totem

Versatile and rugged.

Designed for city streets, plazas, and public information points.

• ✅ 55" high-brightness screen (3500 nits)

• ✅ Touch-enabled for user interaction or wayfinding

• ✅ Rear-door design for easy maintenance

• ✅ Built-in industrial air conditioner + smart temperature control

• ✅ Remote monitoring & system diagnostics via cloud

• ✅ Heavy-duty aluminum structure with ground-mount base

• ✅ Optional branding space on front panel

Cooling system shared with totem models

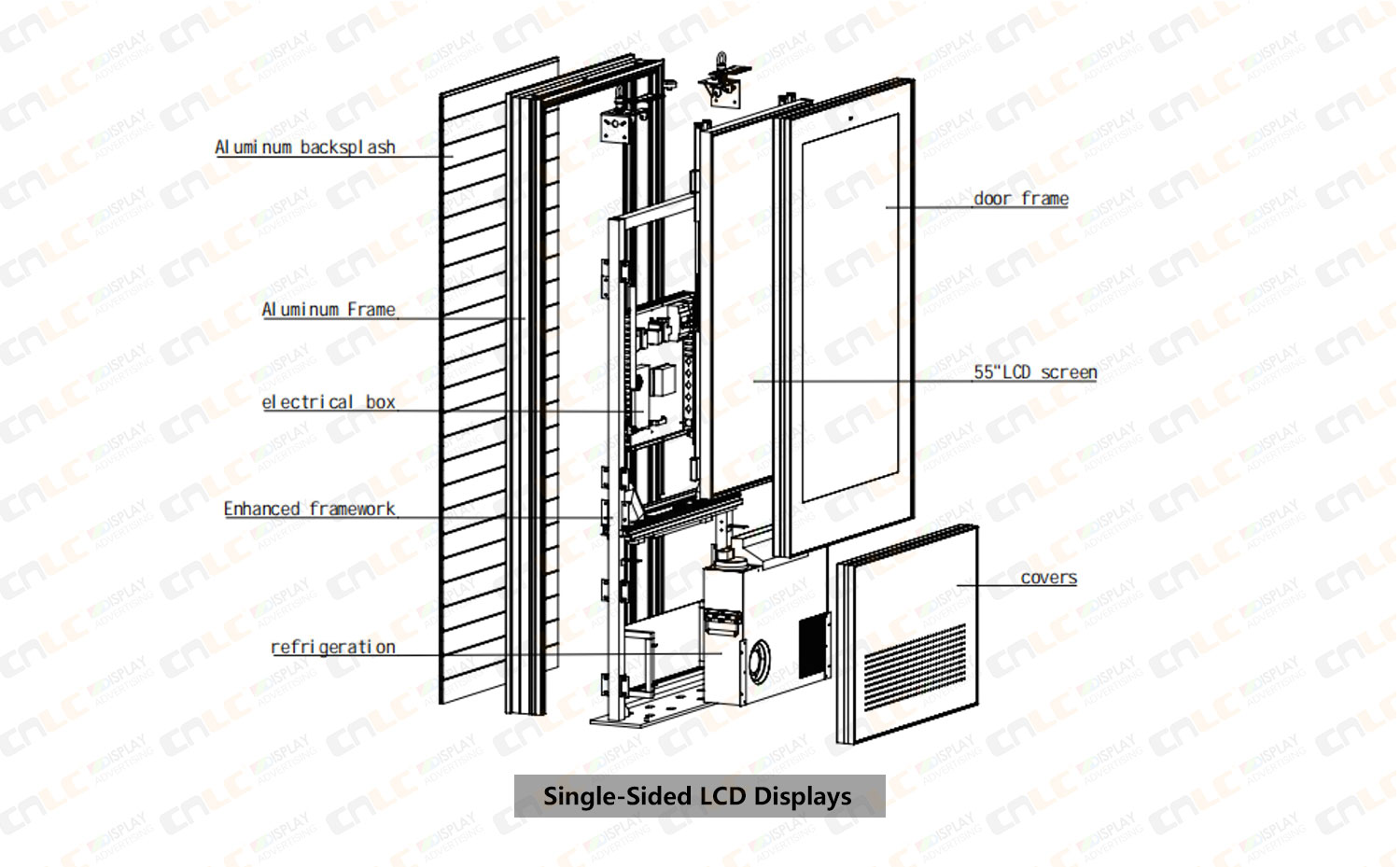

Exploded view available

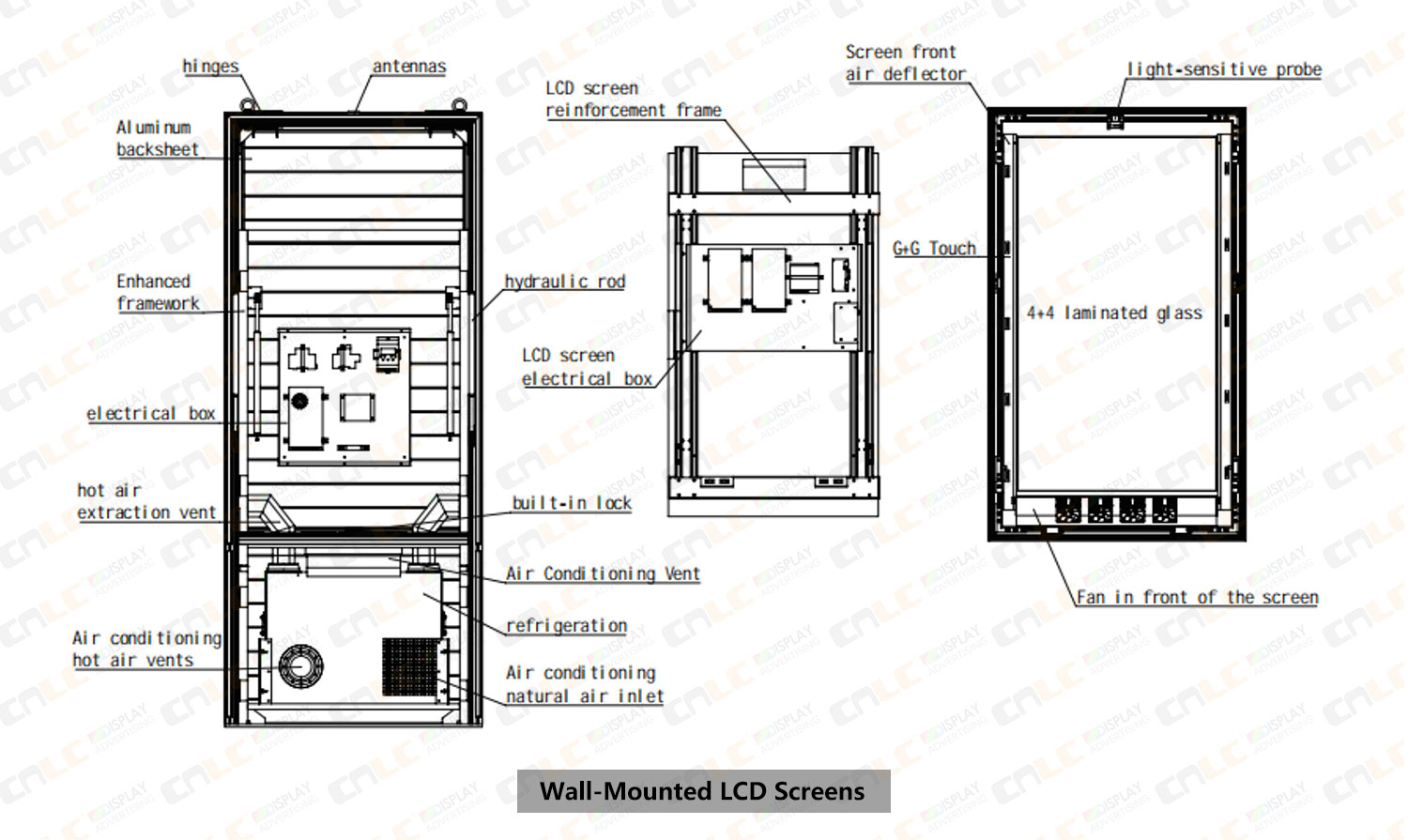

Model C – Wall-Mounted LCD Display

Slim profile, smart control.

Ideal for transportation hubs, building exteriors, and retail wall signage.

• ✅Available in 55"

• ✅High brightness 3500 nits for direct sunlight readability

• ✅Supports capacitive touch for interactive applications

• ✅Built-in smart temperature control system with air conditioning

• ✅Remote monitoring for real-time status and alerts

• ✅IP56-rated full aluminum housing, easy wall-mount installation

Cooling system shared with totem models

Exploded view available

Technical Specifications Overview

4. Installation & Maintenance

Each product is engineered for fast deployment and long-term serviceability.

• Modular cabinet structure enables tool-free installation and quick assembly on-site
• Mounting support options include wall brackets, ground anchor bolts, and AC power inlet integration

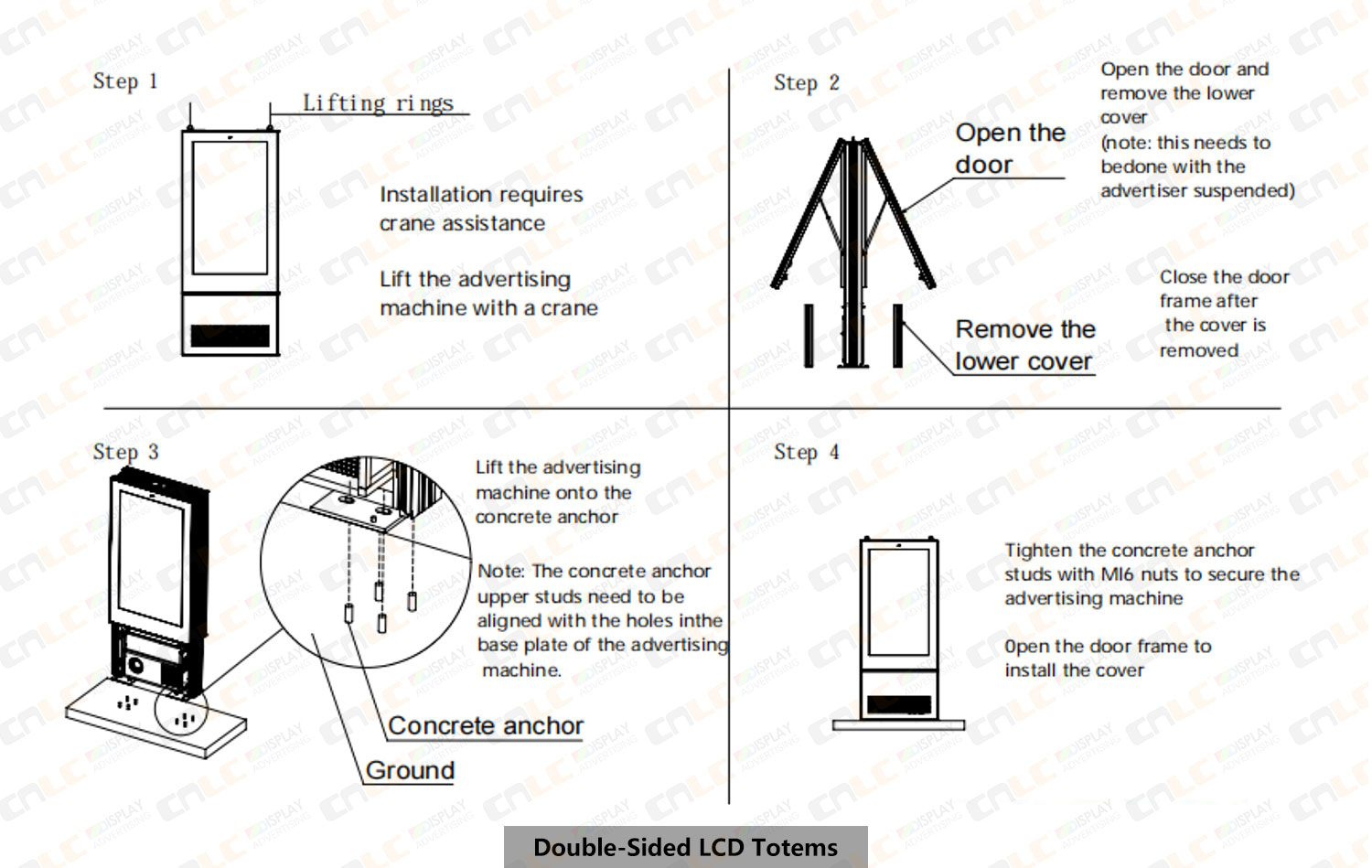

• Detailed installation drawings and concrete anchor guides are provided for all models
• Front-open maintenance access simplifies servicing of the LCD panel, cooling system, and internal electronics
• Customizable branding area allows client logos, color schemes, and language localization

Remote technical support and installation consultation available upon request

5. Fully Customized for Saudi Climate

Contact CNLC for Saudi Outdoor Display Projects

Over 200 successful installations in the Middle East
