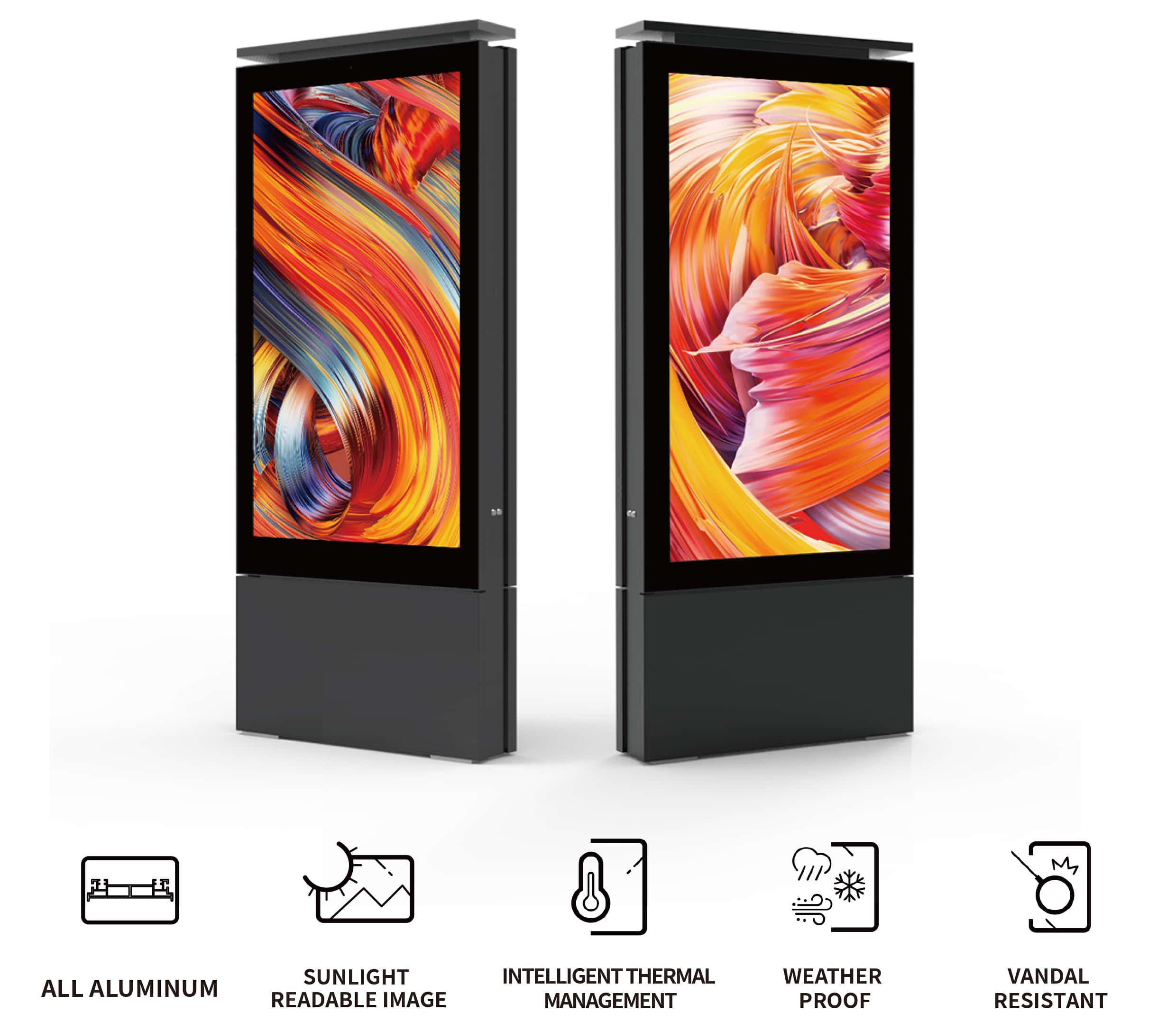

75 inch double-sided floor standing LCD outdoor digital signage, all aluminum housing, outdoor high brightness module, suitable for community, square, etc.
Item No :
75FL-ST150-ABSize :
1265*3000*274Brightness :
3500resolution ratio :
1920*1080/3840*2160Material :
Aluminum StructureColor :
Black / Silver / Grey / CustomWaterproof grade :
IP65Weight :
300kgOutdoor Digital Signage
75 inch Double-sided floor standing outdoor digital signage
All aluminum construction
Advertising machine shell all made of aluminum alloy, anti-corrosion and anti-rust
Automatic brightness adjustment
Automatic screen brightness adjustment according to the surrounding brightness
Remote sending of advertising screens
Send ad programs remotely from your phone/computer/tablet
All aluminum IP65 dustproof and waterproof case
Water and dust resistant structure can adapt to most extreme outdoor weather
Product Features
Specification
Display |
Panel Size |
55”/65”/75”86” |
| Resolution |
1920x1080/4K |
|
| LCD Manufacturer |
BOE/LG/AUO( Industrial grade panel, 105°C TN heat resistant panel, wide workingtemperature-30～+110°C) |
|
| Viewing angle |
89/89/89/89(L/R/U/D) |
|
| Contrast ratio |
1200:1 | |
| Brightness |
2500nits as standard (3500nits/4500nits can be customized) | |
| Aspect Ratio |
16:9 |
|
| Active Area |
805x 1430 mm |
|
| Operational Life Cycle-MTBF(hours) |
50K hours |
|
| Grey to Grey ResponseTime (ms) |
6Ms |
|
| Power | Input Voltage | AC110- 240±10%, 50/ 60 HZ |
| Leakage Protection | 30mA/0.15 | |
| Built-in Power Socket | 1 pCs (EU/US/UK/AU/Swiss Standard optional, more sockets are optional) | |
| Timer Switch | 1 pcs | |
| Max Power Consumption（w） | TBD | |
| Enclosure Material | Enclosure Material | Fully Aluminum Housing ( Anti-corrosion & rust-proof with 15 years lifetime) |
| Glass Type | 6mm tempered glass as standard | |
| 6mm Tempered glass as standard with Double side AR surface treatment with hightransparency, reducing reflection/ UVf IR (optional) | ||
| 6mm tempered glass with AG coating, anti-glare surface treatment reduce reflection(optional) | ||
| Double Laminated AR Glass 3mm+3mm is optional(optional) | ||
| Glass Characteristics | Transmissivity = 93%, Reflectivity < 2% | |
| Optical Bonding (Optional) | Tempered Glass & LCD Display&Touch optical bonding technology is optional | |
| Protection Grade | IP65&IK10 | |
| Thickness | 274mm | |
Emironrment |
Operating Environment |
Fully Outdoor for All Weathers |
| Operating Temp. |
10℃～+60°C | |
| Operating Humidity |
5%～98% | |
| Operating Altitude (m) |
≦2000 | |
| Built-in HDMIinput MonitorVideo Board |
HDMI input |
1 pcs, Support 1920*1080, 4K resolution is optional |
| Signal Output |
VoyOne or LVDS |
|
Free Remote Content Manage ent Software (ForAndroid only) |
Editing Playlist, timing, playback |
|
| Edit Multi Zones play different contents |
||
| One Video/image splicing to ultiple screens by software, no need for extra controller/matrix/HDMl splitter |
||
| Support live stream, URL, Youtube Video, PDF. WORD, TXT. etc |
||
| Remote Management by mobile, pC thru wif/lan network |
||
| Support 4K high-resolution video, Max uploading video 2GB, Max uploading image 20MB |
||
| Support Simple UsB sticker plug-play looping images/videos |
||
| Cloud base software is supported |
||
| Free of charge |
||
|
(Optional) |
Touch Type |
PCAP Touch |
| Touch Max Resolution |
4980*4980 |
|
| Transparency |
> 90%, up to 100% |
|
| Scanning Speed |
> 50s scans/s |
|
| Responsive Time |
<12ms |
|
| Touch Precision |
0.625mm |
|
| Minimnum Touch |
5mm |
|
| Cormmunication |
USB port |
|
|
Connectivity &Other |
Optional functions |
Heater |
| Camera/webcam |
||
| Customized external Sensor |
||
| AC air conditioner |
||
| Microphone |
||
| Emergency button |
||
65" vertical double-sided outdoor waterproof advertising machine, waterproof grade IP65, the outer frame is made of full aluminum alloy, 15 years anti-corrosion and anti-rust. The module adopts CNLC independent research and development of high brightness outdoor LCD module. Suitable for square/bus station/commercial street/airport.
