75-inch double-sided indoor LCD digital signage, HD module, all aluminum structure, commonly used in airports, subways, high-speed rail, shopping malls, etc.
Item No :
65FL-LT165-ABSize :
2102*965*145Brightness :
500-1500resolution ratio :
1920*1080Material :
Aluminum StructureColor :
Black / Silver / Grey / CustomWaterproof grade :
IP65Weight :
220kg
Indoor high brightness digital signage
75" Double-sided high brightness indoor LCD signage, air-cooled and noiseless
Ultra High Brightness
Higher brightness than the market advertising machine

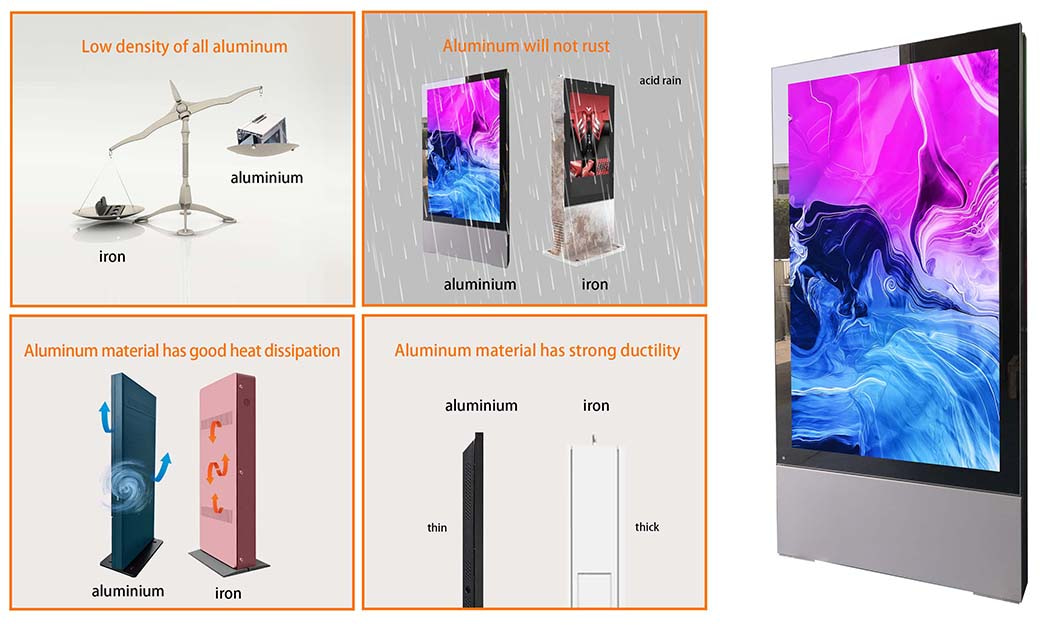

All aluminum construction
Advertising machine shell all made of aluminum alloy, anti-corrosion and anti-rust
Automatic brightness adjustment
Automatic screen brightness adjustment according to the surrounding brightness
Heat Dissipation
Heat exchange and heat dissipation system fully enclosed design
Remote sending of advertising screens
Send ad programs remotely from your phone/computer/tablet
Internal details
Specification
| Display |
Panel Size | 55”/65”/75”86” |
| Resolution | 1920x1080/4K | |
| LCD Manufacturer | BOE/LG/AUO( Industrial grade panel, 105°C TN heat resistant panel, wide workingtemperature-30～+110°C) | |
| Viewing angle | 89/89/89/89(L/R/U/D) | |
| Contrast ratio | 1200:1 | |
| Brightness | 700nits as standard (1500nits/2500nits can be customized) | |
| Aspect Ratio | 16:9 | |
| Active Area | 938x 1645mm | |
| Operational Life Cycle-MTBF(hours) | 50K hours | |
| Grey to Grey ResponseTime (ms) | 6Ms | |
| Power |
Input Voltage | AC110- 240±10%, 50/ 60 HZ |
| Leakage Protection | 30mA/0.1S | |
| Built-in Power Socket | 1 pCs (EU/US/UK/AU/Swiss Standard optional, more sockets are optional) | |
| Timer Switch | 1 pes | |
| Max Power Consumption（W) | TBD | |
| Endosure Material |
Enclosure Material | Fully Aluminum Housing ( Anti-corrosion &. rust-proof with 15 years lifetime) |
| Glass Type | 6mmm tempered glass as standard | |
| 6mm Tempered glass as standard with Double side AR surface treatment with hightransparency, reducing reflection/ UV/IR (optional) | ||
| 6mmn ternpered glass with AG coating, anti-glare surface treatrent reduce reflection(optional) | ||
| Double Laminated AR Glass 3mm+3mr is optional (optional) | ||
| Glass Characteristics | Transmmissivity > 93%, Reflectivity < 2% | |
| Optical Bonding (Optional) | Tempered Glass & LCD Display&Touch optical bonding technology is optional | |
| protection Grade | Not waterproof | |
| Thickness | 175mm | |
Emironrment |
Operating Environment |
Fully Outdoor for All Weathers |
| Operating Temp. |
-30℃～+1110°C |
|
| Operating Humidity |
5%～98% |
|
| Operating Altitude (m) |
≦2000 |
|
| Built-in HDMIinput MonitorVideo Board |
HDMI input |
1 pcs, Support 1920*1080, 4K resolution is optional |
| Signal Output |
VoyOne or LVDS |
|
| Free Remote ContentManage ent Software (ForAndroid only) |
Editing Playlist, timing, playback | |
| Edit Multi Zones play different contents | ||
| One Video/image splicing to ultiple screens by software, no need for extra controller/matrix/HDMl splitter | ||
| Support live stream, URL, Youtube Video, PDF. WORD, TXT. etc | ||
| Remote Management by mobile, pC thru wif/lan network | ||
| Support 4K high-resolution video, Max uploading video 2GB, Max uploading image 20MB | ||
| Support Simple UsB sticker plug-play looping images/videos | ||
| Cloud base software is supported | ||
| Free of charge | ||
| PCAP TouchScree(Optional) |
Touch Type | PCAP Touch |
| Touch Max Resolution |
4980*4980 |
|
| Transparency |
> 90%, up to 100% |
|
| Scanning Speed |
> 50s scans/s |
|
| Responsive Time |
<12ms |
|
| Touch Precision |
0.625mm |
|
| Minimnum Touch |
5mm |
|
| Cormmunication |
USB port |
|
Media & Connectivity&Other |
Optional functions |
Heater |
| Camera/webcam |
||
| Customized external Sensor |
||
| AC air conditioner |
||
| Microphone |
||
| Emergency button |
||
