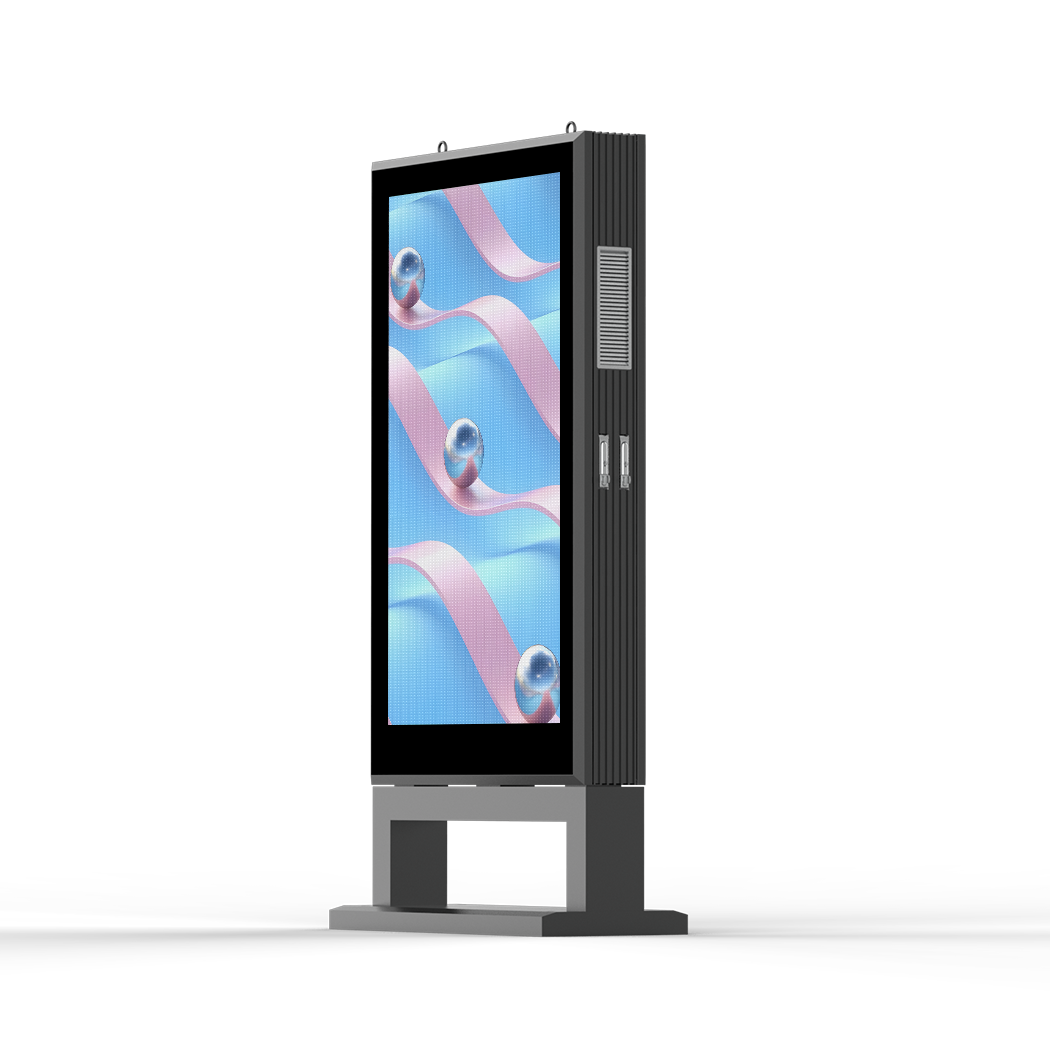

This double-sided LED billboard features side-opening doors for easy maintenance. Its aluminum shell is corrosion-resistant, and it boasts a high brightness of 4000 nits. The P2-grade LED display ensures sharp, high-quality visuals, making it an ideal solution for diverse outdoor advertising needs.
Item No :
CNLC-ED-SC0303Size :
CustomizeBrightness :
5000 cd/m2resolution ratio :
SMDMaterial :
Aluminum StructureColor :
Black / Silver / Grey / CustomizeWaterproof grade :
IP56
Experience Simplified Maintenance
◆ Unveiling Our LED Billboard with User-Friendly Side-Opening Design for Effortless Operation and Convenience
P2 LED Screen
◆ Elevating Visuals with Full-Color Fine Pixel Pitch in Our LED Billboard
All-aluminum structure, corrosion resistance, beautiful
◆ Oxidation protective layer: An oxide film is easily formed on the surface of aluminum metal. This oxide film can provide a protective layer to prevent further corrosion.
More Feature:
Temperature control
Intelligent Air Cooling System
◆ The efficient air cooling system makes air curtain in front of the surface of LED screen, and bring out the heat from the LED panel. The LED panel withstand high temperature up to 110 degrees.
◆ That’s the powerful performance of our exterior LED digital totem.
Waterproof
IP Rating Protection
IP rating protecting grade to make sure the exterior Totem LED is available for different outdoor applications.Prevent from water and sand.
TECHNICAL SPECIFICATIONS
Pixel Pitch(mm) | 2.5mm | 3.076mm |
4mm |
Module resolution | 128*64 | 104*52 | 80*40 |
Module size (mm) | 320*160 | ||
Density (points/m²) | 160000 | 105625 | 62500 |
Scan method | 1/16scan | 1/13scan | 1/10scan |
Material of Frame and Support Structural | Aluminum profile and steel frame | ||
Cooling system | Build in cooling fans | ||
Embedded heater | Optional | ||
Media update | Remote control (LAN and WIFl) | ||
Operating Ambient Temperature | -20℃~+60℃ | ||
Waterproof level | IP56 | ||
Maintenance method | Back | ||
Refresh frequency (Hz) | 3840 | ||
Brightness(nits) | 5000 | ||
Viewing angle (horizontal/vertical) | 170°/170°±5° | ||
Contrast Ratio | 4000:1 | ||
Power consumption(w/m²) | 684 | 895 | 645 |
