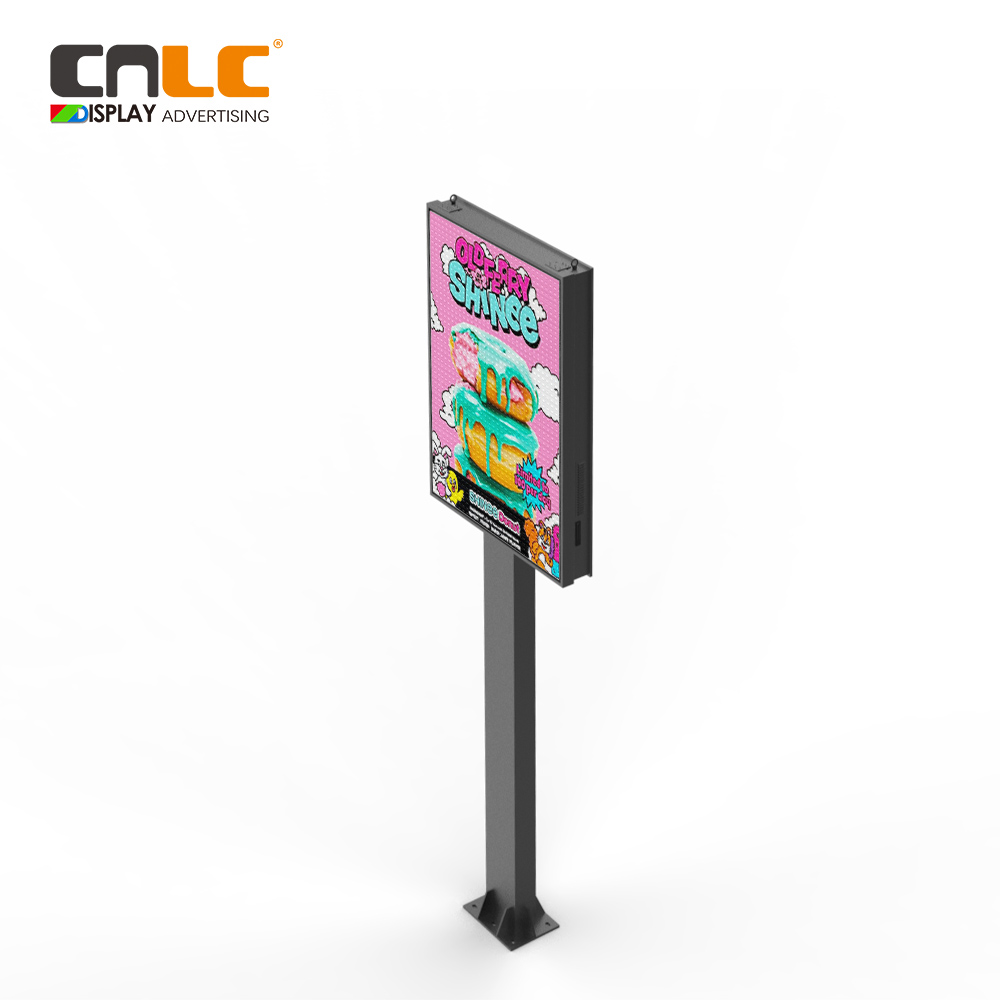

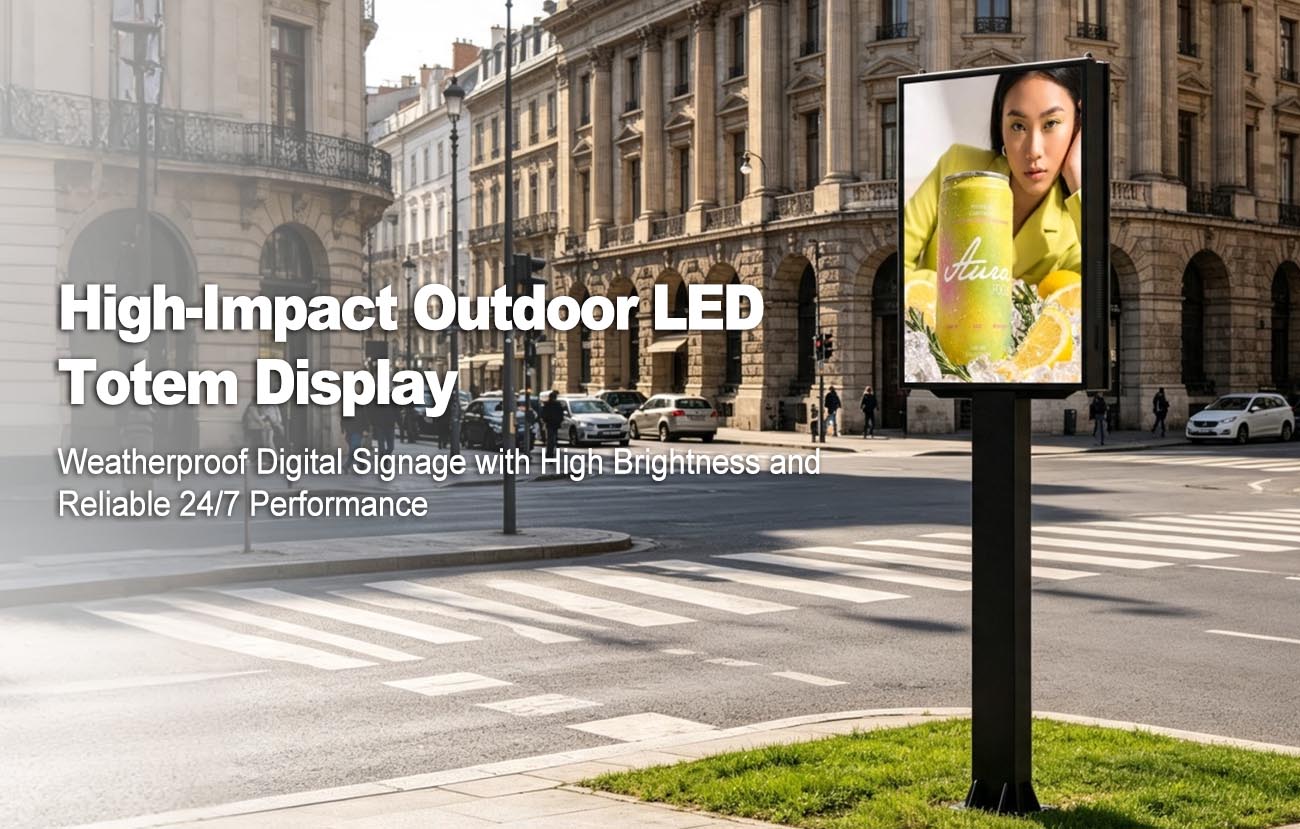

Our lP56-rated outdoor LED display features a durable aluminum structure and an anti-glaredesign without glass, effectively minimizing reflections. Easy to maintain, it excels in variousoutdoor environments, offering water resistance and reliable performance. ldeal for highwaydisplays and smart city billboards.
Item No :
CNLC-ED-SM0506Size :
CustomizeBrightness :
5000 cd/m²resolution ratio :
SMDMaterial :
Aluminum StructureColor :
Black / Silver / Grey / CustomizeWaterproof grade :
IP65
Glassless Cover Design
This LED digital billboard display employs a glass-free design, fundamentally eliminating screen glare issues to ensure a clearer viewing experience. Furthermore, the absence of a glass cover enables faster heat dissipation, maintaining the device at stable operating temperatures and extending its lifespan. As a result, users benefit from a more reliable and enduring advertising display solution.
Brilliant Displays with NationStar LEDs
CNLC's LED digital display panels use NationStar LEDs, whichoffer outstanding brightness and precise color accuracy,ensuring excellent visual effects. Their superior weatherresistance allows for long-term stable performance evenoutdoors. The low power consumption design saves energy,and the long lifespan significantly reduces maintenance costs,enhancing the overall user experience.

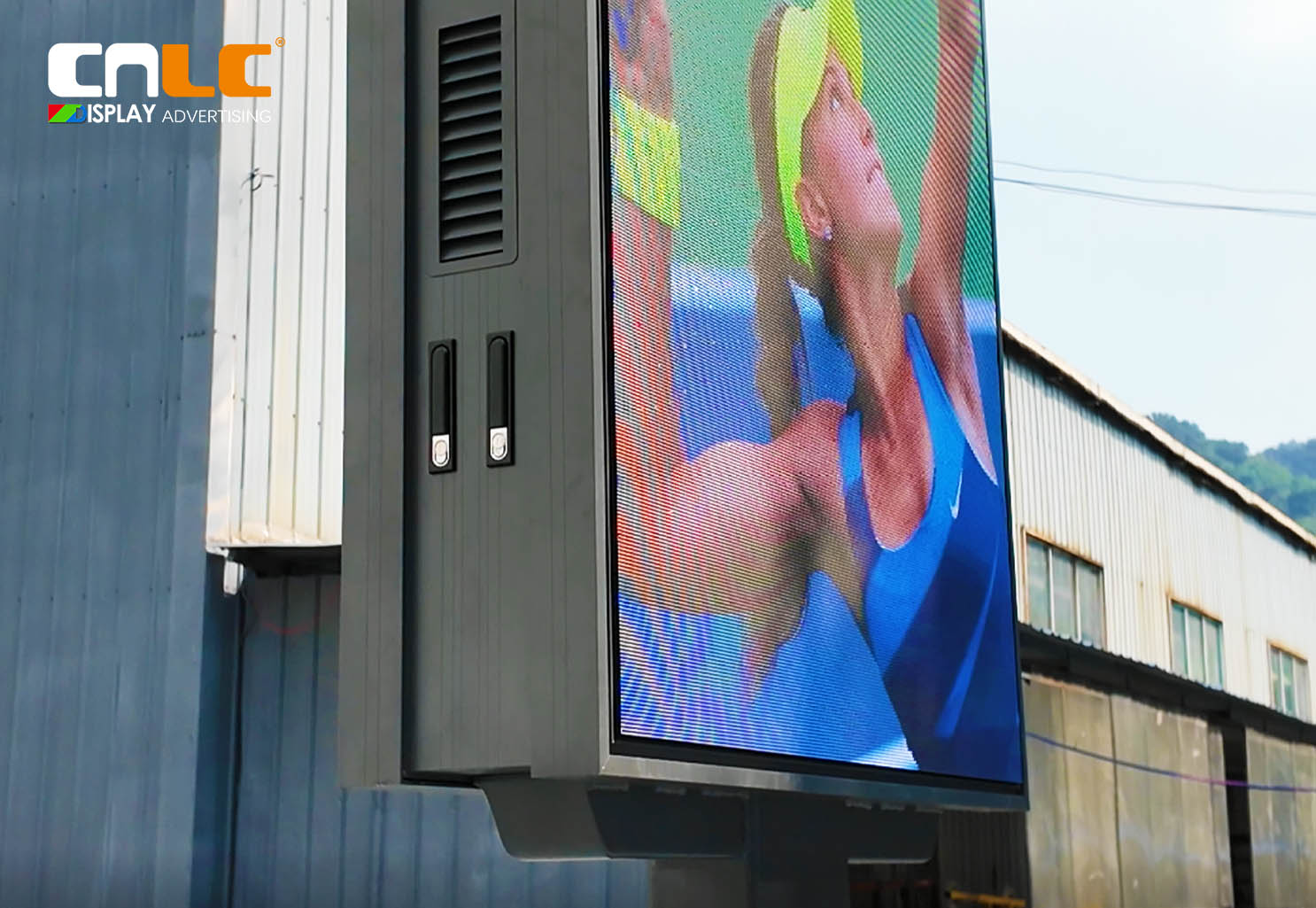

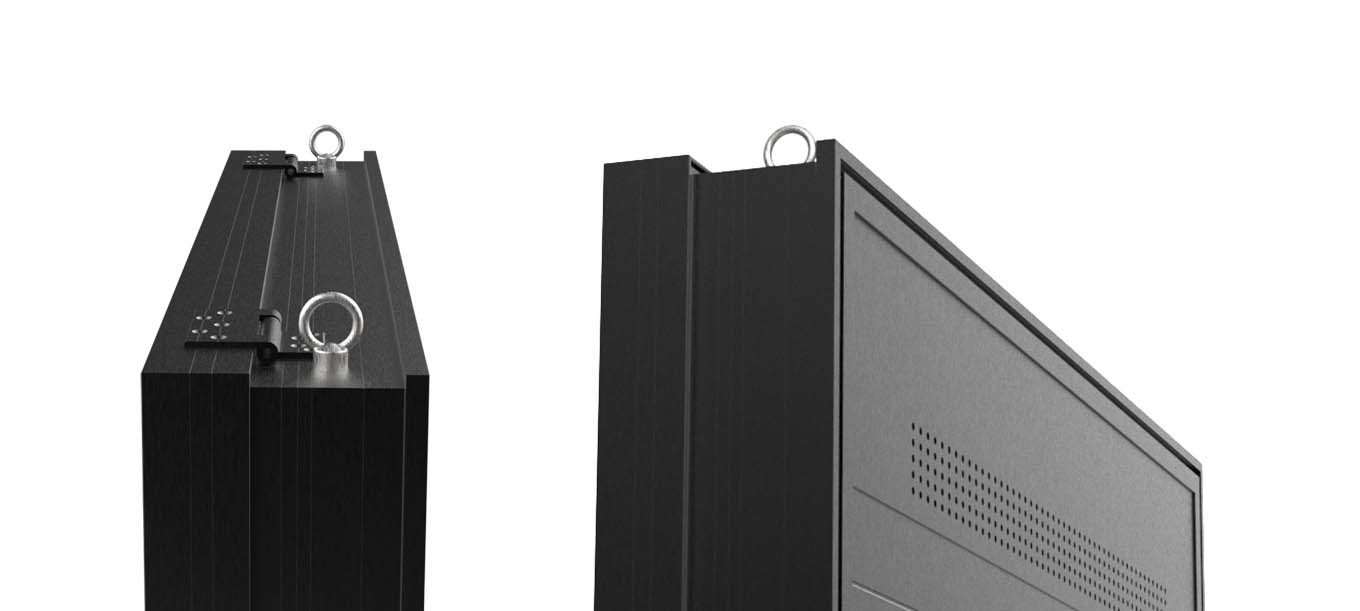

Excellent Thermal Conductivity
The aluminum profile cabinet has excellent thermal conductivity. In the summer, the heat generated by the machine can be quickly transferred to the outside through the aluminum cabinet. With CNLC's efficient air cooling system, the internal temperature of the advertising display can be kept consistent with the external environment temperature.
IP56 LED Display
With an lP56 rating, CNLC's LED Billboard is ideal for outdoor applications, providing robust protection against water, dust, rain, moisture,and sand, ensuring durability in challenging environments.

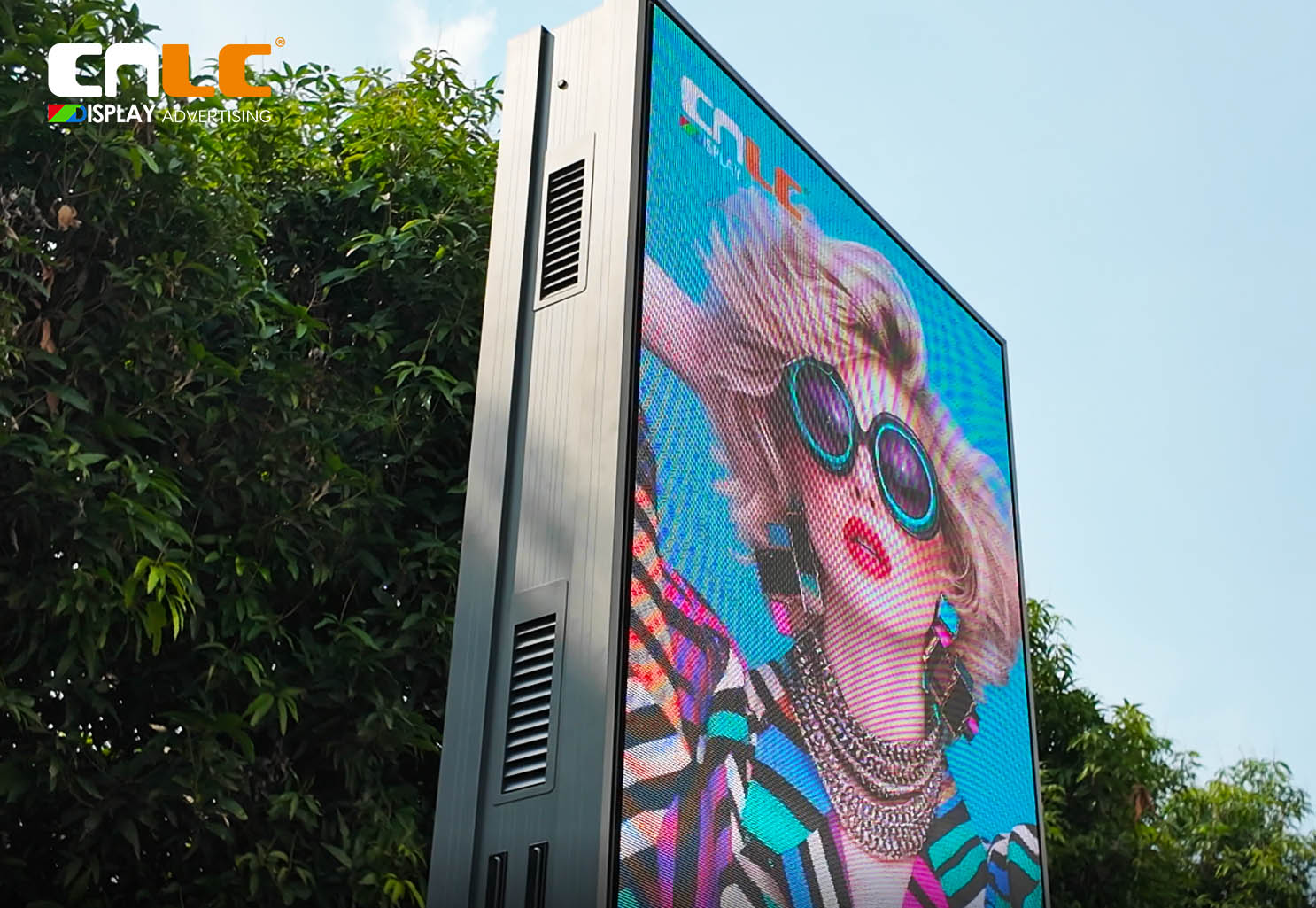

Ultra-Thin Screen Bezel
With a sleek screen bezel, this product offers a minimalistic design that maximizes the viewing area and enhances visual impact. The slim frame ensures a seamless display presentation, providing viewers with an immersive and distraction-free experience.
Pixel Pitch(mm) | 3.076mm |
4mm | 5mm |
Module resolution | 104*52 | 80*40 | 64*32 |
Module size (mm) | 320*160 | 320*160 | |
Density (points/m²) | 111111 | 62500 | 40000 |
Scan method | 1/16scan | 1/10scan | 1/8scan |
Waterproof level | IP65 | ||
Maintenance method | Back service | ||
Refresh frequency (Hz) | 3840 | ||
Brightness(nits) | 5000/8500 | ||
Viewing angle (horizontal/vertical) | 140°/140°±5° | ||
Contrast Ratio | 4000:1 | ||
Avg. Power consumption(w/m²) | 352 | 323 | 372 |
