Yes — a high-quality outdoor LCD display can withstand direct sunlight if it passes standardized IR radiation testing, such as 800 W/m² exposure for 8 hours under IEC 60068-2-5.
Displays that meet this standard can operate reliably even in harsh outdoor environments like deserts and high-temperature urban areas.
Outdoor environments are far more demanding than indoor conditions. The primary challenge is not brightness, but heat buildup caused by infrared (IR) radiation.

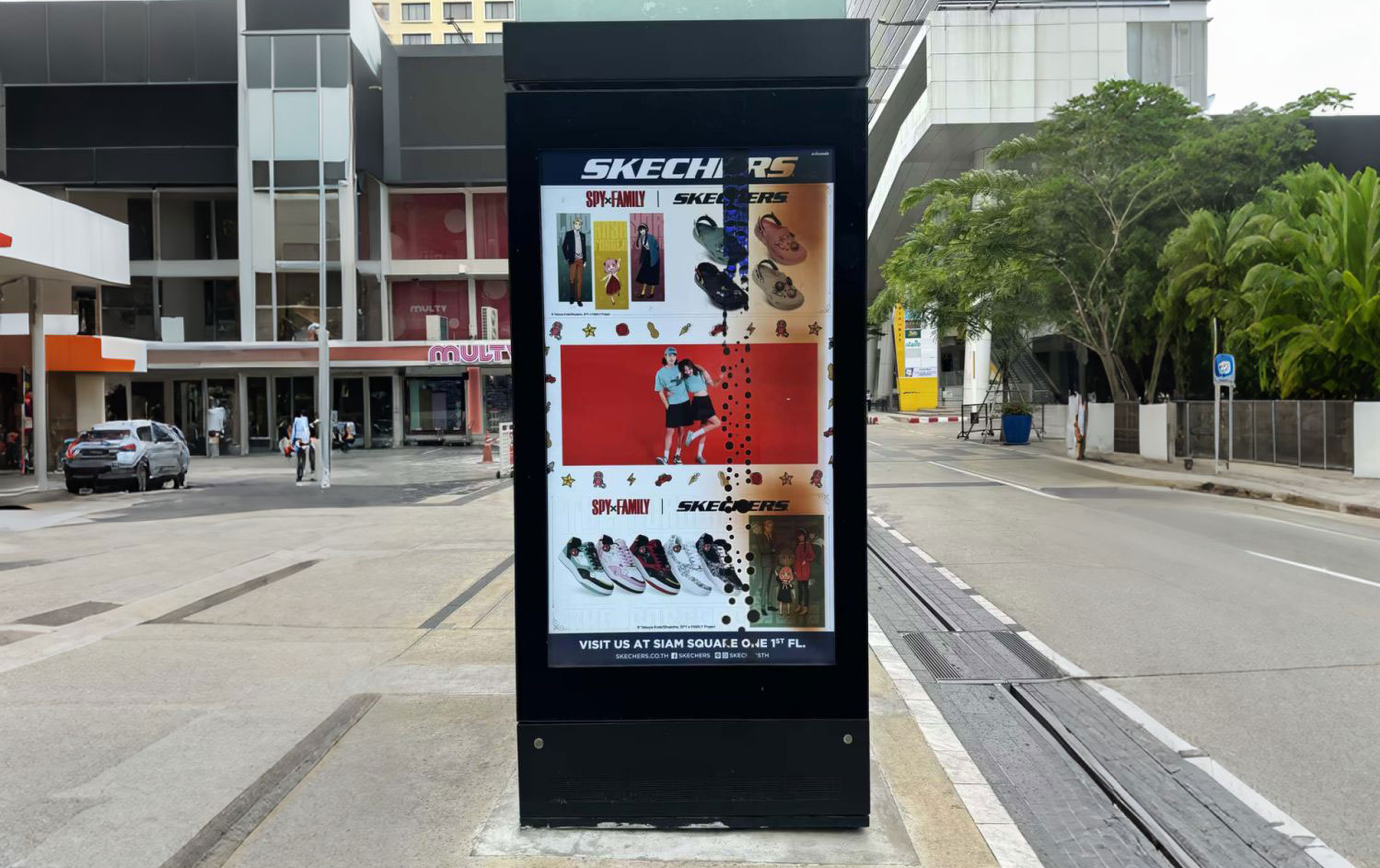

Under prolonged sun exposure, low-quality displays may experience:
Test Objective:
This test aims to validate the ability of a 55-inch high-brightness LCD display to withstand intense solar radiation and ensure long-term stable operation.

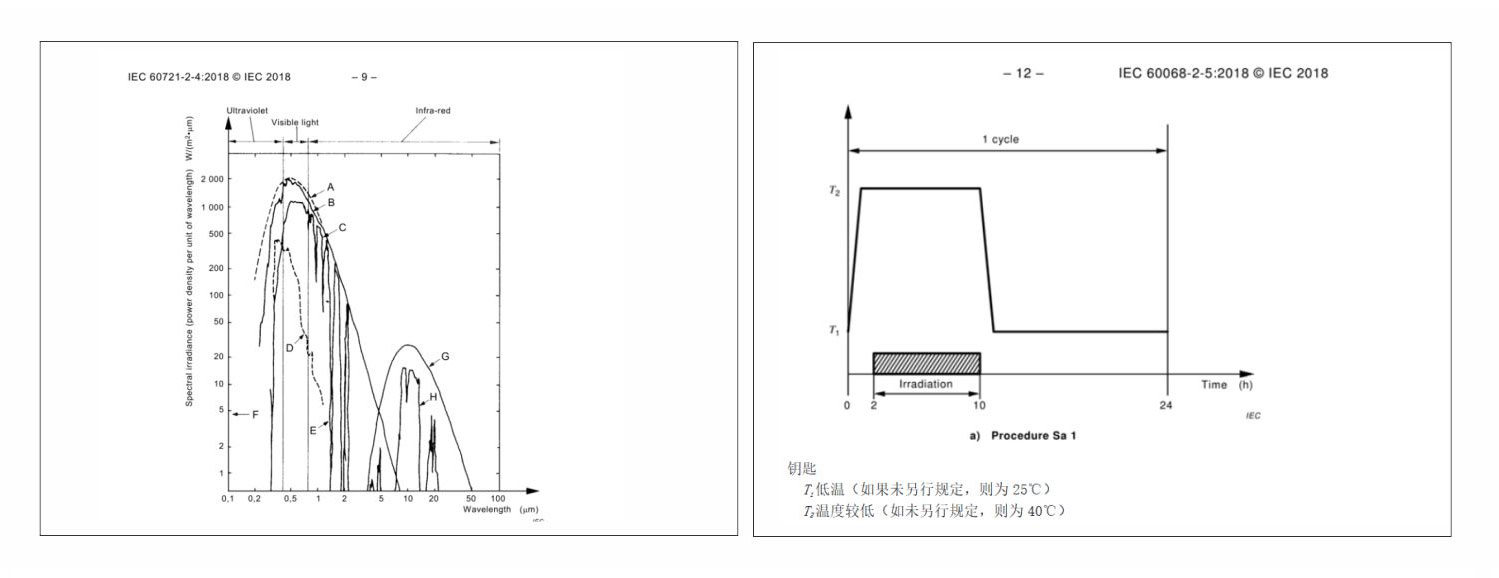

According to the IEC 60068-2-5:2018 standard, the solar spectrum at ground level is distributed as follows:
| Spectrum Band | Wavelength (nm) | Energy Share | Impact |
| UVB | 300–320 | 0.4% | Material aging |
| UVA | 320–400 | 6.4% | Panel degradation |
| Visible Light (VL) | 400–800 | 55.4% | Brightness |
| Infrared (IR) | 800–2450 | 37.8% | Heat buildup |
Key Insight:
Infrared radiation accounts for nearly 38% of total solar energy, making it the primary cause of overheating in outdoor displays.
| Environment | Solar Radiation (W/m²) |
| Urban areas | 700–1050 |
| Flat terrain | 750–1120 |
| Desert / high altitude | up to 1180 |
The test condition of 800 W/m² represents a realistic and rigorous simulation covering most global outdoor environments.

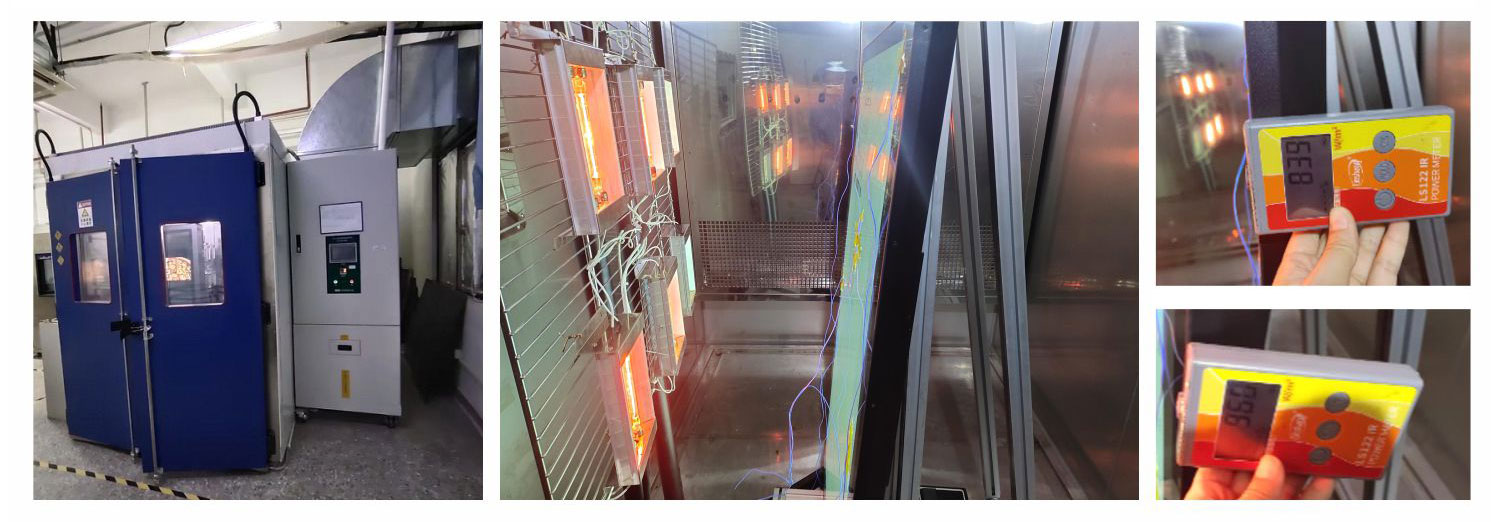

| Equipment | Description | Specification |
| IR Radiation Chamber | Infrared oven | Size: 2.4m × 2m × 2.4m, IR1400nm source, stable 800±10% W/m² output |
| IR Power Meter | Linshang LS122 | Range: 0–40000 W/m², accuracy ±10% |
| Temperature Monitoring | Uxcell K-type thermocouples (6 channels) | Accuracy ±0.1°C, multi-point measurement |
The tested unit was randomly selected from mass production, and the results are representative of the overall product performance.

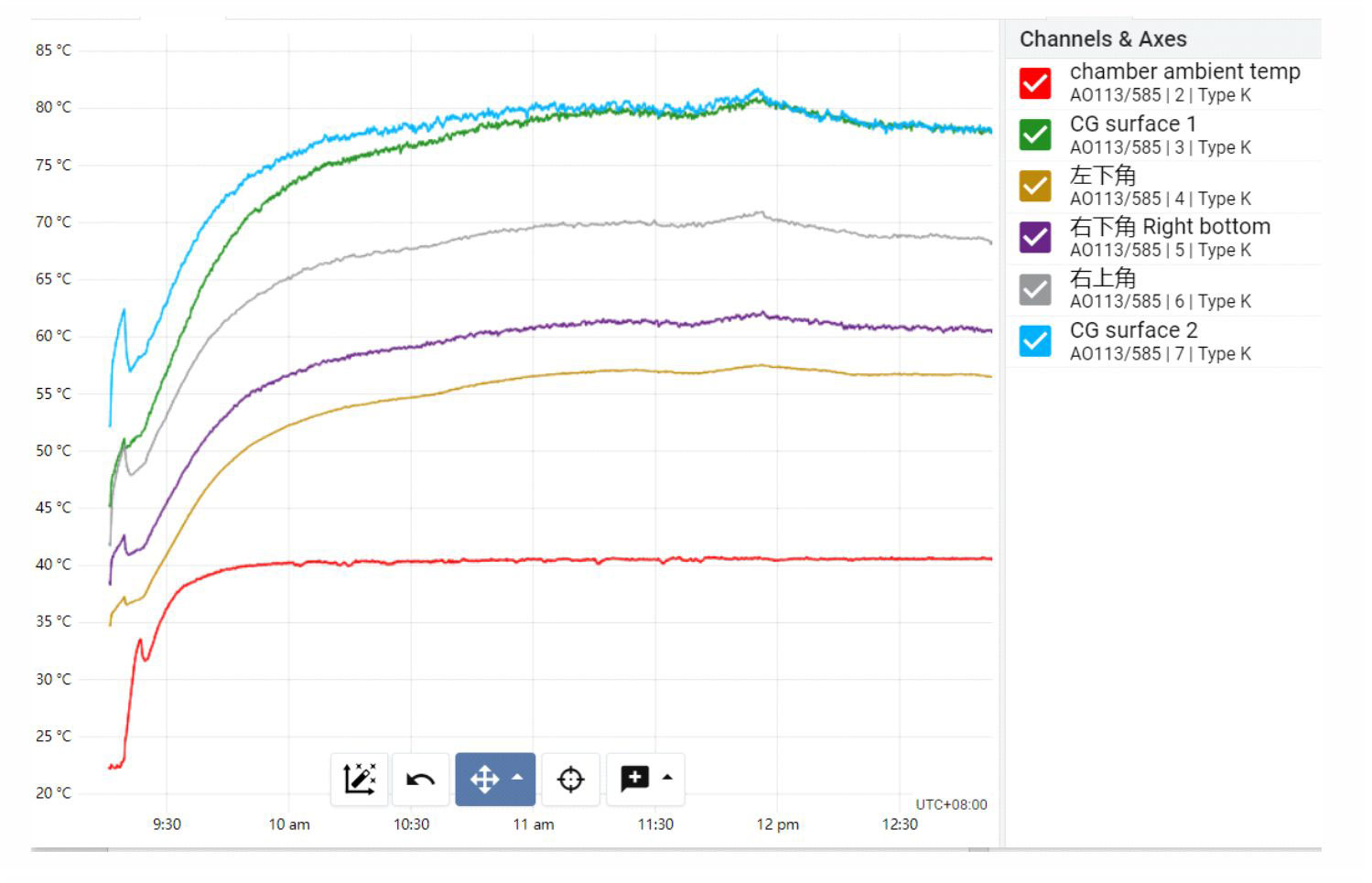

Temperature data from six monitoring points show:
A natural temperature gradient from center to edges is observed, with no localized overheating, confirming an effective thermal management design.

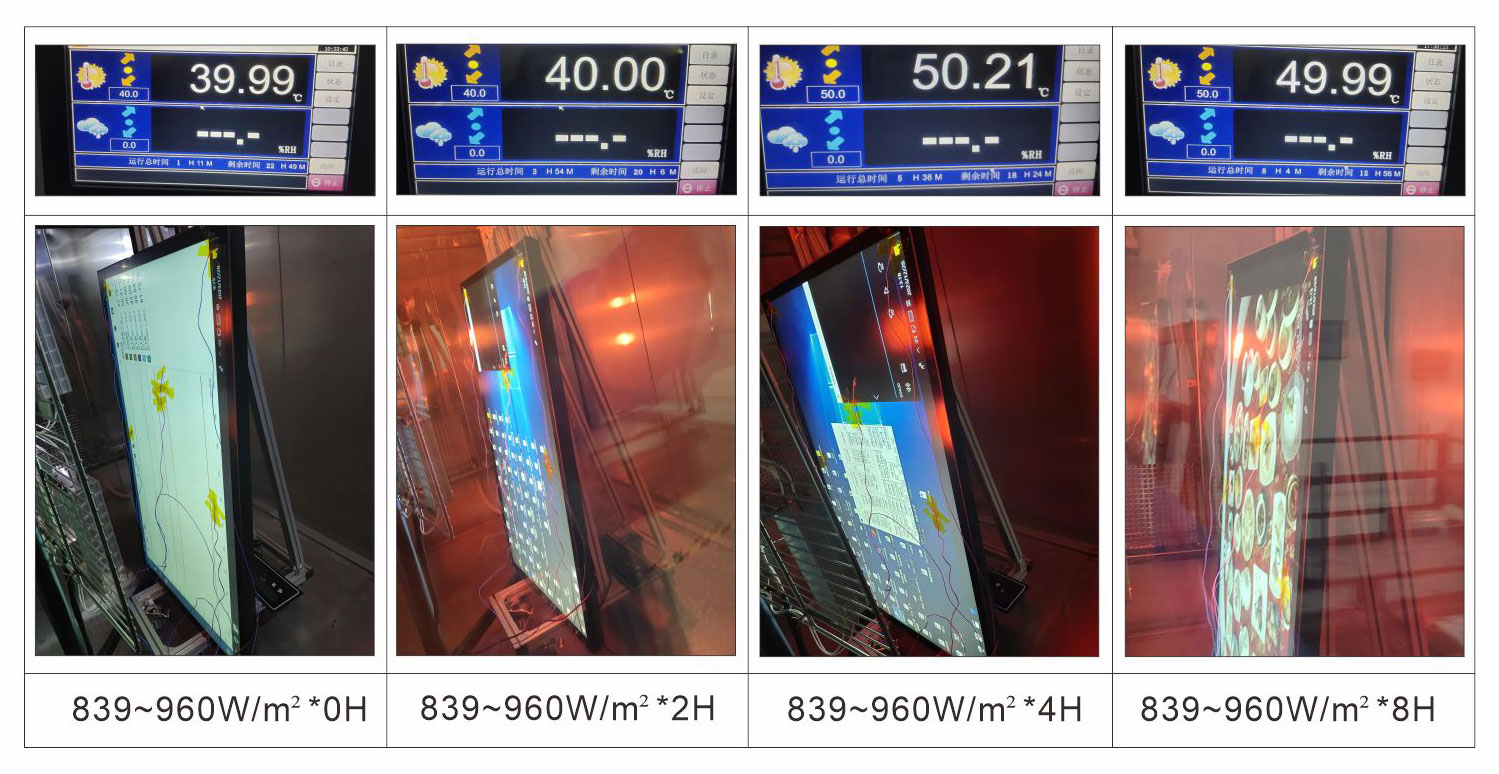

| Time | Ambient Temp | IR Intensity | Display Status |
| 0h | 40°C | 839–960 W/m² | Normal, no defects |
| 2h | 40°C | 839–960 W/m² | Stable, no yellowing |
| 4h | 40°C | 839–960 W/m² | No heat concentration |
| 8h | 50°C | 839–960 W/m² | Fully stable, no damage |
The peak radiation reached 960 W/m², exceeding the standard requirement, yet the display remained fully operational.
This demonstrates a strong thermal safety margin in the product design.
Typical Applications:
When selecting an outdoor LCD display, ensure:
Without these, “outdoor display” may be just a marketing claim.
CNLC outdoor displays are engineered for real-world environments:
Explore CNLC outdoor LCD displays
https://www.cnlcdisplay.com/
Contact us for project consultation and quotation.
Can LCD displays be used in direct sunlight?
Yes, but only if they are specifically designed for outdoor use and pass IR radiation testing such as 800 W/m² exposure.
What does 800 W/m² mean?
It represents solar radiation intensity and is considered a realistic and demanding outdoor condition.
Why do outdoor displays fail under sunlight?
Primarily due to heat buildup caused by infrared radiation.
How do outdoor displays prevent overheating?
Through thermal management systems, aluminum structures, and optimized heat dissipation design.
