Outdoor digital signage often operates continuously under harsh conditions, including direct sunlight, high temperatures, wind, and rain. Strong sunlight remains one of the biggest pain points for outdoor display selection.
Many advertising operators and system integrators using outdoor LCDs frequently encounter issues such as dark spots, localized blackening, uneven brightness, and high-temperature system crashes. These failures push up maintenance costs and disrupt ad playback stability.
Optimizing LCD thermal design, enclosure protection, and panel selection can ease some faults. Even so, many site owners need to evaluate alternative display technologies. MiP LED (Micro LED in Package) has emerged as a practical option for fine-pitch outdoor signage projects.
An outdoor LCD is built with stacked layers: backlight module, liquid crystal layer, polarizer, and optical films. When exposed to midday direct sunlight, multiple failure risks gradually surface.

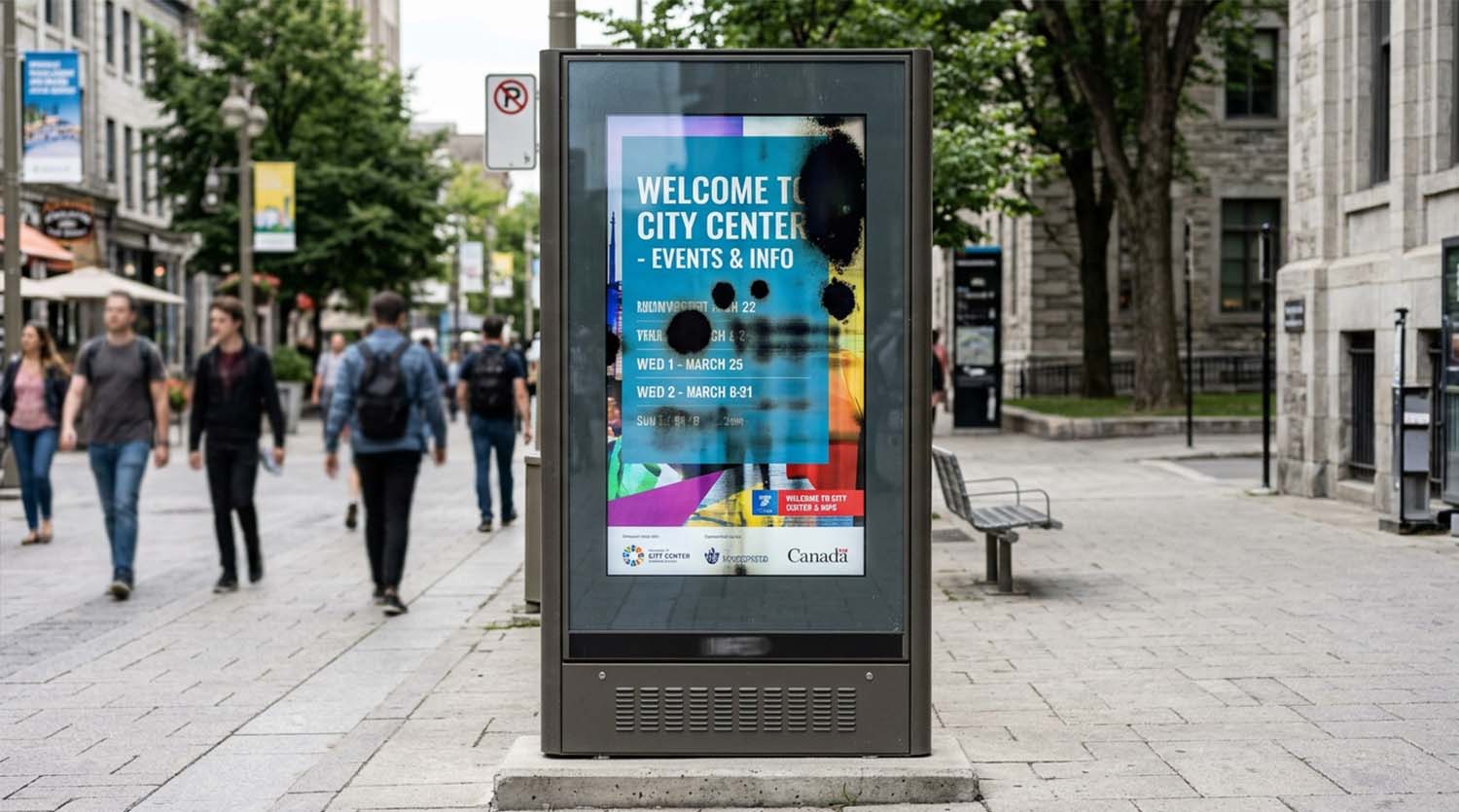

Dark spots and localized blackening are the most common symptoms. Root causes include polarizer aging, warping or delamination, thermal separation of backlight films, abnormal liquid crystal cell behaviour, and permanent panel damage. Combined UV radiation and sustained high heat accelerate this aging process. Not all dark spots stem from sunlight. On-site inspection and operational log review are required to pinpoint the exact cause.
Uneven brightness develops from combined thermal load from internal electronics and solar radiation. Non-uniform heat distribution speeds up degradation of optical components, creating inconsistent light and dark patches that hurt visual performance.
High-temperature overload is another major risk. Sunlight heats the front panel and enclosure, while the backlight board, power supply and driver circuits generate heat internally. Cumulative heat can push component temperatures beyond rated limits. Poor thermal management accelerates aging and may trigger unexpected shutdowns or reboots.
These faults almost always require on-site service, panel replacement or backlight assembly swaps. For multi-site advertising networks, recurring failures bring ongoing downtime losses, labour fees and spare-part expenses that erode project returns.
One critical note: high brightness only improves visibility under bright ambient light. It cannot resolve the fundamental thermal aging issues affecting polarizers, backlight structures and liquid crystal layers.
Sunlight impacts LCD performance on two fronts: extra thermal loading and high ambient-light visibility pressure.

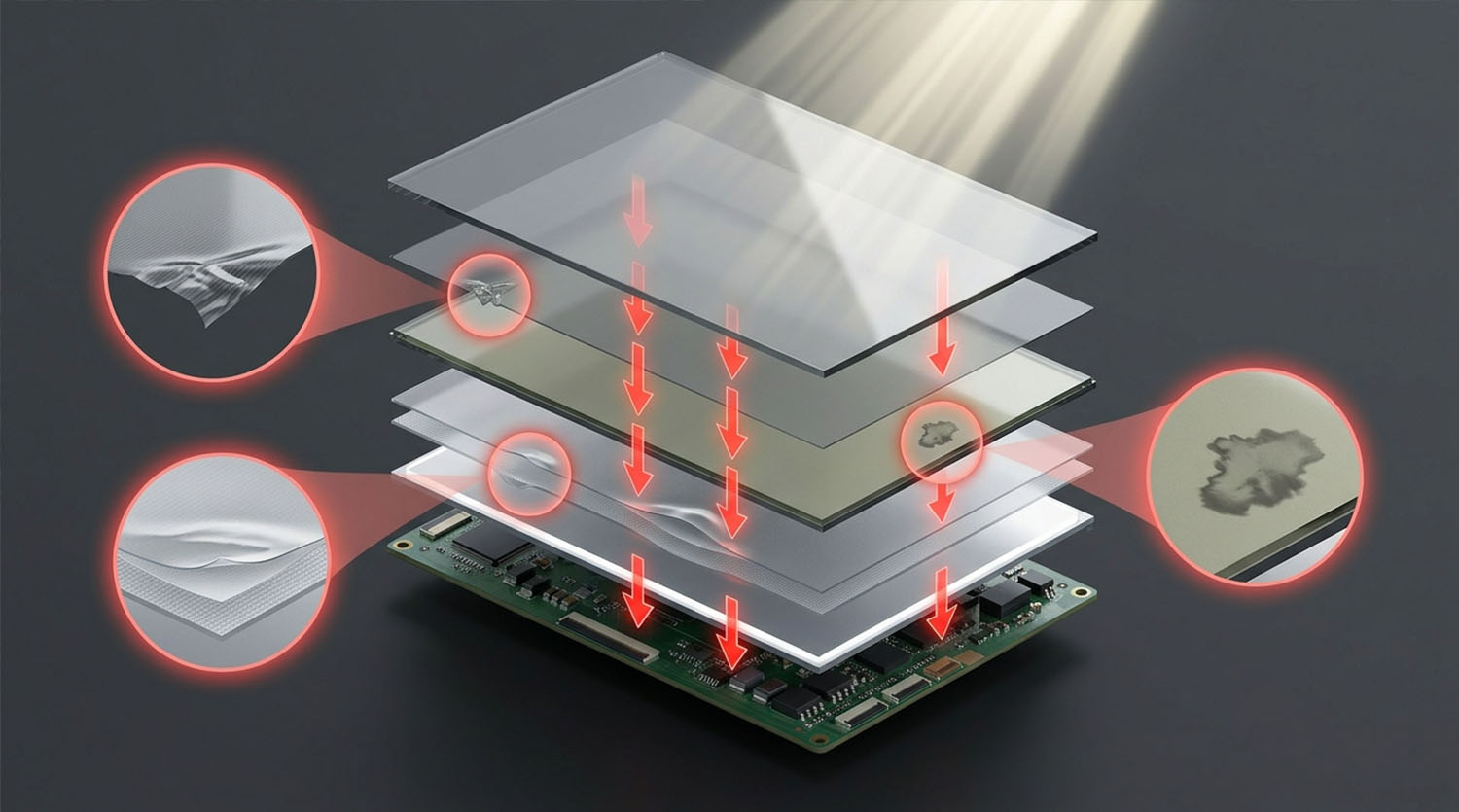

Solar radiant heat is absorbed by the front surface and cabinet, then conducts inward through the stacked optical layers. Under prolonged UV and high-temperature exposure, polarizers tend to warp, peel and delaminate, forming permanent dark patches. Liquid crystal cells lose stable alignment when overheated. Backlight films deform and separate. Passive components such as capacitors and driver chips also degrade faster.
This cascading damage explains the higher failure rate of outdoor LCDs on sun-exposed installations. If a site repeatedly suffers identical faults, simply replacing the unit with an identical LCD will likely lead to the same failure cycle.
MiP (Micro LED in Package) is an LED packaging technology with a core working principle distinct from LCDs. LCDs rely on a backlight shining through liquid crystal and optical layers. MiP LED uses pixel-level self-emission, with no liquid crystal panel, polarizer or backlight module required.
Thanks to its self-emissive design, MiP LED delivers natural advantages over LCDs in power control, peak brightness and colour reproduction. It has become a highly competitive route for fine-pitch outdoor signage. This architecture removes the key failure sources common to LCDs: polarizer degradation, backlight malfunctions and liquid crystal panel thermal damage.

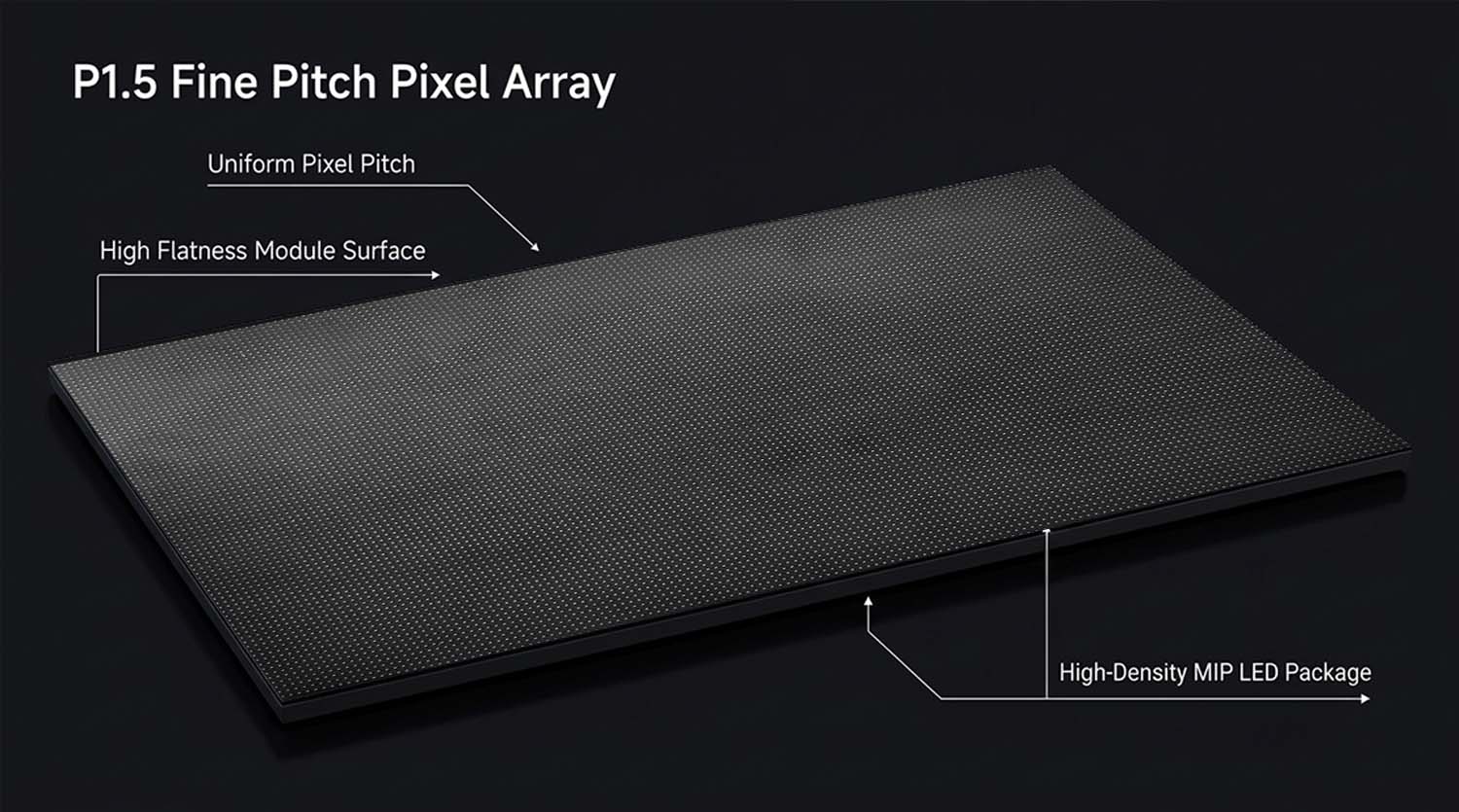

Fine-pitch LED still carries inherent challenges before it can serve as a viable replacement. Historically, LED displays suffered from noticeable graininess at close viewing distances. Modern fine-pitch MiP technology changes this. Outdoor MiP LED at P1.5 and finer pitches delivers far higher pixel density. Within its target viewing distance, image clarity can match outdoor LCD performance, making it suitable for deployments requiring close viewing and sharp visual output.
Cost is the most significant current bottleneck. Fine-pitch designs also demand robust thermal management to handle elevated heat density. Consistent long-term reliability in harsh outdoor environments is where CNLC builds its core competitive edge. Beyond adopting MiP packaging, we invest heavily in engineered design and quality control:

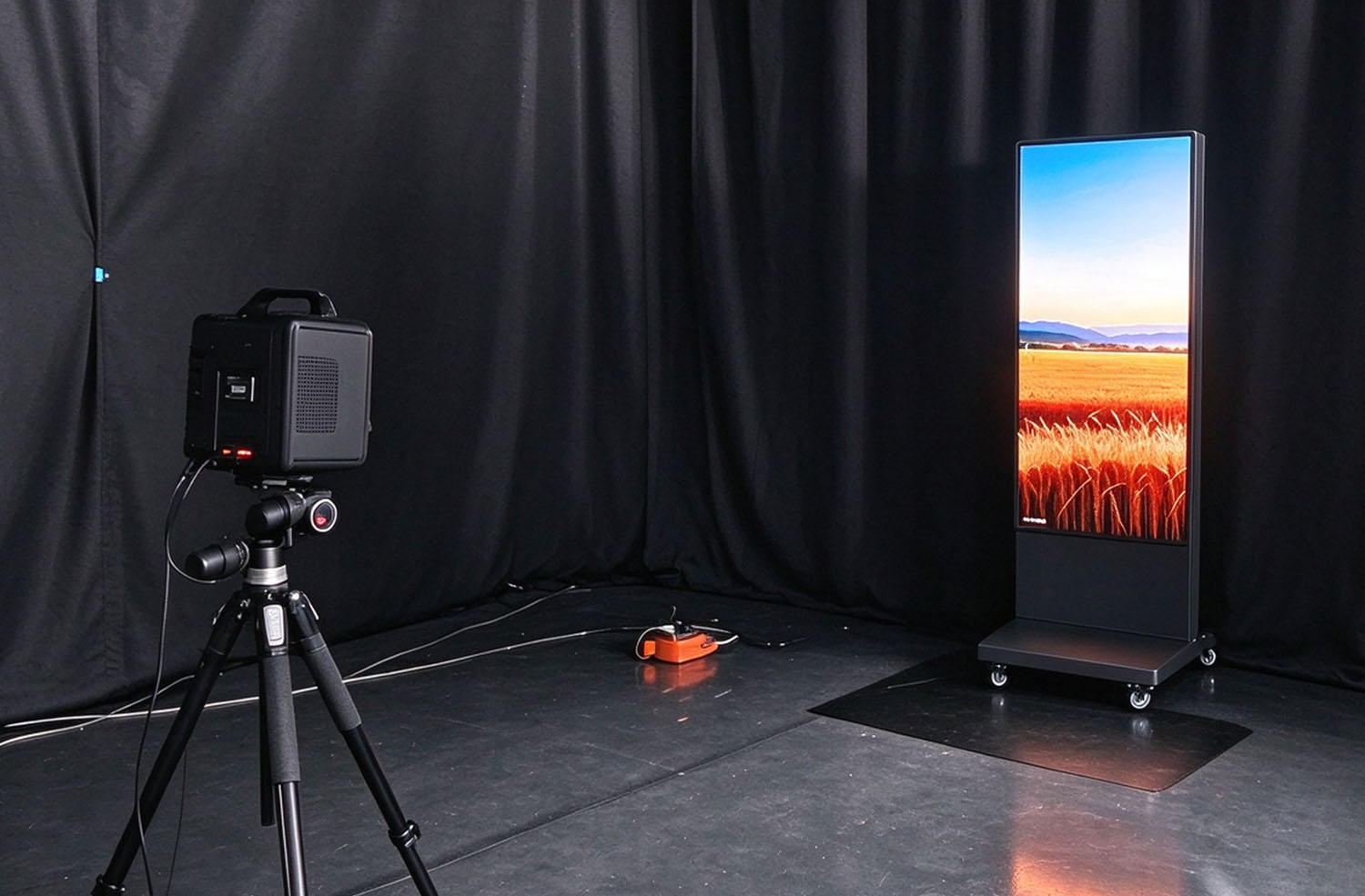

MiP LED as an LCD replacement is not empty marketing. CNLC translates these engineered features — high-conductivity PCBs, GOB protection, pixel calibration and strict environmental validation — into robust displays built for long-term outdoor service.
Other mainstream LED packaging formats include SMD and COB. SMD benefits from mature manufacturing and relatively easy single-point repair. COB delivers excellent surface flatness and environmental protection. MiP integrates chips further at the packaging level, with strengths in module airtightness, splicing flatness and pixel consistency.
For outdoor projects, packaging type alone is not enough. Module structure, protection schemes and spare-part serviceability must align with project requirements.
Evaluating MiP LED as an LCD replacement requires a holistic view. Reliability depends on component quality, thermal management, environmental protection and service workflows, not just the display technology itself.
LED architectures eliminate liquid crystal panels and backlight systems. This inherently avoids the well-known LCD failure modes linked to polarizer aging and backlight damage.That said, MiP LED is not failure-proof. Dark spots and driver circuit faults can still occur. It is inaccurate to assume “LED is always more reliable than LCD”. Assessment should start with the historical failure logs of your existing hardware.
LED chips and power supplies still generate heat. The thermal and environmental protection frameworks outlined above help mitigate risks at the module level. Proper enclosure airflow and system thermal design remain essential for overall thermal performance.

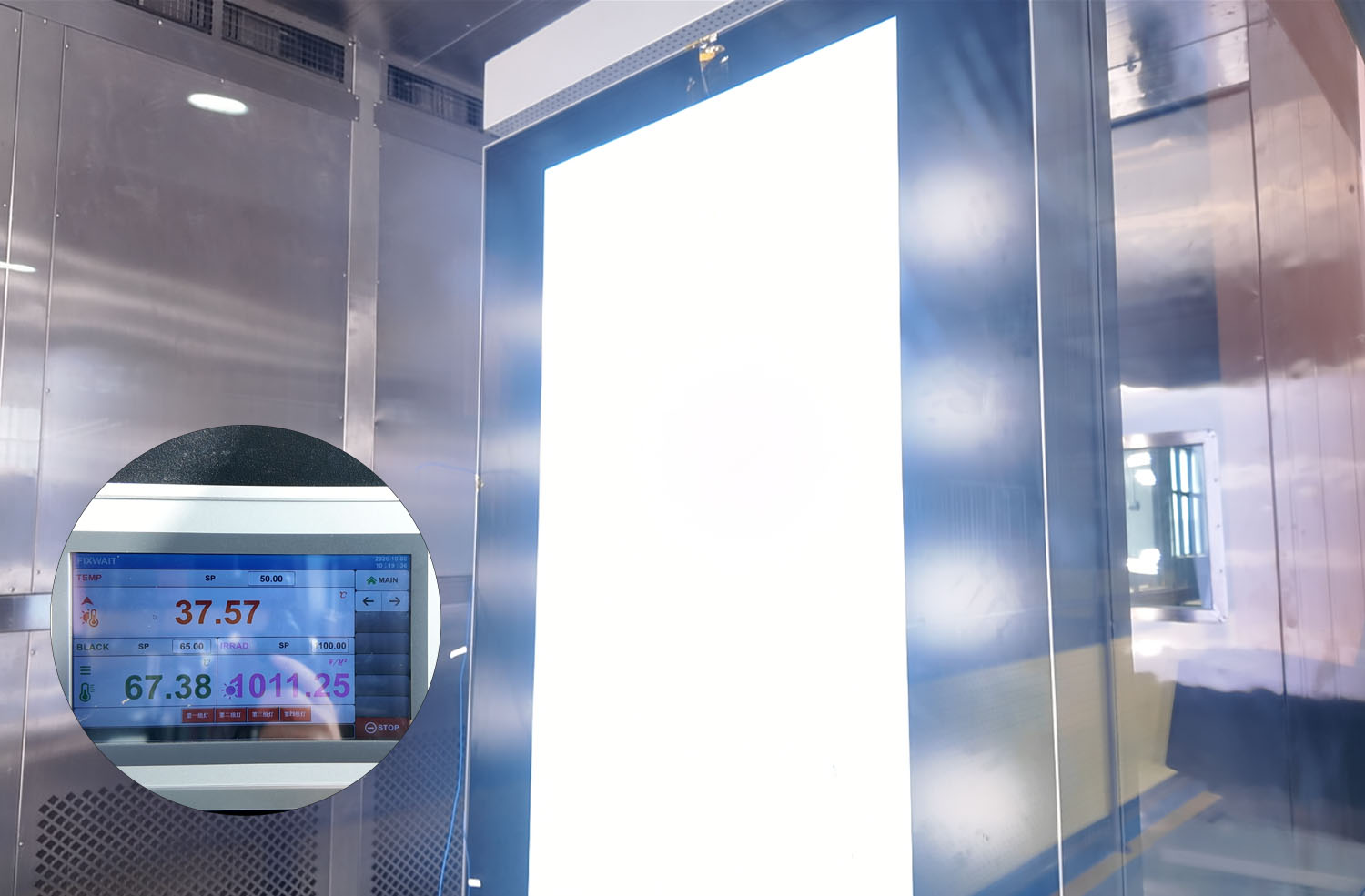

Outdoor hardware must withstand rain, dust and cyclic temperature swings. LED technology alone provides no inherent environmental protection. Full-unit IP ratings and impact resistance need formal verification to guarantee stable operation in harsh locations.
For multi-site operators, fast fault resolution matters more than raw lifespan. Traditional LCDs often require full panel replacement after localized damage.
MiP LED uses a highly modular design supporting single-module independent replacement. Front or rear service options depend on the overall cabinet structure. This cuts downtime and lowers long-term spare-part expenditure. Final selection should factor in spare stock availability, replacement labour, service fees and downtime cost, validated by real performance data.
Selecting outdoor MiP LED hardware goes far beyond pixel pitch and brightness specs. Decisions should tie back to installation conditions and operational goals.
The selection criteria above translate directly into configurable product setups for outdoor LED projects. CNLC offers customisable MiP display configurations based on pixel pitch, brightness, cabinet design, environmental protection and mounting requirements.
The MiP LED portfolio includes P1.2, P1.5, and P1.8 pixel pitch options. Final model selection is guided by viewing distance, screen size, content requirements and application scenario.
Packaging type alone cannot determine real-world performance. Module construction, splicing process, cabinet design, thermal management, sealing and service access all shape the final outcome. CNLC MiP modules support standalone single-module removal and replacement. This flexible maintenance model avoids the high operational cost typical of LCDs, where localized damage often requires full panel replacement.

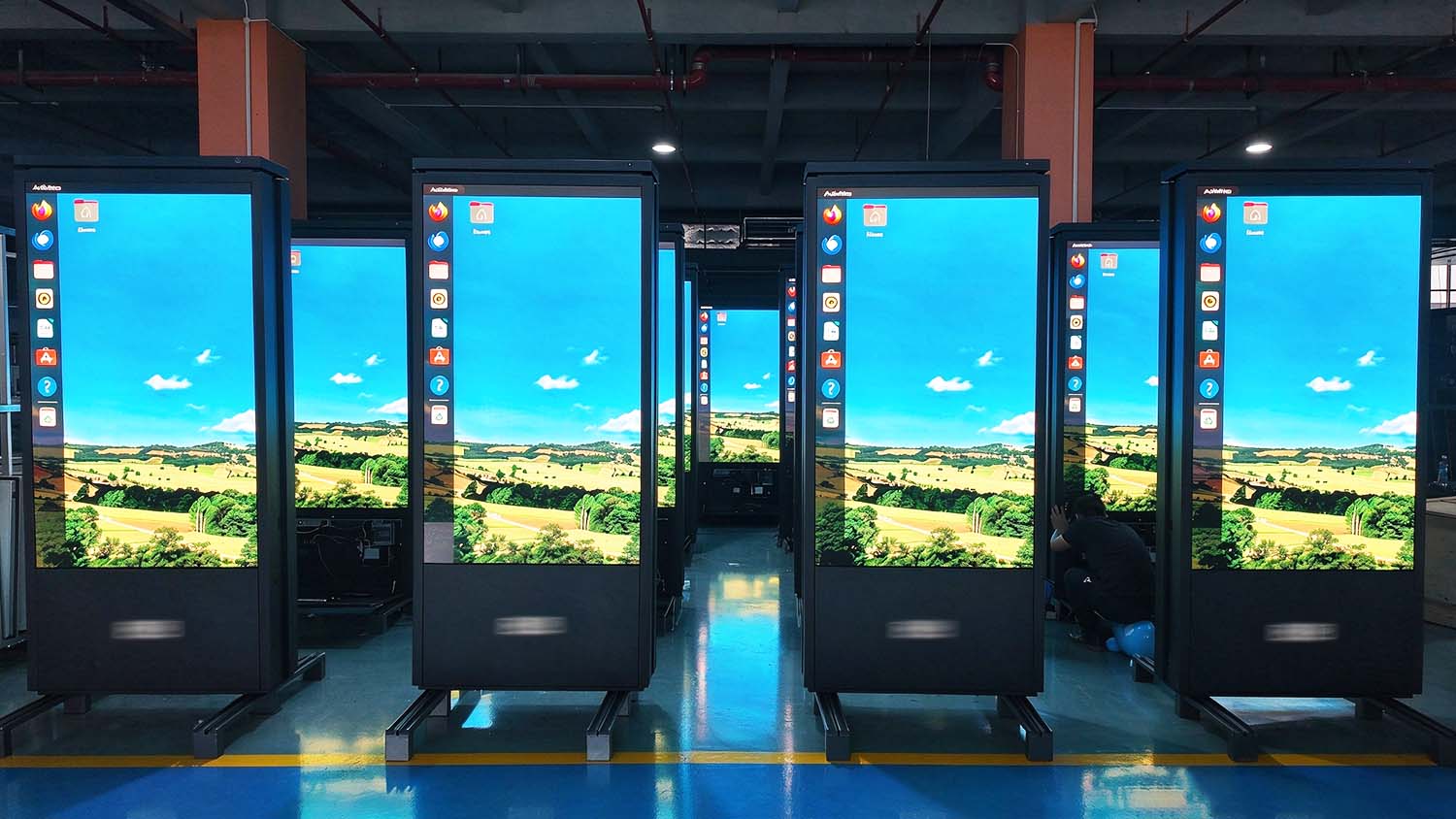

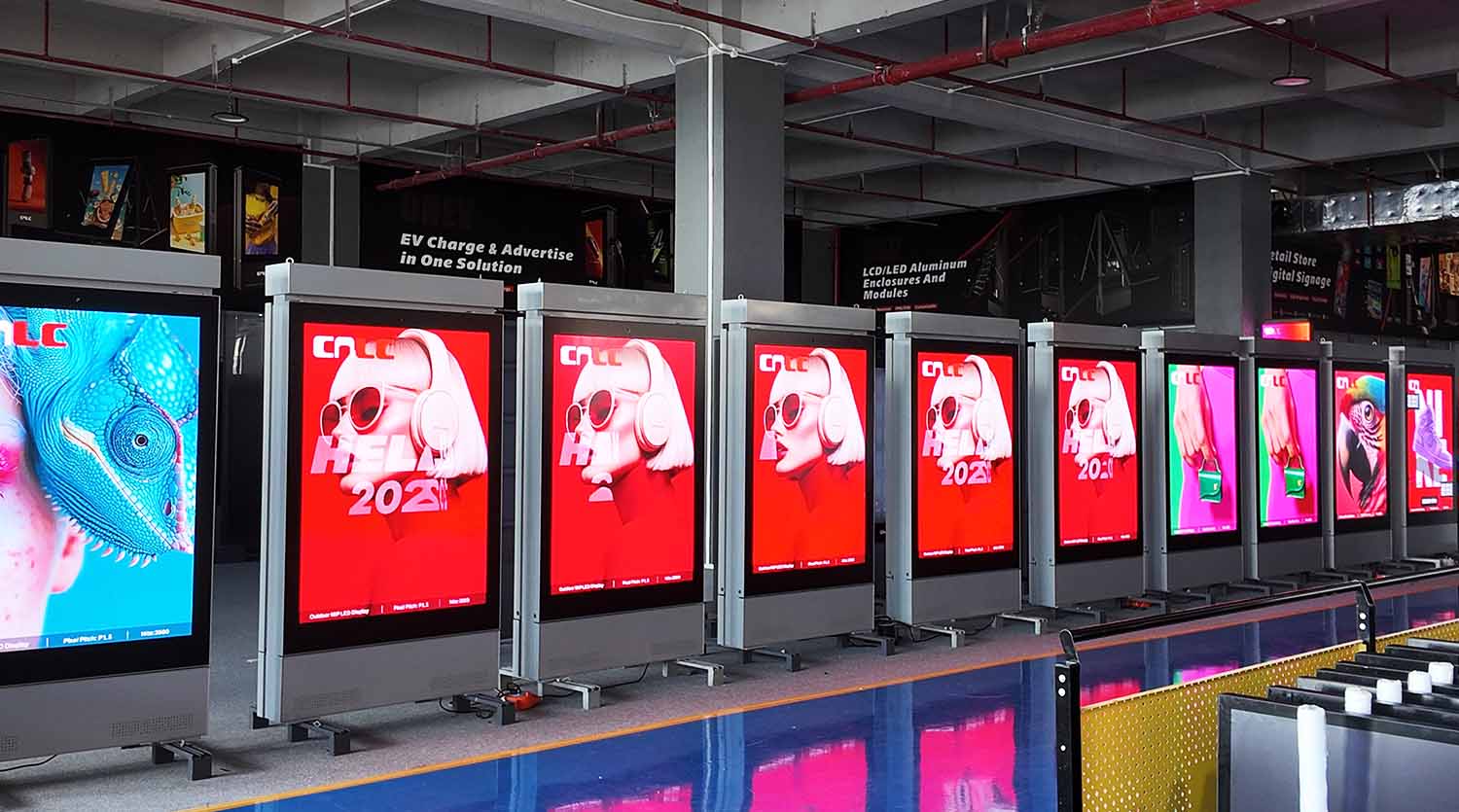

One of our reference deployments is a European rollout of 50 P1.5 MiP outdoor LED totems. This installation delivers practical field data for customers assessing MiP LED for outdoor advertising. Exact configuration and protection requirements are tailored to each site’s installation constraints and objectives.
If your existing outdoor LCDs repeatedly develop dark spots, local blackening or heat-related faults, diagnosing the root cause is the first critical step. You can then compare upgraded LCD solutions and MiP LED alternatives against your project requirements.
Looking for an outdoor LED display for your next project? Contact CNLC to discuss your required pixel pitch, screen size, brightness, environmental protection rating and mounting conditions.
Outdoor LCD displays operated under strong sunlight and high heat can develop dark spots, localized blackening, brightness drift and heat-triggered faults. These issues degrade visual output and raise maintenance overhead, though root causes need diagnosis based on hardware structure and site operating records.
MiP LED uses a fundamentally different display architecture, offering an alternative for projects prioritising high brightness, long outdoor service life and flexible maintenance workflows. Rather than ranking one technology as universally better, the practical approach is to identify existing failure drivers and evaluate options against your project’s unique needs.
For outdoor digital signage deployments, the optimal display solution balances visual performance, environmental resilience, serviceability and total lifecycle value in real-world operating conditions.
Outdoor LCD and MiP LED Display FAQs
Not necessarily. Dark spots can result from damage to the polarizer, backlight, or liquid crystal panel. Strong sunlight and high temperatures can accelerate material aging and contribute to display defects, but on-site inspection is needed to confirm the root cause.
No. MiP LED avoids LCD-specific failure modes, but LED chips and driver circuits can still develop pixel defects, dark spots, and colour inconsistencies. Actual reliability depends on product design, component quality, thermal management, and operating conditions.
At an appropriate viewing distance, fine-pitch MiP LED can deliver image clarity comparable to outdoor LCD displays. Pixel pitch, module flatness, pixel consistency, brightness, and viewing distance all affect the visual experience. Suitability should be assessed against the project's requirements and verified product test data.
When selecting a MiP LED outdoor display, consider pixel pitch, viewing distance, brightness, protection rating, thermal management, and maintenance requirements. The display should also be evaluated against the local climate and expected operating conditions. Reviewing product specifications and relevant test data can help determine whether the solution is suitable for your project.
