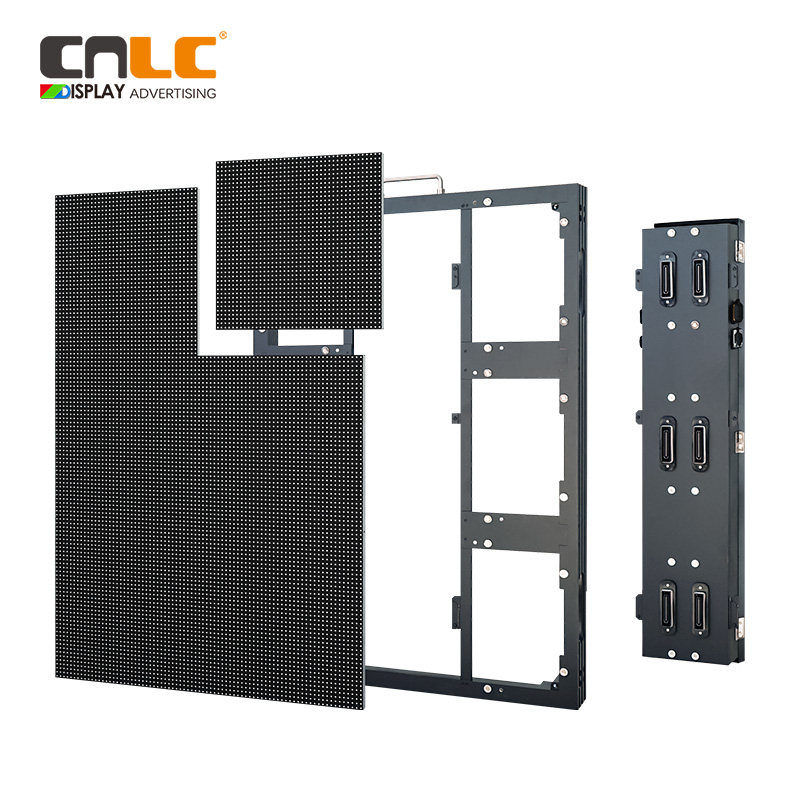

The P8 Modular LED Cabinet for Stadium Walls features a plug-and-play design with built-in guide rails for quick installation and easy maintenance. Made from high-precision aluminum profiles, it ensures excellent flatness and durability. The fully enclosed module with IP65-rated connectors provides reliable outdoor performance. Its ultra-thin and lightweight structure reduces installation costs, making it an ideal display solution for stadium stands, arena walls, and sports advertising.

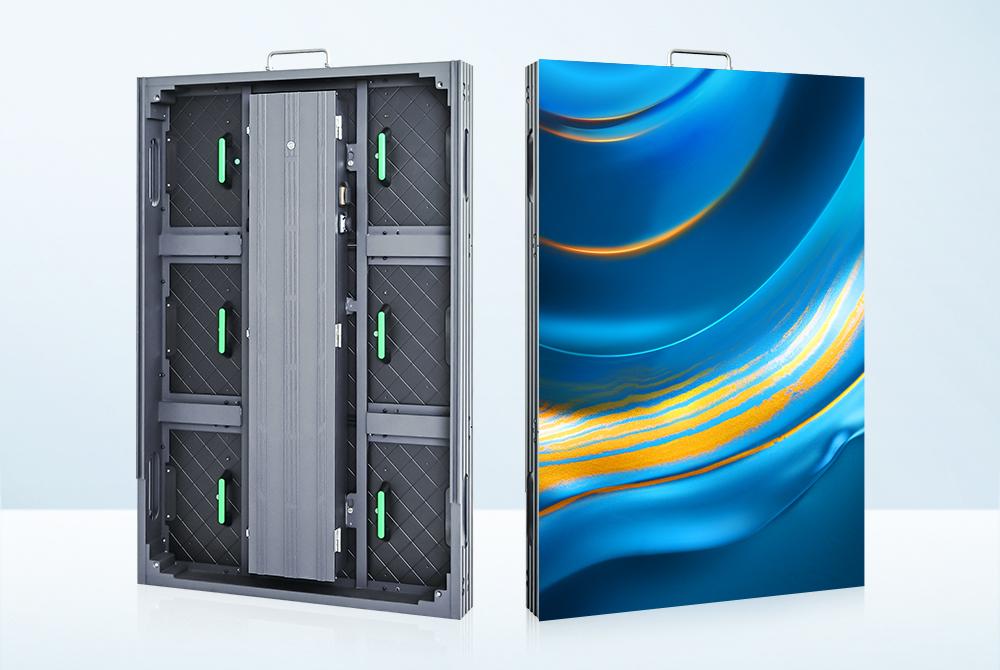

Outdoor Full Color LED Cabinet Display
Wall-Mounted | Lightweight Aluminum Cabinet

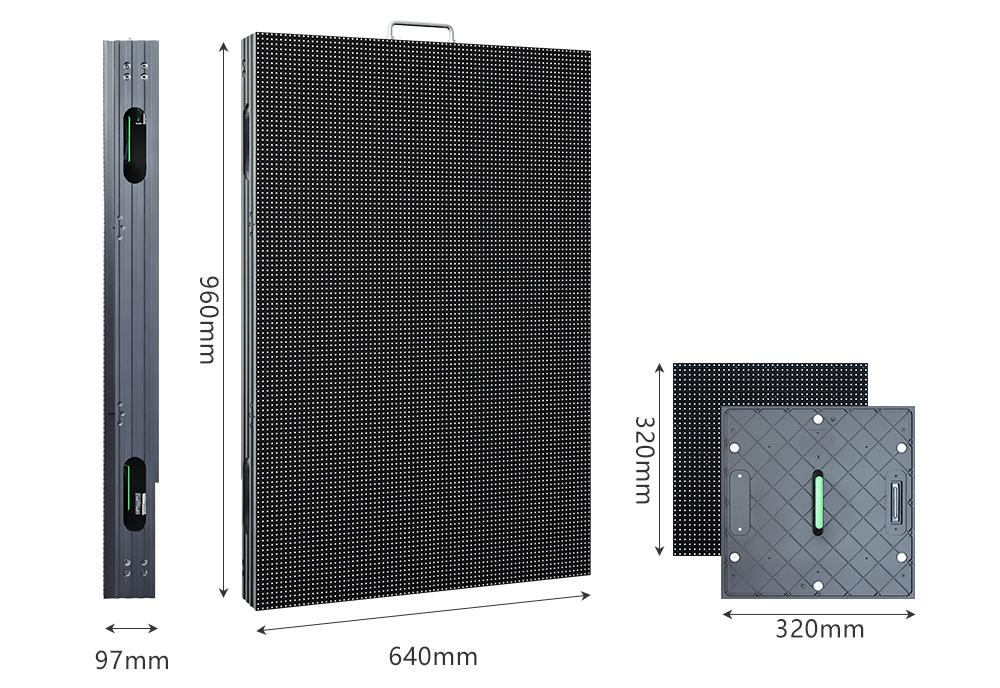

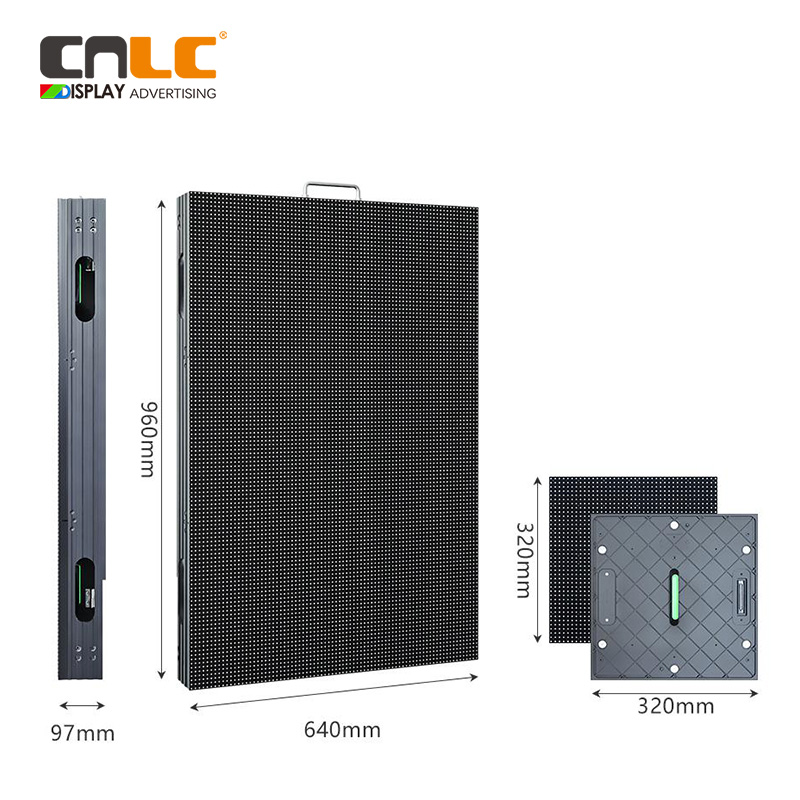

Cabinet Size: 640×960×97mm
Product Details

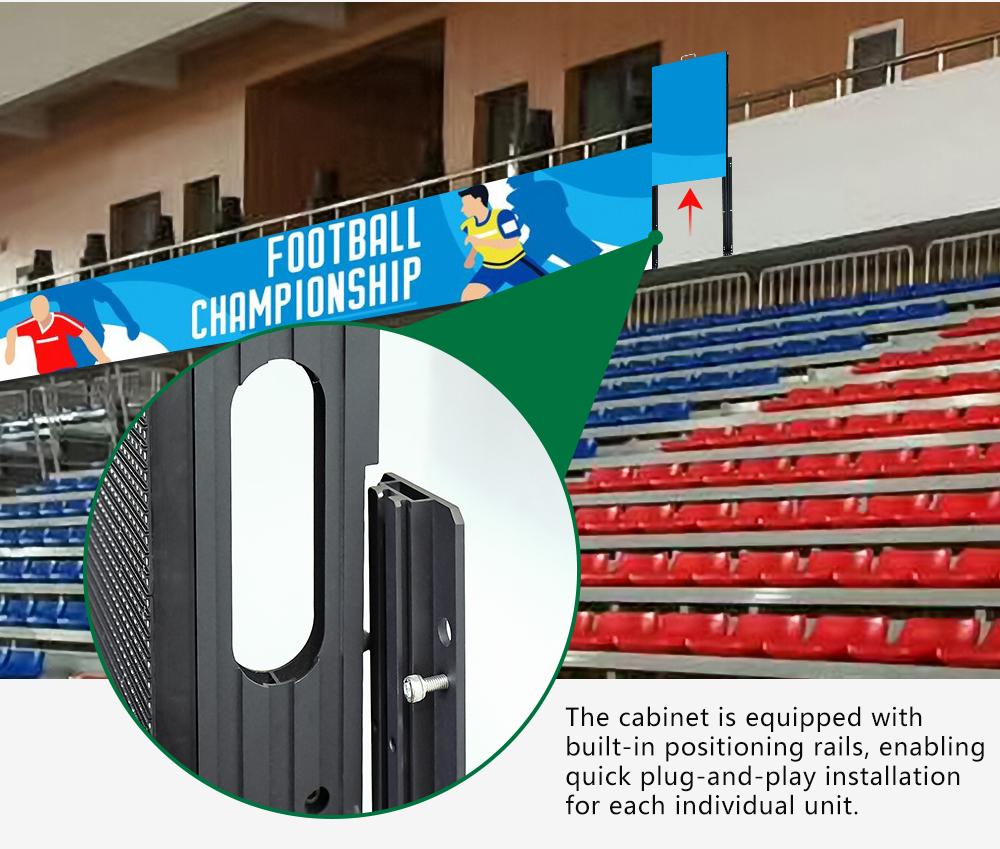

Plug-and-Play Installation — Quick and Easy Maintenance
The LED cabinet features a plug-and-play design with built-in guide rails for fast assembly and removal, making installation and maintenance more efficient.

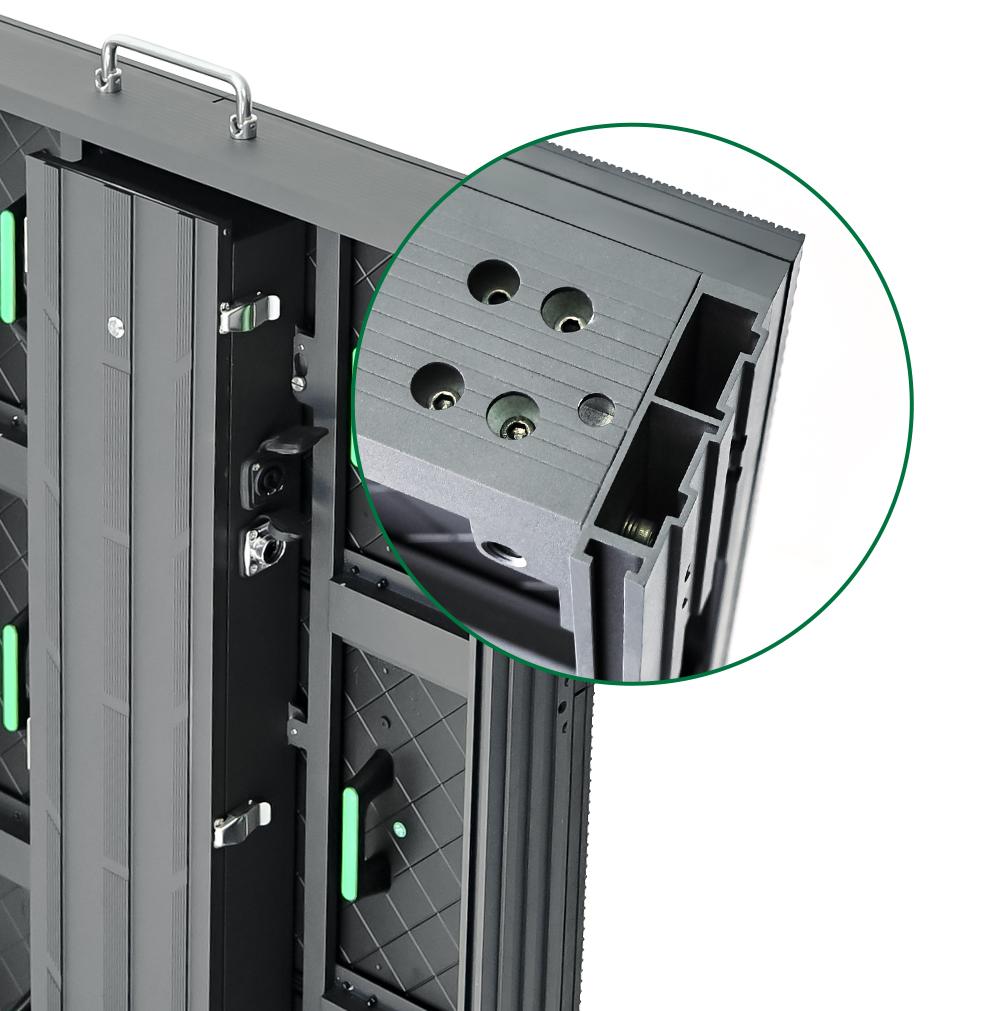

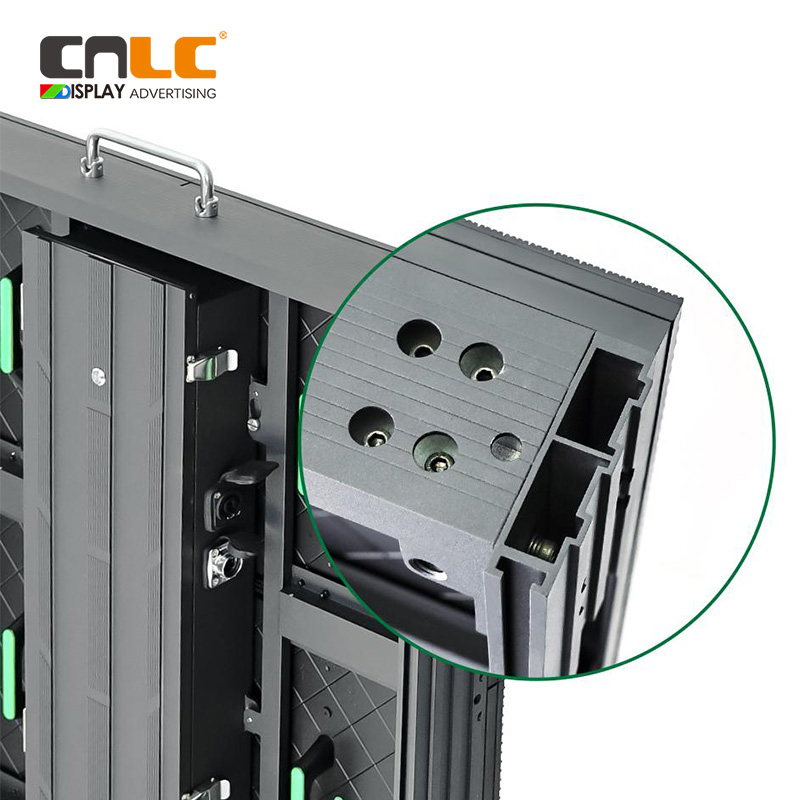

High Flatness — Precision Aluminum Profile Cabinet
Made of high-precision aluminum profiles, the cabinet ensures excellent flatness and structural stability for a seamless visual experience.

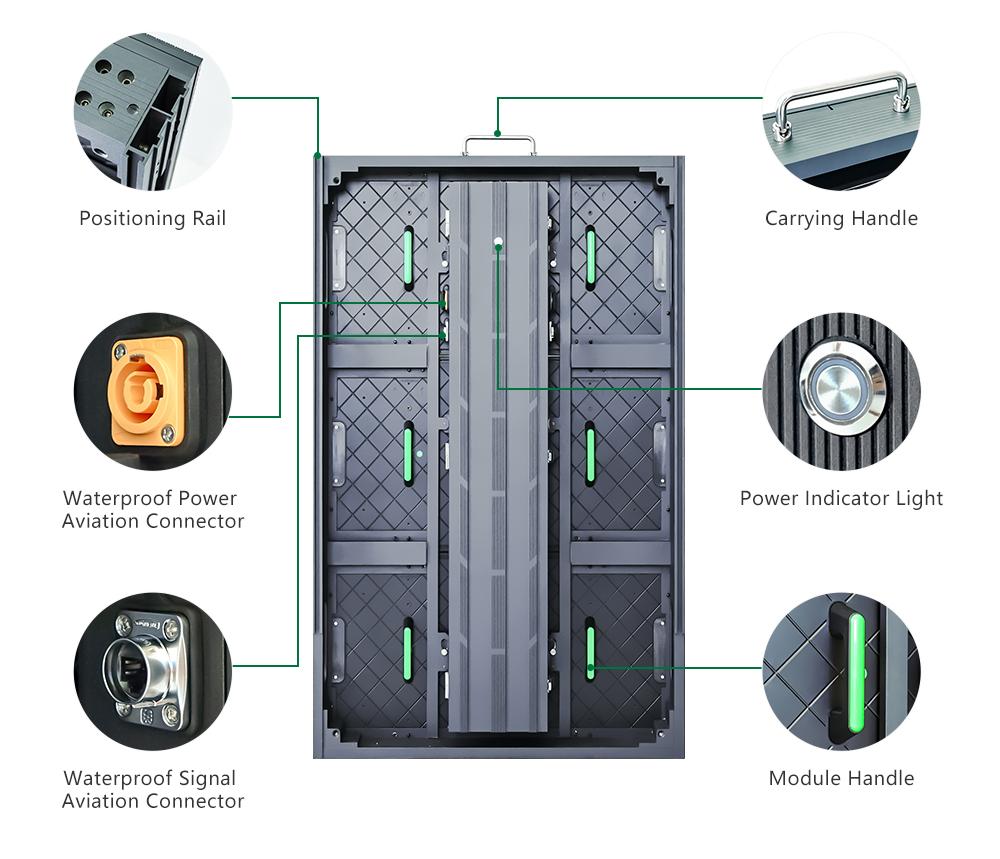

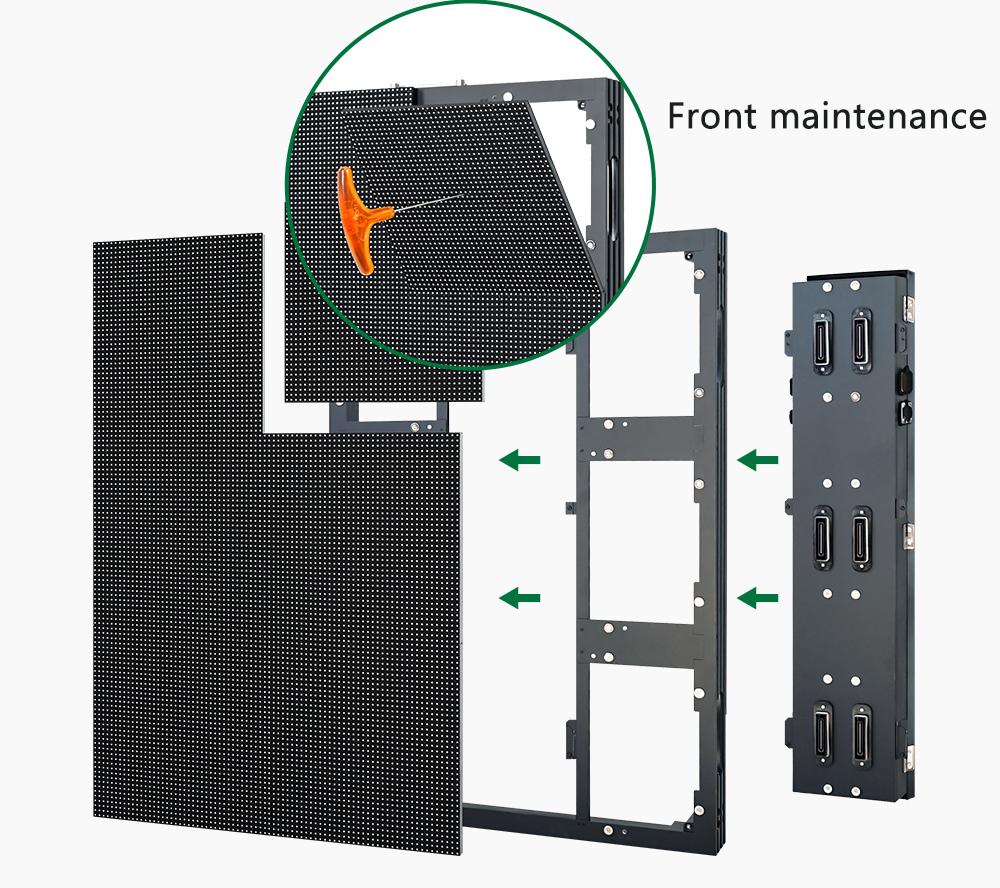

Wall-Mounted Front Service Design
Both LED modules and power systems can be fully front-serviced. The wall-mounted installation offers a sleek and space-saving appearance, perfect for building façades and stadium barriers.

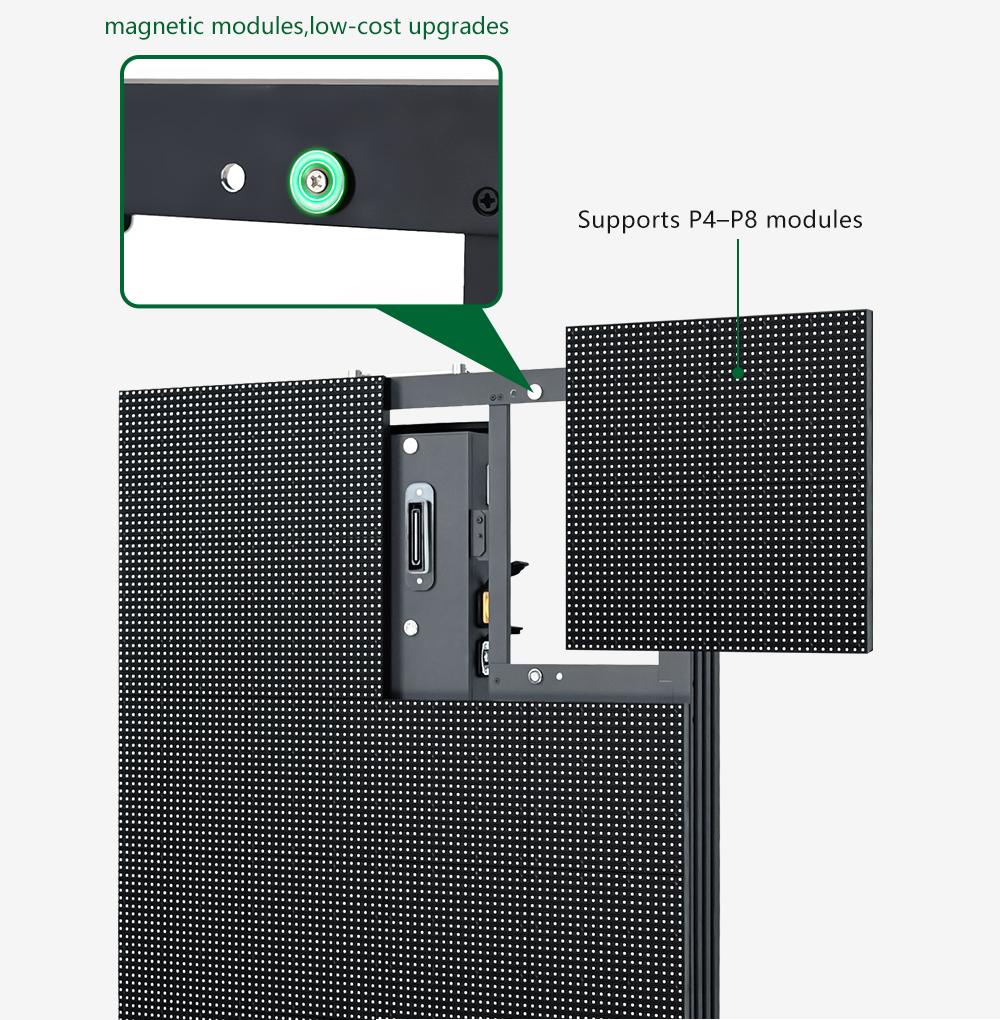

Strong Compatibility — Cost-Effective Pixel Upgrade
The cabinet supports P4–P8mm pixel pitch LED modules, allowing easy upgrades to higher resolutions with minimal cost.

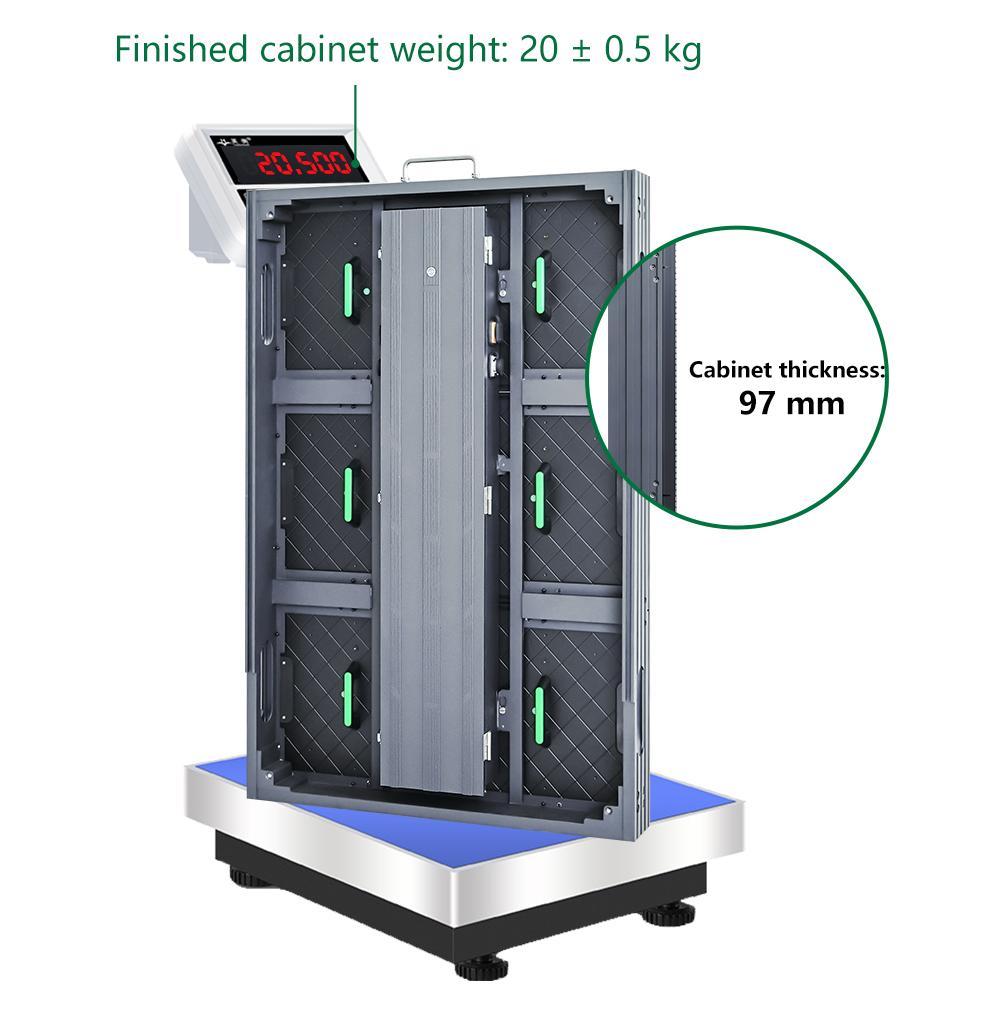

Ultra-Lightweight & Slim Design — Save Installation and Shipping Costs
The alloy cabinet is thin and lightweight (20 ± 0.5 kg), reducing transportation and installation costs significantly.

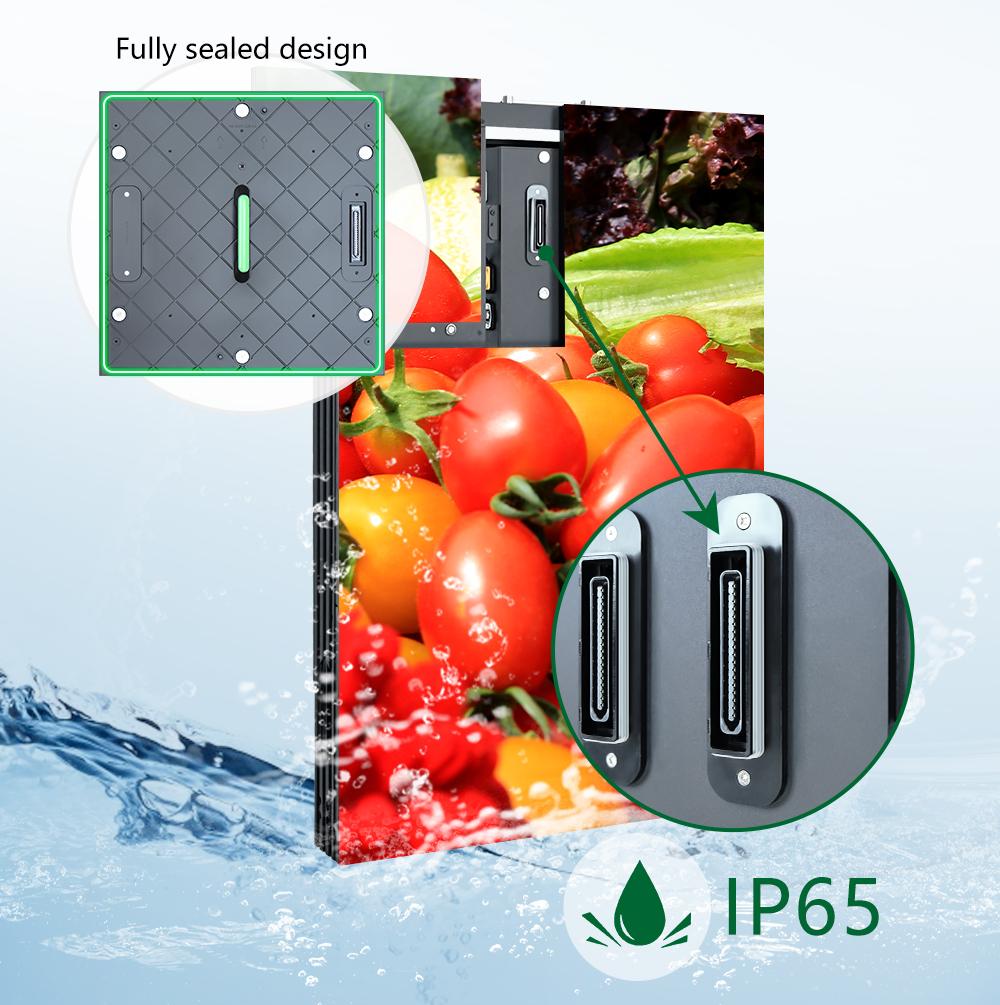

Fully Enclosed Module — IP65 Waterproof & Stable Performance
The IP65-rated LED modules feature multi-layer protection and waterproof connectors to ensure long-term reliable performance in outdoor environments.

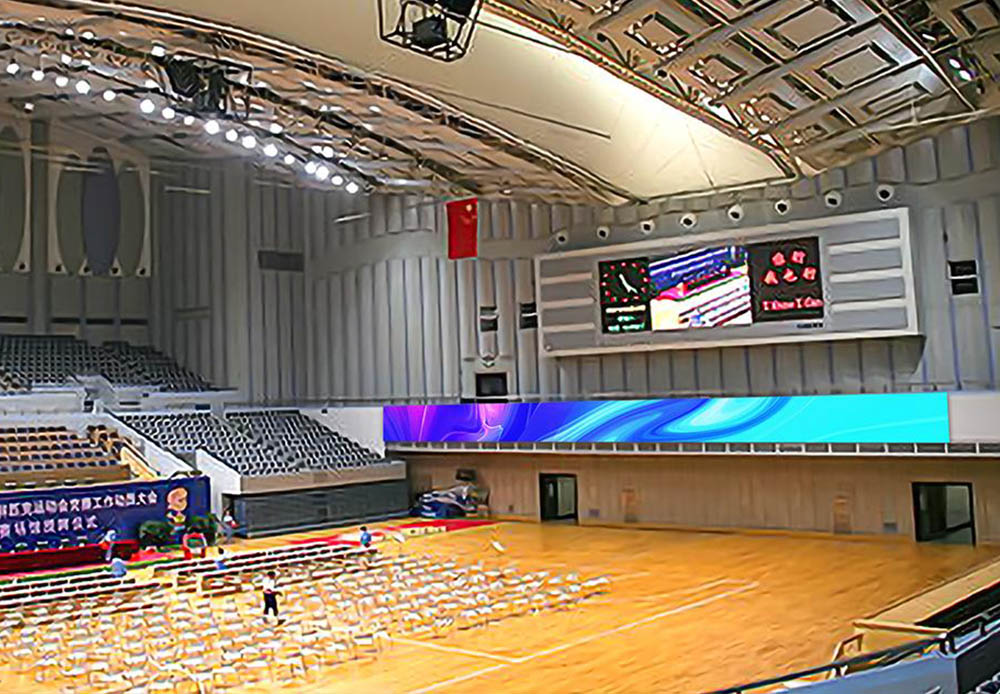

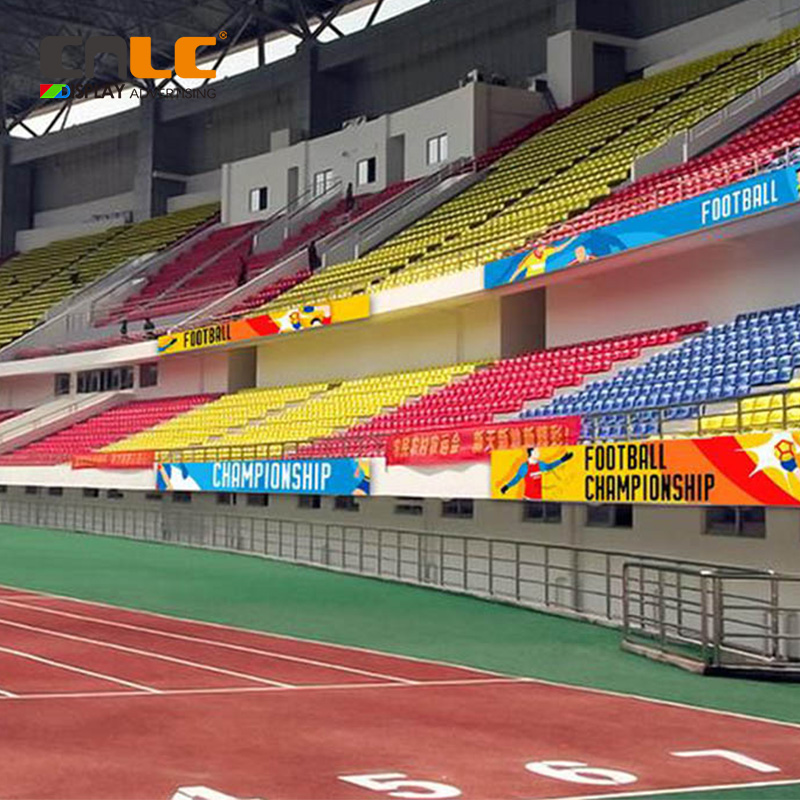

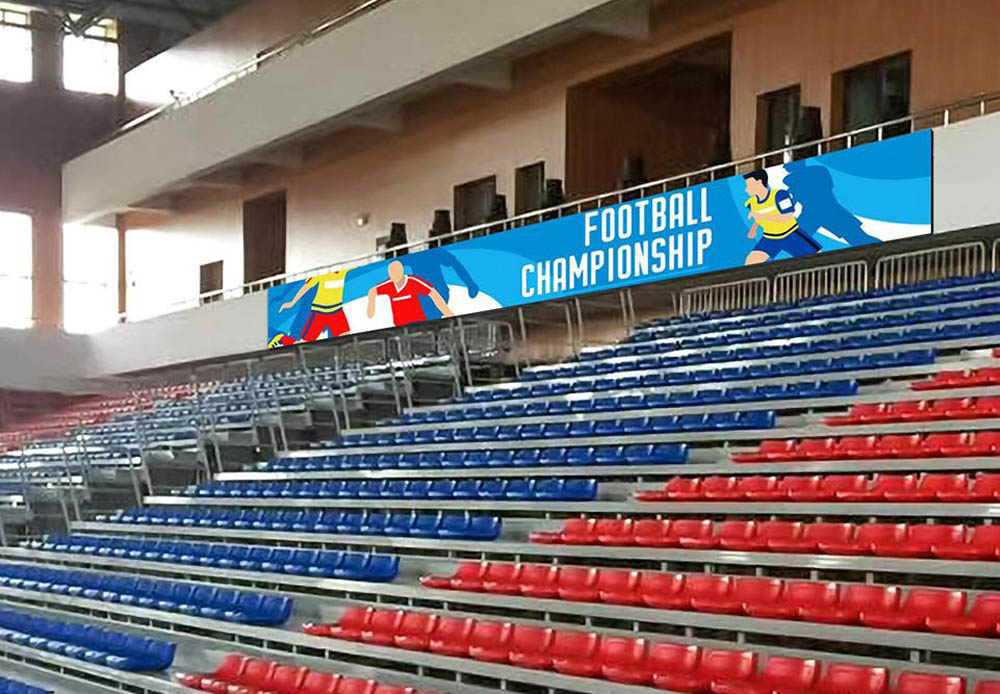

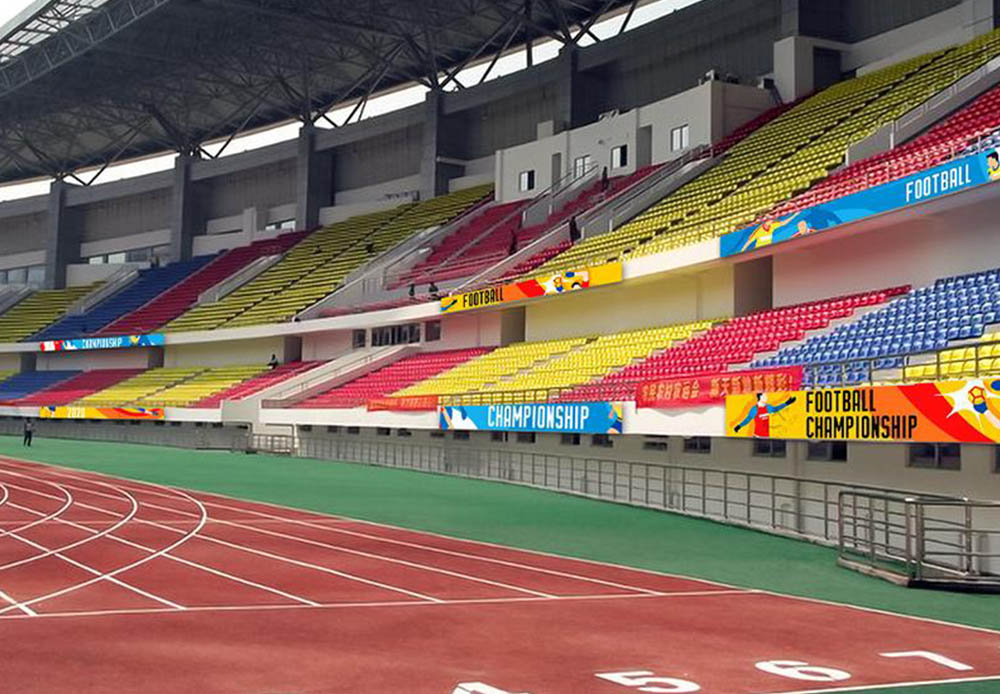

Wide Application Scenarios

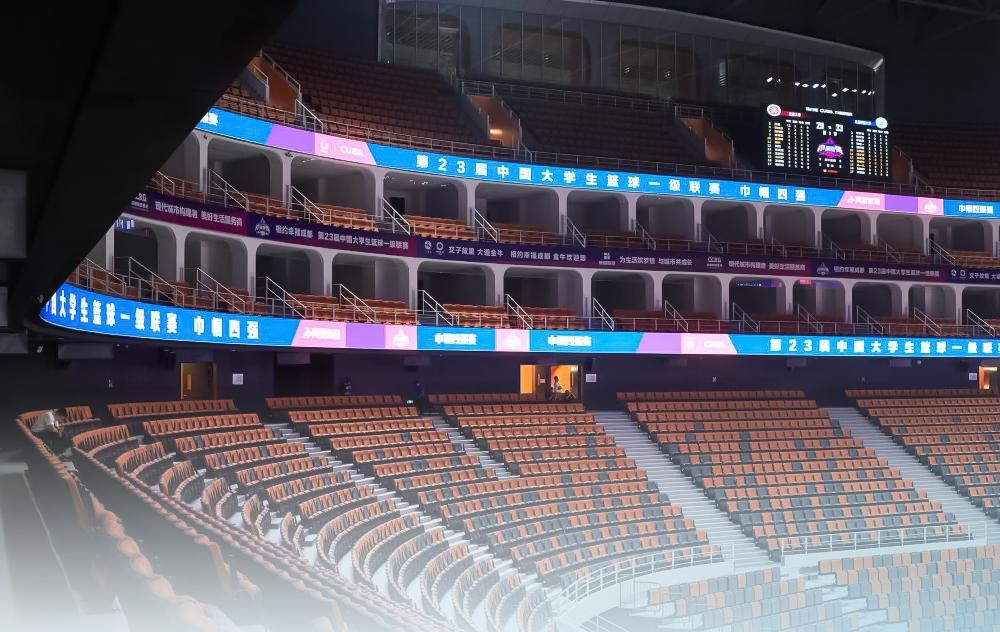

Perfect for stadium stands, perimeter fences, building facades, and balcony exteriors, providing a clean and integrated wall-mounted LED display solution.
Specifications
| Pixel Pitch (mm) | 8 |
| Pixel Density (dots/m²) | 15,625 |
| LED Type | SMD2727 |
| Scan Mode | 1/4 |
| Module Resolution (dots) | 40 × 40 |
| Module Size (mm) | 320 × 320 × 19 |
| Module Power Consumption (W) | ≤ 65 |
| Working Voltage (V) | DC 4.6 |
| Max. Power Consumption (W/m²) | ≤ 650 |
| Avg. Power Consumption (W/m²) | ≤ 210 |
| Brightness (cd/m²) | 5500 |
| Color Temperature (K) | 6000–8000 |
| Viewing Angle (H/V°) | 120° |
| Refresh Rate (Hz) | 1920–3840 |
| Operating Temperature (°C) | -30 ~ +55°C |
| Protection Level (Front/Rear) | IP65 |
| Gray Scale / Color Depth (bit) | ≥13 bit |
