P1.5 Fine Pitch · Advanced MIP Packaging · IP66 Protection · IK10 Impact Resistance · Intelligent Thermal Management
As outdoor digital display applications continue to expand across smart cities, digital advertising, and transportation hubs, the demands placed on display systems have become increasingly challenging.
Extreme heat, heavy rain, dust, UV exposure, and continuous 24/7 operation require more than exceptional image quality. Long-term reliability and stable performance have become essential for outdoor fine pitch LED displays.

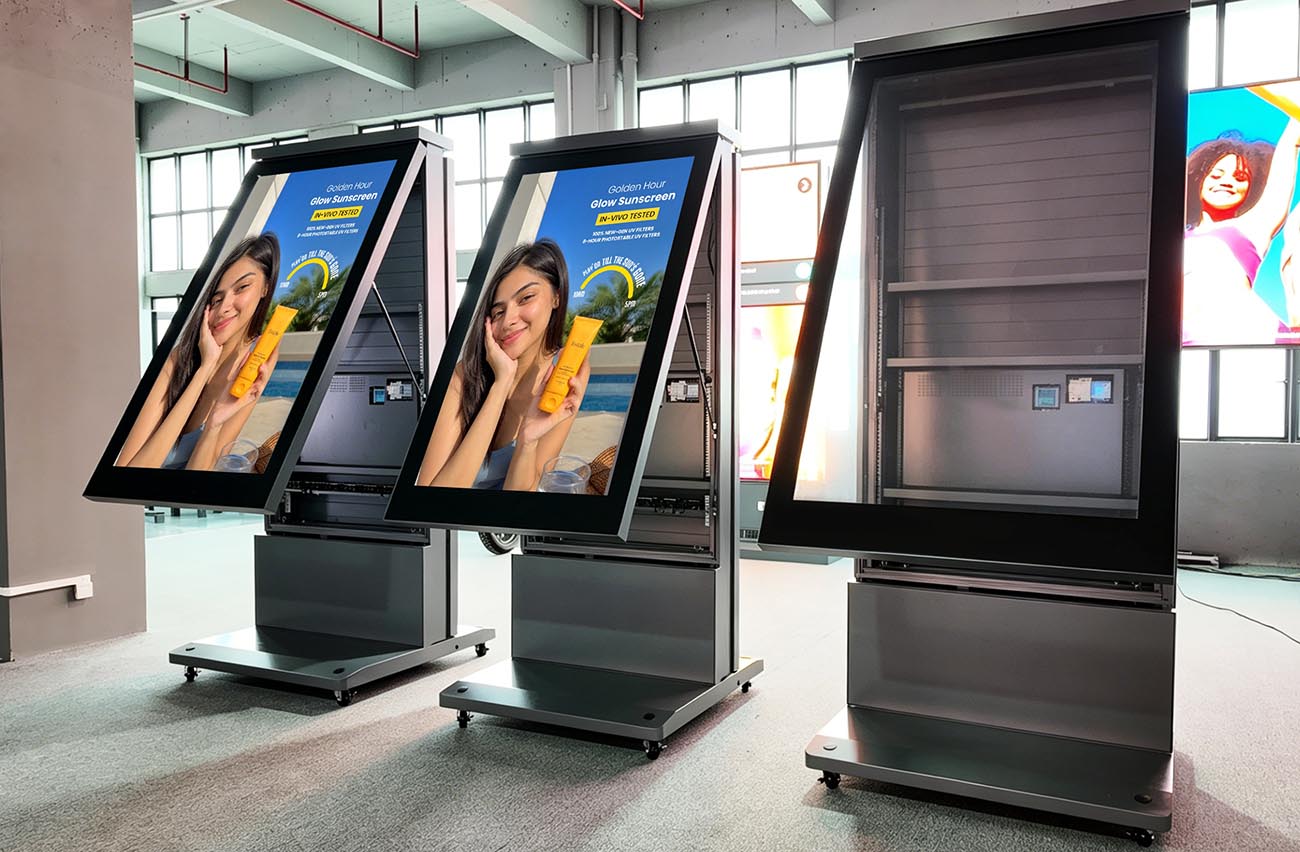

The CNLC Outdoor IP66 Fine Pitch MIP LED Display Solution is engineered to meet these challenges through advanced MIP packaging, a precision aluminum cabinet, intelligent thermal management, and remote device management. Every aspect of the product architecture has been optimized to deliver a reliable, durable, and easy-to-maintain solution for premium outdoor digital signage projects worldwide.
Fine pitch LED displays were originally developed for indoor applications. However, outdoor environments introduce significantly more demanding operating conditions.
Continuous exposure to high temperatures, direct sunlight, heavy rain, dust, humidity, and physical impact can all affect image quality, operational stability, and the long-term lifespan of the display.
Designing a true outdoor fine pitch LED display therefore requires far more than simply increasing the protection rating. Every critical component—including the LED module, cabinet structure, thermal management system, optical protection, and maintenance architecture—must be engineered as an integrated solution.
CNLC has redesigned the entire product architecture around the requirements of long-term outdoor operation. By combining highly reliable MIP packaging, a robust aluminum structure, and an intelligent thermal management system, the solution delivers stable performance in demanding environments while helping reduce maintenance frequency and total cost of ownership throughout the product lifecycle.
Reliability is built into the product from the design stage, helping reduce maintenance requirements and improve long-term operational efficiency.

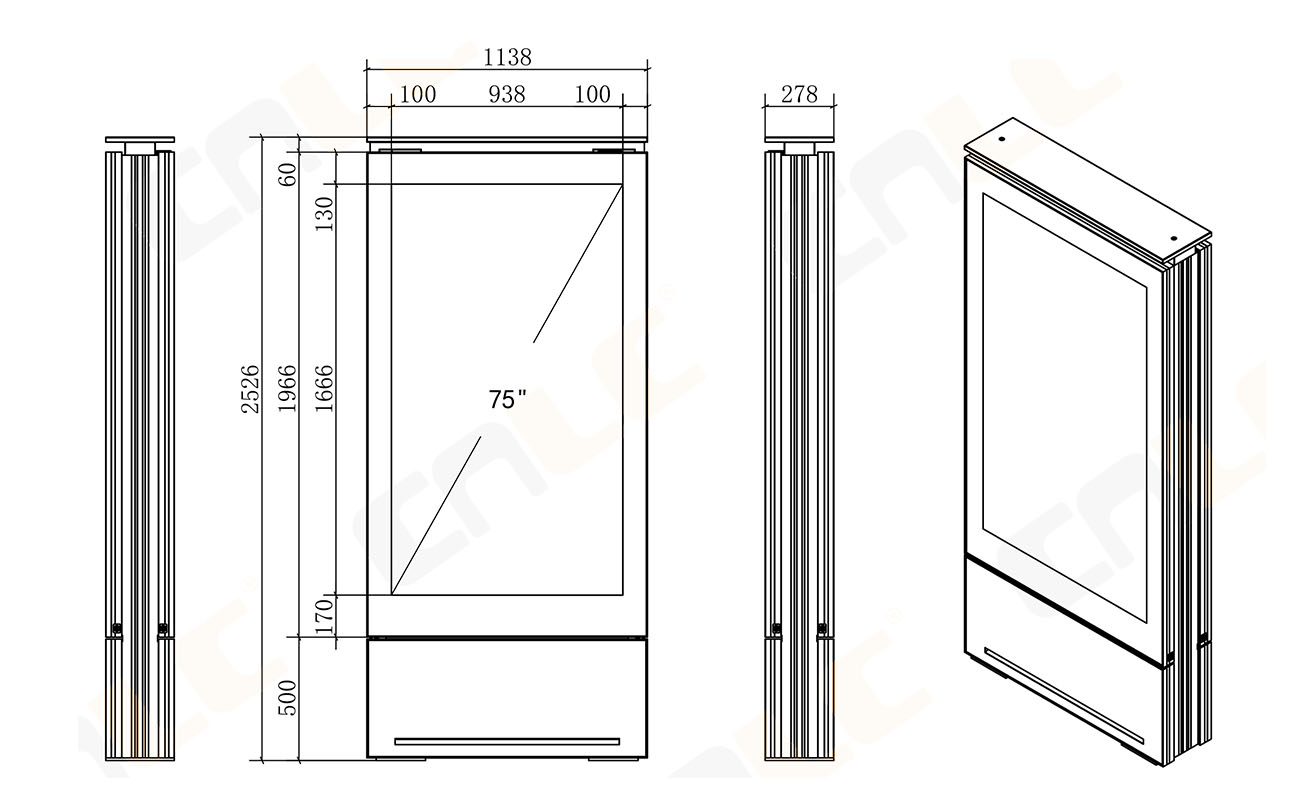

To meet a wide range of installation environments and project requirements, CNLC offers three standard display sizes—65", 75", and 86". Built on a unified platform architecture, every model features a P1.5 fine pixel pitch, high brightness, and IP66-rated weather protection, making them ideal for premium outdoor digital signage, transportation information systems, smart city infrastructure, and commercial display applications.
|
Model No.
|
P1.5
|
|
Pixel Pitch(mm)
|
1.5581x1.5658
|
|
Pixel Density(dots/m²
|
409,891
|
|
LED Encapsulation
|
MIP
|
|
Resolution
|
602x1064
|
|
Contrast
|
15000:1
|
|
Horizontal/Vertical Perspective
|
170°/170°
|
|
Brightness (cd/m²)
|
≥4500cd/m²
|
|
Max. Power Consumption
|
2500
|
|
Ave. Power Consumption
|
1000
|
|
Frame rate
|
60
|
|
Refresh Rate (Hz)
|
≥3840Hz
|
|
Working voltage
|
AC：110V/220V
|
|
Work environment temperature
|
-10℃～50℃
|
|
Work environment humidity
|
-10℃～50℃
|
|
Service
|
Open the door for maintenance.
|
Built on a unified hardware platform, the entire product series delivers consistent image quality while simplifying spare parts management, maintenance, and future project expansion.

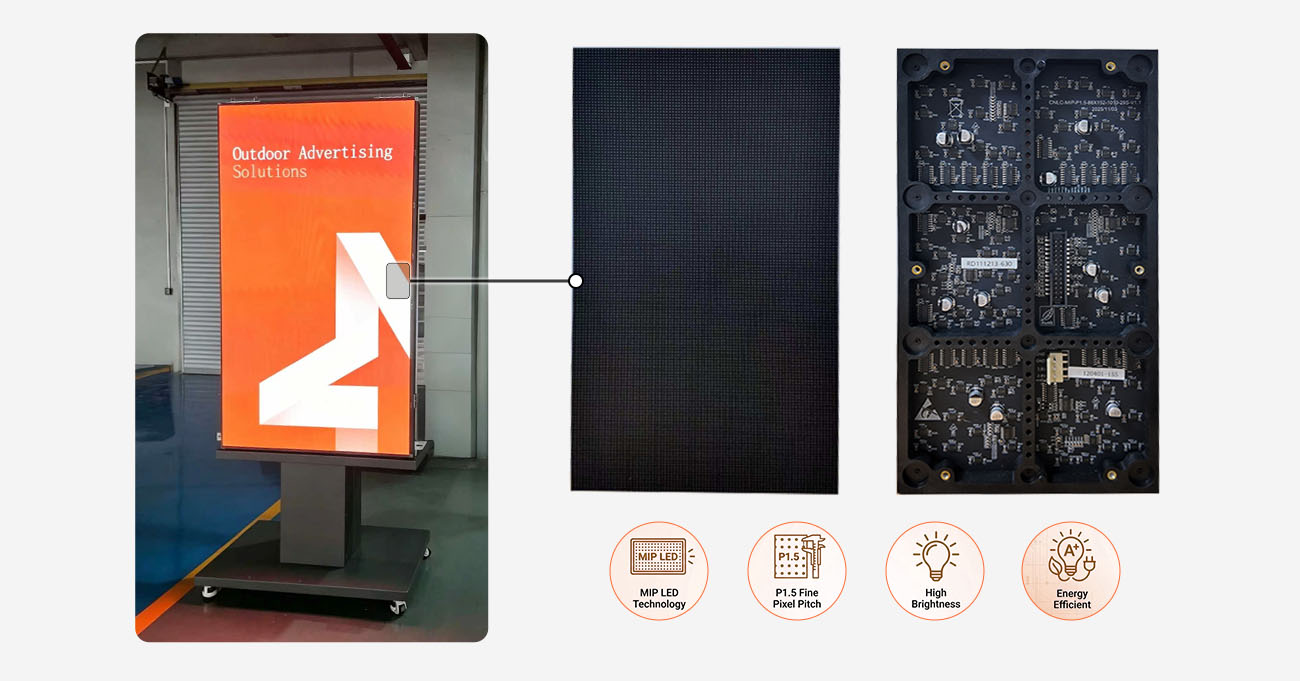

Outstanding image quality starts at the pixel level.
CNLC adopts advanced MIP (Micro LED in Package) technology to optimize pixel packaging, improving display uniformity, pixel protection, and long-term operational stability. This advanced packaging technology provides a solid foundation for reliable fine pitch LED performance in demanding outdoor environments.
By enhancing the protection of individual LEDs against environmental influences, MIP technology helps maintain consistent image quality while improving the durability required for premium outdoor digital signage applications.
Combined with precision manufacturing processes and rigorous quality control, CNLC MIP LED modules are engineered to deliver stable, reliable performance throughout extended outdoor operation, providing a consistently sharp and vibrant viewing experience.
Enhanced image consistency, reduced maintenance requirements, and an extended product lifecycle help maximize the long-term value of every outdoor display project.

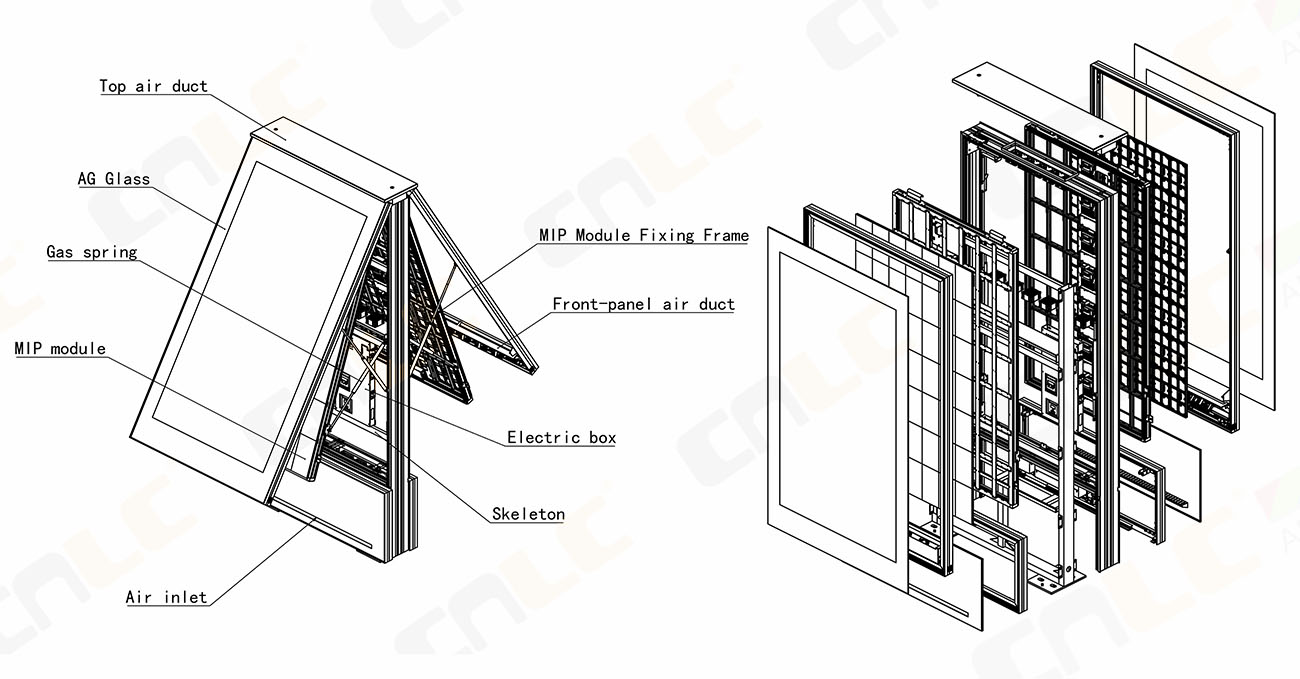

Beyond the LED module itself, the cabinet structure plays a critical role in determining the overall reliability and service life of an outdoor display.
CNLC utilizes a high-precision aluminum cabinet that combines lightweight construction with exceptional structural strength, corrosion resistance, and heat dissipation performance. The modular design further simplifies transportation, installation, maintenance, and future servicing, improving overall project deployment efficiency.
To withstand demanding outdoor environments, every structural component has been systematically optimized, including:
By integrating structural engineering, thermal management, and environmental protection into a unified design, the display maintains reliable performance under demanding outdoor operating conditions.
A robust structural design improves overall system reliability while reducing installation complexity, maintenance requirements, and long-term operating costs.
Outdoor LED displays operate in challenging environments where heat is generated not only by the display itself but also by continuous solar radiation.
To ensure stable operation under high ambient temperatures and prolonged sun exposure, CNLC has developed a comprehensive thermal management system that combines optimized structural design, intelligent airflow management, and advanced optical protection.

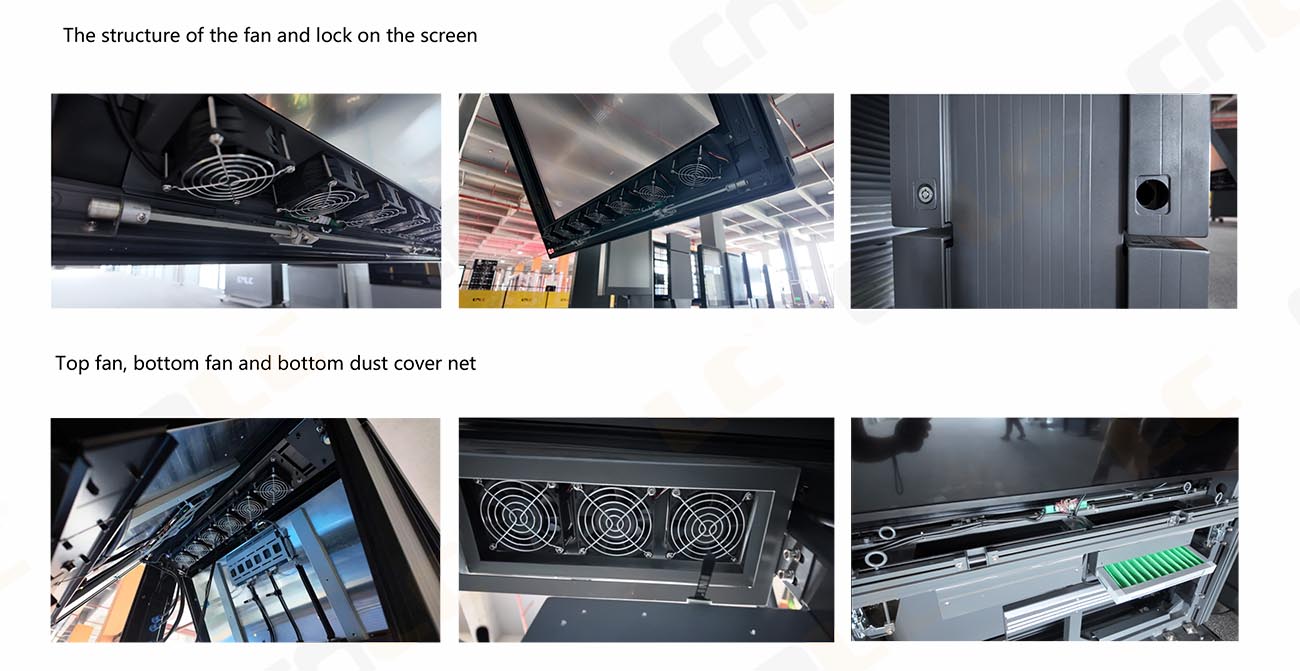

Efficient heat dissipation begins with effective airflow.
CNLC has carefully optimized the internal airflow path to improve cooling efficiency for high-brightness outdoor LED displays operating continuously under demanding environmental conditions.
The thermal management system incorporates:
By optimizing the intake, airflow guidance, and exhaust pathways, cool air is directed efficiently toward critical heat-generating components while hot air is rapidly discharged. This balanced airflow minimizes localized heat accumulation and improves overall thermal performance.
Optimized airflow management helps maintain lower operating temperatures, improves component stability, and reduces long-term maintenance requirements.
Reliable thermal performance starts long before manufacturing.

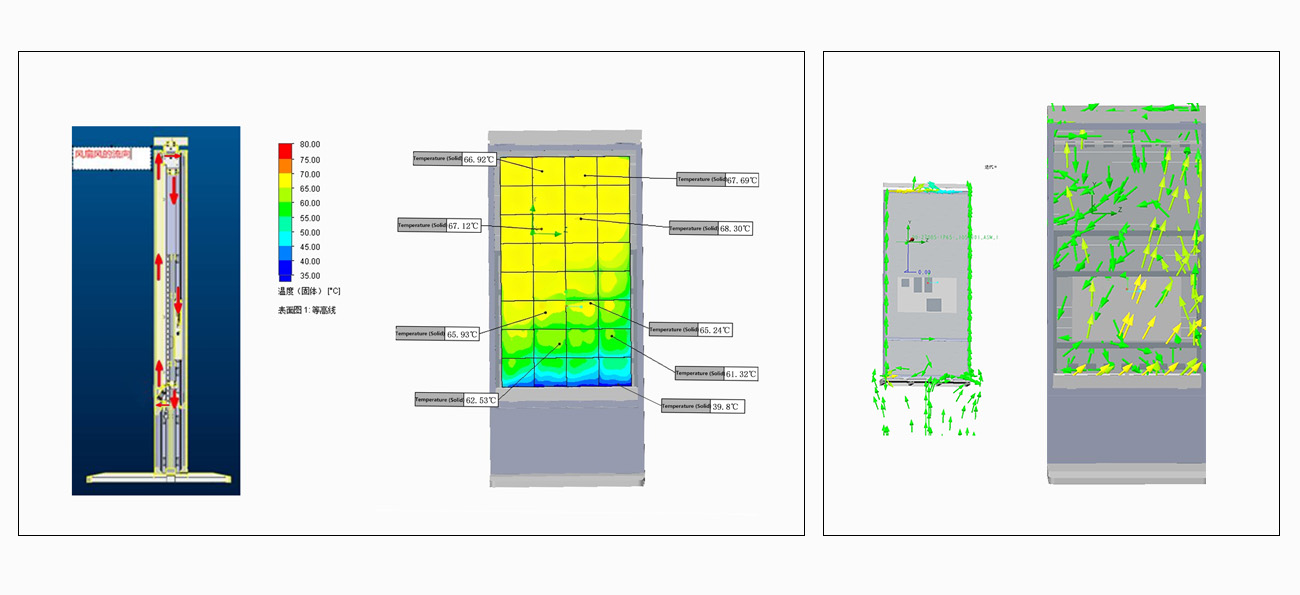

CNLC applies Computational Fluid Dynamics (CFD) simulation during product development to analyze internal airflow distribution, temperature profiles, and heat transfer throughout the display.
Through thermal simulation, engineers can accurately evaluate:
The simulation results are used to continuously refine the cabinet structure and airflow design, ensuring that thermal performance is fully optimized and validated before mass production.
Simulation-driven thermal optimization enhances product reliability while reducing operational risks in demanding outdoor environments.
In addition to active thermal management, minimizing external solar heat gain is equally important for reliable outdoor operation.

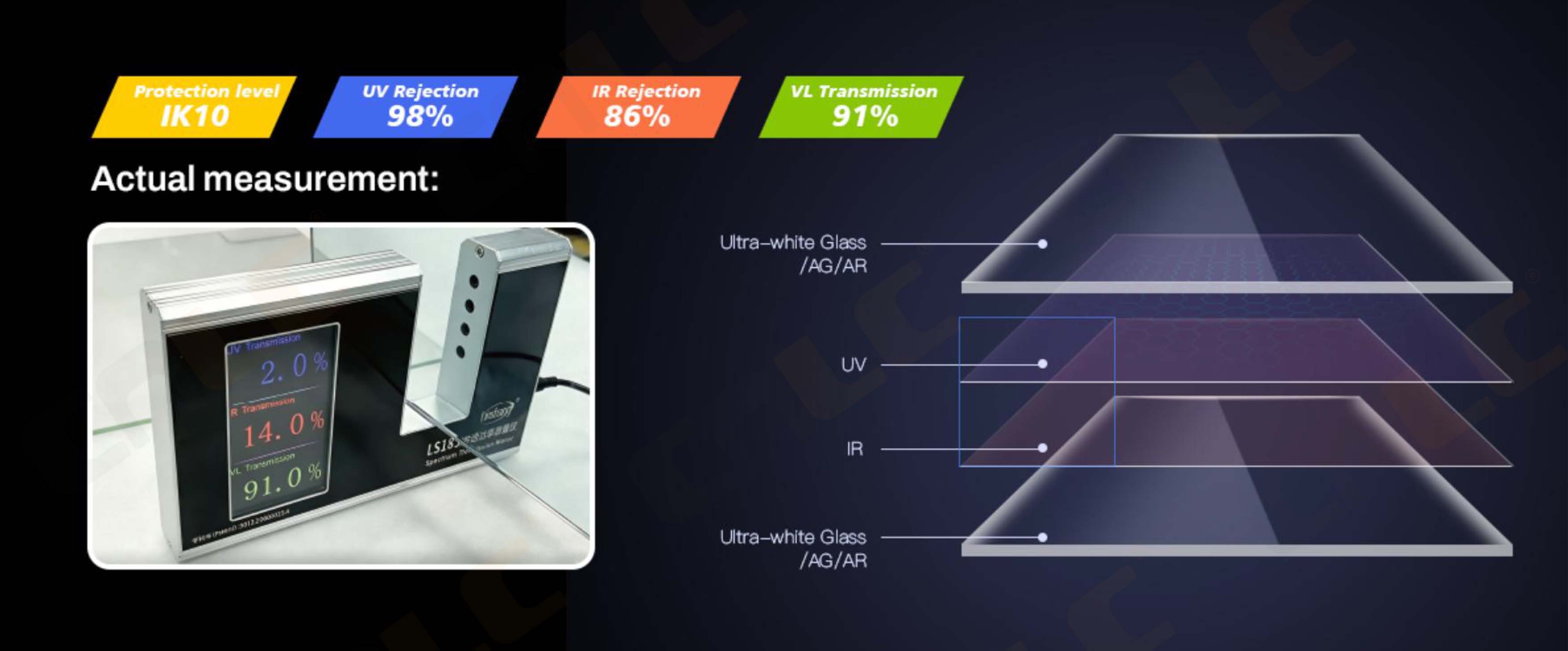

CNLC incorporates Advanced Optical Protective Glass designed to reduce the impact of solar radiation while maintaining excellent display visibility.
| Optical Performance | Specification |
|---|---|
| UV Blocking Rate | 98% |
| Infrared Blocking Rate | 86% |
| Visible Light Transmittance | 91% |
By effectively filtering ultraviolet and infrared radiation while maintaining high visible light transmittance, the protective glass helps reduce solar heat load without compromising image clarity or brightness.
This contributes to a more stable operating temperature for the LED modules and electronic components, improving long-term reliability in outdoor environments.
-11.jpg "Advanced Optical Protective Glass for Outdoor LED Displays")
By reducing external heat input and complementing the internal thermal management system, the optical protective glass further enhances display stability and long-term performance in high-temperature outdoor environments.
Reliable outdoor displays require more than high-performance hardware—they also depend on intelligent management and rigorous product validation throughout their lifecycle.
To reduce operating and maintenance costs, CNLC supports intelligent remote device management, enabling operators to monitor display status, temperature, and system alarms in real time. This allows maintenance teams to quickly identify potential issues, improve operational efficiency, and minimize system downtime.

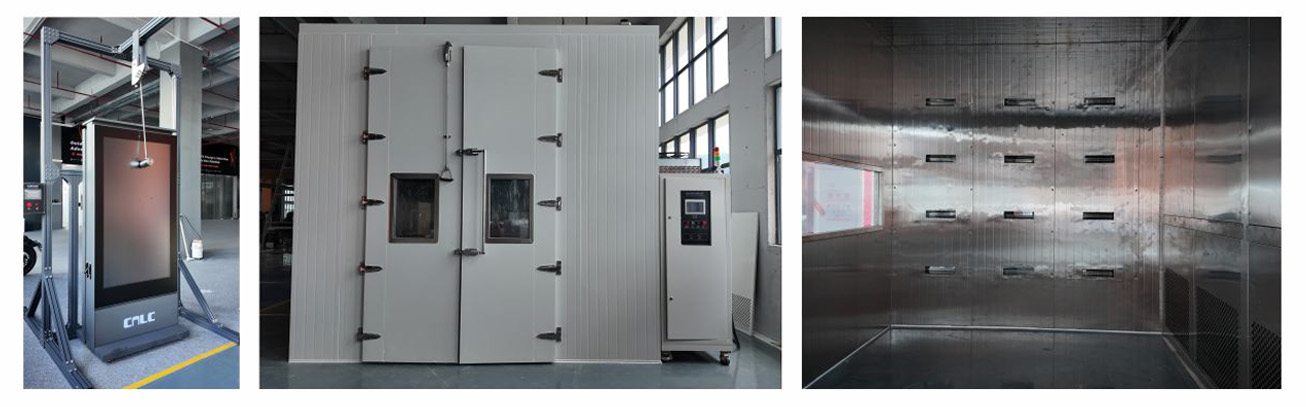

Before delivery, every display undergoes a series of stringent reliability tests to ensure stable operation in demanding outdoor environments.
The validation process includes:
These comprehensive validation procedures help ensure dependable performance across a wide range of climates and environmental conditions worldwide.

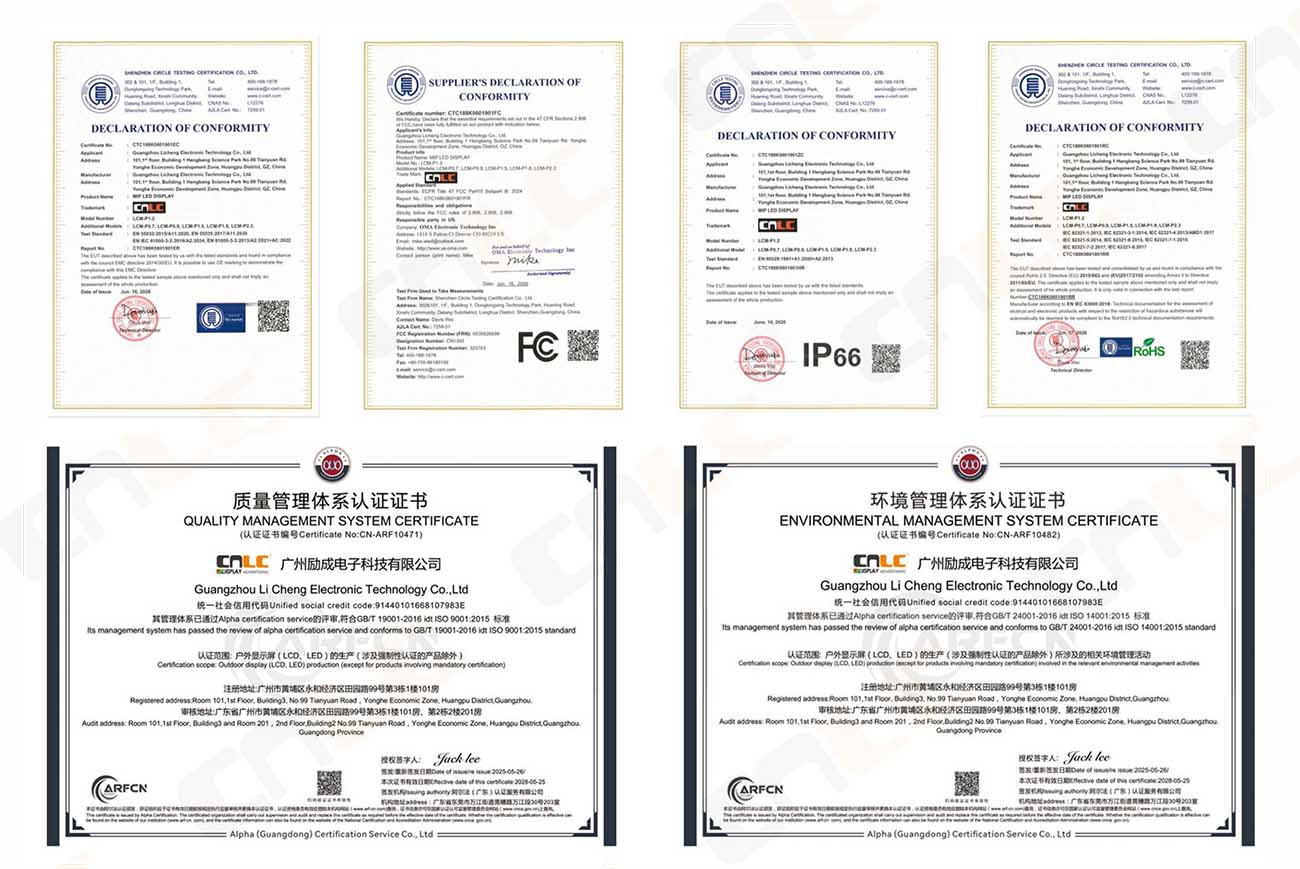

To support global project deployment, CNLC products comply with internationally recognized standards and certifications, including:
These certifications demonstrate our commitment to product quality, safety, environmental compliance, and long-term reliability for international outdoor display projects.
-17.jpg "International Certifications for Outdoor LED Displays")
From intelligent operation and maintenance to comprehensive reliability verification, every stage is designed to support stable performance while reducing long-term operational costs.
For nearly two decades, CNLC has specialized in the research, development, manufacturing, and global delivery of outdoor LED and LCD display solutions.
Backed by strong in-house R&D capabilities, advanced manufacturing facilities, and extensive international project experience, we provide more than display products—we deliver complete outdoor display solutions that help customers simplify deployment, improve operational reliability, and reduce long-term maintenance requirements.
Today, CNLC displays are installed across Europe, the Middle East, Central Asia, Southeast Asia, and other international markets, supporting a wide range of applications including:
Start Your Next Outdoor Display Project
Whether you're planning a smart city deployment, transportation information system, premium outdoor digital signage network, or DOOH advertising project, CNLC is ready to support you with professional expertise at every stage.
From product selection and solution design to technical consultation and after-sales support, our engineering team is committed to helping you build reliable outdoor display systems with confidence.
Request a Solution | Download Product Brochure | Contact Our Technical Team
