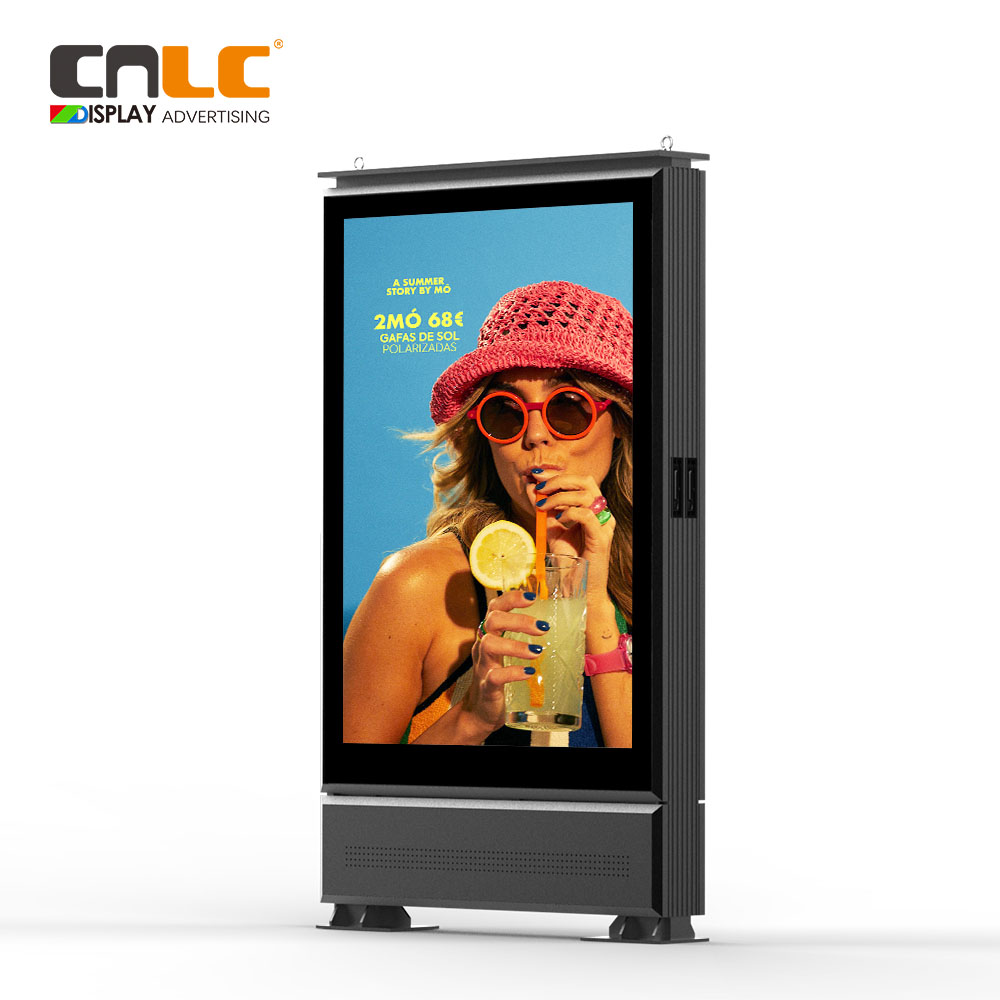

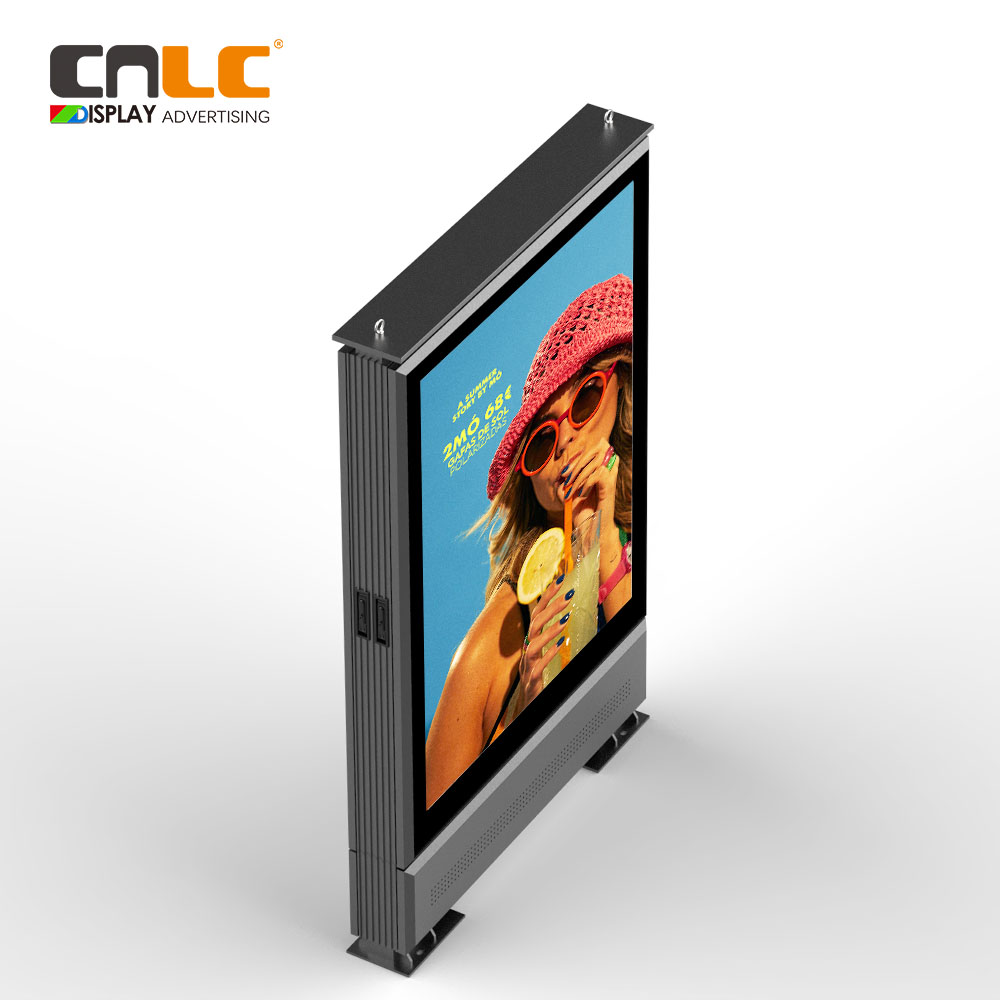

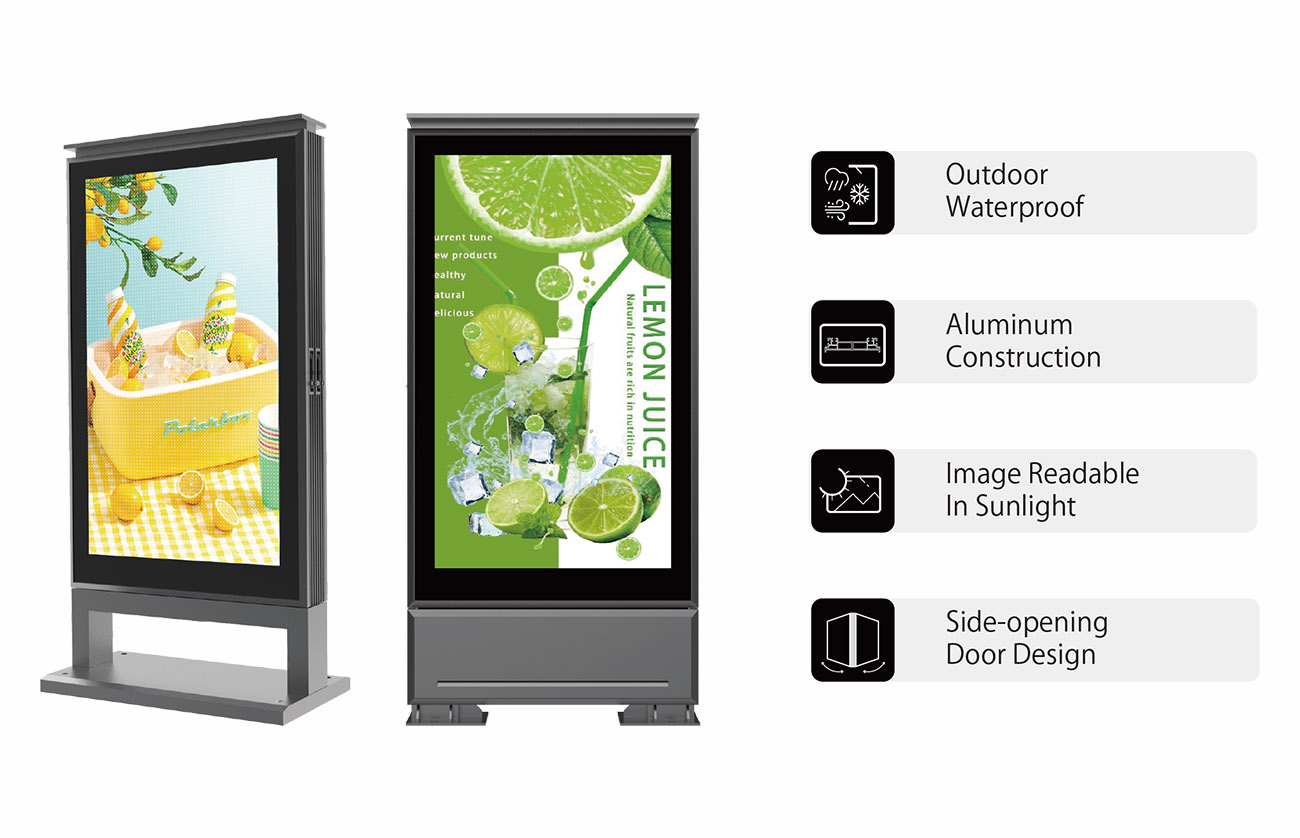

P2.9 High-Brightness Side-Opening Outdoor LED Totem for DOOH Advertising

High-Brightness Side-Opening Outdoor LED mupi

P2.9 High-Brightness Side-Opening Outdoor LED Totem for DOOH Advertising

Discover the side-opening outdoor LED totem with a corrosion-resistant aluminum housing, IP65 weatherproof rating, P2.9 high-brightness display, and an intelligent cooling system. Perfect for reliable DOOH advertising in harsh outdoor conditions.

Item No :
LE-OU-250SB
Size :
Customize
Brightness :
5000/6500 cd/m²
resolution ratio :
SMD
Material :
Aluminum Structure
Color :
Black / Silver / Grey / Customize
Waterproof grade :
IP65

Inquire Now

Product Details

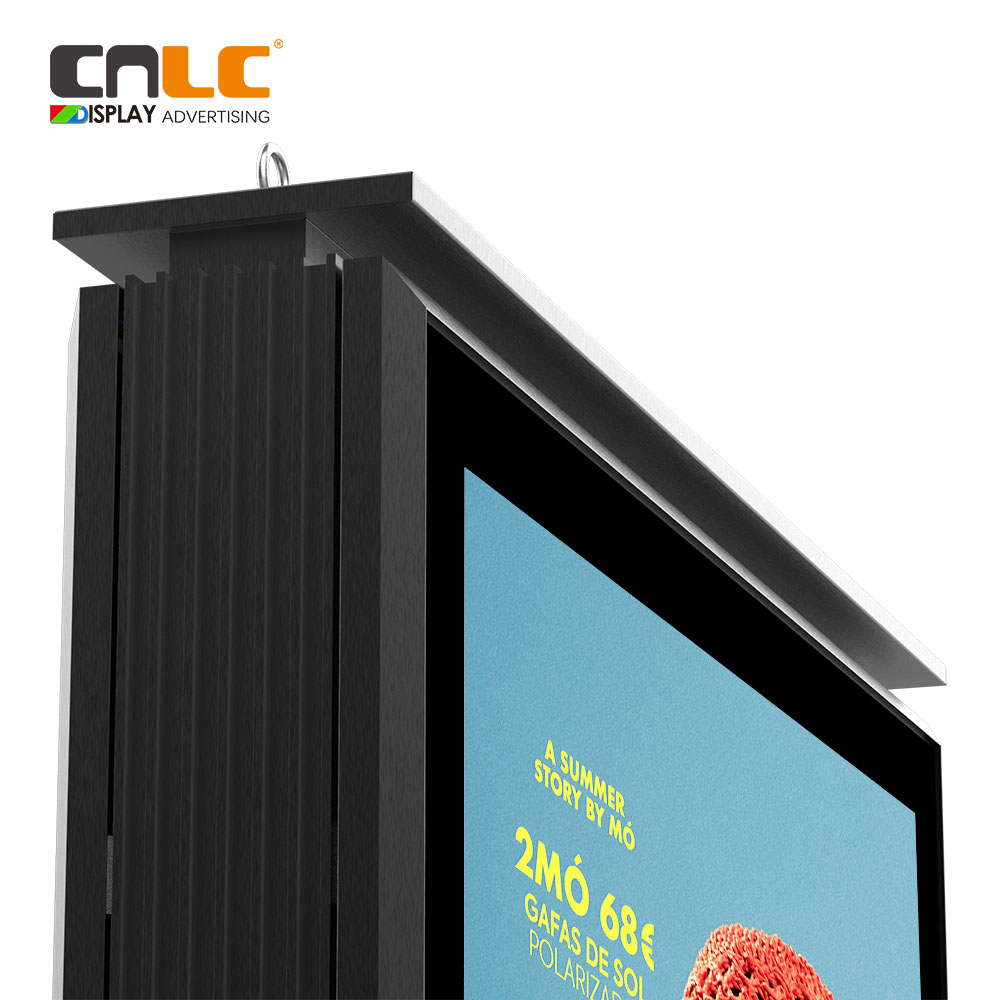

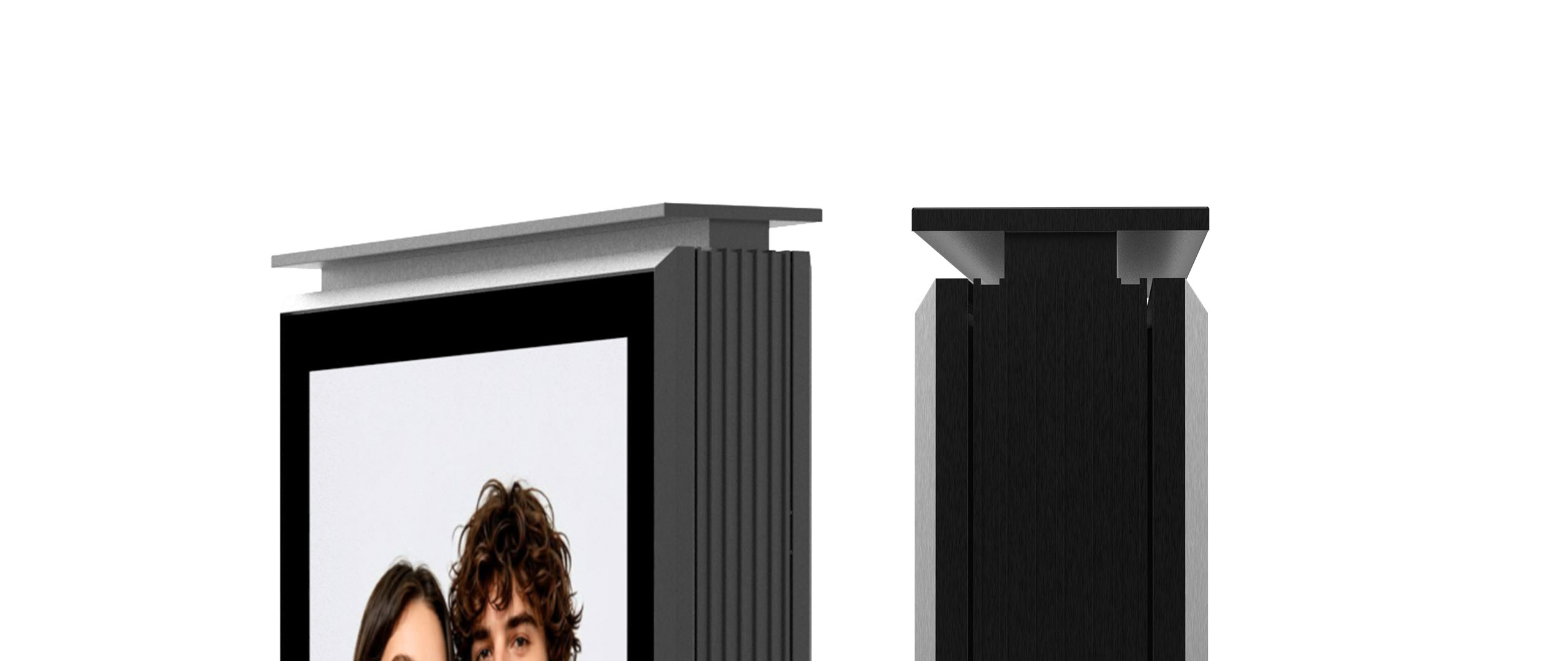

Lightweight, Corrosion-Resistant Aluminum Housing

◆ Built with a precision-engineered aluminum housing, the outdoor LED advertising display combines a lightweight structure with superior corrosion resistance. This durable construction ensures long-lasting performance in coastal areas, desert environments, and urban installations.

Corrosion-Resistant Aluminum Housing of Side-Opening Outdoor LED Display

P2.9 High-Brightness LED Module

◆ Choose the LED module configuration that best fits your project. CNLC offers both front maintenance and rear maintenance modules to meet different installation and service requirements. With high refresh rates, stable image performance, and multiple brightness options, both solutions deliver reliable outdoor advertising performance for a wide range of DOOH applications.

High-brightness LED module options for outdoor digital signage applications

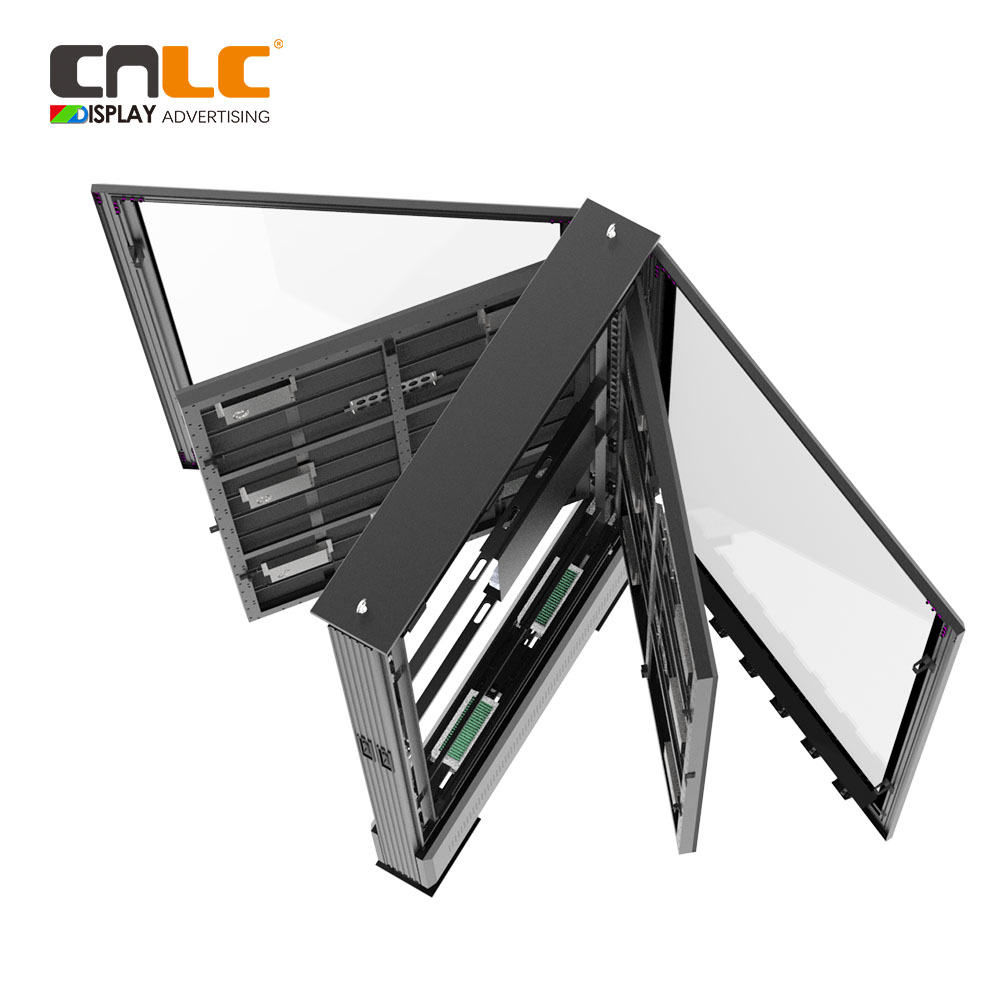

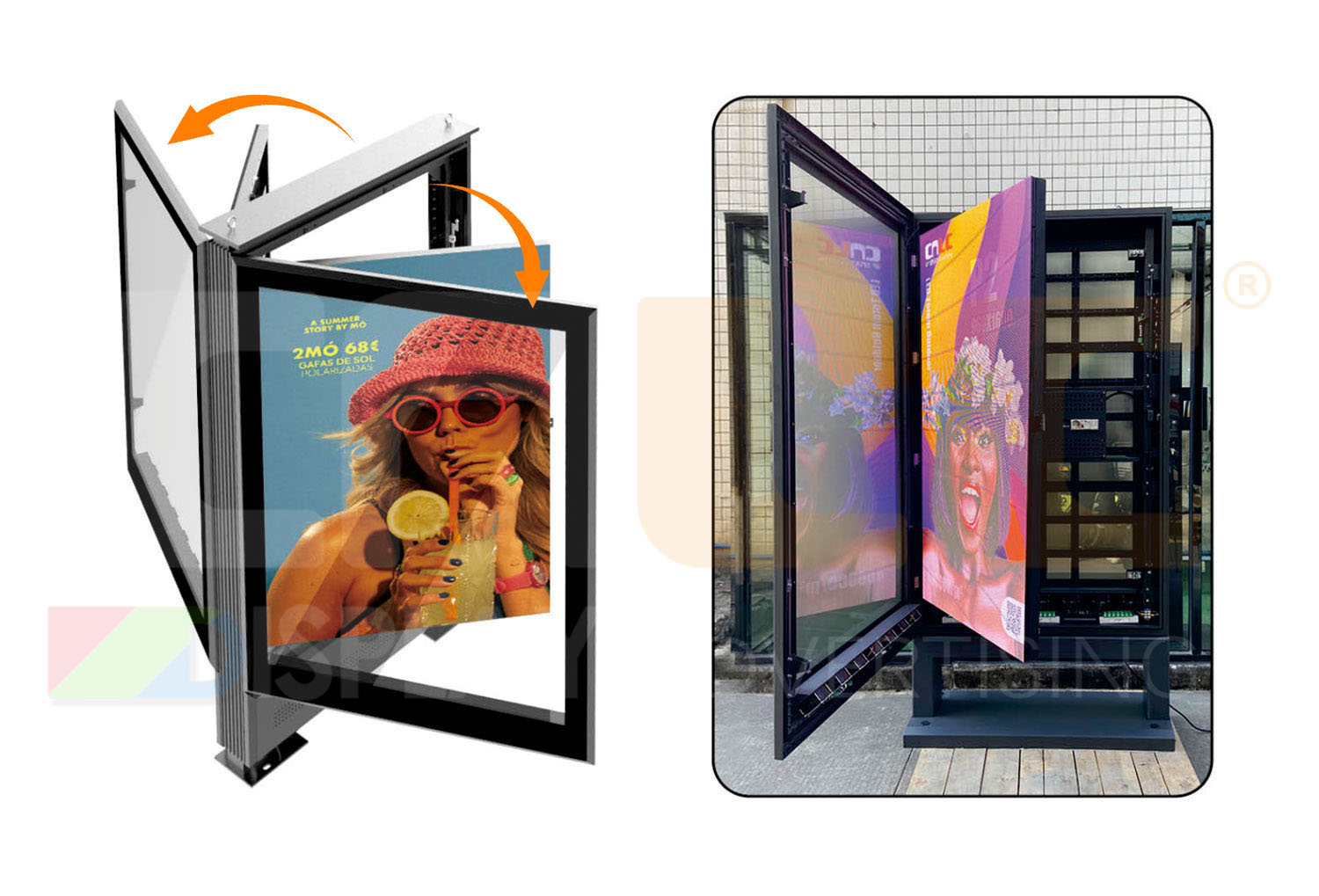

Convenient Side-Opening Design for Easy Maintenance

◆ The side-opening outdoor LED totem is designed for easy access, allowing technicians to service internal components without dismantling the entire structure. By simplifying maintenance, this LED display totem minimizes downtime, improves operational efficiency, and keeps outdoor DOOH advertising networks running smoothly.

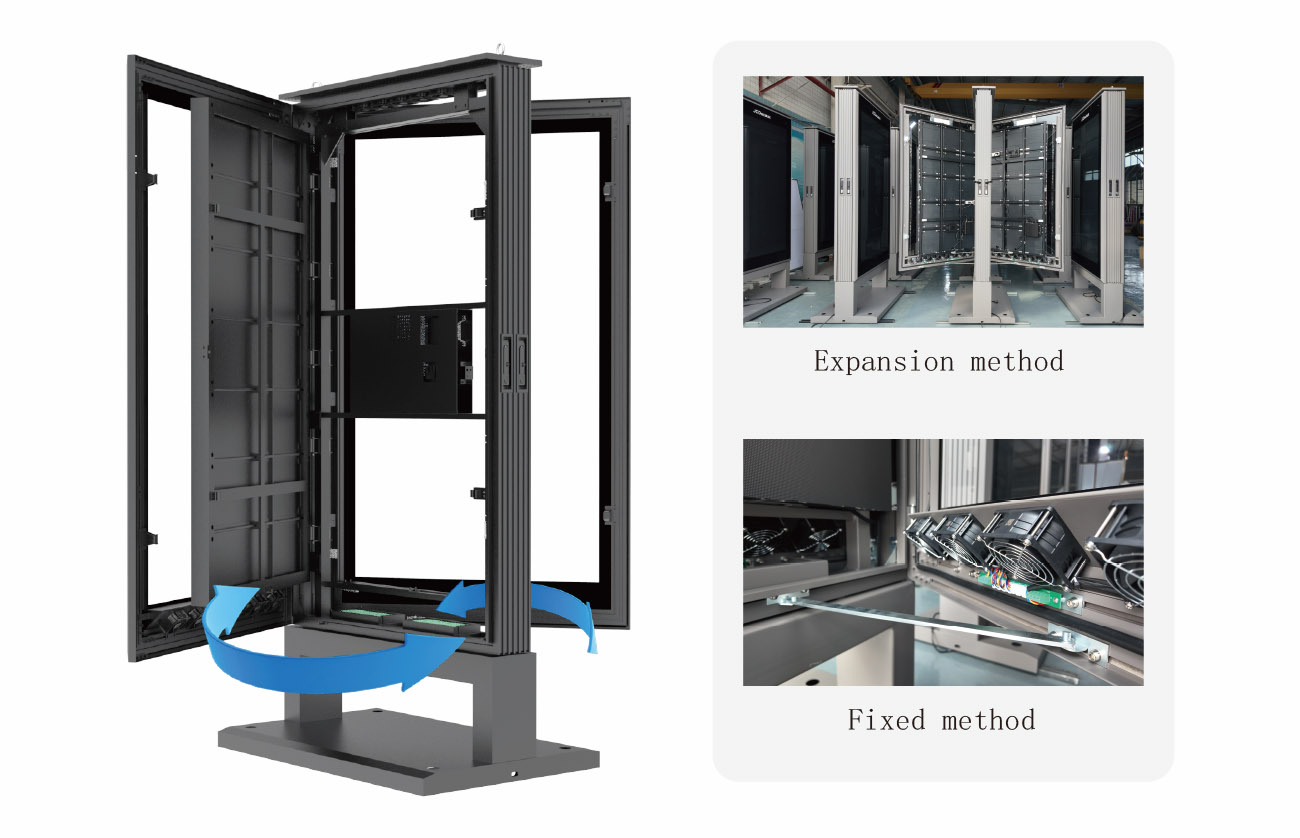

Side-opening maintenance structure for outdoor LED totem display cabinet

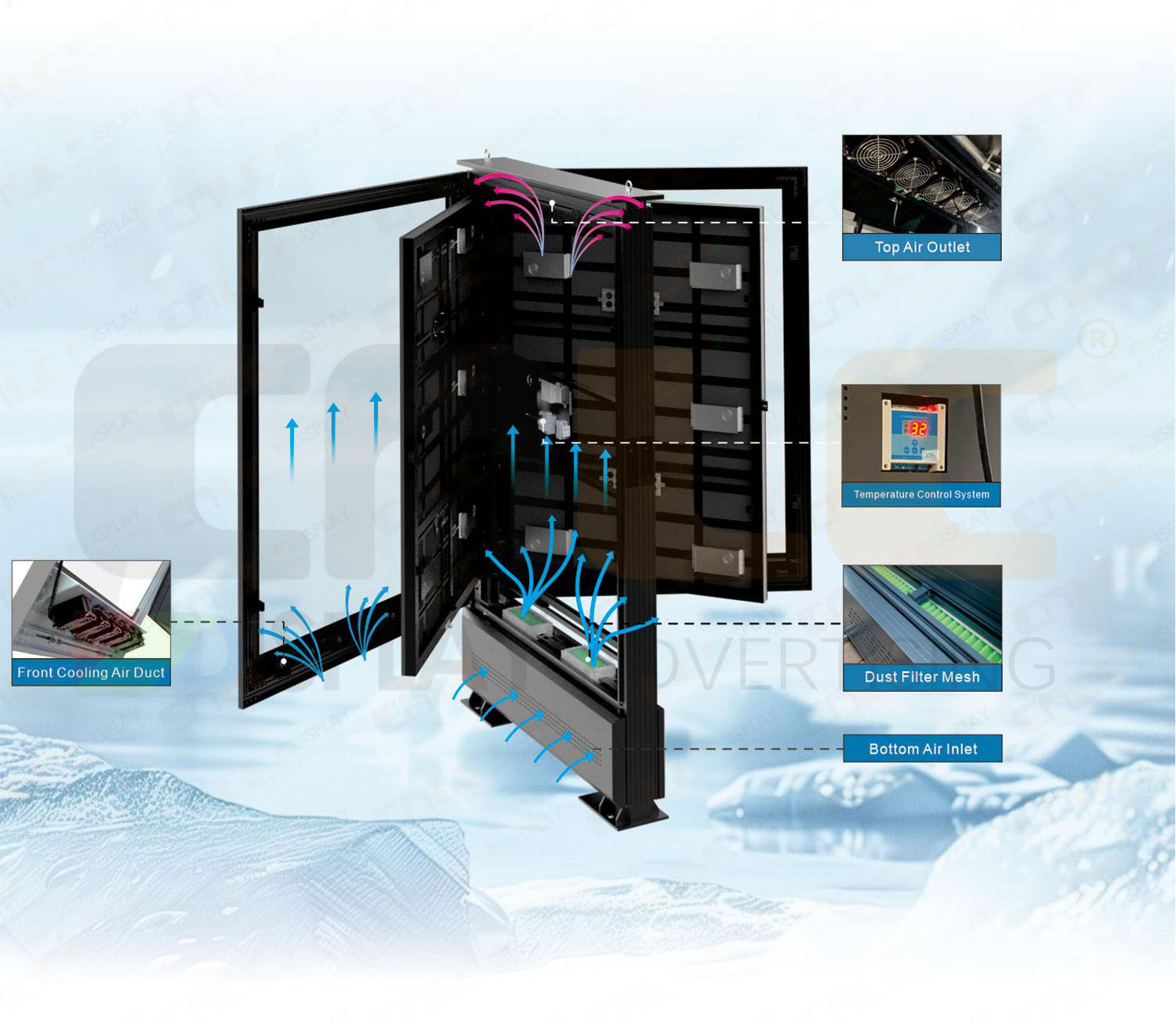

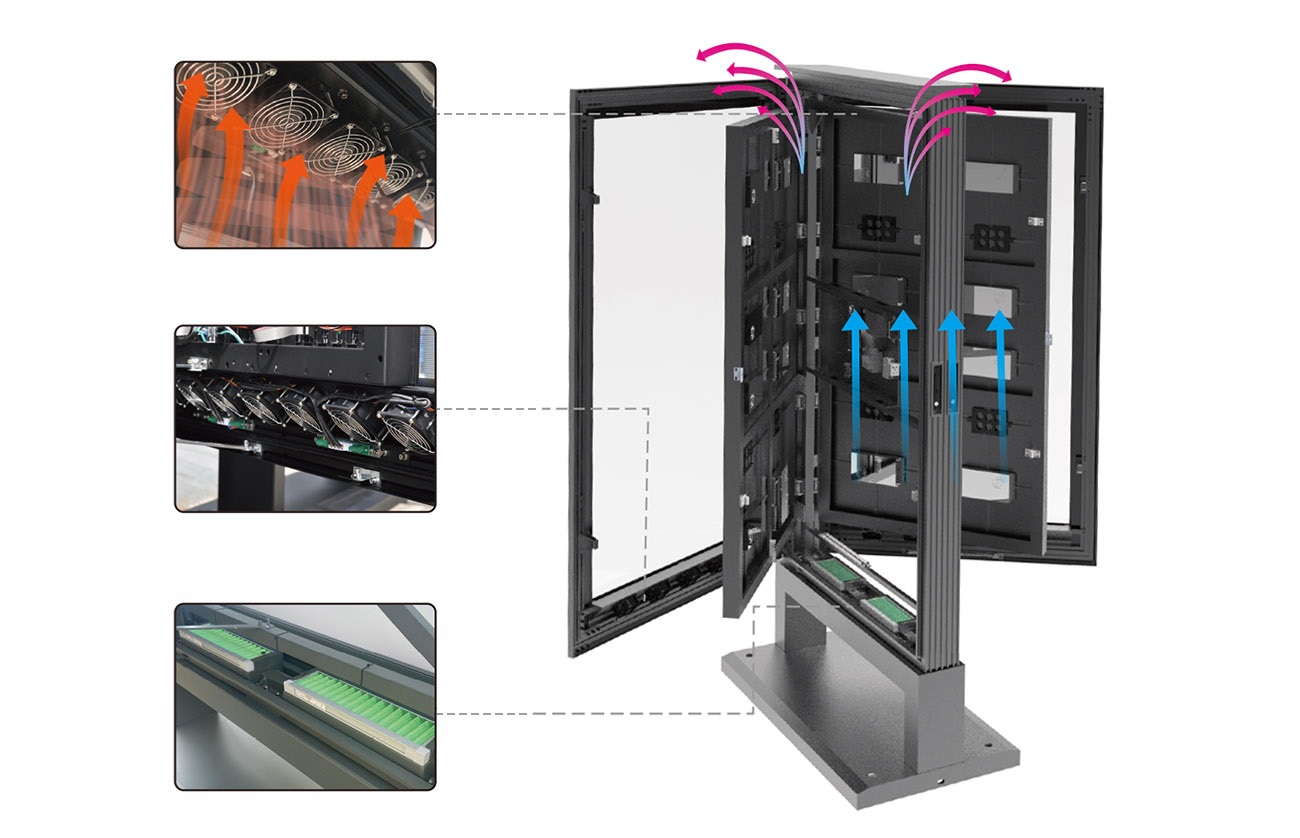

Advanced Cooling System for Reliable Performance

◆ This outdoor LED totem is engineered with a front cooling air duct, bottom air inlet, and top air outlet to create a powerful natural airflow path. Combined with an intelligent temperature control system and internal dust filters, it ensures stable operation even in regions with extreme heat. The optimized ventilation design protects internal components, extends product lifespan, and guarantees consistent DOOH advertising performance in harsh outdoor environments.

Efficient thermal management system for outdoor LED totem display

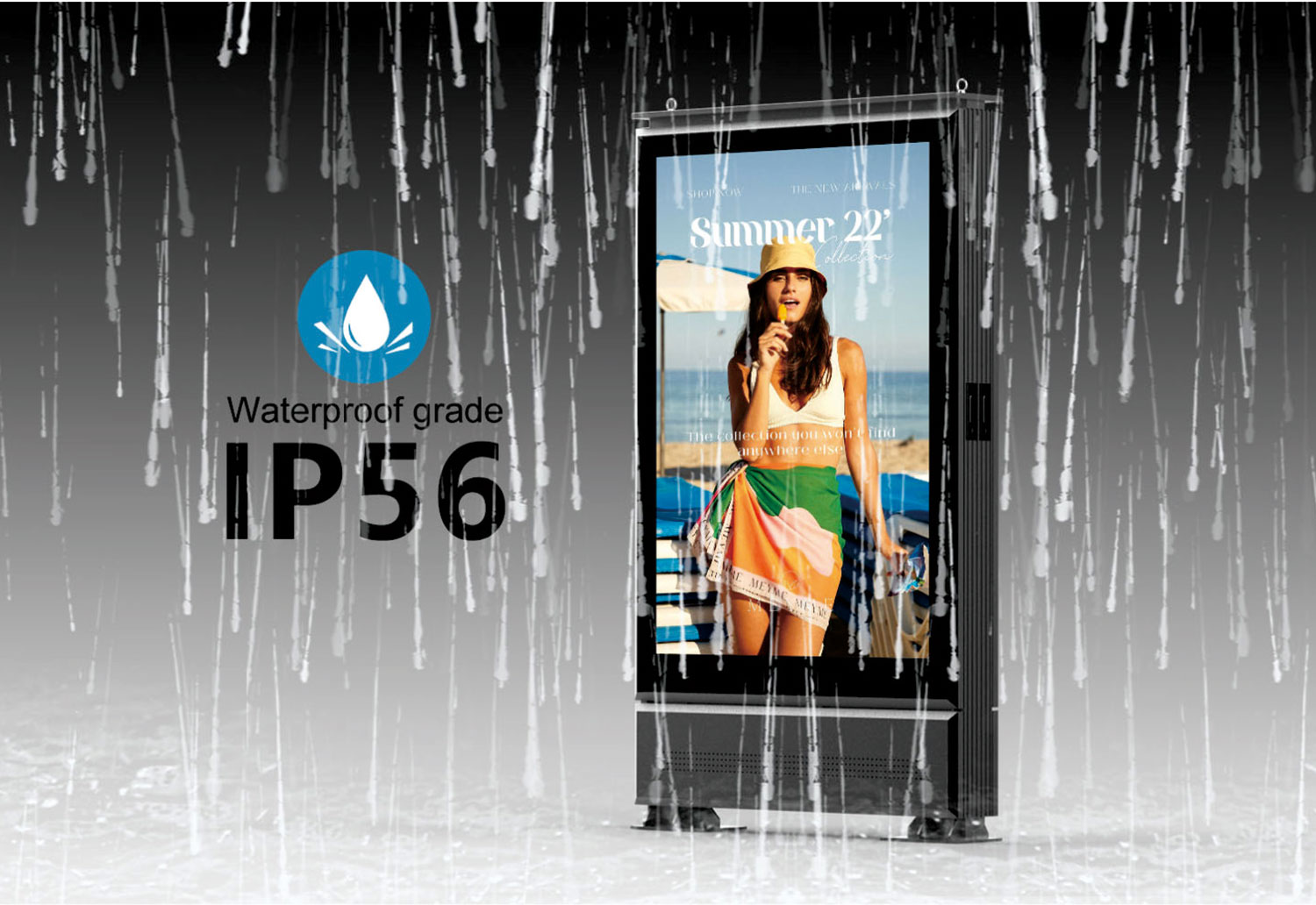

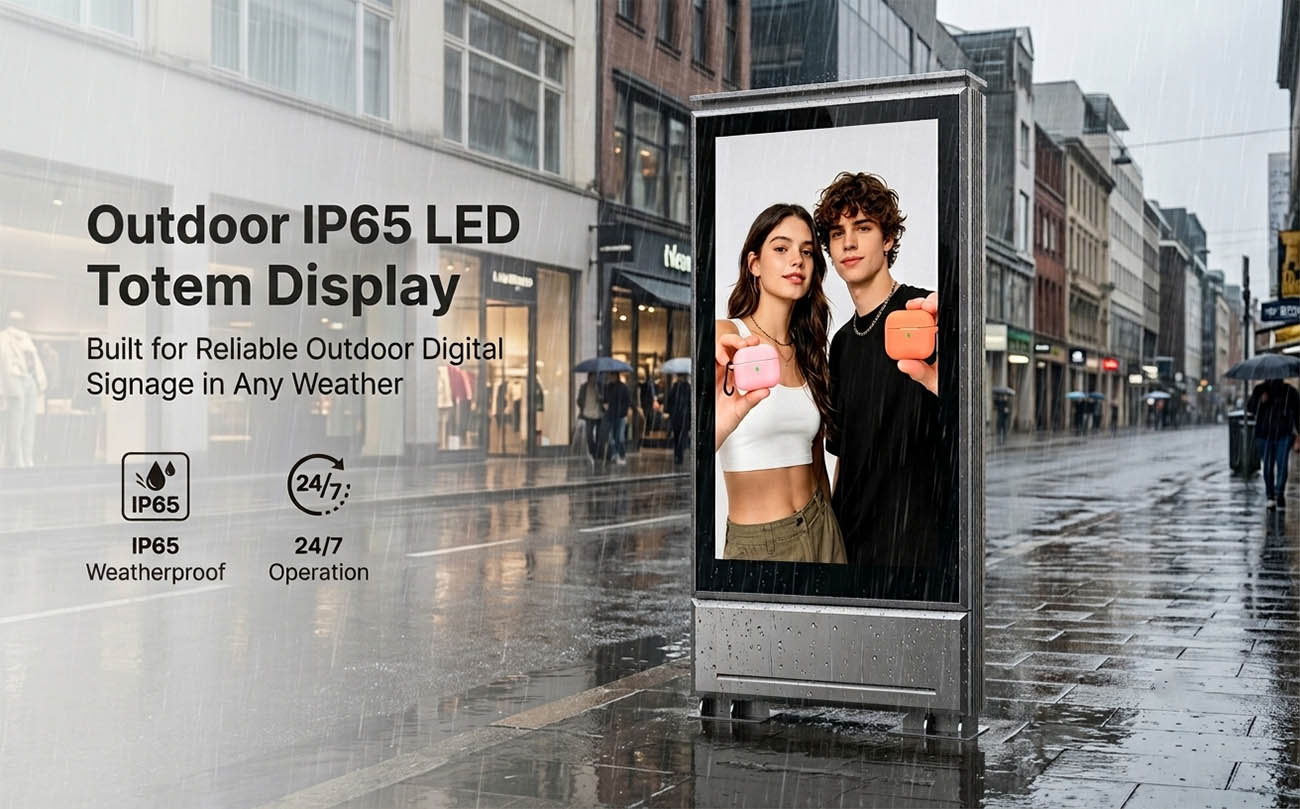

Rugged IP65 Protection for Outdoor Reliability

◆ Built for challenging outdoor environments, this LED totem display is rated IP56, providing robust protection against dust ingress and powerful water jets. Whether exposed to sandstorms, rain, or humidity — especially in Middle Eastern climates — it ensures stable, long-term performance for outdoor DOOH deployments.

Outdoor LED signage operating in heavy rain with IP65 waterproof protection

Stable Performance in Extreme Temperatures

◆ Designed for demanding outdoor environments, our outdoor LED display maintains stable brightness, reliable operation, and long-term performance under both high and low temperature conditions. Every unit is validated in our environmental testing chamber to ensure dependable performance before delivery.

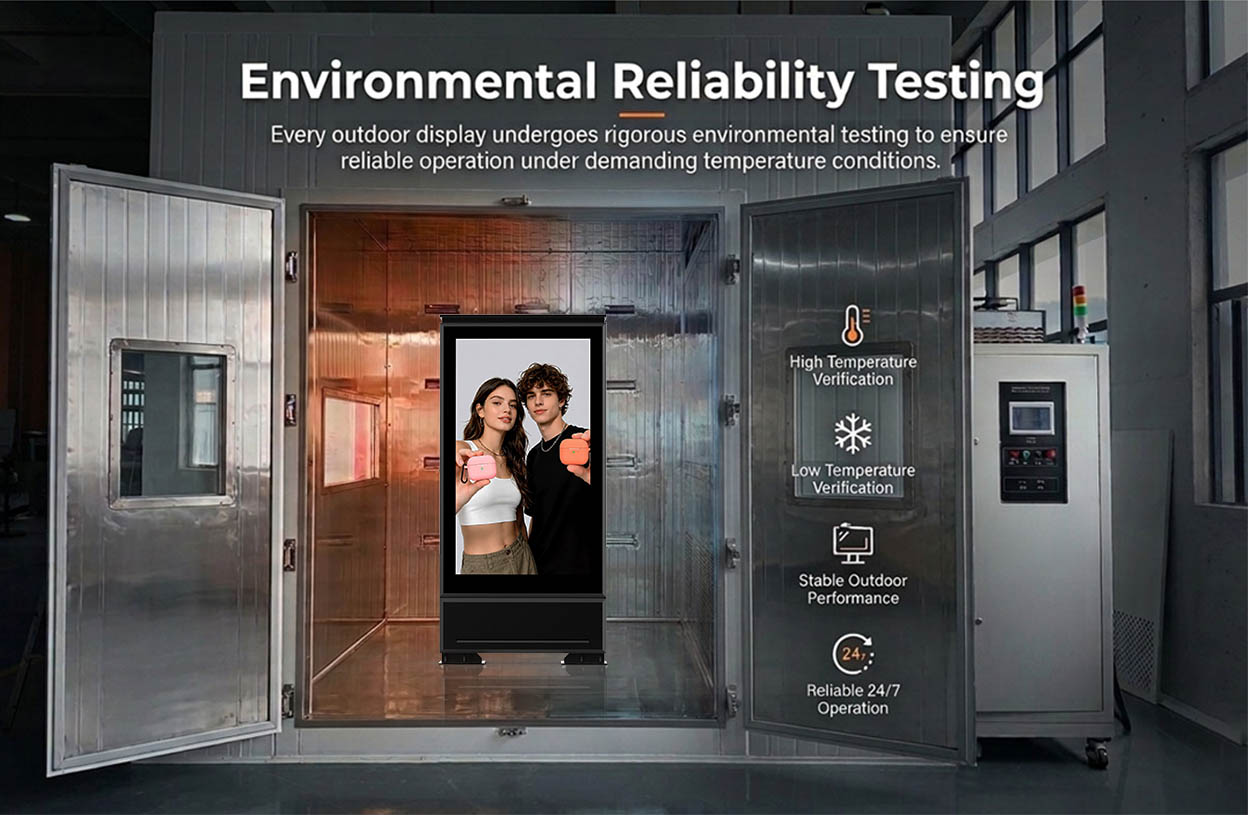

Outdoor LED display validated through high and low temperature environmental testing

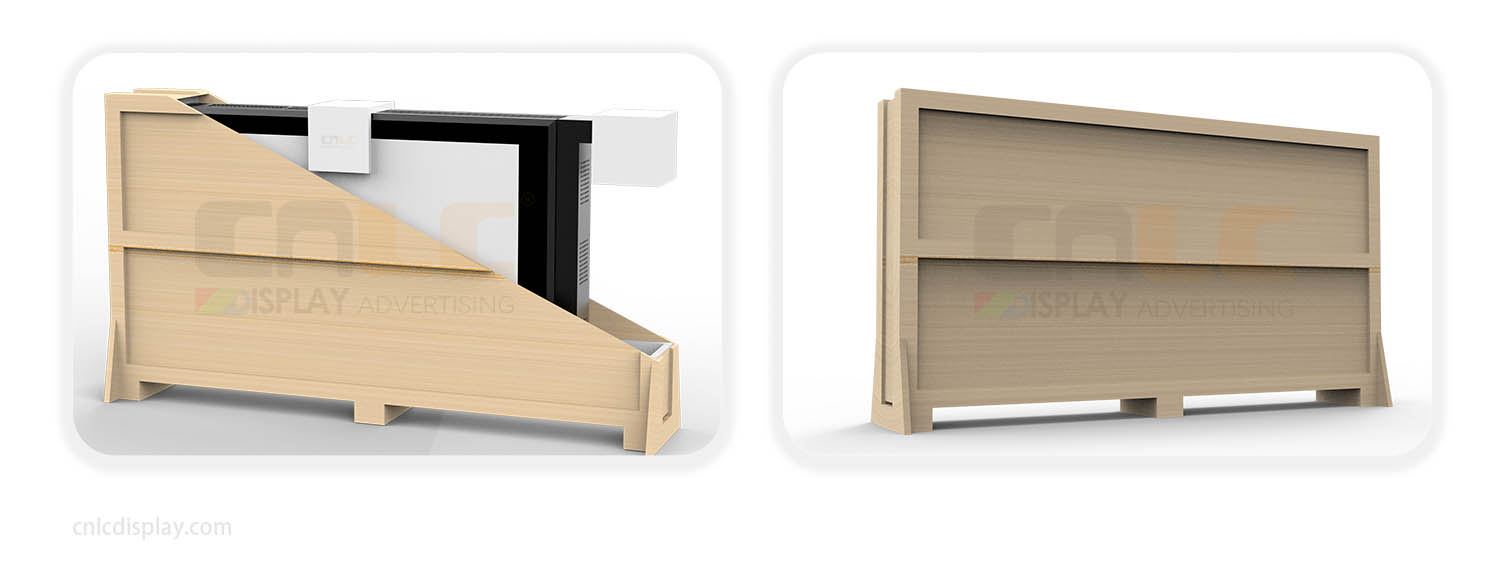

LED Totem Wooden Crate Packaging

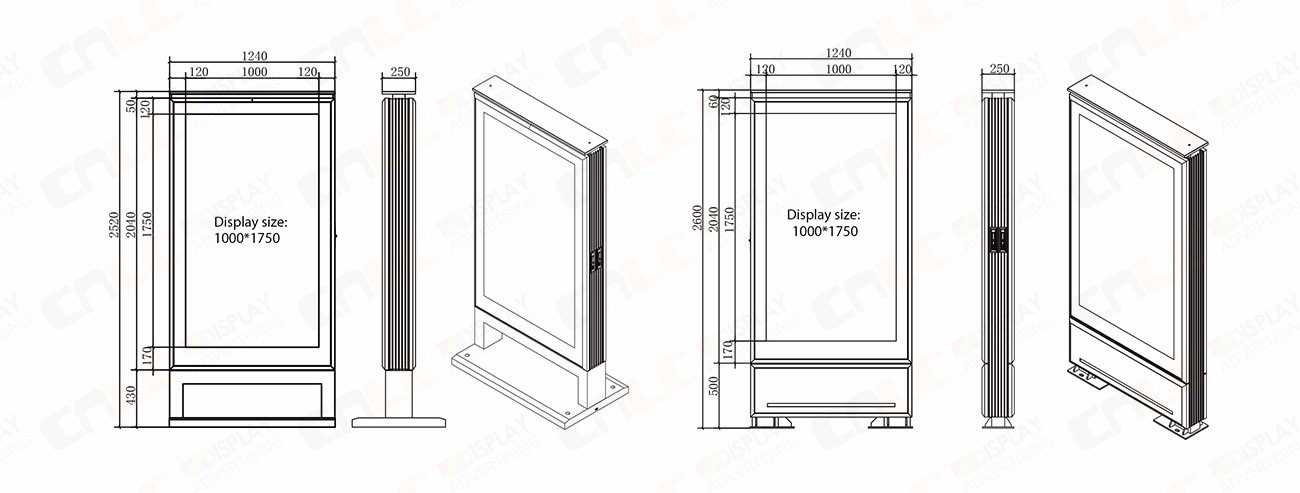

TECHNICAL SPECIFICATIONS

Pixel Pitch(mm)	2.976mm
Display Size(mm)	1000*1750
Module size (mm)	250*250
Pixel Density(Dots/m²)	112896
Scan method	1/21scan
LED Encapsulation	SMD1415
Material of Frame and Support Structural	Aluminum profile
Cooling system	Build in cooling fans
Embedded heater	Optional
Media update	Remote control (LAN and WIFl)
Operating Ambient Temperature	-20℃~+50℃
Waterproof level	IP65
Maintenance method	Front or rear maintenance
Refresh frequency (Hz)	1920/3840
Brightness(nits)	5000/6500
Viewing angle (horizontal/vertical)	170°/170°±5°
Thickness of Tempered Glass	6mm / 8mm(Laminated glass) IK10
Maximum Power(W/m²)	800

WHY CNLC OUTDOOR DIGITAL DISPLAYS？

IP rating aluminum profile casing resists dust,rain,snow and anti-corrosion.
Easy to install, moving to right place ,connect to power and mount the bolts on the ground. Lower the labor costs for installation and maintenance.
Close visual and auditory impact allows the viewers to more realistically feel the advantages of the product, which is the best way to promote products and services.
IK10 vandal resistance and intelligent thermal managment ensure the durability of CNLC outdoor digital displays.
Smoothly operating under temperature from -35 to 60 ℃，even in mountain and seaside.

Contact us to learn more and customize an LED

display to fit your advertising needs.
