Item No :
CNLC-ED-225Size :
CustomizeBrightness :
5500 cd/m²resolution ratio :
SMDMaterial :

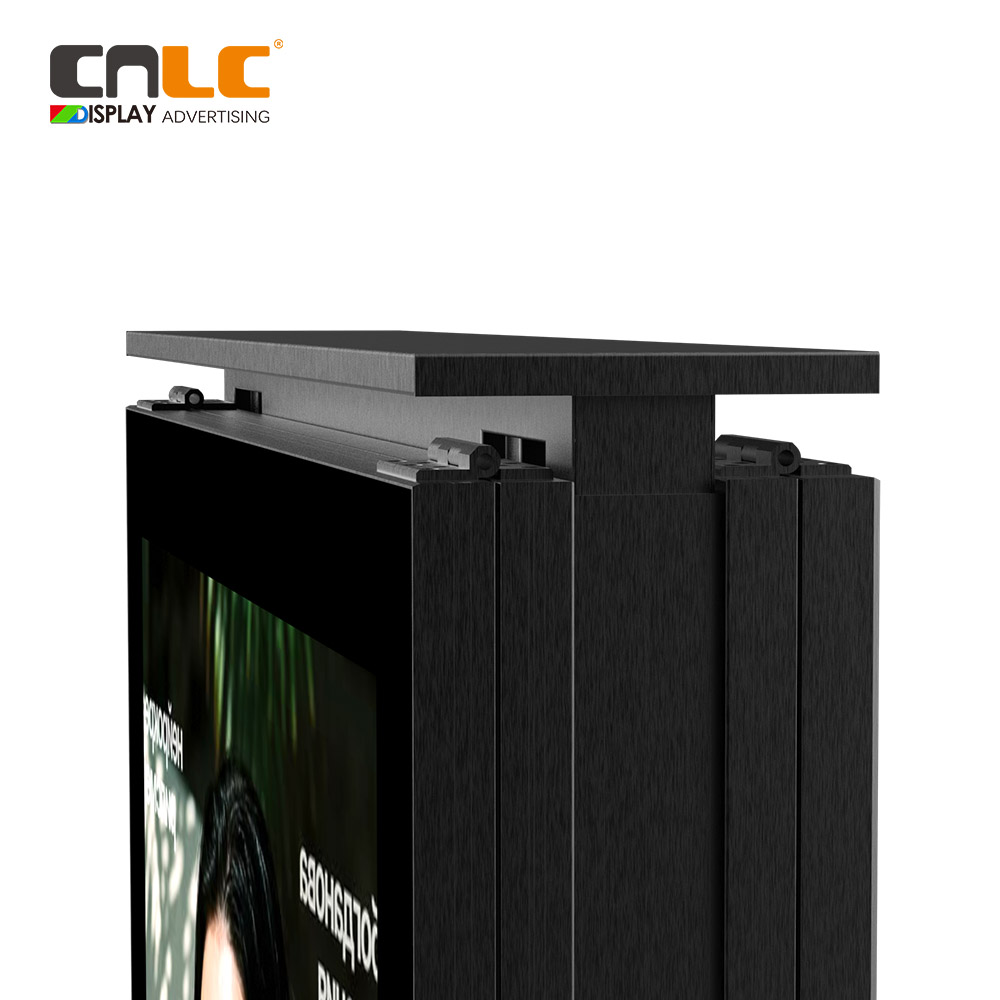

Aluminum StructureColor :
Black / Silver / Grey / CustomizeWaterproof grade :
IP56

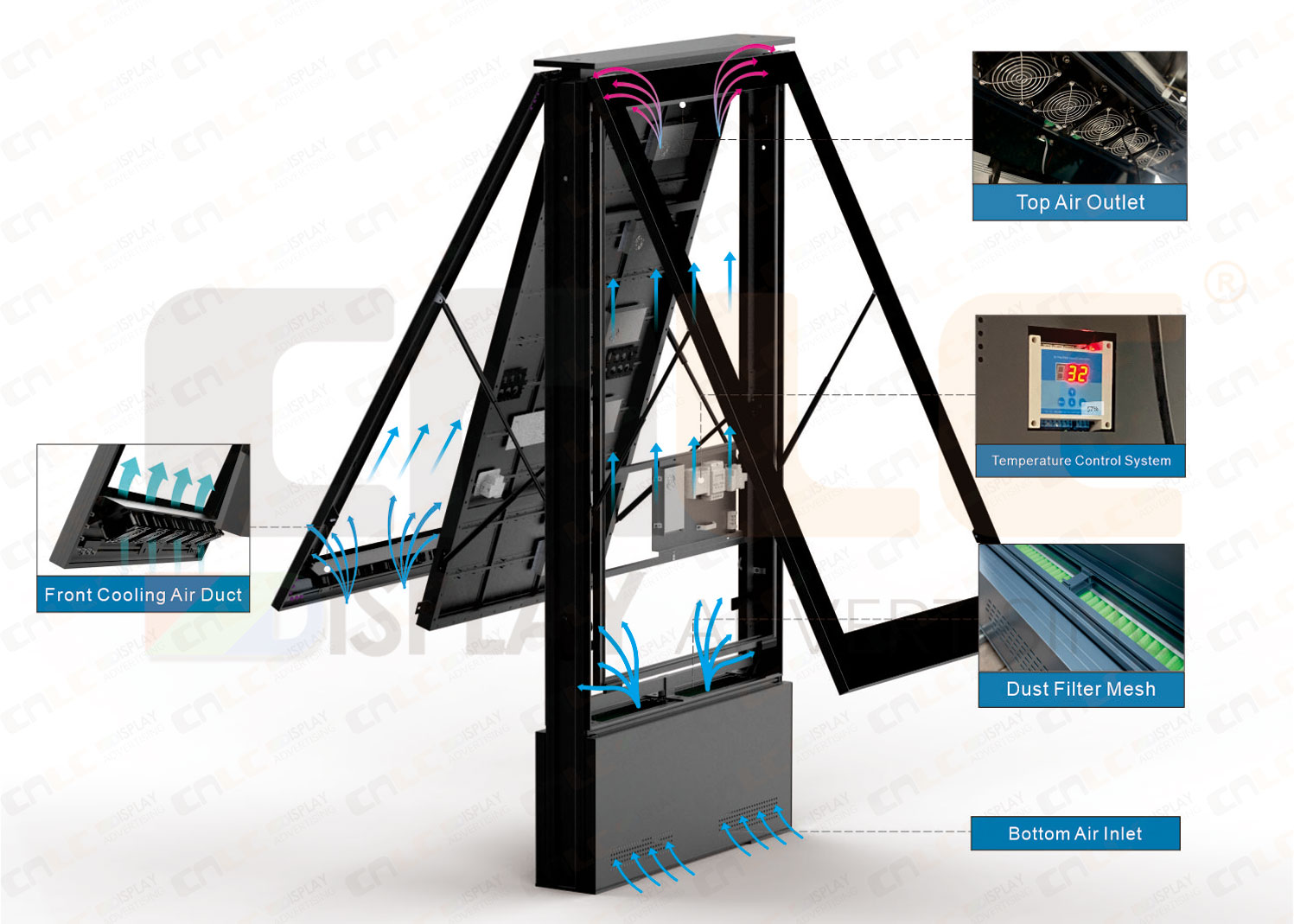

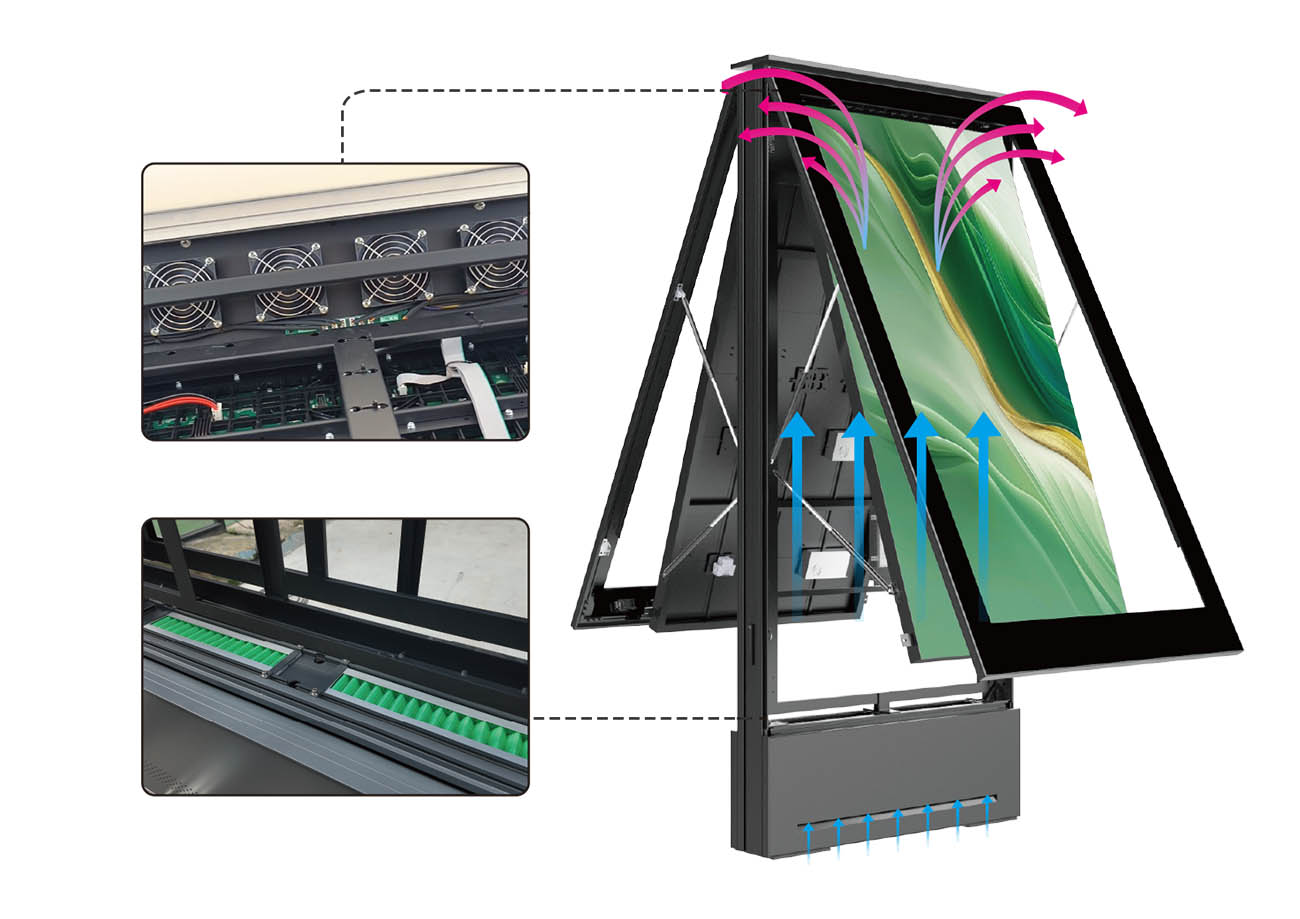

Advanced Cooling System for Reliable Performance

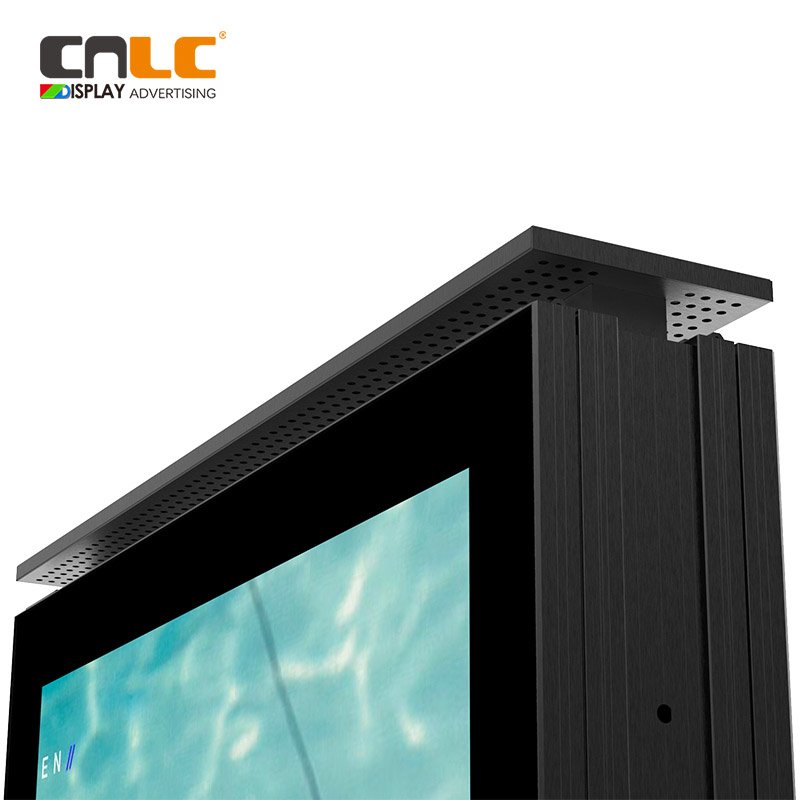

◆ This bus stop LED totem display features a high-efficiency thermal management system engineered to maintain stable performance in outdoor public transportation environments. Cool air enters through bottom air inlets, passes through dust-proof filters, and moves upward via internal airflow channels. The front cooling duct, equipped with fans, removes heat accumulated at the LED screen surface, while top exhaust fans efficiently expel hot air. An intelligent temperature control system automatically adjusts fan speed based on real-time heat levels, ensuring optimal airflow, reducing energy consumption, and preventing overheating. This advanced cooling design protects critical components, extends lifespan, and guarantees reliable operation of LED totems in bus shelters and transit hubs, even under intense sunlight and high-temperature conditions.
Easy Maintenance for Bus Stop LED Totem

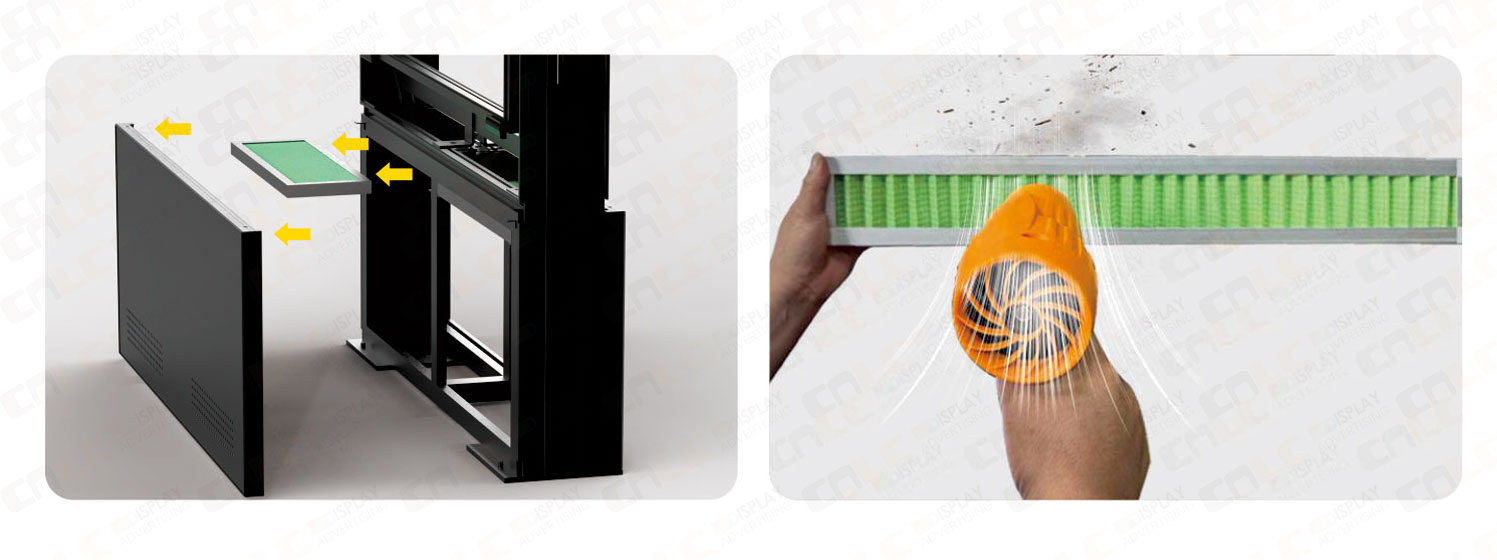

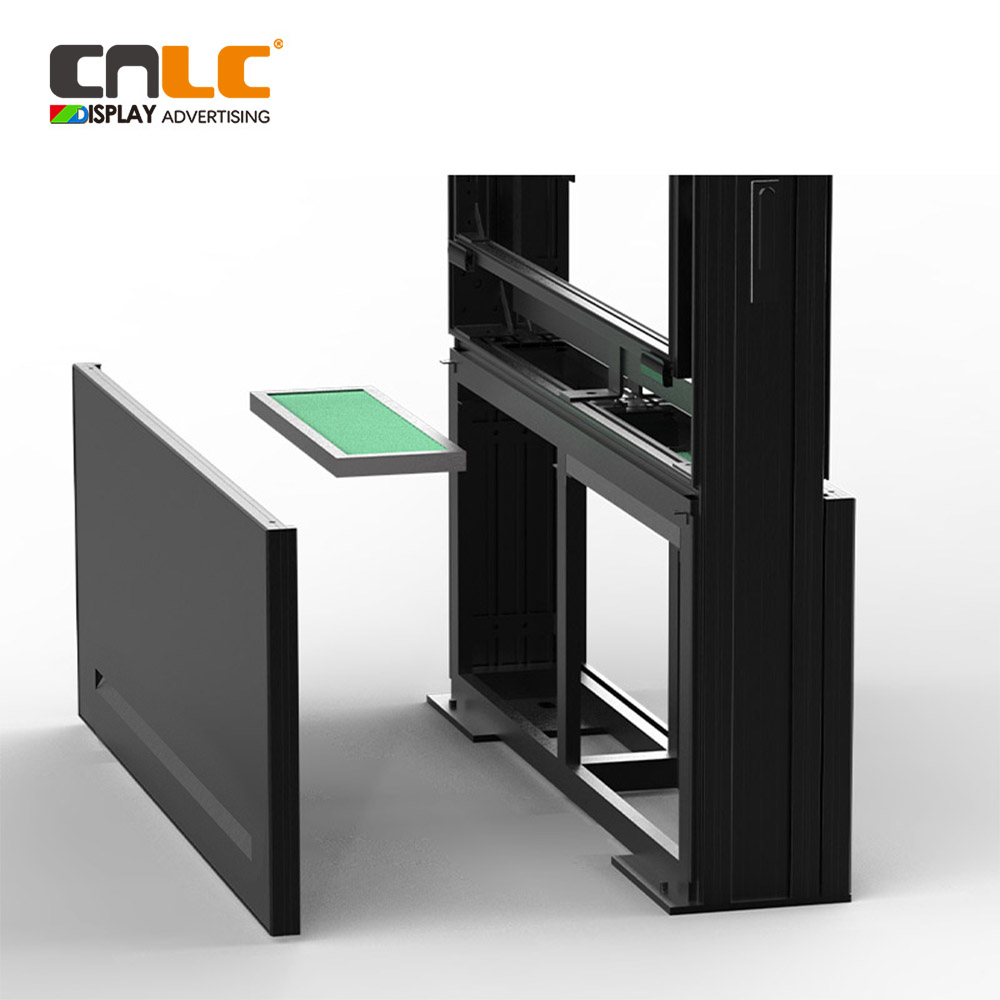

◆ This bus stop LED totem display is designed for easy maintenance, ensuring minimal downtime for public transportation digital signage. To clean or replace the air filters, simply unscrew the fixing screws and remove the bottom panel — no additional tools are required. Accumulated dust can then be quickly cleared using a blower. Inside the display, dust-proof screens effectively block dirt, debris, insects, and other particles, protecting critical components from contamination and damage. This maintenance-friendly design keeps the LED totem operating reliably, delivering high-quality visuals in bus shelters, transit hubs, and outdoor urban environments with minimal effort.

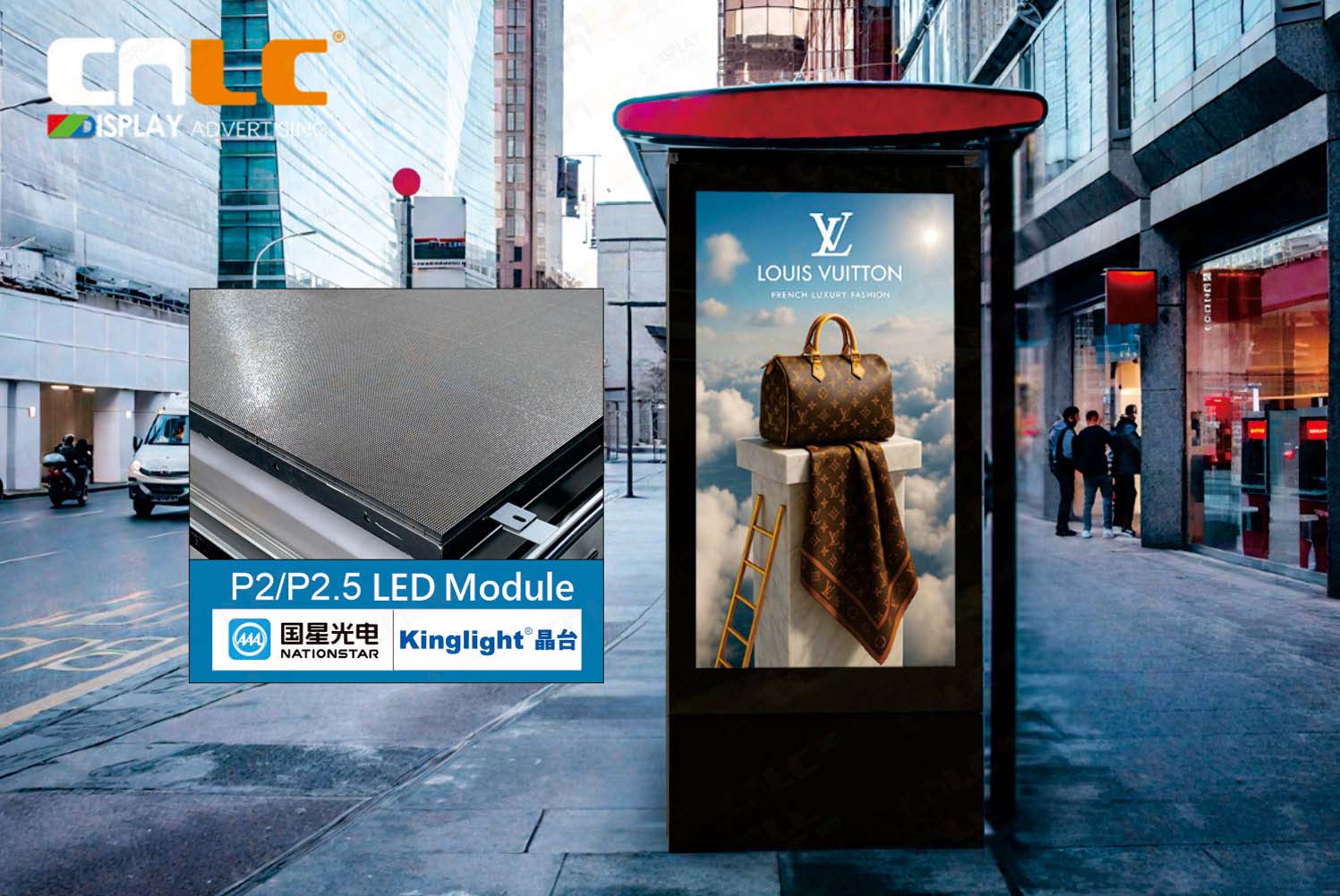

Customizable High-Brightness LED Modules for Bus Stop Displays

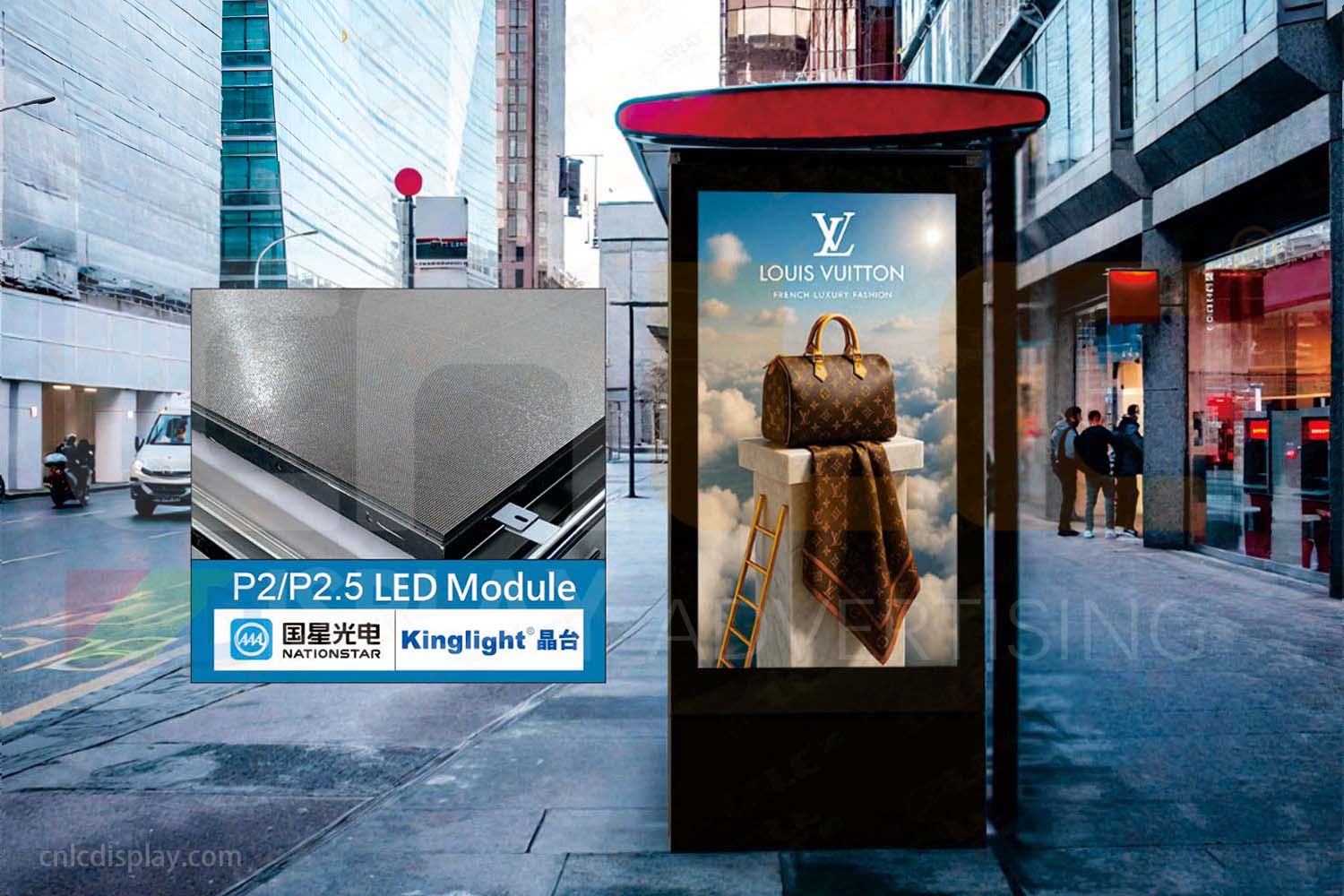

◆ This dual-sided LED totem supports P2 or P2.5 LED modules, allowing selection from NationStar or Kinglight modules, or CNLC's own SMD modules. The customizable modules deliver high-brightness, vibrant visuals for bus stop digital signage and DOOH advertising in urban transit hubs, ensuring maximum impact and readability under daylight conditions.

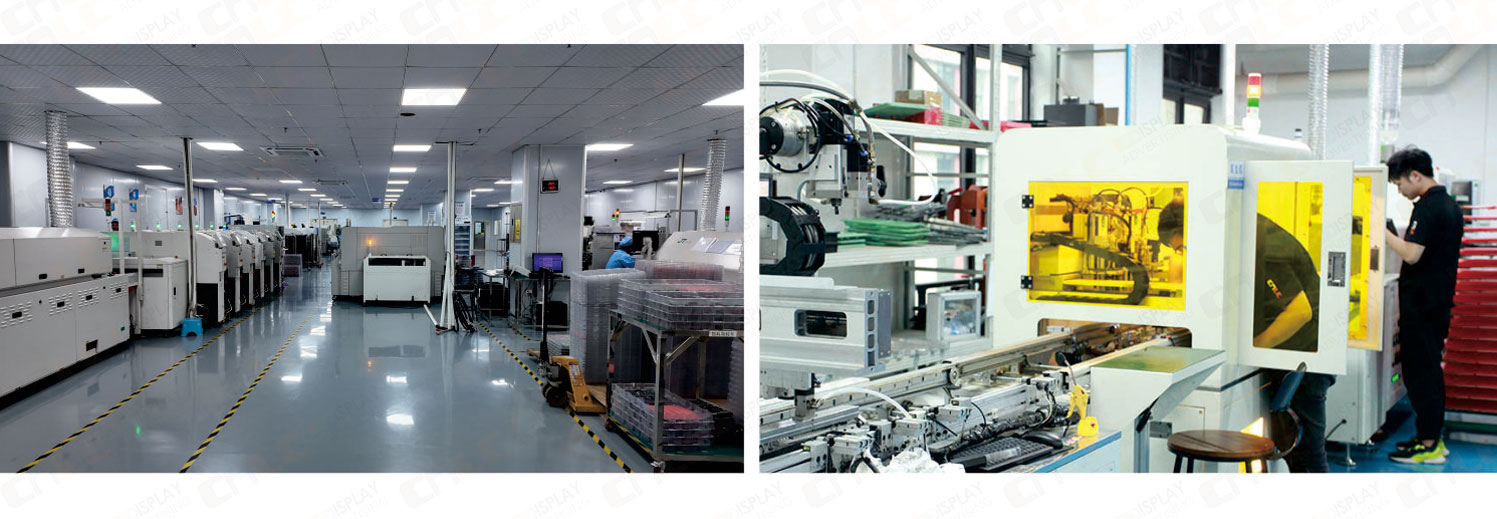

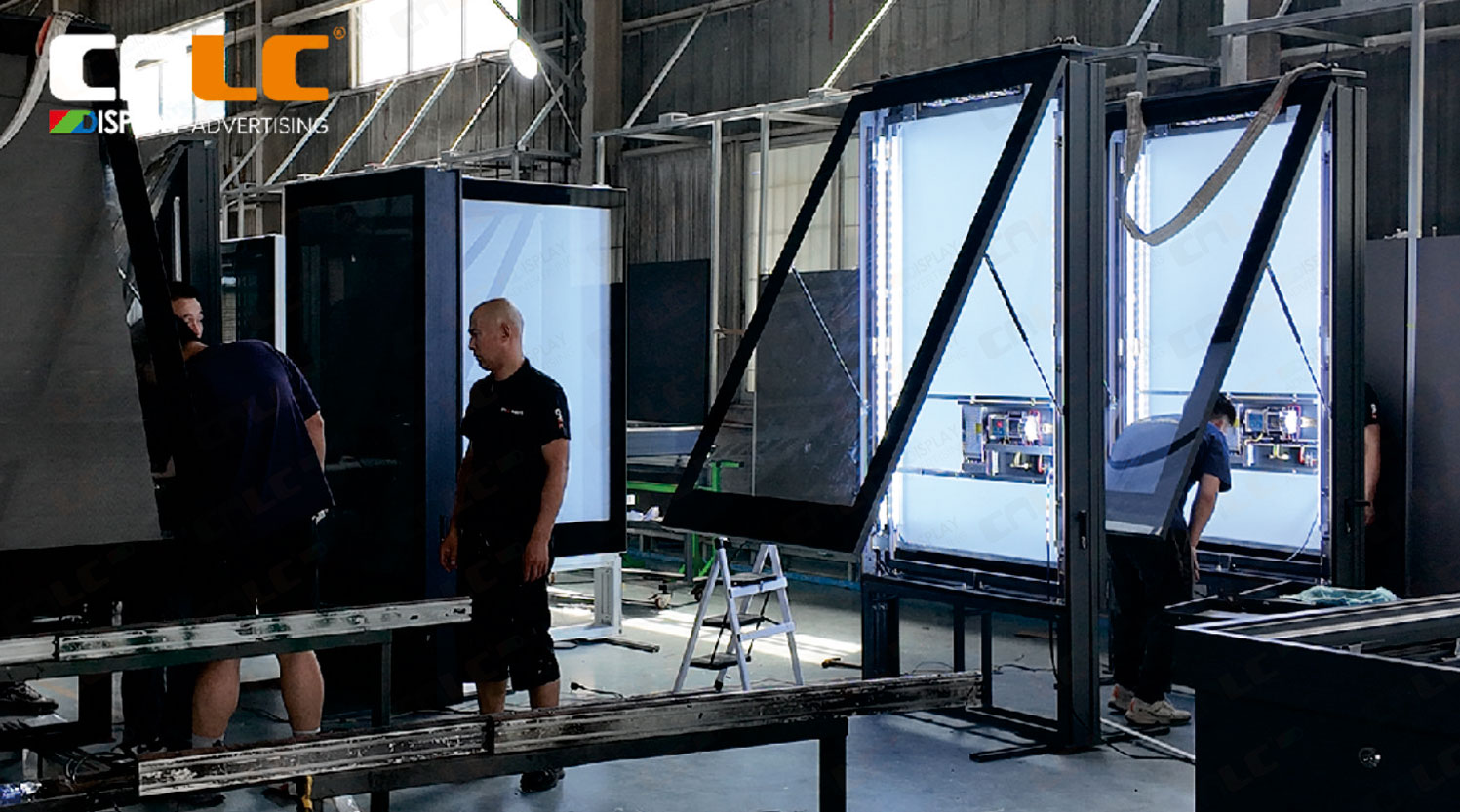

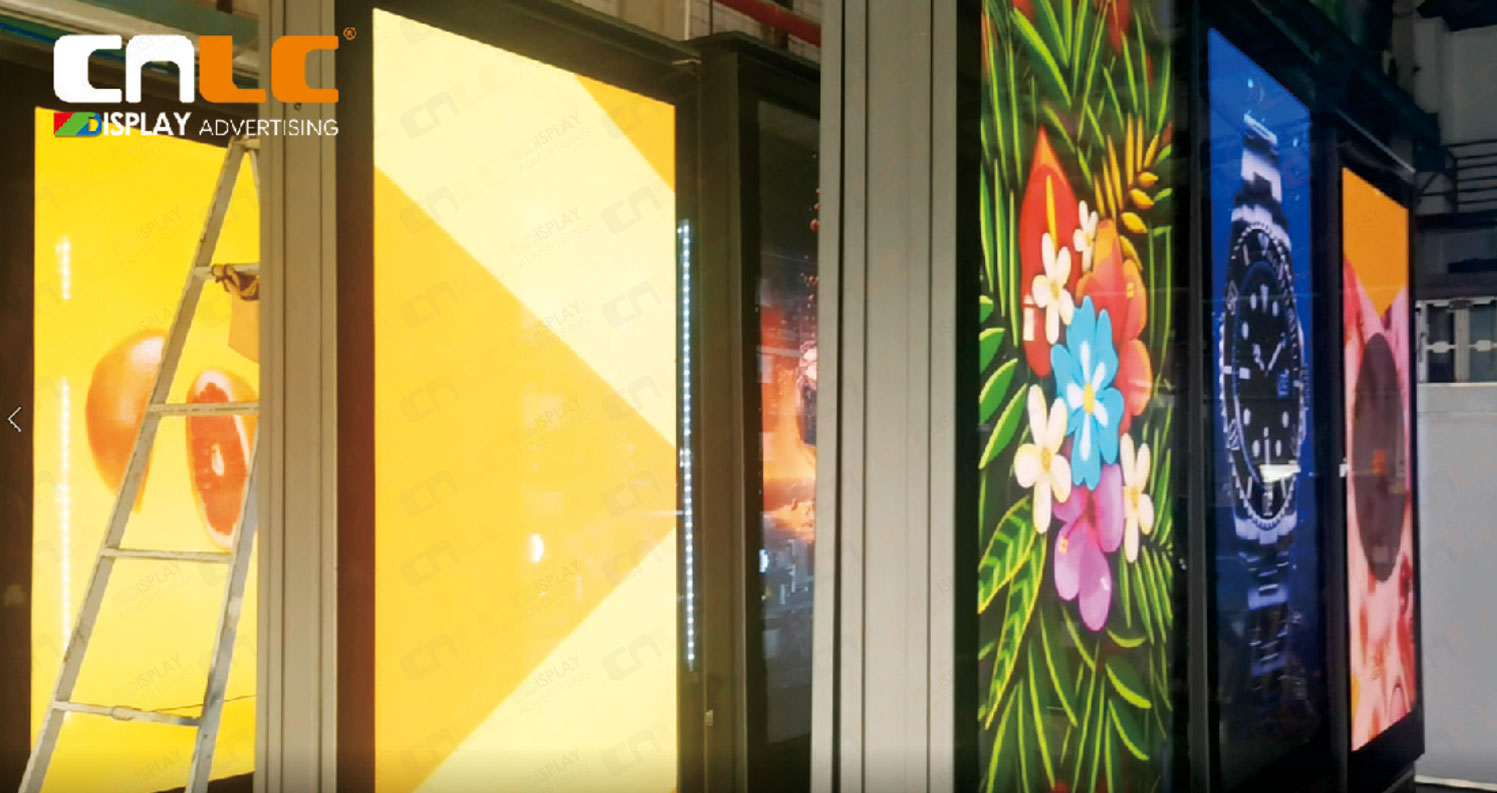

In-House SMD Production for Reliable LED Quality
◆ Our LED totem solutions are backed by CNLC’s in-house SMD (Surface-Mount Device) production facility, ensuring strict quality control and consistent performance for every LED module. By manufacturing our own LED chips and components, we guarantee superior color uniformity, high brightness, and long lifespan compared to third-party suppliers. This vertical integration reduces lead times, enhances reliability, and provides greater flexibility for custom LED display requirements in bus shelters, transit advertising, and outdoor digital signage applications.

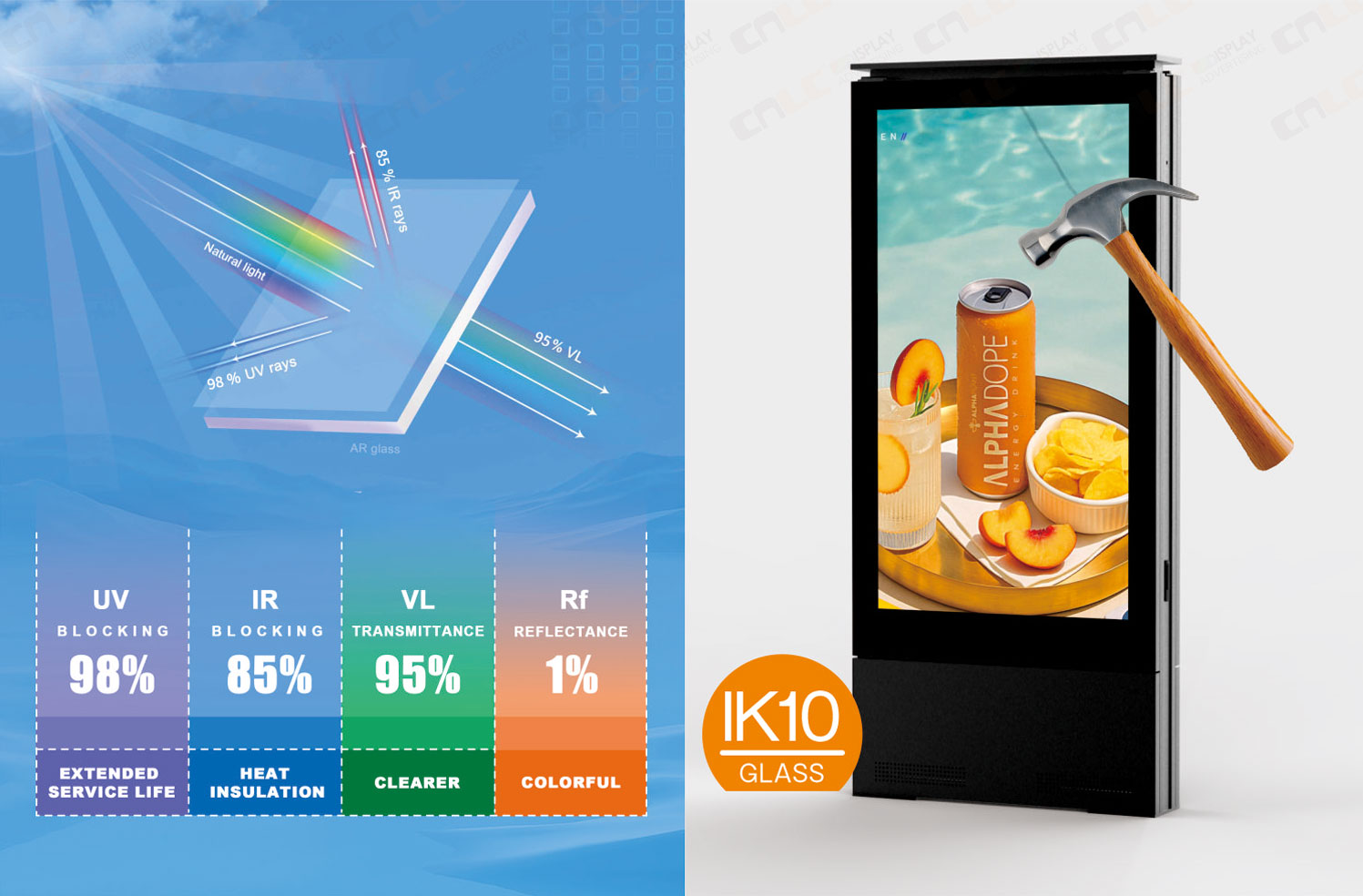

IK10 Laminated Safety Glass for Bus Stop LED Totem
◆ This bus stop LED totem display is built with IK10-rated laminated safety glass, providing exceptional impact resistance against accidental damage and vandalism in public transportation environments. The anti-reflective coating minimizes glare, ensuring sharp and vibrant visuals for commuters even under direct sunlight at bus shelters or transit hubs. This combination of durability and clarity makes the LED totem a reliable digital signage solution for bus stop advertising, delivering long-term performance and high-quality viewing in busy outdoor urban settings.

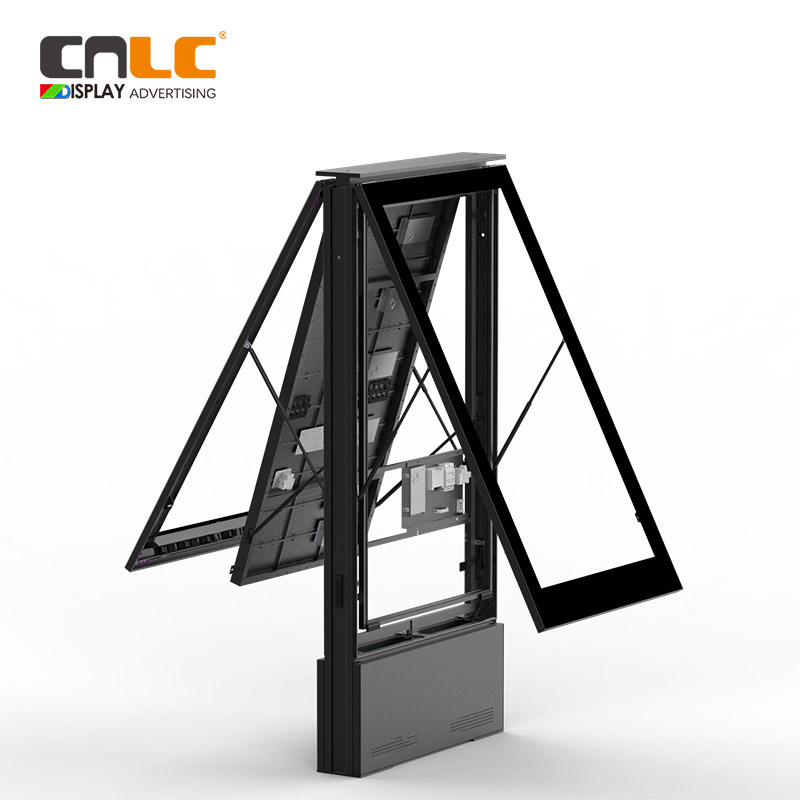

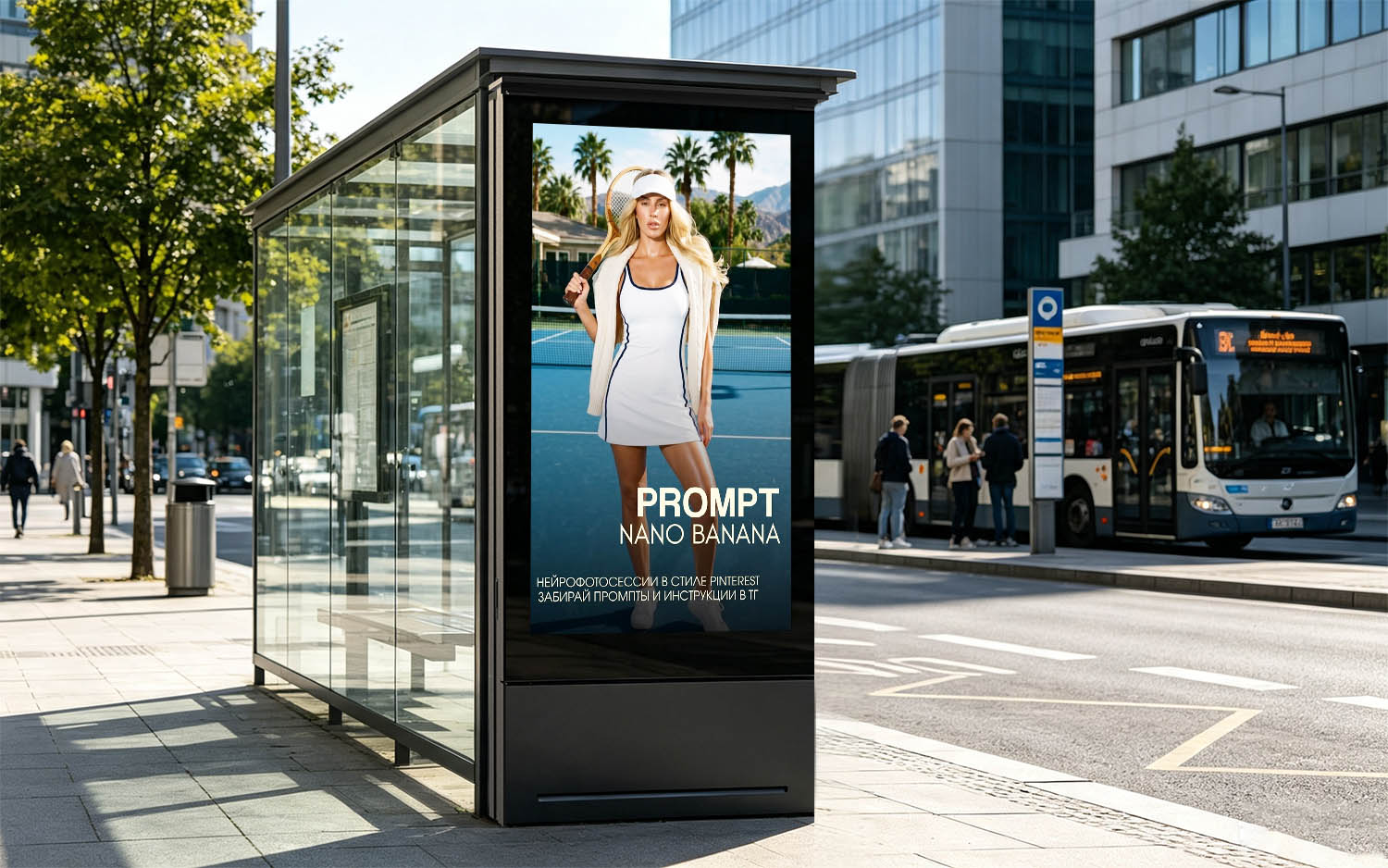

Dual-Sided Design with LED Screen and Quick-Change Lightbox

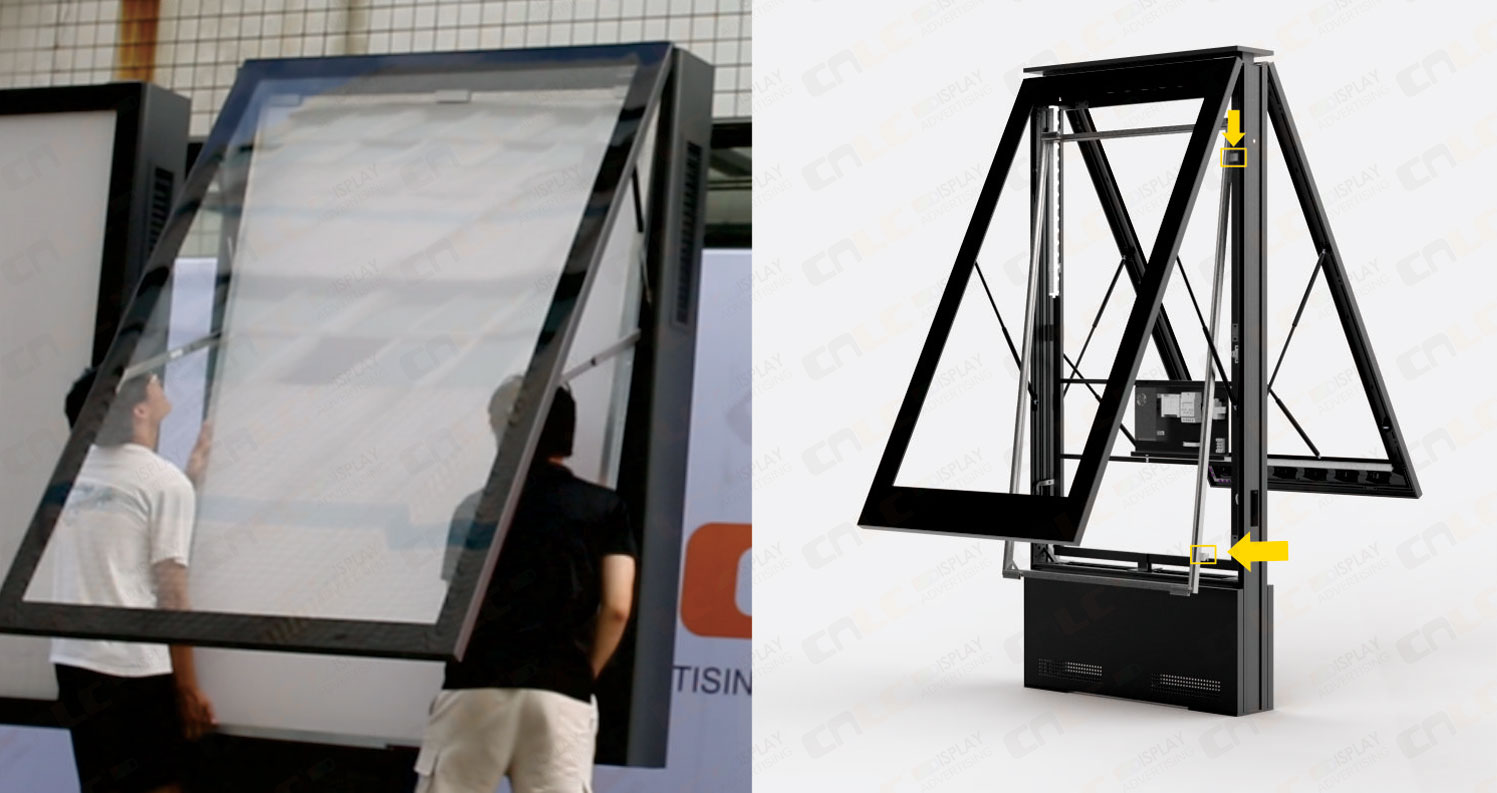

◆ This dual-sided LED totem features a high-brightness LED screen on one side and a lightbox display on the other, ideal for bus shelter advertising. The lightbox frame is equipped with side-mounted clips and rollers, enabling quick and easy replacement of posters or artwork for flexible public transport advertising campaigns.
Project Cases
TECHNICAL SPECIFICATIONS
Pixel Pitch(mm) | 2.5mm | ||
Module resolution | 128*64 | ||
Module size (mm) | 320*160 | ||
Density (points/m²) | 160,000 | ||
Scan method | 1/16scan | ||
LED Encapsulation | SMD1415 | ||
Pixel configuration | 1R1G1B | ||

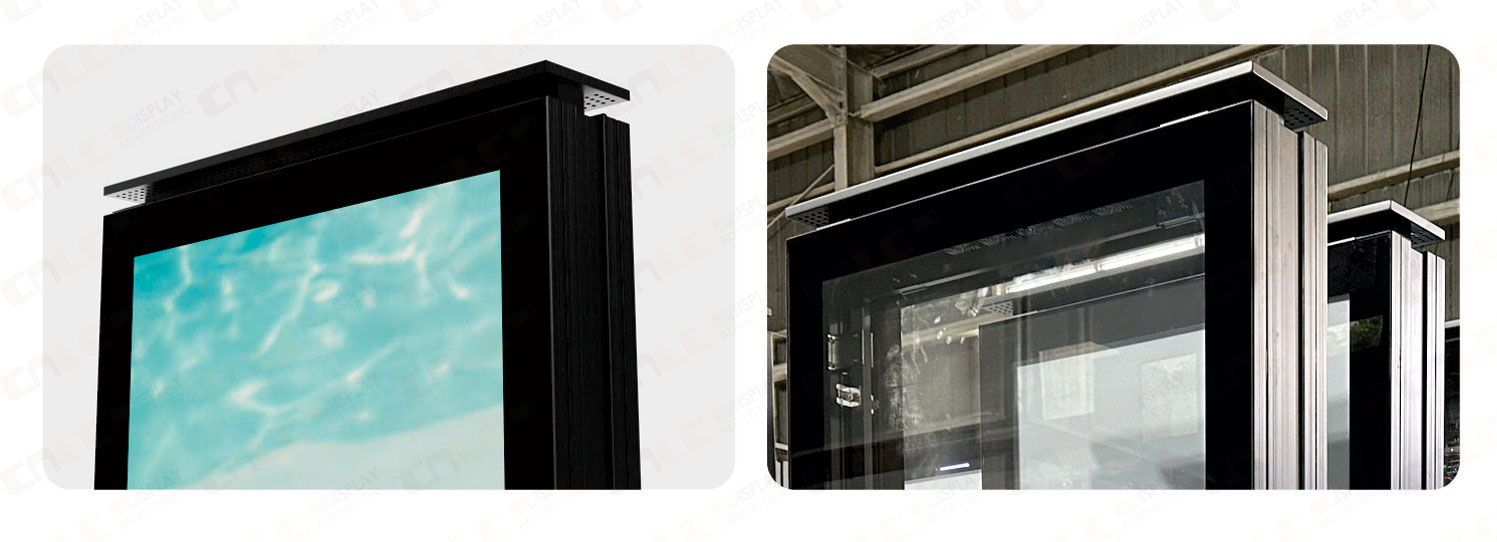

Material of Frame and Support Structural | Aluminum profile and steel frame | ||
Cooling system | Build in cooling fans | ||
Embedded heater | Optional | ||
Media update | Remote control (LAN and WIFl) | ||
Operating Ambient Temperature | -30℃~+50℃ | ||

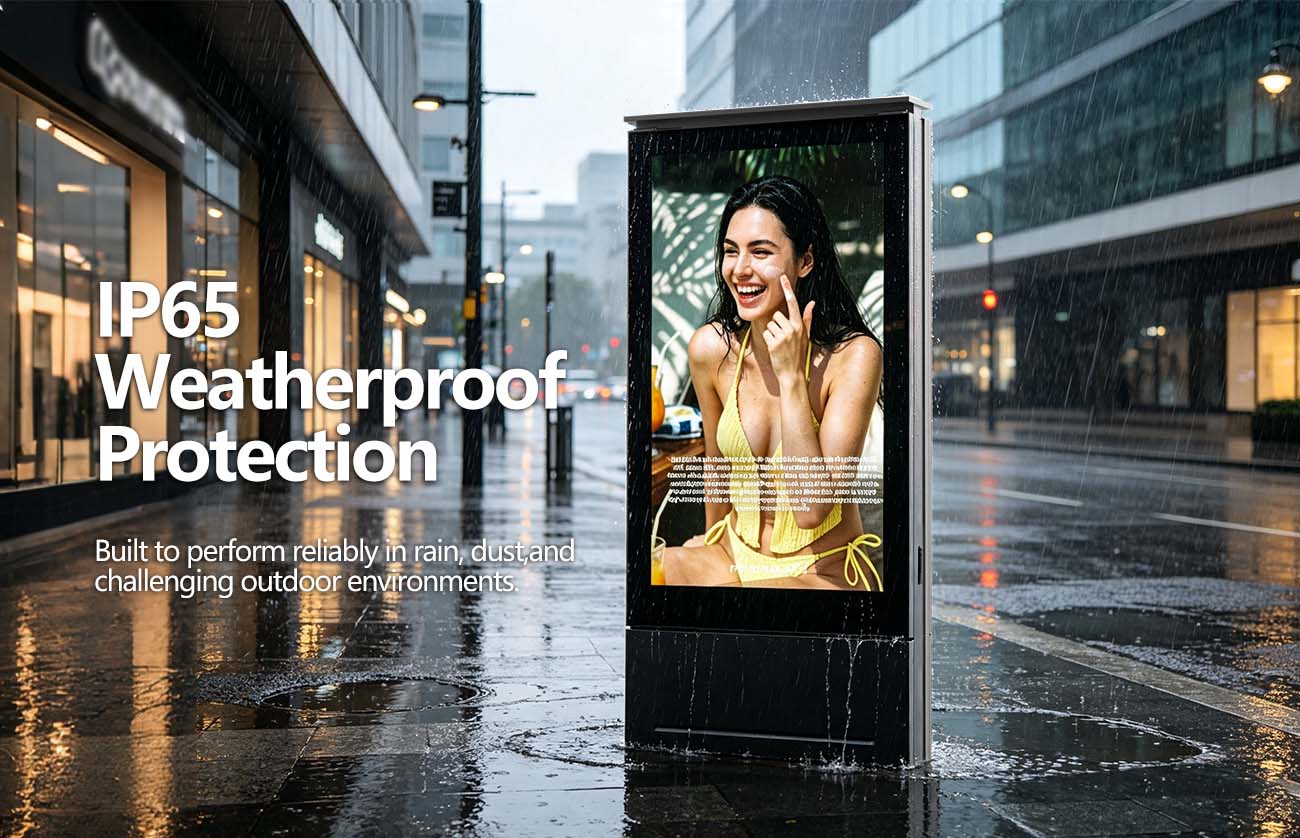

Waterproof level | Front IP56 | ||
Maintenance method | Back | ||
Refresh frequency (Hz) | 3840 | ||
Brightness(nits) | 5500 | ||
Viewing angle (horizontal/vertical) | 170°/170°±5° | ||
Contrast Ratio | 5000:1 | ||
Energy Saving design | 4.2-5Vvoltagedesign | ||
Ave.Power Consumption(W/m²) | 342 | ||
Max. Power Consumption(W/m²) | 684 |
