49 Inch Double-Sided High-Brightness LCD Window Digital Signage

49 Inch Double-Sided High-Brightness LCD Window Digital Signage
49 Inch Double-Sided High-Brightness LCD Window Digital Signage
49 Inch Double-Sided High-Brightness LCD Window Digital Signage
49 Inch Double-Sided High-Brightness LCD Window Digital Signage
49 Inch Double-Sided High-Brightness LCD Window Digital Signage
49 Inch Double-Sided High-Brightness LCD Window Digital Signage

49 Inch Double-Sided High-Brightness LCD Window Digital Signage

49-inch double-sided semi-outdoor high-brightness window LCD display. ultra-high brightness module, ultra-narrow black edge of the module, often used In storefront door signs and Indoor windows

  • Item No :

    49FL-LT100-A
  • Size :

    656*1363*26
  • Brightness :

    300/700
  • resolution ratio :

    1920*1080
  • Material :

    Aluminum Structure
  • Color :

    Black / Silver / Grey / Custom
  • Waterproof grade :

    Not waterproof
  • Weight :

    35kg



Semi-outdoor window digital signage



49-inch double-sided semi-outdoor open window LCD screen, air-cooled and noiseless

Semi-Outdoor Window Facing Digital Signage Kiosk



The ultimate visual experience



Using ultra-clear display panel resolution up to 1080P, color 16.7M



window digital signage

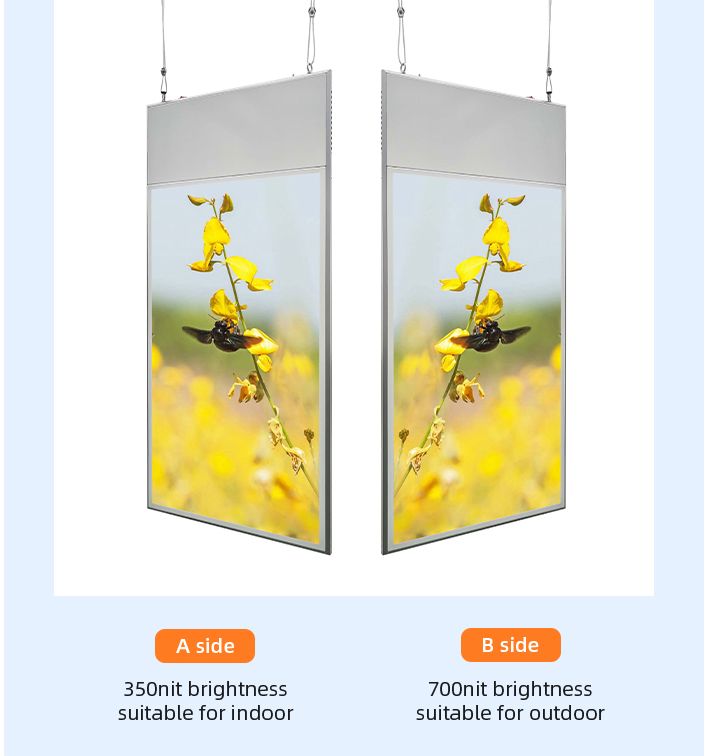

Double-sided playback



Can display pictures and videos at the same time





digital signage window display





Remote sending of advertising screens



Send ad programs remotely from your phone/computer/tablet



high brightness lcd window digital signage





All aluminum construction



Advertising machine shell all made of aluminum alloy, anti-corrosion and anti-rust



signage lcd





Ultra-thin bezel design



Ultra-narrow black edge 26mm, better visual experience



high brightness window facing digital signage





Project Case



Window LCD digital information signage





Specification







 Display





Panel Size 43"/49"
Resolution 1920x1080/4K
LCD Manufacturer BOE/LG/AUO( Industrial grade panel, 105°C TN heat resistant panel, wide workingtemperature-30~+110°C)
Viewing angle 89/89/89/89(L/R/U/D)
Contrast ratio 1200:1
Brightness 300/700nits
Aspect Ratio 16:9
Active Area 1210 x 680 mm
Operational Life Cycle-MTBF(hours) 50K hours
Grey to Grey ResponseTime (ms) 6Ms


 Power


Input Voltage AC110- 240±10%, 50/ 60 HZ
 Leakage Protection 30mA/0.1S
 Built-in Power Socket 1 pCs (EU/US/UK/AU/Swiss Standard optional, more sockets are optional)
 Timer Switch 1 pes
 Max Power Consumption(W) TBD

Endosure Material
Enclosure Material Fully Aluminum Housing ( Anti-corrosion &. rust-proof with 15 years lifetime)
Glass Characteristics Transmmissivity > 93%, Reflectivity < 2%
Optical Bonding (Optional) Tempered Glass & LCD Display&Touch optical bonding technology is optional
protection Grade Not waterproof
Thickness 100mm


Emironrment

Operating Environment
Fully Outdoor for All Weathers
Operating Temp.
-30℃~+1110°C
Operating Humidity
5%~98%
Operating Altitude (m)
≦2000
Built-in HDMIinput MonitorVideo Board
HDMI input
1 pcs, Support 1920*1080, 4K resolution is optional
Signal Output
VoyOne or LVDS




 Free Remote ContentManage ent Software (ForAndroid only)




 Editing Playlist, timing, playback
 Edit Multi Zones play different contents
 One Video/image splicing to ultiple screens by software, no need for extra controller/matrix/HDMl splitter
 Support live stream, URL, Youtube Video, PDF. WORD, TXT. etc
 Remote Management by mobile, pC thru wif/lan network
 Support 4K high-resolution video, Max uploading video 2GB, Max uploading image 20MB
 Support Simple UsB sticker plug-play looping images/videos
 Cloud base software is supported
 Free of charge




PCAP TouchScree(Optional)



 Touch Type  PCAP Touch
Touch Max Resolution
4980*4980
Transparency
> 90%, up to 100%
Scanning Speed
> 50s scans/s
Responsive Time
<12ms
Touch Precision
0.625mm
Minimnum Touch
5mm
Cormmunication
USB port



Media & Connectivity&Other




Optional functions


Heater
Camera/webcam
Customized external Sensor
AC air conditioner
Microphone
Emergency button
