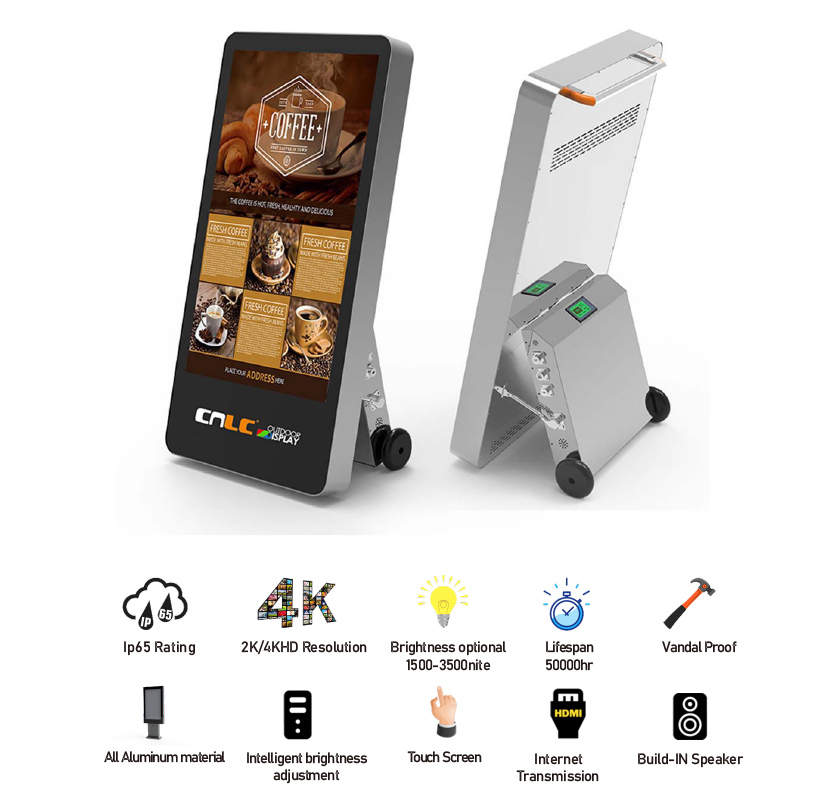

43-inch portable battery-powered advertising digital signage, aluminum enclosure,IP rating, suitable for store front, entrance of supermarket, etc.
Item No :
49FL-ST100-ASize :
620*1250*100Brightness :
3500resolution ratio :
1920*1080Material :
Aluminum StructureColor :
Black / Silver / Grey / CustomWaterproof grade :
IP65Weight :
60kg
Outdoor portable digital signage
43" high brightness outdoor LCD portable digital signage, air-cooled and noiseless
High brightness screen
Clear, vivid image quality even when wearing sunglasses in direct sunlight.
Industrial grade lcd Screen
Adopted high temperature resistant LCD screen, which can work at up to 70℃
Working Fine In Extreme Environment
Can work normally in various extreme environments, waterproof and dustproof IP65 grade
178° wide viewing angle
The screen can be seen clearly from almost any angle.
Multi function network monitoring
Network monitoring of internal component use and damage
Automatic brightness adjustment
Automatic screen brightness adjustment according to the surrounding brightness
Continuous brightness
Can work continuously for a long time without decaying brightness
Application Scenarios
Suitable for store entrance, mall entrance, square, etc.
Project Case
Specification
| Display |
Panel Size | 43" |
| Resolution | 1920x1080/4K | |
| LCD Panel | Industrial grade panel, 105°C TN heat resistant panel, wide workingtemperature-30～+110°C | |
| Viewing angle | 89/89/89/89(L/R/U/D) | |
| Contrast ratio | 1200:1 | |
| Brightness | 2500 cd/m2 | |
| Aspect Ratio | 16:9 | |
| Active Area | 1210 x 680 mm | |
| Operational Life Cycle-MTBF(hours) | 50K hours | |
| Grey to Grey ResponseTime (ms) | 6Ms | |
| Power |
Input Voltage | AC110- 240±10%, 50/ 60 HZ |
| Leakage Protection | 30mA/0.1S | |
| Built-in Power Socket | 1 pCs (EU/US/UK/AU/Swiss Standard optional, more sockets are optional) | |
| Timer Switch | 1 pes | |
| Max Power Consumption（W) | TBD | |
| Endosure Material |
Enclosure Material | Fully Aluminum Housing ( Anti-corrosion &. rust-proof with 15 years lifetime) |
| Glass Type | 6mmm tempered glass as standard | |
| 6mm Tempered glass as standard with Double side AR surface treatment with hightransparency, reducing reflection/ UV/IR (optional) | ||
| 6mmn ternpered glass with AG coating, anti-glare surface treatrent reduce reflection(optional) | ||
| Double Laminated AR Glass 3mm+3mr is optional (optional) | ||
| Glass Characteristics | Transmmissivity > 93%, Reflectivity < 2% | |
| Optical Bonding (Optional) | Tempered Glass & LCD Display&Touch optical bonding technology is optional | |
| protection Grade | IP65 | |
| Thickness | 100mm | |
Emironrment |
Operating Environment |
Fully Outdoor for All Weathers |
| Operating Temp. |
-30℃～+1110°C |
|
| Operating Humidity |
5%～98% |
|
| Operating Altitude (m) |
≦2000 |
|
| Built-in HDMIinput MonitorVideo Board |
HDMI input |
1 pcs, Support 1920*1080, 4K resolution is optional |
| Signal Output |
VoyOne or LVDS |
|
| Free Remote ContentManage ent Software (ForAndroid only) |
Editing Playlist, timing, playback | |
| Edit Multi Zones play different contents | ||
| One Video/image splicing to ultiple screens by software, no need for extra controller/matrix/HDMl splitter | ||
| Support live stream, URL, Youtube Video, PDF. WORD, TXT. etc | ||
| Remote Management by mobile, pC thru wif/lan network | ||
| Support 4K high-resolution video, Max uploading video 2GB, Max uploading image 20MB | ||
| Support Simple UsB sticker plug-play looping images/videos | ||
| Cloud base software is supported | ||
| Free of charge | ||
| PCAP TouchScree(Optional) |
Touch Type | PCAP Touch |
| Touch Max Resolution |
4980*4980 |
|
| Transparency |
> 90%, up to 100% |
|
| Scanning Speed |
> 50s scans/s |
|
| Responsive Time |
<12ms |
|
| Touch Precision |
0.625mm |
|
| Minimnum Touch |
5mm |
|
| Cormmunication |
USB port |
|
Media & Connectivity&Other |
Optional functions |
Heater |
| Camera/webcam |
||
| Customized external Sensor |
||
| AC air conditioner |
||
| Microphone |
||
| Emergency button |
||
