Products
Outdoor High Brightness LCD Display
Home /Outdoor High Brightness LCD Display /

One side static side 86 inch LCD outdoor waterproof LCD digital advertising display

One side static side 86 inch LCD outdoor waterproof LCD digital advertising display
One side static side 86 inch LCD outdoor waterproof LCD digital advertising display
One side static side 86 inch LCD outdoor waterproof LCD digital advertising display
One side static side 86 inch LCD outdoor waterproof LCD digital advertising display
One side static side 86 inch LCD outdoor waterproof LCD digital advertising display
One side static side 86 inch LCD outdoor waterproof LCD digital advertising display
One side static side 86 inch LCD outdoor waterproof LCD digital advertising display
One side static side 86 inch LCD outdoor waterproof LCD digital advertising display

One side static side 86 inch LCD outdoor waterproof LCD digital advertising display

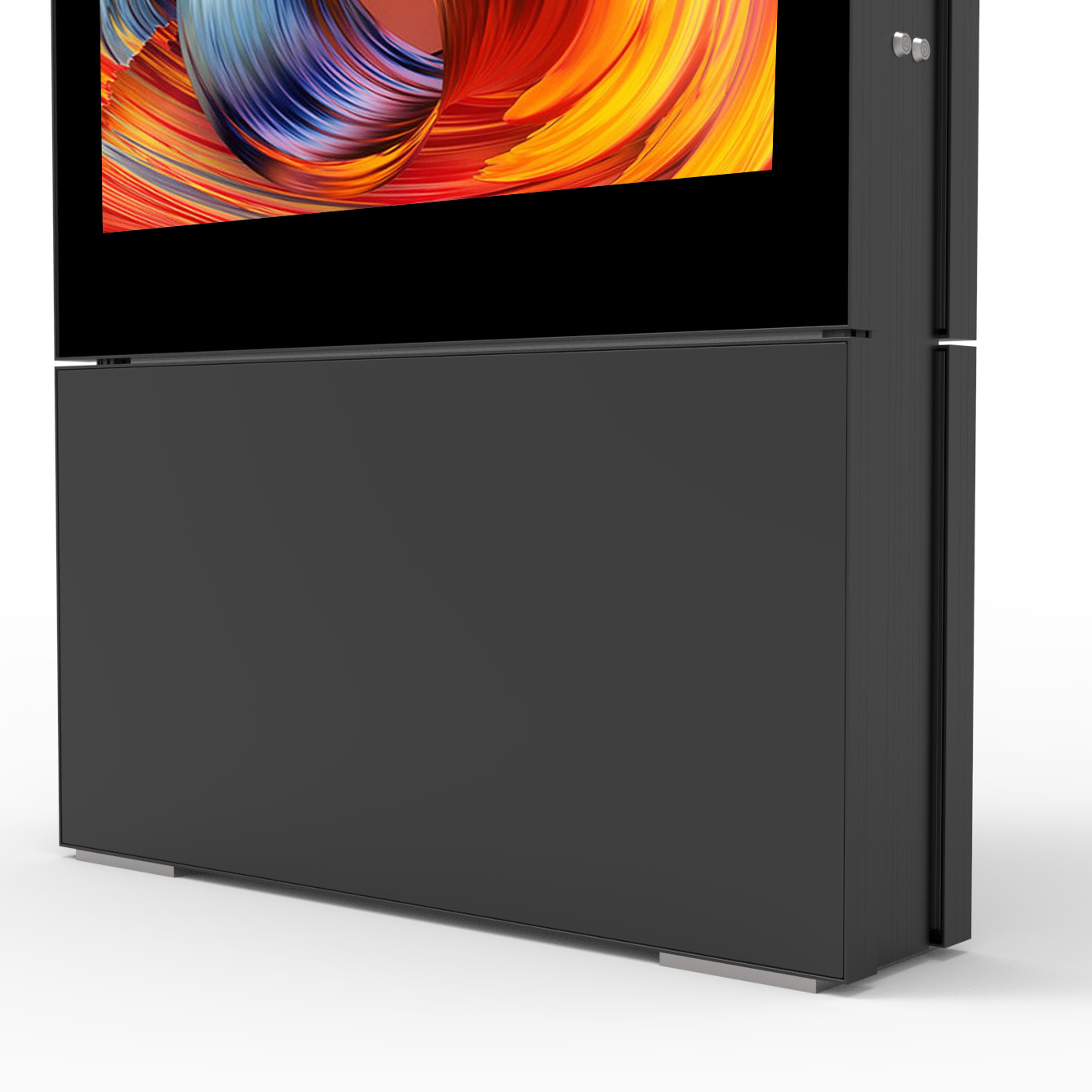

86 inch one side LCD one side static outdoor digital signage, all aluminum housing, outdoor high brightness module, suitable for community, square, etc.

  • Item No :

    86FL-ST150-AB
  • Size :

    1265*3000*274
  • Brightness :

    3500
  • resolution ratio :

    1920*1080/3840*2160
  • Material :

    Aluminum Structure
  • Color :

    Black / Silver / Grey / Custom
  • Waterproof grade :

    IP65
  • Weight :

    300kg

Outdoor Digital Signage



86 inch one side LCD one side static outdoor digital signage



outdoor lcd digital signage







Automatic brightness adjustment



Automatic screen brightness adjustment according to the surrounding brightness



outdoor digital signage





All aluminum construction



Advertising machine shell all made of aluminum alloy, anti-corrosion and anti-rust



High brightness LCD modules





All aluminum IP65 dustproof and waterproof case



Water and dust resistant structure can adapt to most extreme outdoor weather



lcd signage





Remote sending of advertising screens



Send ad programs remotely from your phone/computer/tablet



digital lcd signage





Product Features



digital signage lcd





Specification









Display



Panel Size
55”/65”/75”86”
Resolution
1920x1080/4K
LCD Manufacturer
BOE/LG/AUO( Industrial grade panel, 105°C TN heat resistant panel, wide workingtemperature-30~+110°C)
Viewing angle
89/89/89/89(L/R/U/D)
Contrast ratio
1200:1
Brightness
2500nits as standard (3500nits/4500nits can be customized)
Aspect Ratio
16:9
Active Area
805x 1430 mm
Operational Life Cycle-MTBF(hours)
50K hours
Grey to Grey ResponseTime (ms)
6Ms
Power Input Voltage AC110- 240±10%, 50/ 60 HZ
Leakage Protection 30mA/0.15
Built-in Power Socket 1 pCs (EU/US/UK/AU/Swiss Standard optional, more sockets are optional)
Timer Switch 1 pcs
Max Power Consumption(w) TBD
Enclosure Material Enclosure Material Fully Aluminum Housing ( Anti-corrosion & rust-proof with 15 years lifetime)
Glass Type 6mm tempered glass as standard
6mm Tempered glass as standard with Double side AR surface treatment with hightransparency, reducing reflection/ UVf IR (optional)
6mm tempered glass with AG coating, anti-glare surface treatment reduce reflection(optional)
Double Laminated AR Glass 3mm+3mm is optional(optional)
Glass Characteristics Transmissivity = 93%, Reflectivity < 2%
Optical Bonding (Optional) Tempered Glass & LCD Display&Touch optical bonding technology is optional
Protection Grade IP65&IK10
Thickness 274mm

Emironrment

Operating Environment
Fully Outdoor for All Weathers
Operating Temp.
10℃~+60°C
Operating Humidity
5%~98%
Operating Altitude (m)
≦2000
Built-in HDMIinput MonitorVideo Board
HDMI input
1 pcs, Support 1920*1080, 4K resolution is optional
Signal Output
VoyOne or LVDS




Free Remote Content Manage ent Software (ForAndroid only)




Editing Playlist, timing, playback
Edit Multi Zones play different contents
One Video/image splicing to ultiple screens by software, no need for extra controller/matrix/HDMl splitter
Support live stream, URL, Youtube Video, PDF. WORD, TXT. etc
Remote Management by mobile, pC thru wif/lan network
Support 4K high-resolution video, Max uploading video 2GB, Max uploading image 20MB
Support Simple UsB sticker plug-play looping images/videos
Cloud base software is supported
Free of charge





PCAP TouchScree

(Optional)



Touch Type
PCAP Touch
Touch Max Resolution
4980*4980
Transparency
> 90%, up to 100%
Scanning Speed
> 50s scans/s
Responsive Time
<12ms
Touch Precision
0.625mm
Minimnum Touch
5mm
Cormmunication
USB port



Media&

Connectivity

&Other






Optional functions


Heater
Camera/webcam
Customized external Sensor
AC air conditioner
Microphone
Emergency button



65" vertical double-sided outdoor waterproof advertising machine, waterproof grade IP65, the outer frame is made of full aluminum alloy, 15 years anti-corrosion and anti-rust. The module adopts CNLC independent research and development of high brightness outdoor LCD module. Suitable for square/bus station/commercial street/airport.
