As digital out-of-home (DOOH) advertising continues to evolve across Europe, outdoor media operators are investing in high-resolution digital displays for urban public spaces and commercial areas. For this project, CNLC supplied 50 P1.5 MiP outdoor LED totem displays designed for close-range advertising and public information delivery.Each freestanding LED totem features a fine-pitch P1.5 MiP LED display with a brightness of 4,000 nits, delivering detailed visual content in outdoor environments. The displays are designed for applications such as pedestrian streets, shopping plazas, and public spaces where image clarity and outdoor visibility are essential.
The displays feature reinforced aluminum-profile enclosures, IP66-rated protection against dust and water, and LED modules with GOB (Glue on Board) surface protection. This combination is designed to help protect the equipment against rain, dust, and other environmental challenges associated with outdoor deployment.All 50 units were delivered and installed across multiple locations in Europe, with on-site commissioning and network connectivity completed. The project demonstrates CNLC's capabilities in outdoor LED display manufacturing, aluminum enclosure design, and the delivery of customized display equipment for overseas DOOH applications.
Outdoor displays in pedestrian streets and commercial plazas are often viewed from short distances. The project required P1.5 fine-pitch LED technology to deliver detailed visuals and consistent color reproduction for commercial advertising.
European outdoor environments can expose displays to rain, dust, temperature fluctuations, and UV radiation. The project required IP66-rated enclosure protection and effective thermal management to help protect internal components during outdoor operation.
Freestanding public displays require durable enclosures that support transportation, installation, and maintenance. With 50 units deployed across multiple locations, standardized aluminum-profile structures and consistent manufacturing were essential for efficient production and installation.

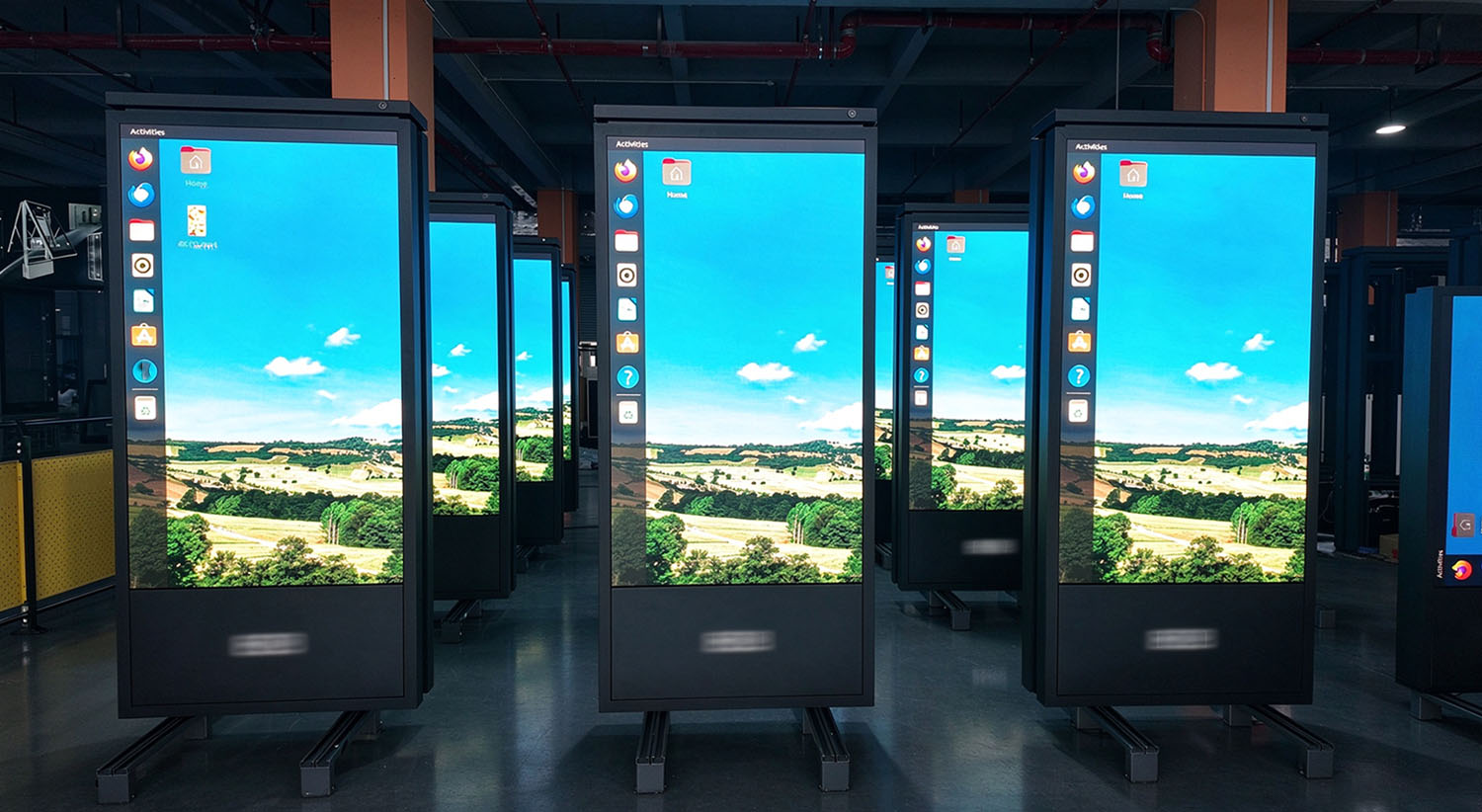

Product Type: P1.5 MiP Outdoor Freestanding LED Totem Display
Display Brightness: 4,000 nits
Total Quantity: 50 units
Application Scenarios: European urban pedestrian streets, commercial plazas, and public recreational areas
The P1.5 MiP LED display provides a fine pixel pitch for detailed visuals at relatively short viewing distances. This makes it suitable for outdoor advertising installations where pedestrians can approach the screen closely.GOB surface protection adds a protective layer to the LED module surface, helping improve resistance to everyday environmental exposure. Consistent module calibration also helps maintain uniform visual performance across the display.With a brightness of 4,000 nits, the display is designed to improve content visibility in daylight outdoor environments. It supports the presentation of images, video advertisements, and other digital content for commercial DOOH applications.

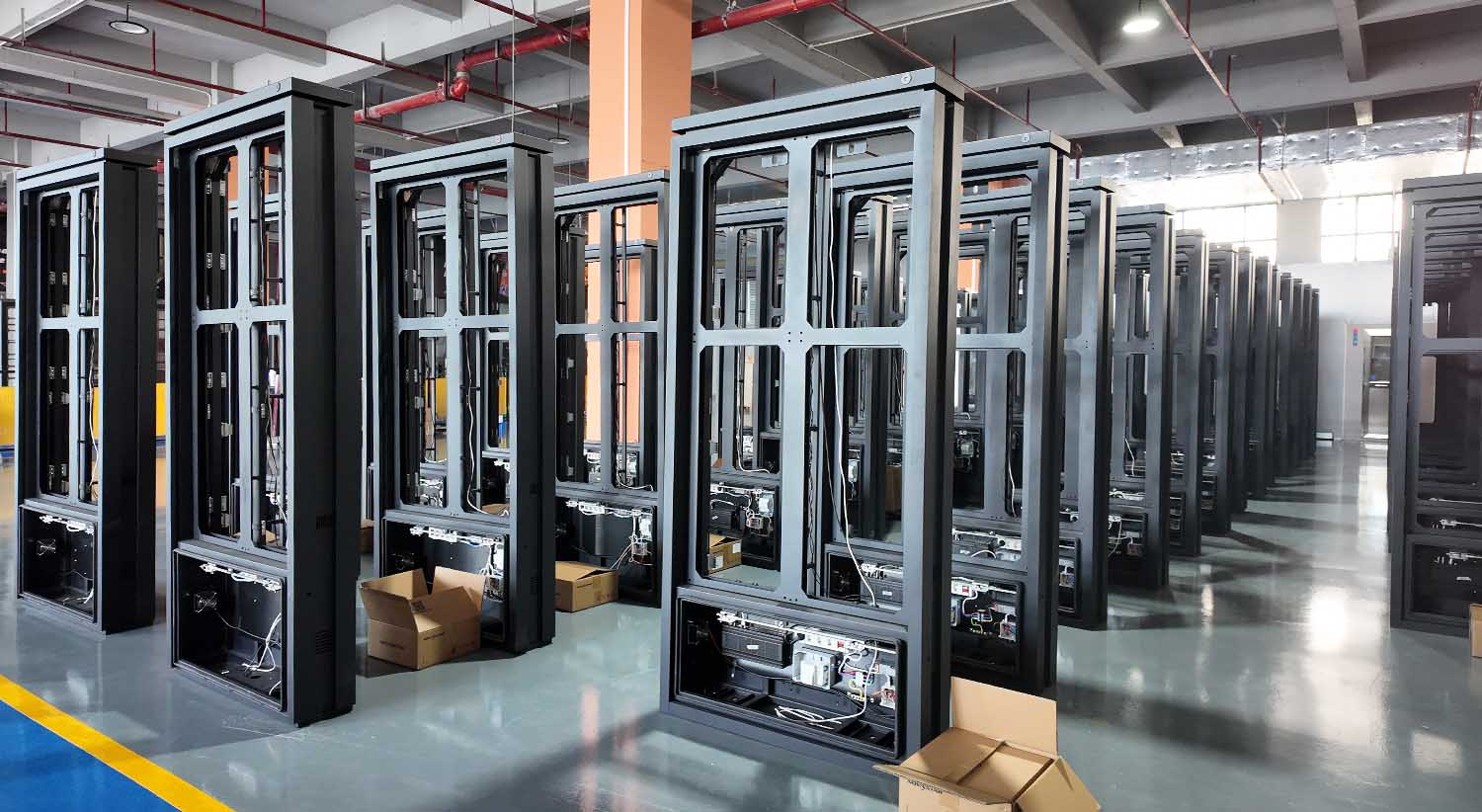

The display enclosure is designed to provide IP66-rated protection against dust ingress and powerful water jets under specified test conditions. This helps protect internal electronic components in demanding outdoor environments.The reinforced aluminum-profile structure combines mechanical strength with the thermal conductivity of aluminum, supporting enclosure heat dissipation while providing a protective housing for LED modules, power supplies, and control components.Together, the enclosure design and module protection help address key requirements for outdoor LED installations exposed to changing weather conditions.
High-brightness outdoor LED displays require effective thermal management to control heat generated during operation.For this project, the aluminum enclosure incorporates a dedicated airflow path to help move heat away from internal components. This design supports temperature management during extended display operation.An integrated ambient light sensor can adjust screen brightness in response to surrounding light levels, subject to the configured control settings. This helps the display adapt to changing outdoor lighting conditions and avoid unnecessary brightness during darker periods.Standardized internal wiring and component layouts also support assembly efficiency and routine maintenance.

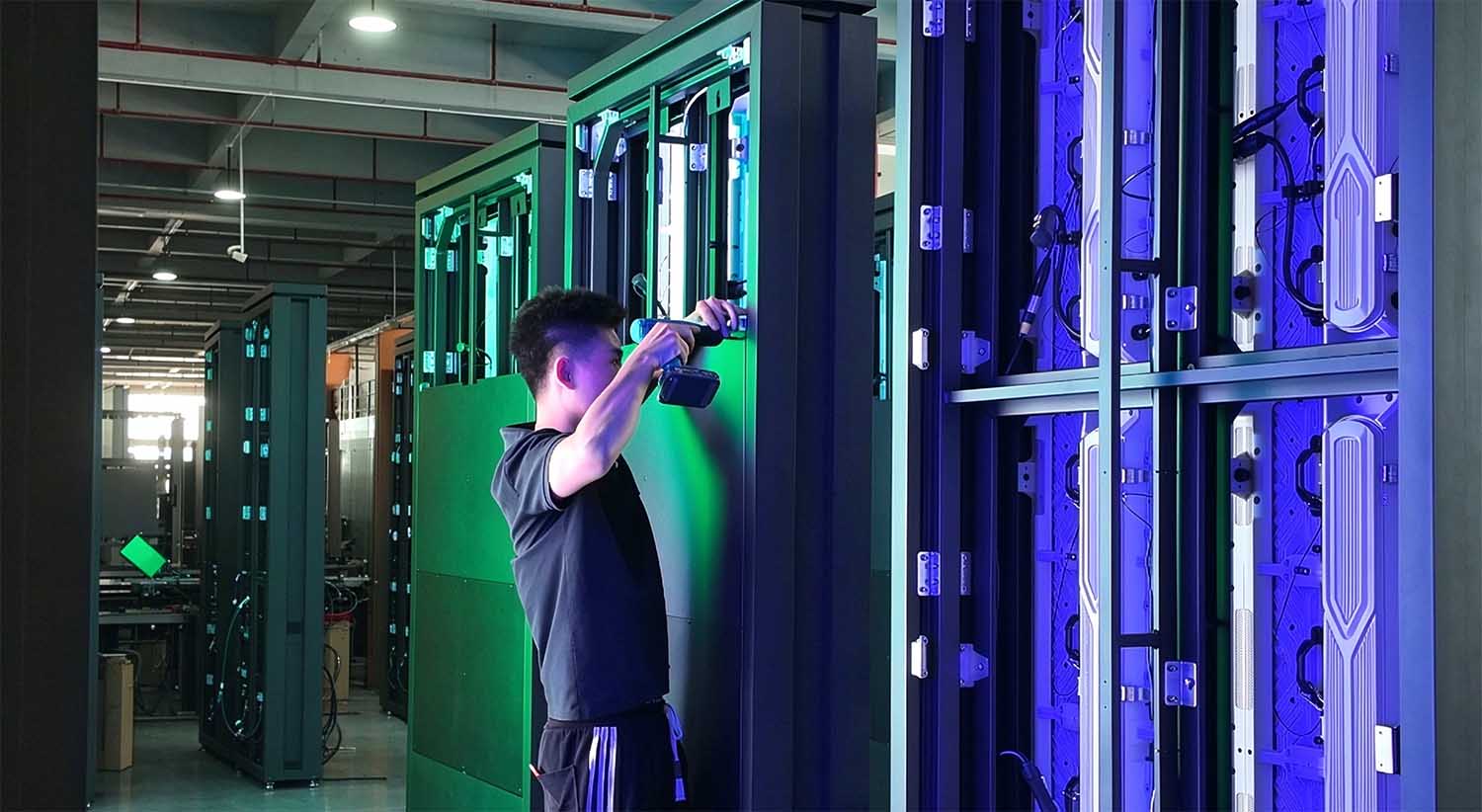

The freestanding totem structure uses a standardized, modular design to support repeatable manufacturing and multi-location deployment.Front-access maintenance helps technicians reach serviceable components from the front of the display, where the specific configuration permits. A standardized internal layout also simplifies installation procedures and routine servicing.For projects involving multiple units, this approach helps streamline production, export packaging, installation planning, and commissioning across different sites.
CNLC supported the project through a coordinated manufacturing and delivery process, including:
ODM production and product configuration
Aluminum-profile enclosure processing

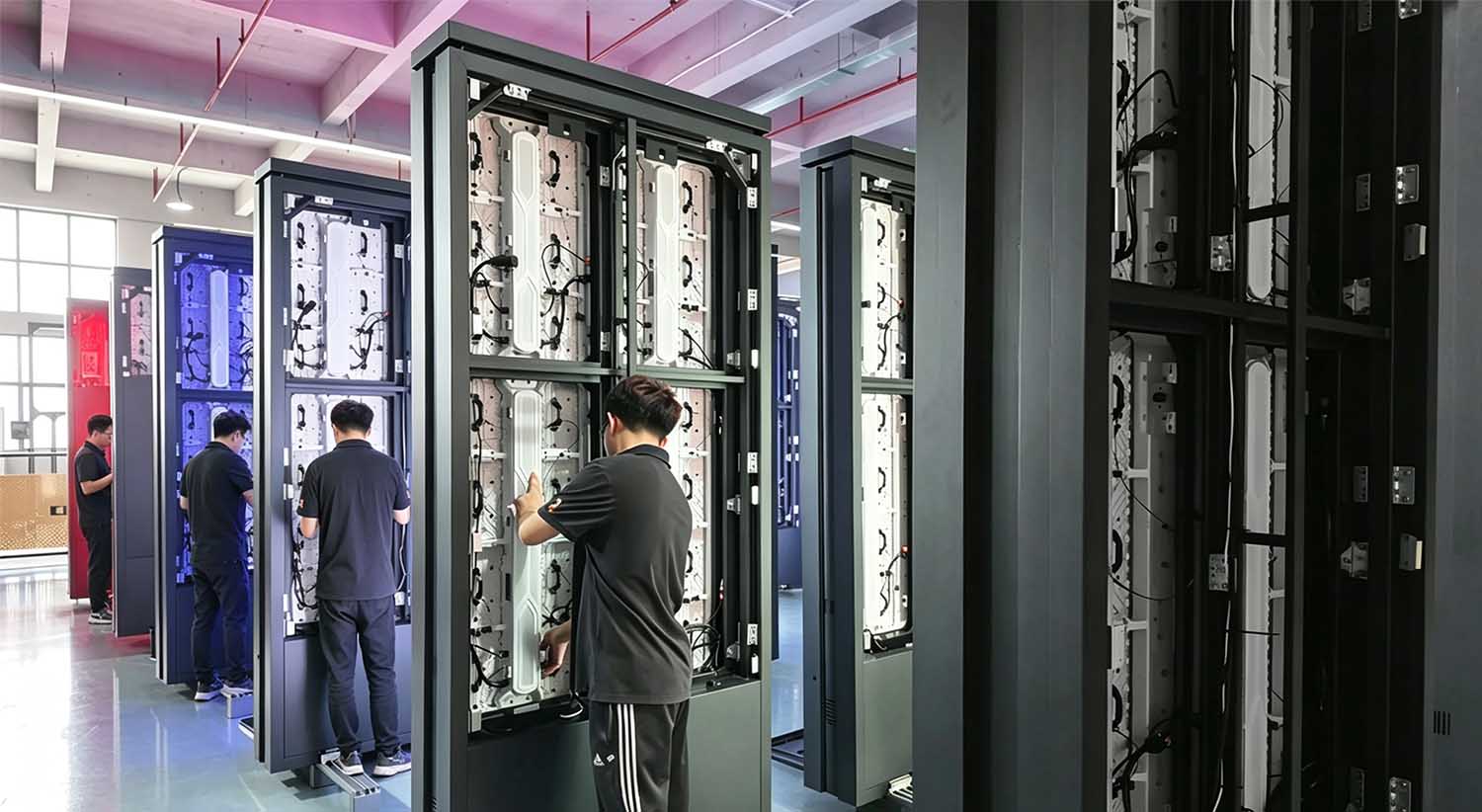

MiP LED module assembly
Whole-unit aging and inspection procedures

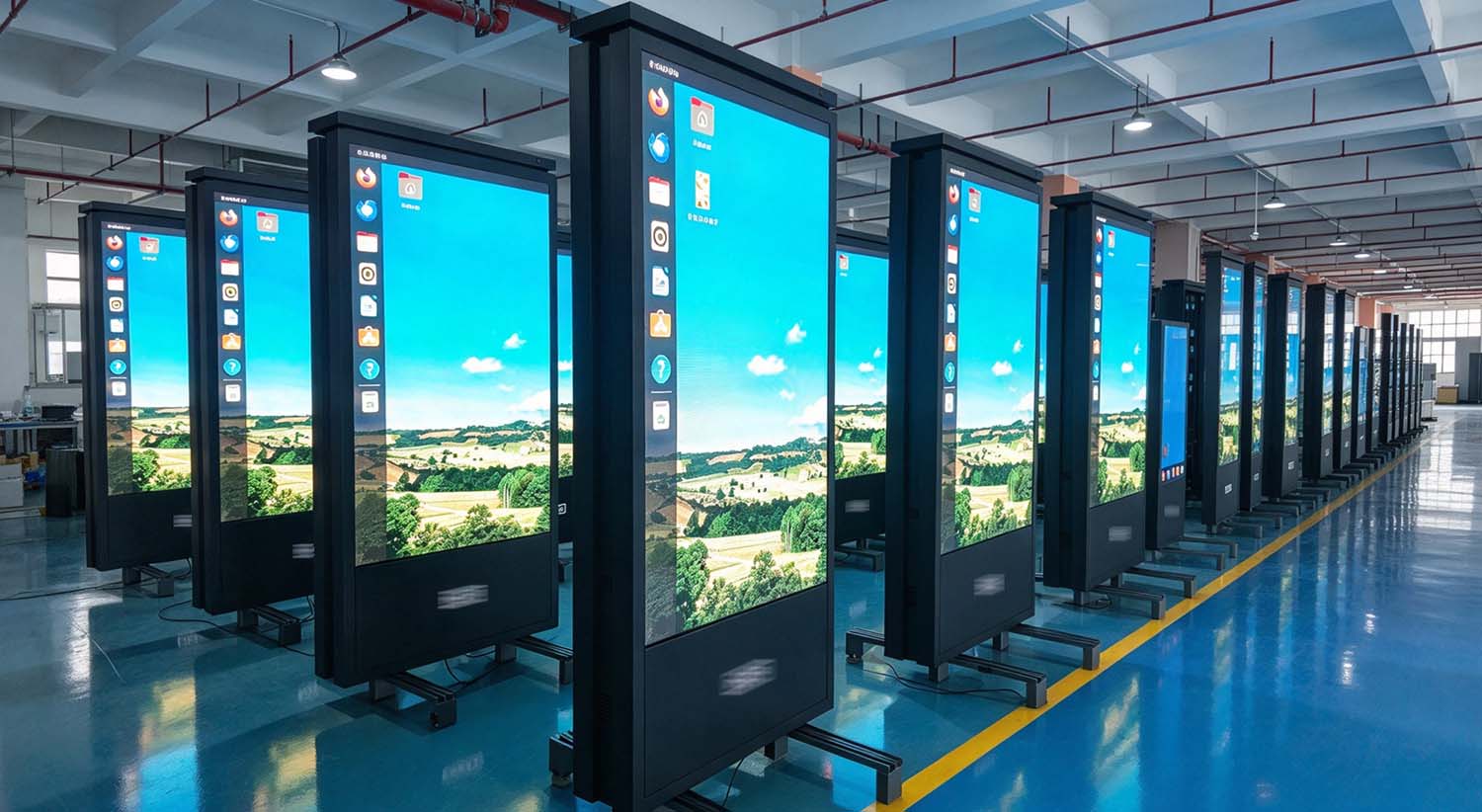

Export packaging for batch shipment
Cross-border logistics coordination
Remote technical guidance for installation and commissioning
All 50 P1.5 MiP outdoor LED totem displays were installed, powered on, commissioned, and connected to the relevant network infrastructure for operation.
The project demonstrates the importance of standardized manufacturing, enclosure engineering, and coordinated delivery when deploying outdoor digital signage across multiple locations.

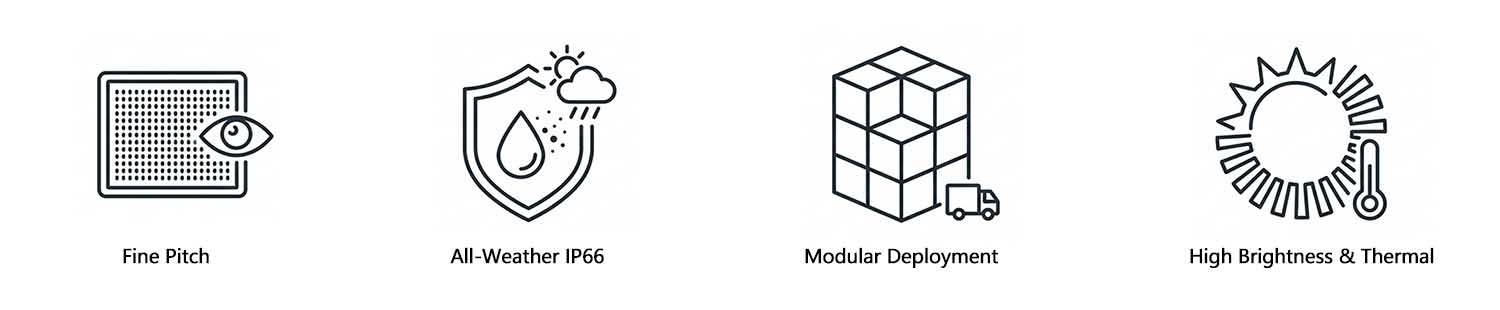

Based on the project configuration and deployment requirements, the main benefits include:
Close-range image clarity: P1.5 fine-pitch LED technology supports detailed advertising content.
Outdoor visibility: 4,000-nit brightness is designed for daylight outdoor applications.
Environmental protection: IP66-rated enclosure protection and GOB module protection address different aspects of outdoor exposure.
Practical maintenance: The modular totem structure and accessible internal components support servicing.
Batch deployment: Standardized production and configuration support consistent installation across multiple sites.
P1.5 MiP outdoor LED totem displays can be considered for a range of commercial and public-space applications, including:

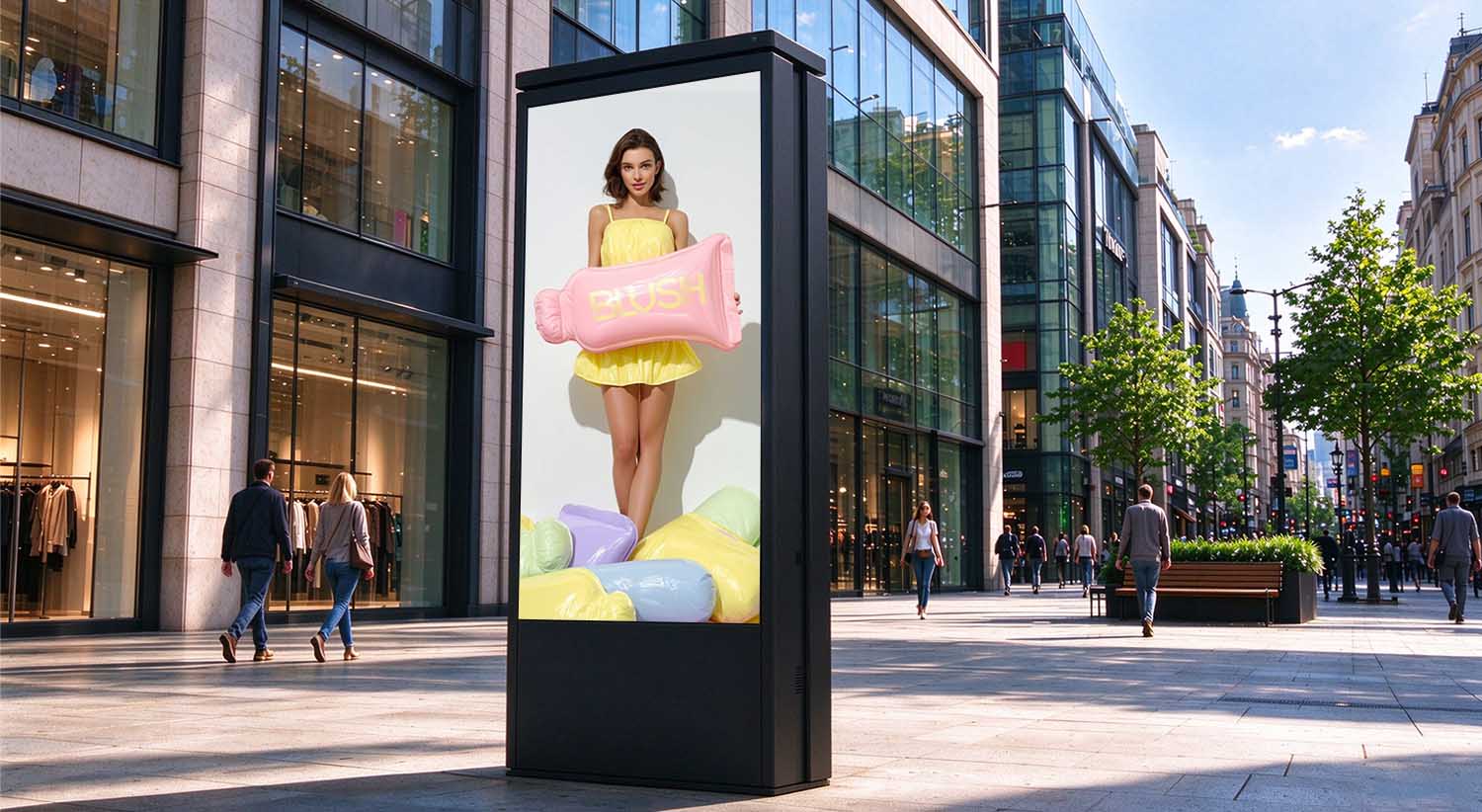

Urban pedestrian streets and shopping districts
Commercial plazas and outdoor retail areas
Tourism and cultural districts
Public information displays in smart city projects
Brand advertising in commercial areas

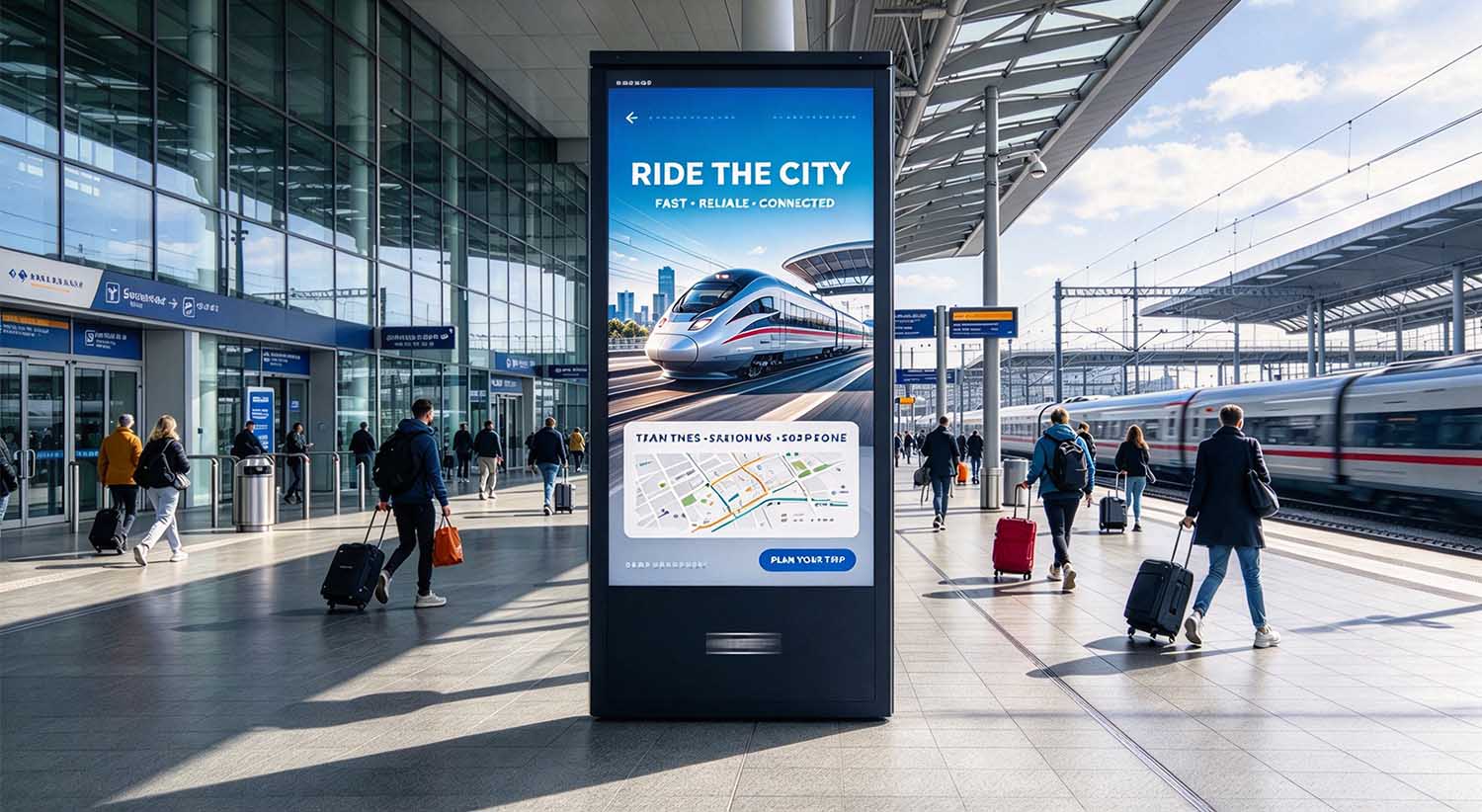

Public spaces around transport hubs
The appropriate configuration depends on the viewing distance, installation conditions, local weather exposure, content requirements, and maintenance access available at each site.
The European project involving 50 P1.5 MiP outdoor LED totem displays demonstrates CNLC's capabilities in fine-pitch outdoor LED technology, aluminum-profile enclosure design, and batch production for overseas DOOH projects.The display configuration combines P1.5 MiP LED technology, 4,000-nit brightness, GOB module surface protection, IP66-rated enclosure protection, an aluminum-profile housing, integrated airflow design, and ambient light sensing.For outdoor media operators, advertising companies, and system integrators, these features provide a basis for developing freestanding digital advertising networks in pedestrian areas, commercial districts, and other public spaces.
CNLC supports OEM and ODM requirements for outdoor LED displays, including customized enclosure structures, display configurations, and project-based manufacturing.
Looking for a customized outdoor LED totem display for your next project? Contact CNLC to discuss your pixel pitch, brightness, enclosure protection, installation environment, and batch production requirements.
