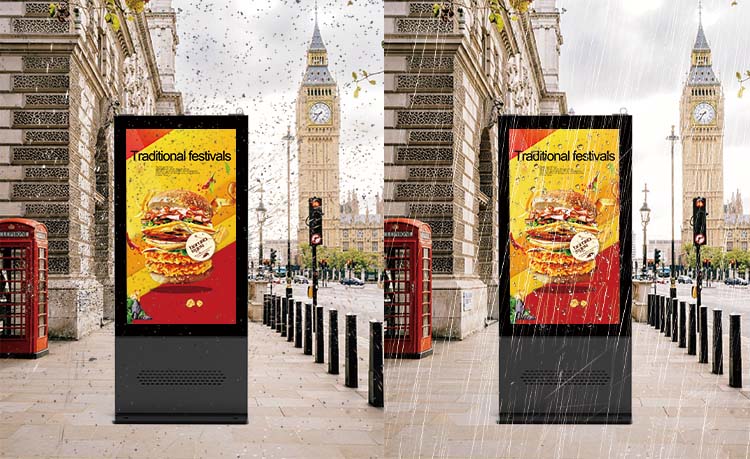

55" single-sided outdoor LCD digital signage with full aluminum housing and outdoor high brightness module for community, square, etc.
Item No :
55FL-CT150-BSize :
840*1900*150Brightness :
3500resolution ratio :
1920*1080Material :
Aluminum StructureColor :
Black / Silver / Grey / CustomWaterproof grade :
IP65Weight :
150kgOutdoor Digital Signage
55" single-sided outdoor LCD advertising machine, air-cooled noiseless
High and low temperature resistance
-30°+110° normal operation, can adapt to the temperature situation of most regions
All aluminum construction
Advertising machine shell all made of aluminum alloy, anti-corrosion and anti-rust
Heat dissipation structure
Aluminum internal unique structure with fan, can quickly dissipate the hot air
All aluminum IP65 dustproof and waterproof case
Water and dust resistant structure can adapt to most extreme outdoor weather
Installation schematic
Provide a complete set of installation drawings and construction drawings
Specification
Display |
Panel Size |
55”/65”/75”86” |
| Resolution |
1920x1080/4K |
|
| LCD Manufacturer |
BOE/LG/AUO( Industrial grade panel, 105°C TN heat resistant panel, wide workingtemperature-30～+110°C) |
|
| Viewing angle |
89/89/89/89(L/R/U/D) |
|
| Contrast ratio |
1200:1 | |
| Brightness |
2500nits as standard (3500nits/4500nits can be customized) | |
| Aspect Ratio |
16:9 |
|
| Active Area |
805x 1430 mm |
|
| Operational Life Cycle-MTBF(hours) |
50K hours |
|
| Grey to Grey ResponseTime (ms) |
6Ms |
|
| Power | Input Voltage | AC110- 240±10%, 50/ 60 HZ |
| Leakage Protection | 30mA/0.15 | |
| Built-in Power Socket | 1 pCs (EU/US/UK/AU/Swiss Standard optional, more sockets are optional) | |
| Timer Switch | 1 pcs | |
| Max Power Consumption（w） | TBD | |
| Enclosure Material | Enclosure Material | Fully Aluminum Housing ( Anti-corrosion & rust-proof with 15 years lifetime) |
| Glass Type | 6mm tempered glass as standard | |
| 6mm Tempered glass as standard with Double side AR surface treatment with hightransparency, reducing reflection/ UVf IR (optional) | ||
| 6mm tempered glass with AG coating, anti-glare surface treatment reduce reflection(optional) | ||
| Double Laminated AR Glass 3mm+3mm is optional(optional) | ||
| Glass Characteristics | Transmissivity = 93%, Reflectivity < 2% | |
| Optical Bonding (Optional) | Tempered Glass & LCD Display&Touch optical bonding technology is optional | |
| Protection Grade | IP65&IK10 | |
| Thickness | 274mm | |
Emironrment |
Operating Environment |
Fully Outdoor for All Weathers |
| Operating Temp. |
10℃～+60°C | |
| Operating Humidity |
5%～98% | |
| Operating Altitude (m) |
≦2000 | |
| Built-in HDMIinput MonitorVideo Board |
HDMI input |
1 pcs, Support 1920*1080, 4K resolution is optional |
| Signal Output |
VoyOne or LVDS |
|
Free Remote Content Manage ent Software (ForAndroid only) |
Editing Playlist, timing, playback |
|
| Edit Multi Zones play different contents |
||
| One Video/image splicing to ultiple screens by software, no need for extra controller/matrix/HDMl splitter |
||
| Support live stream, URL, Youtube Video, PDF. WORD, TXT. etc |
||
| Remote Management by mobile, pC thru wif/lan network |
||
| Support 4K high-resolution video, Max uploading video 2GB, Max uploading image 20MB |
||
| Support Simple UsB sticker plug-play looping images/videos |
||
| Cloud base software is supported |
||
| Free of charge |
||
|
(Optional) |
Touch Type |
PCAP Touch |
| Touch Max Resolution |
4980*4980 |
|
| Transparency |
> 90%, up to 100% |
|
| Scanning Speed |
> 50s scans/s |
|
| Responsive Time |
<12ms |
|
| Touch Precision |
0.625mm |
|
| Minimnum Touch |
5mm |
|
| Cormmunication |
USB port |
|
|
Connectivity &Other |
Optional functions |
Heater |
| Camera/webcam |
||
| Customized external Sensor |
||
| AC air conditioner |
||
| Microphone |
||
| Emergency button |
||
65" vertical double-sided outdoor waterproof advertising machine, waterproof grade IP65, the outer frame is made of full aluminum alloy, 15 years anti-corrosion and anti-rust. The module adopts CNLC independent research and development of high brightness outdoor LCD module. Suitable for square/bus station/commercial street/airport.
