65" Double-sided Bus Shelters Outdoor LCD LCD Display

65" Double-sided Bus Shelters Outdoor LCD LCD Display
65" Double-sided Bus Shelters Outdoor LCD LCD Display
65" Double-sided Bus Shelters Outdoor LCD LCD Display
65" Double-sided Bus Shelters Outdoor LCD LCD Display
65" Double-sided Bus Shelters Outdoor LCD LCD Display
65" Double-sided Bus Shelters Outdoor LCD LCD Display
65" Double-sided Bus Shelters Outdoor LCD LCD Display

65" Double-sided Bus Shelters Outdoor LCD LCD Display

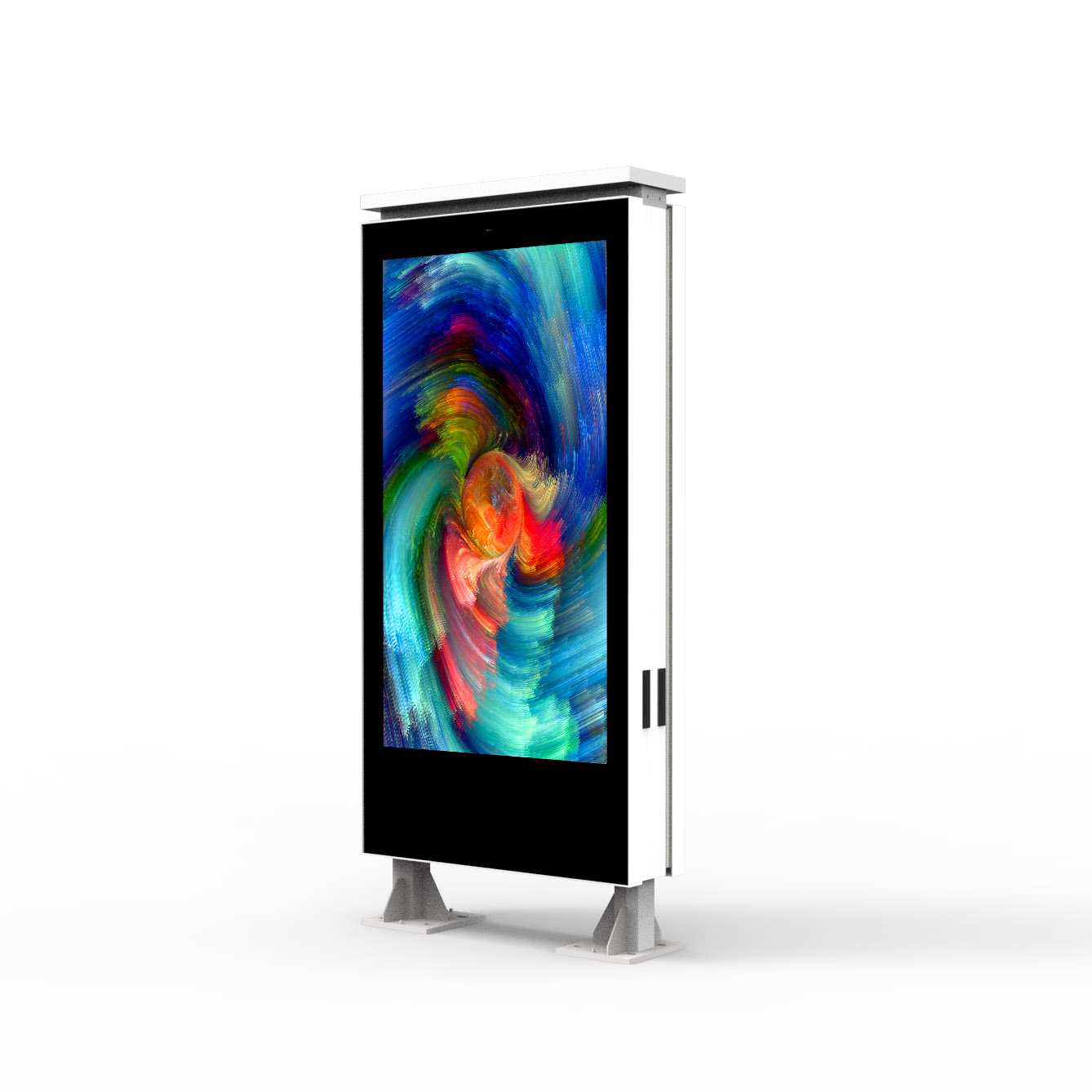

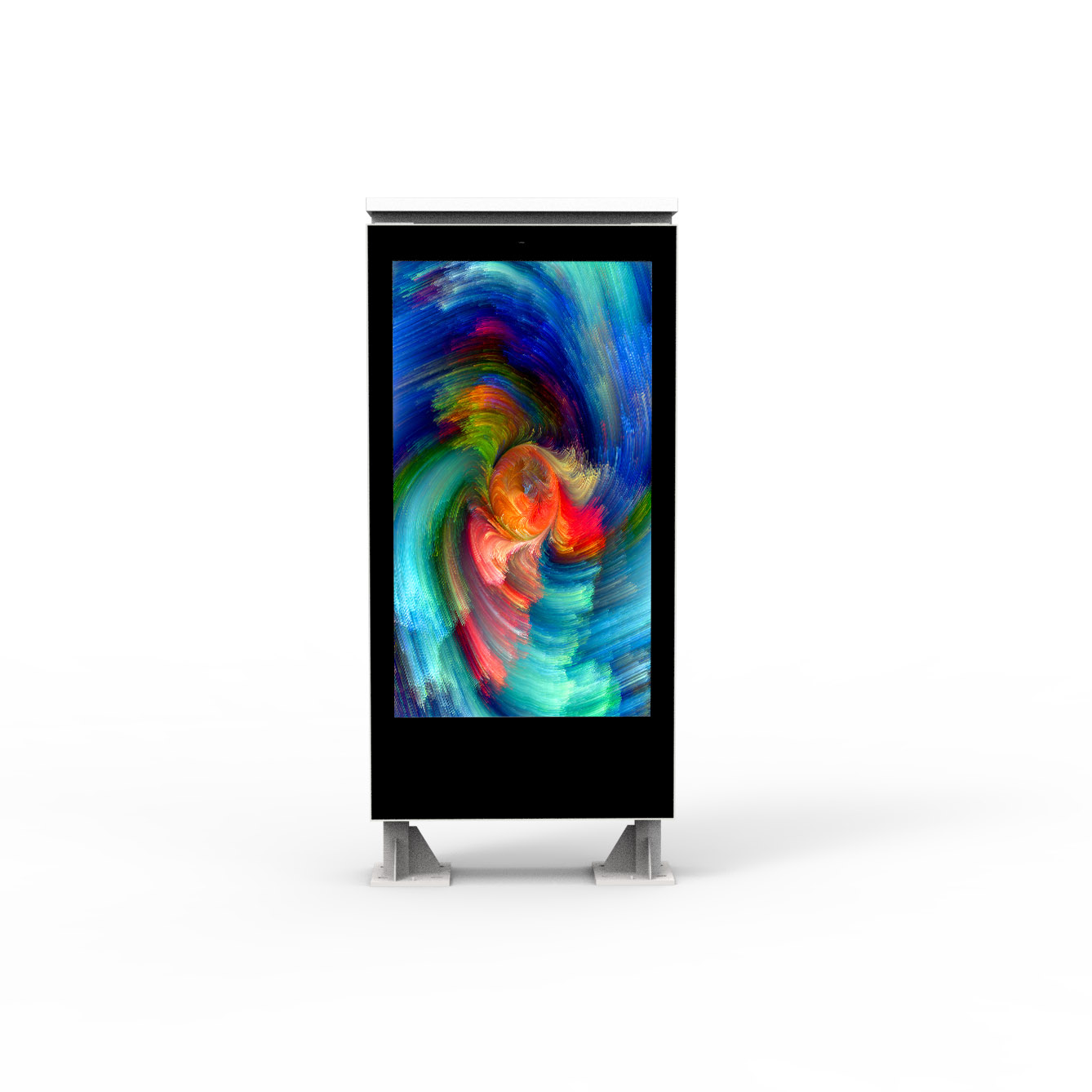

65 inch bus shelters outdoor double-sided LCD display, all aluminum casing, outdoor high brightness module, suitable for bus shelters and bus shelters.

  • Item No :

    65FL-ST270-AB
  • Size :

    960*2160*274
  • Brightness :

    3500
  • resolution ratio :

    1920*1080
  • Material :

    Aluminum Structure
  • Color :

    Black / Silver / Grey / Custom
  • Waterproof grade :

    IP65
  • Weight :

    190kg

Bus shelters outdoor LCD display



65" double-sided outdoor LCD advertising machine, air-cooled noiseless



outdoor bus stop shelters

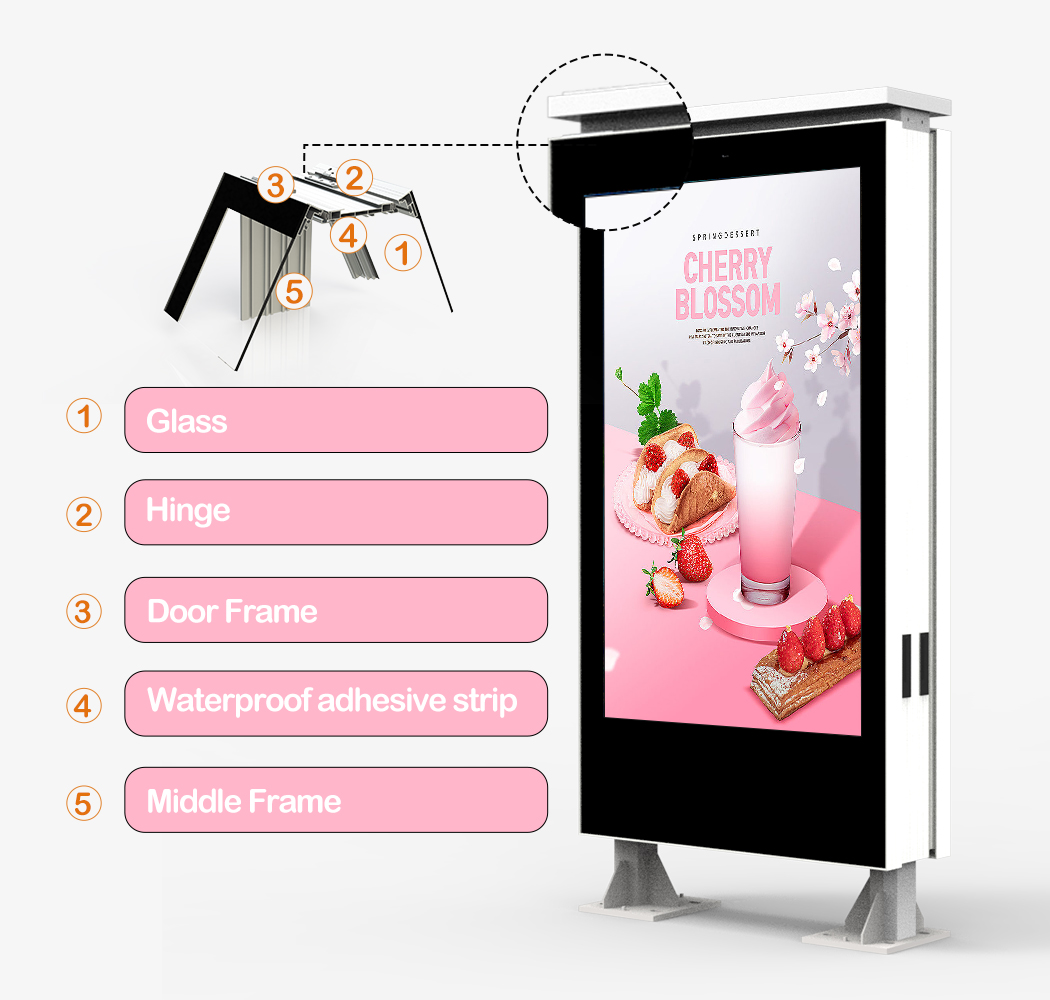

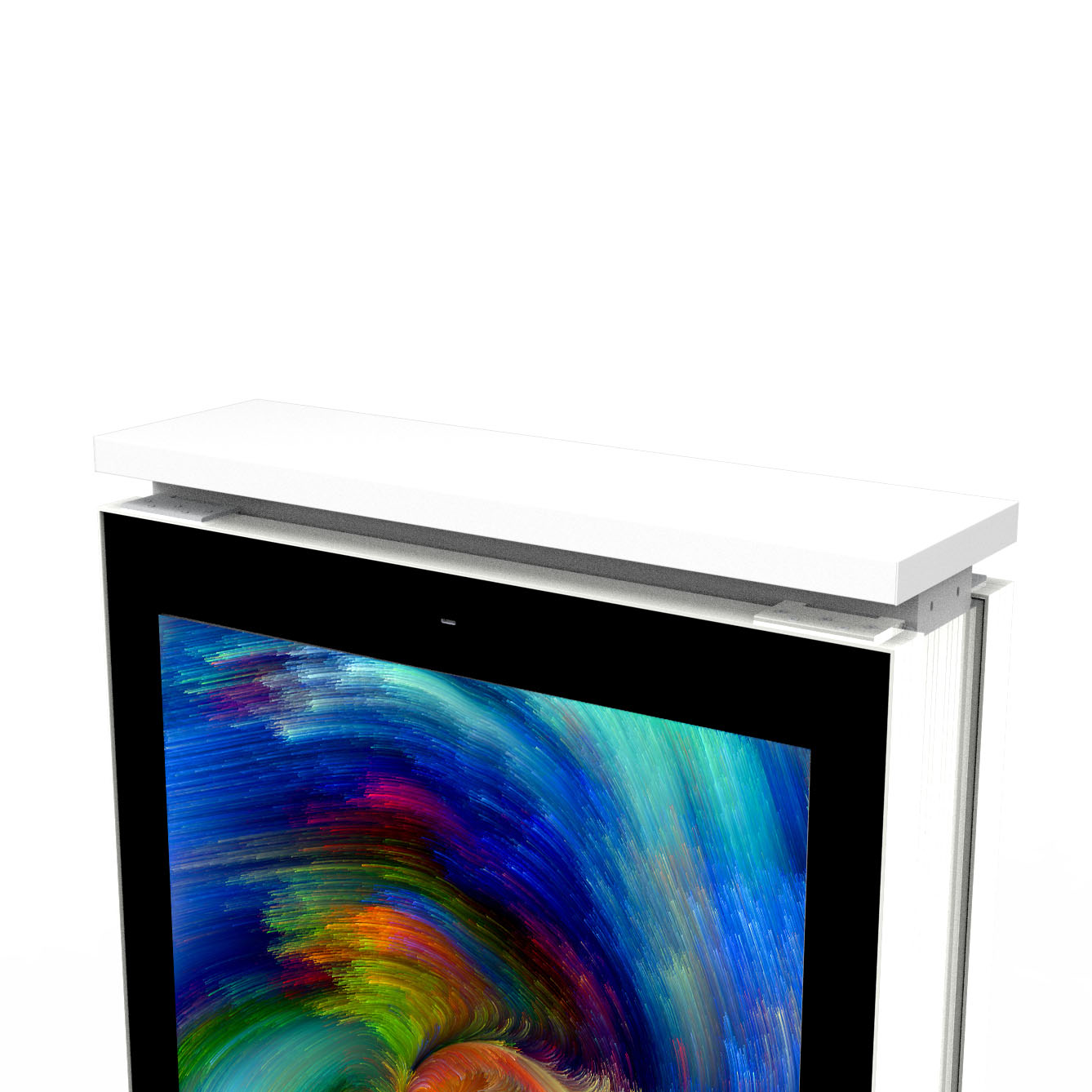

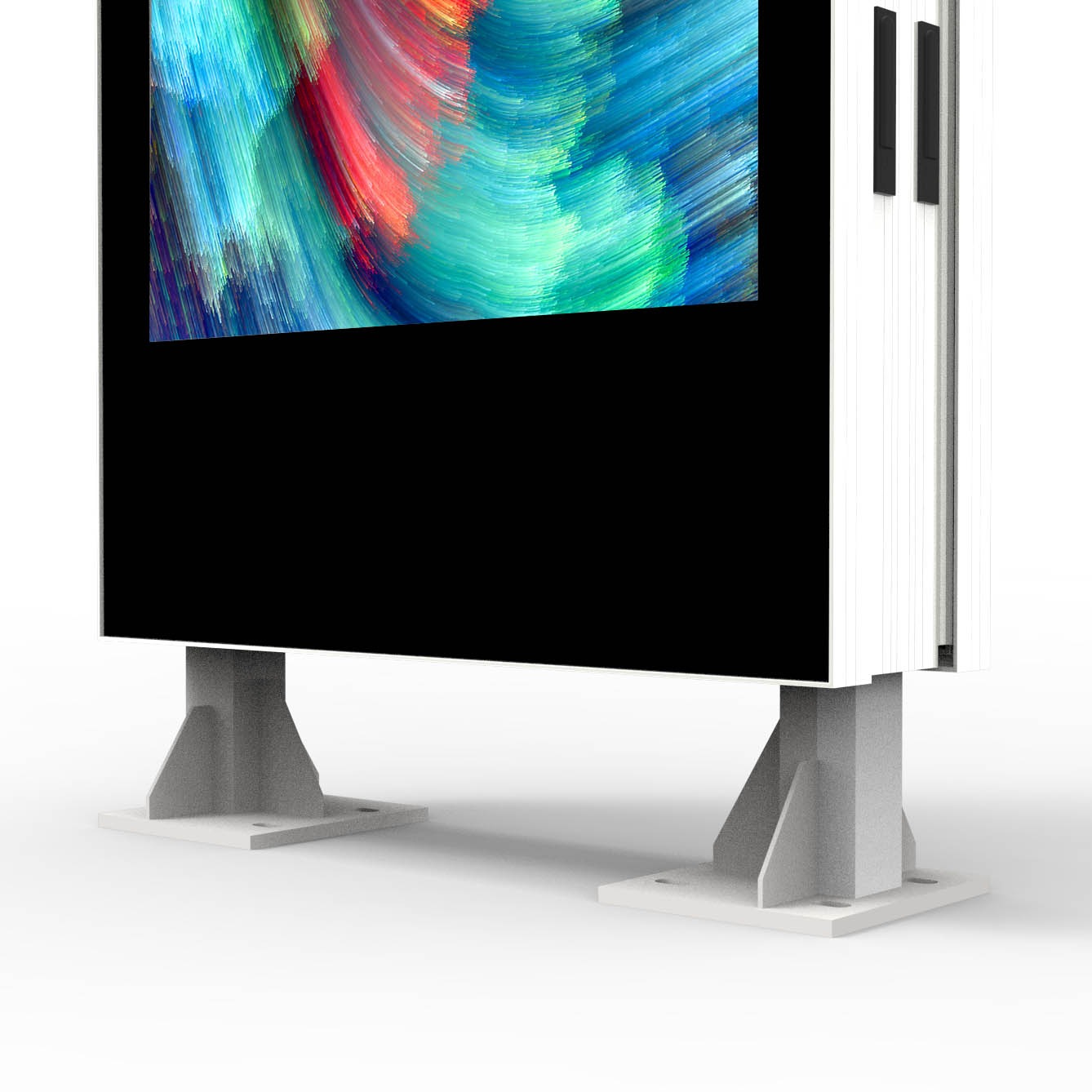

All aluminum construction



Advertising machine shell all made of aluminum alloy, anti-corrosion and anti-rust



bus shelters

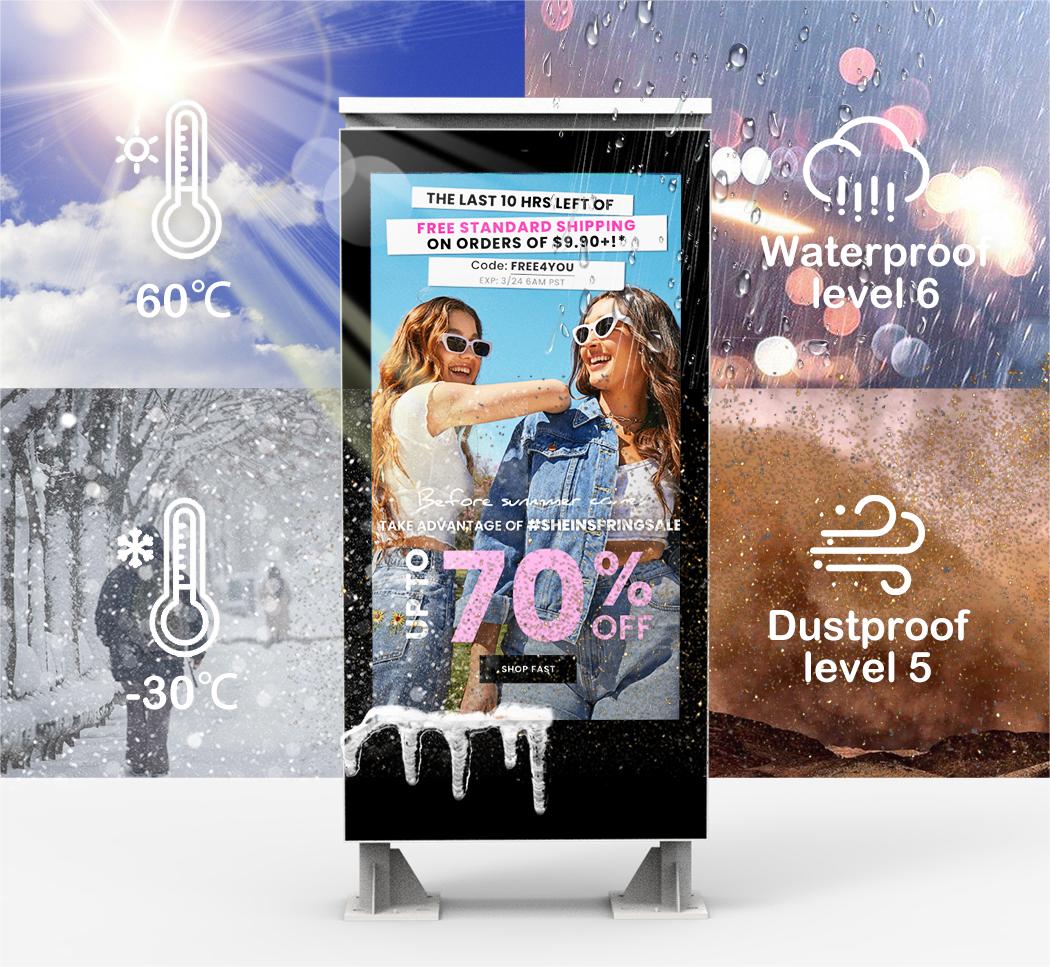

Suitable for various harsh environments



IP65 waterproof and dustproof, outdoor resistance to high and low temperatures -30°+60°



creative bus shelters

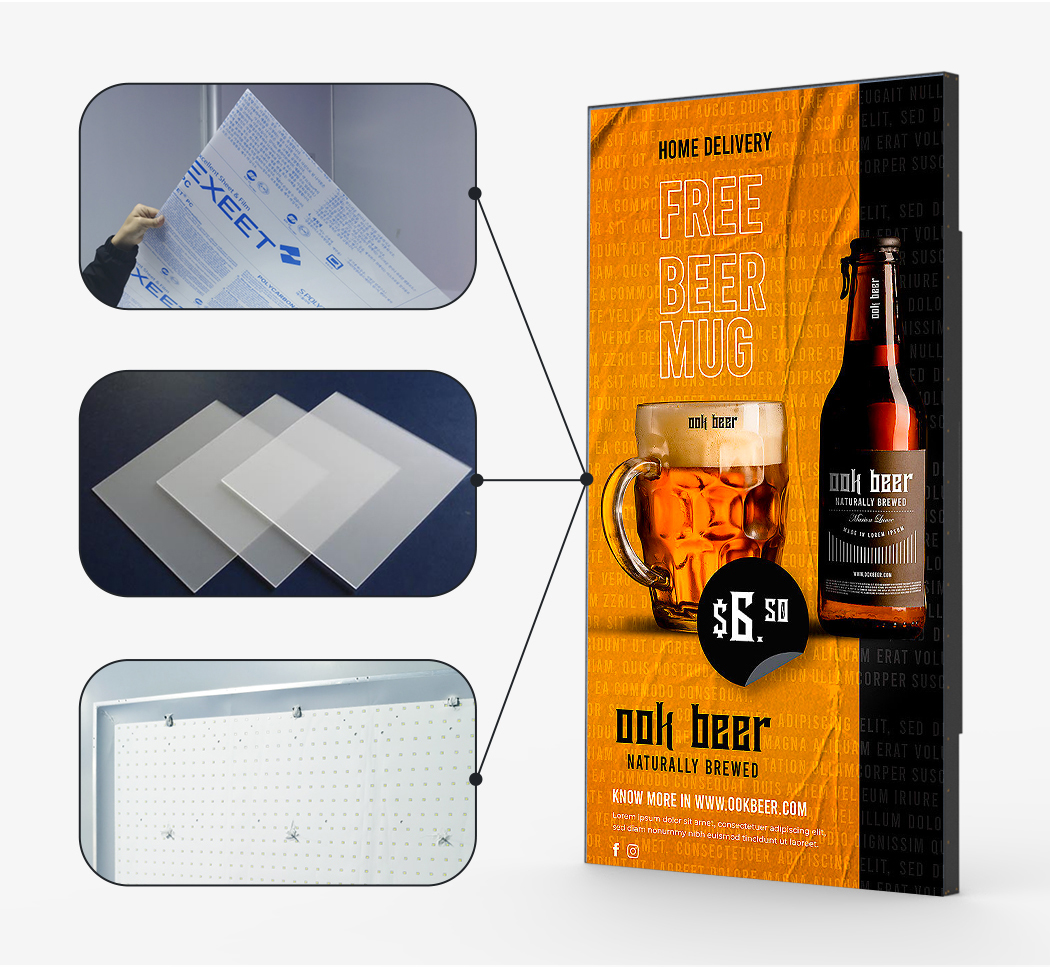

High brightness LCD screen



There 2-3 times LED beads. Material of diffuser panel is PC(Polycarbonate).



small bus shelters

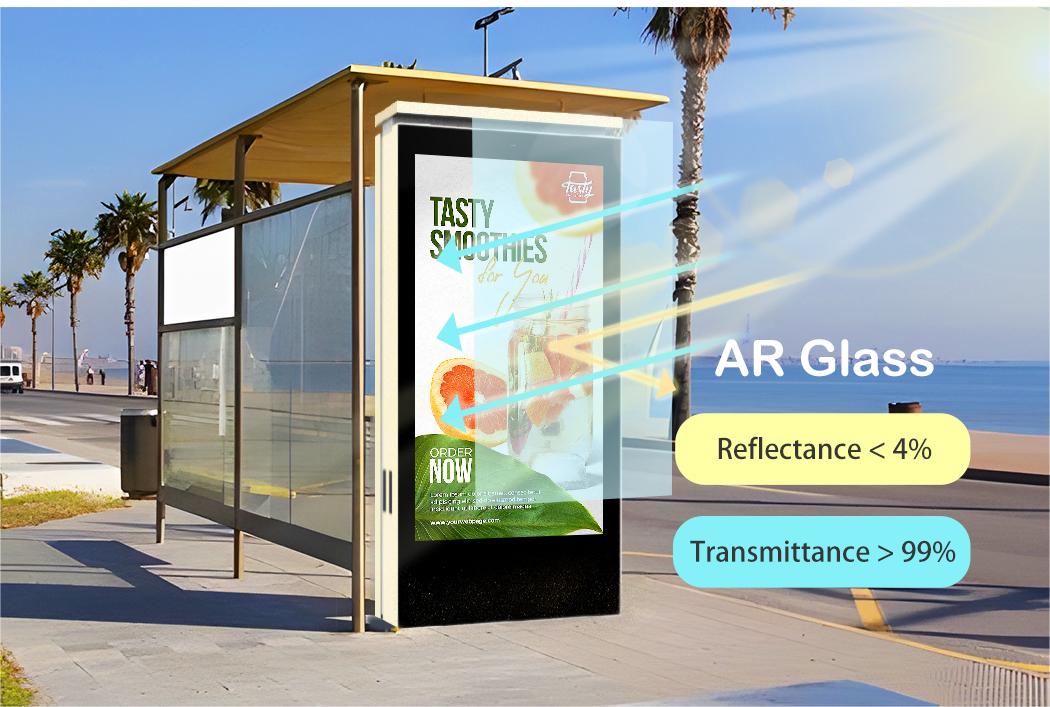

AR anti-reflective glass



No sunlight reflection effect when viewing the advertisement from any angler



new bus shelters

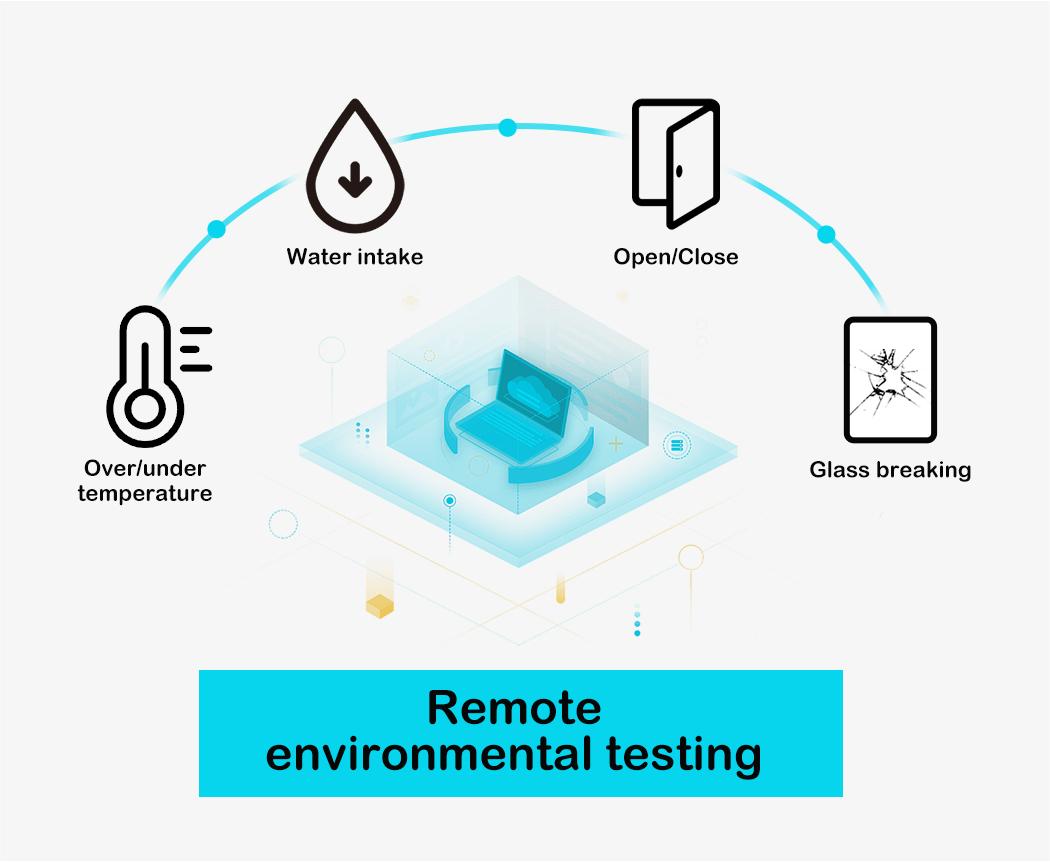

Environmental Monitoring System



Real-time remote viewing of digital signage usage



bus stop shelters

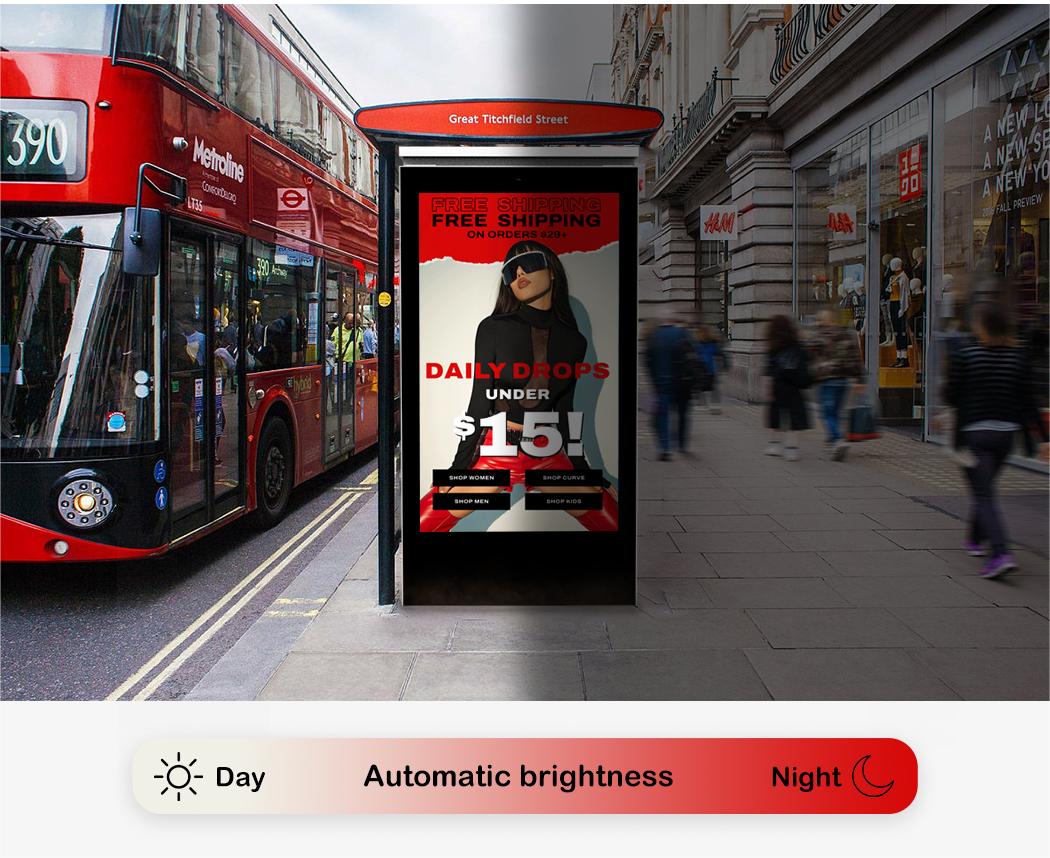

Automatic brightness adjustment



Automatic screen brightness adjustment according to the surrounding brightness



outdoor bus stop shelters

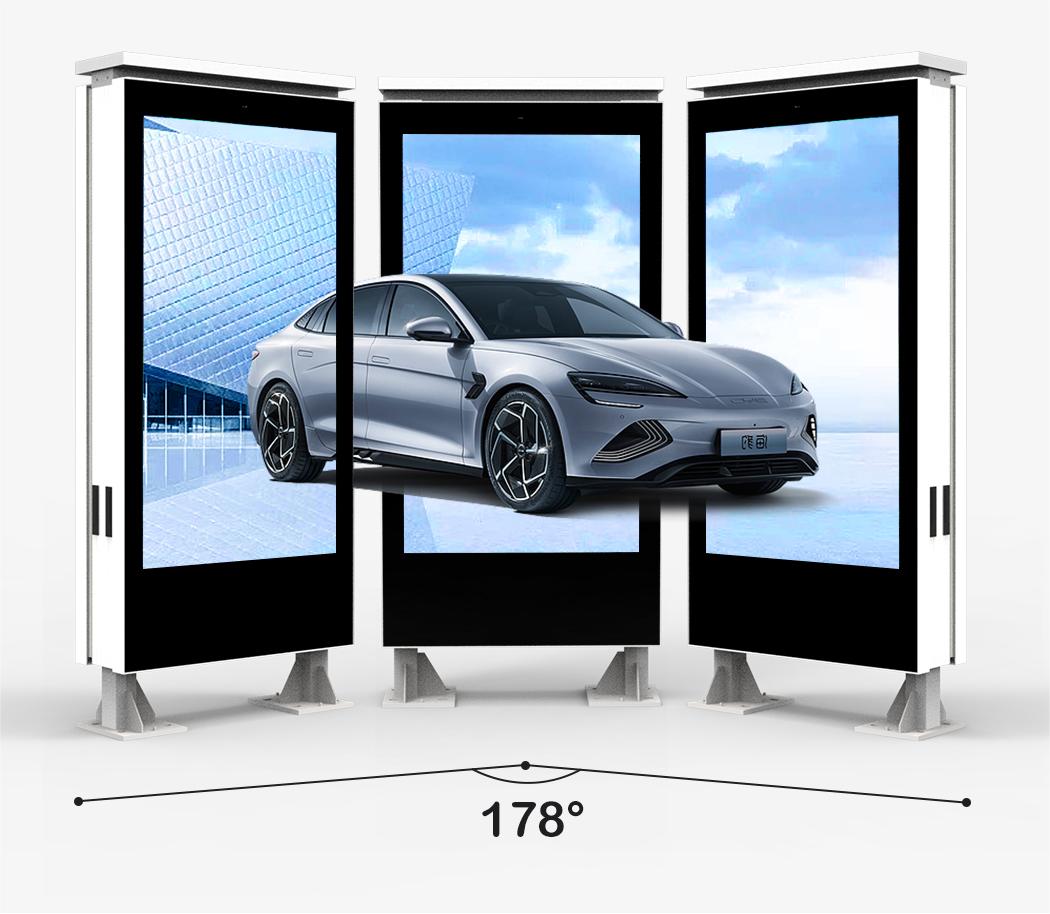

178° wide viewing angle



The screen can be seen clearly from almost any angle



bus shelters

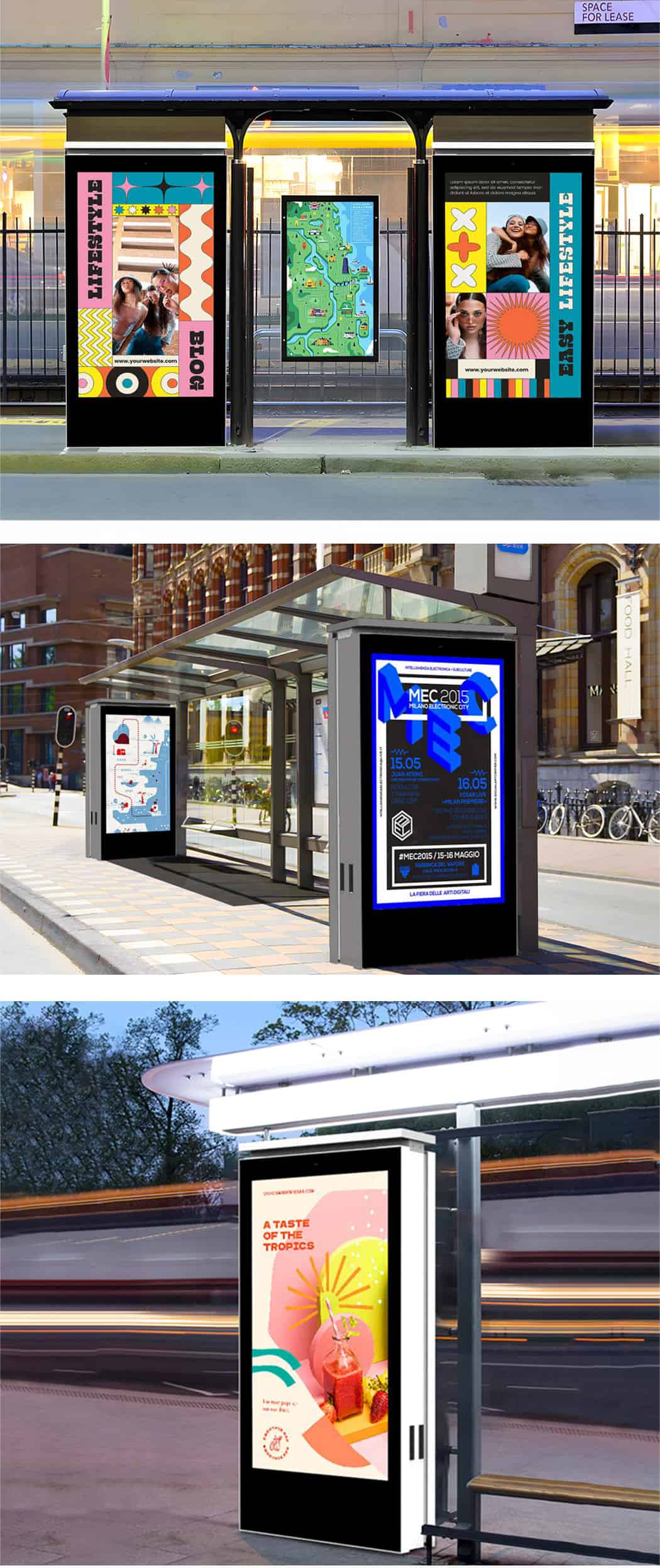

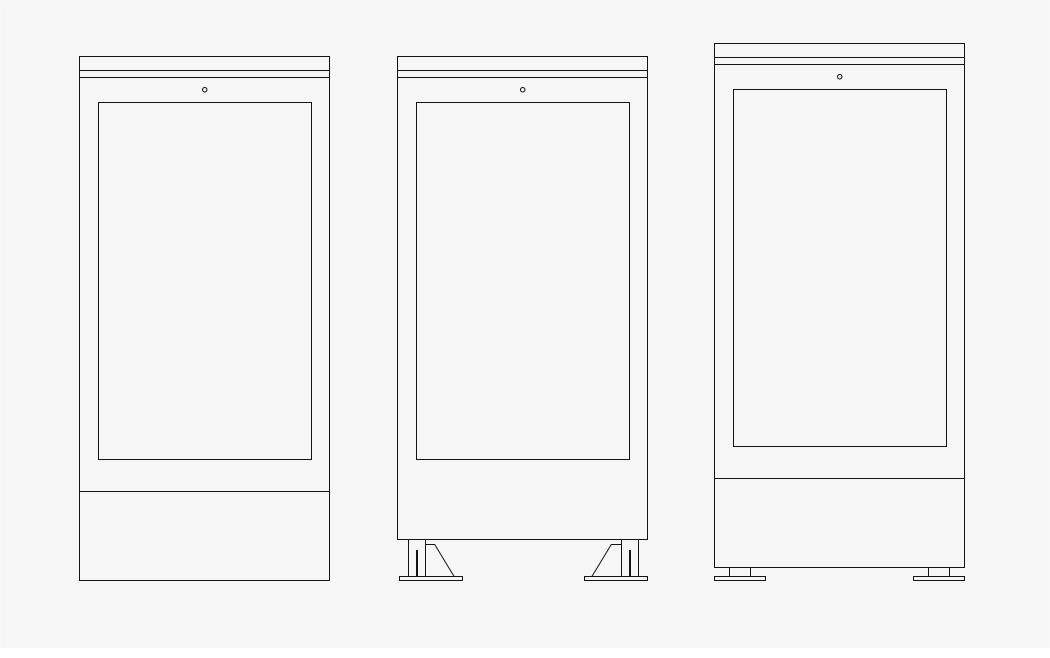

LCD bus shelter style



According to different environments or preferences to choose the right style



creative bus shelters

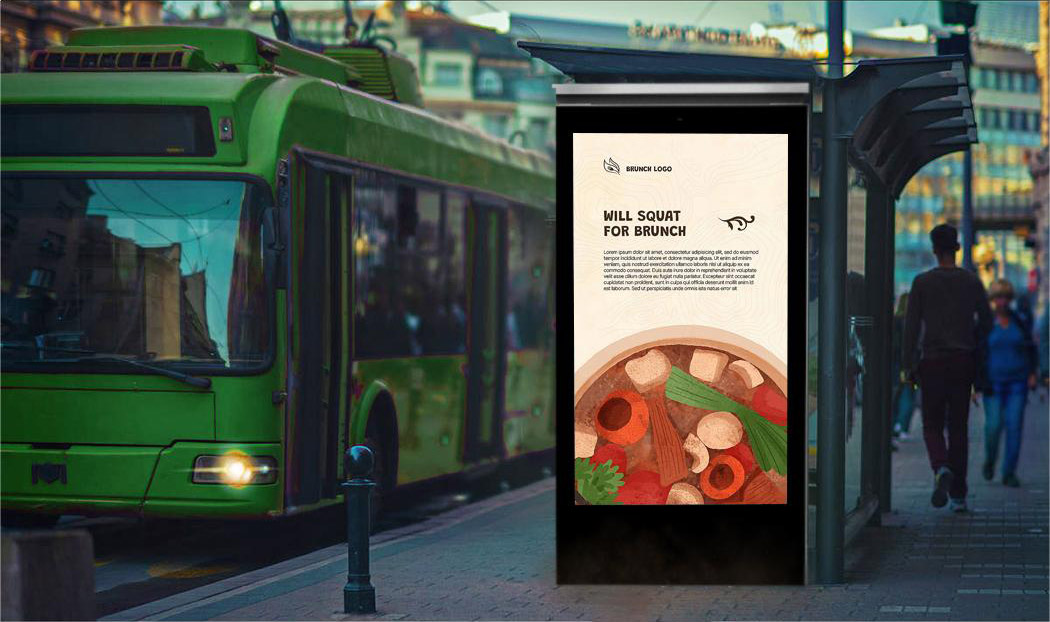

Application Scenarios



suitable for bus shelters and bus shelters



small bus shelters





Specification









Display



Panel Size
55”/65”/75”86”
Resolution
1920x1080/4K
LCD Manufacturer
BOE/LG/AUO( Industrial grade panel, 105°C TN heat resistant panel, wide workingtemperature-30~+110°C)
Viewing angle
89/89/89/89(L/R/U/D)
Contrast ratio
1200:1
Brightness
2500nits as standard (3500nits/4500nits can be customized)
Aspect Ratio
16:9
Active Area
805x 1430 mm
Operational Life Cycle-MTBF(hours)
50K hours
Grey to Grey ResponseTime (ms)
6Ms
Power Input Voltage AC110- 240±10%, 50/ 60 HZ
Leakage Protection 30mA/0.15
Built-in Power Socket 1 pCs (EU/US/UK/AU/Swiss Standard optional, more sockets are optional)
Timer Switch 1 pcs
Max Power Consumption(w) TBD
Enclosure Material Enclosure Material Fully Aluminum Housing ( Anti-corrosion & rust-proof with 15 years lifetime)
Glass Type 6mm tempered glass as standard
6mm Tempered glass as standard with Double side AR surface treatment with hightransparency, reducing reflection/ UVf IR (optional)
6mm tempered glass with AG coating, anti-glare surface treatment reduce reflection(optional)
Double Laminated AR Glass 3mm+3mm is optional(optional)
Glass Characteristics Transmissivity = 93%, Reflectivity < 2%
Optical Bonding (Optional) Tempered Glass & LCD Display&Touch optical bonding technology is optional
Protection Grade IP65&IK10
Thickness 274mm

Emironrment

Operating Environment
Fully Outdoor for All Weathers
Operating Temp.
10℃~+60°C
Operating Humidity
5%~98%
Operating Altitude (m)
≦2000
Built-in HDMIinput MonitorVideo Board
HDMI input
1 pcs, Support 1920*1080, 4K resolution is optional
Signal Output
VoyOne or LVDS




Free Remote Content Manage ent Software (ForAndroid only)




Editing Playlist, timing, playback
Edit Multi Zones play different contents
One Video/image splicing to ultiple screens by software, no need for extra controller/matrix/HDMl splitter
Support live stream, URL, Youtube Video, PDF. WORD, TXT. etc
Remote Management by mobile, pC thru wif/lan network
Support 4K high-resolution video, Max uploading video 2GB, Max uploading image 20MB
Support Simple UsB sticker plug-play looping images/videos
Cloud base software is supported
Free of charge





PCAP TouchScree

(Optional)



Touch Type
PCAP Touch
Touch Max Resolution
4980*4980
Transparency
> 90%, up to 100%
Scanning Speed
> 50s scans/s
Responsive Time
<12ms
Touch Precision
0.625mm
Minimnum Touch
5mm
Cormmunication
USB port



Media&

Connectivity

&Other






Optional functions


Heater
Camera/webcam
Customized external Sensor
AC air conditioner
Microphone
Emergency button



65" vertical double-sided outdoor waterproof advertising machine, waterproof grade IP65, the outer frame is made of full aluminum alloy, 15 years anti-corrosion and anti-rust. The module adopts CNLC independent research and development of high brightness outdoor LCD module. Suitable for square/bus station/commercial street/airport.
