Item No :
LE-OU-220SASize :
CustomizeBrightness :
5000/6500 cd/m²resolution ratio :
SMDMaterial :
Aluminum StructureColor :
Black / Silver / Grey / CustomizeWaterproof grade :
IP65

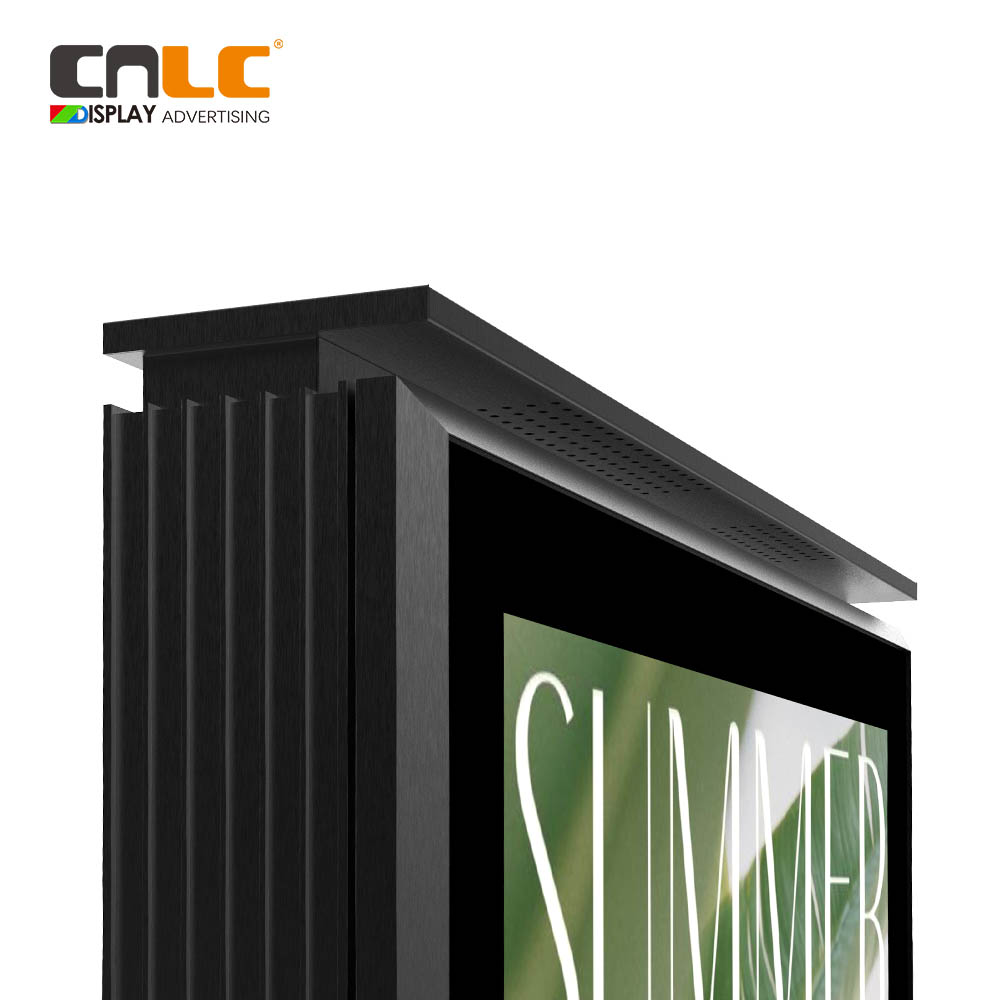

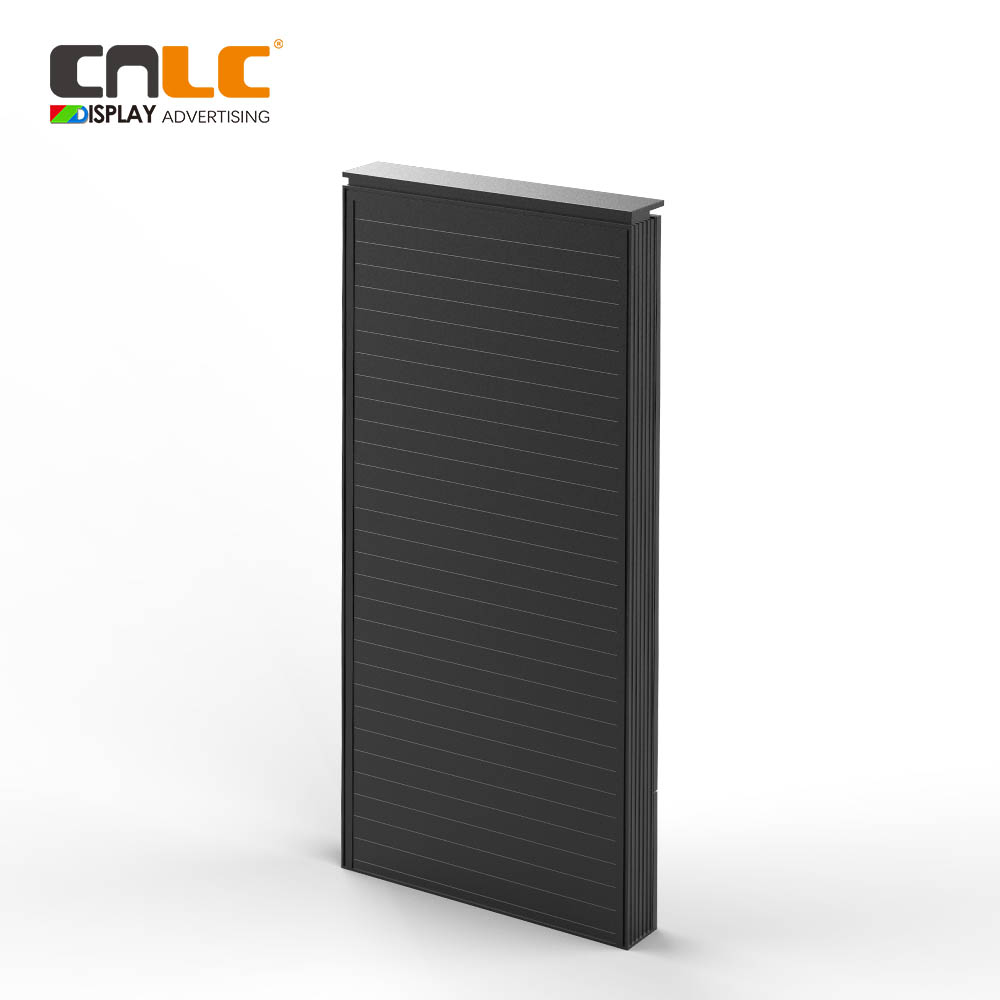

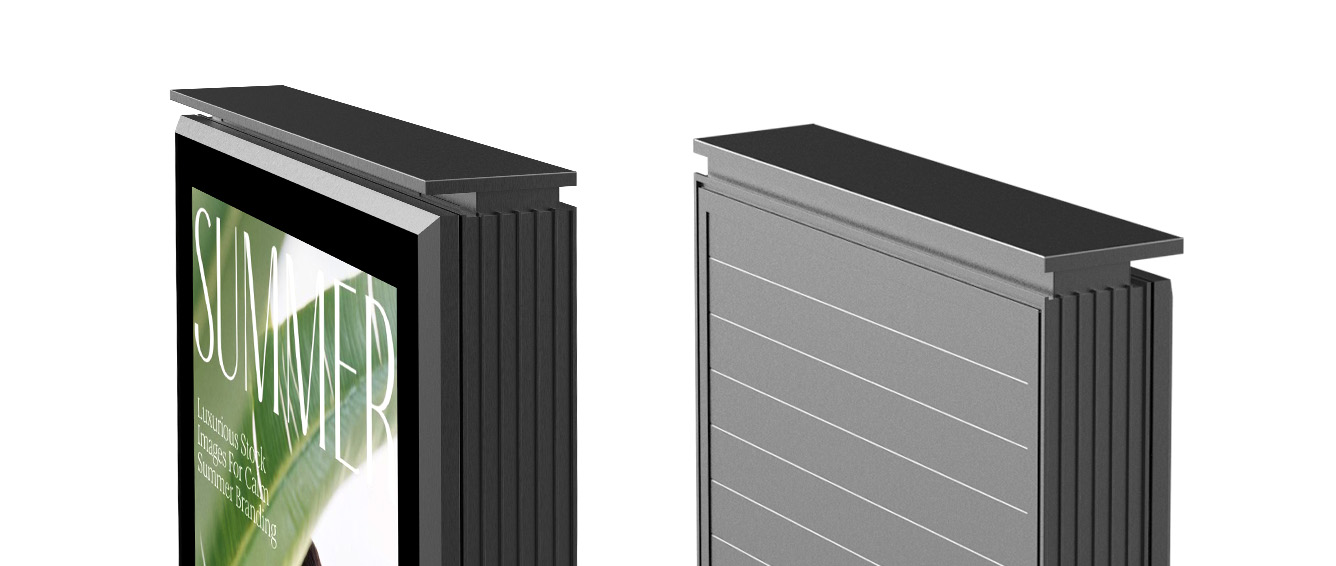

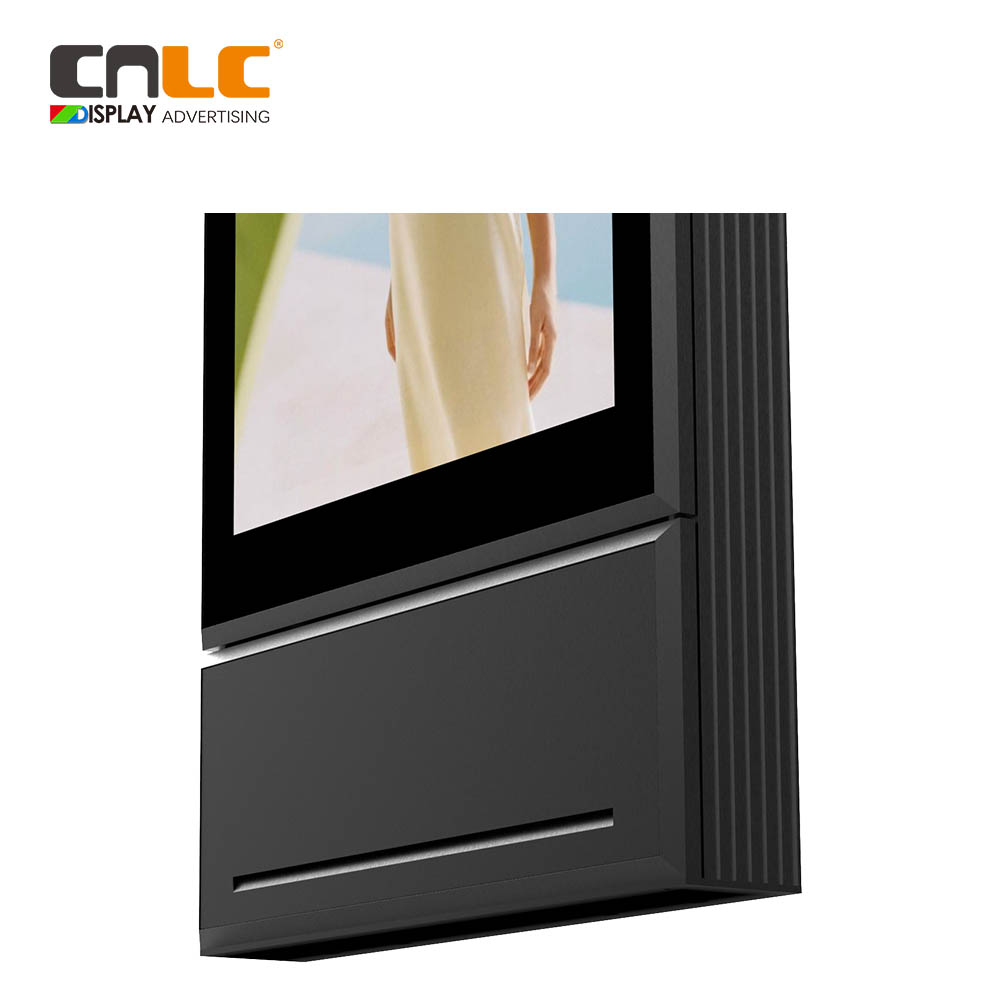

Lightweight, Corrosion-Resistant Aluminum Housing
◆ Built with a precision-engineered aluminum housing, the outdoor LED advertising display combines a lightweight structure with superior corrosion resistance. This durable construction ensures long-lasting performance in coastal areas, desert environments, and urban installations.

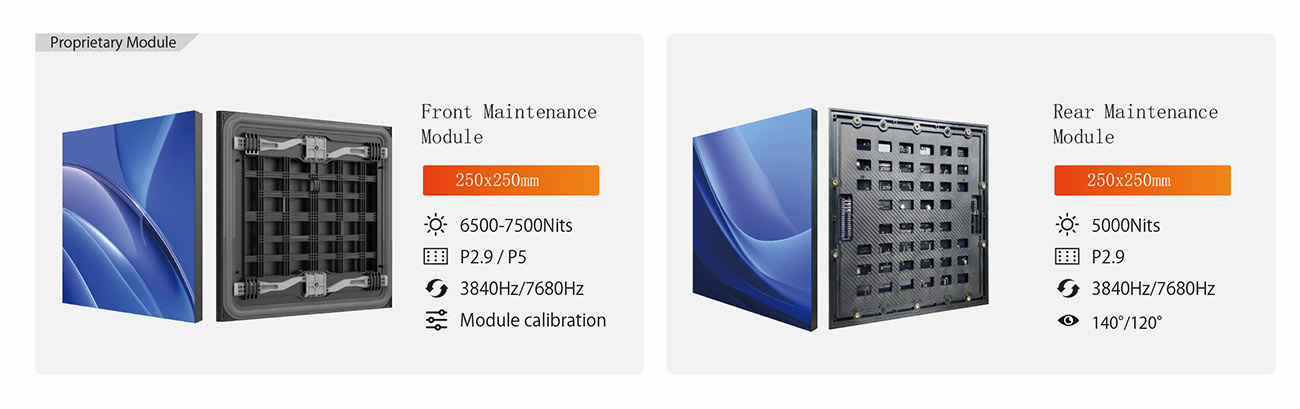

P2.9 High-Brightness LED Module
◆ Choose the LED module configuration that best fits your project. CNLC offers both front maintenance and rear maintenance modules to meet different installation and service requirements. With high refresh rates, stable image performance, and multiple brightness options, both solutions deliver reliable outdoor advertising performance for a wide range of DOOH applications.
Rugged IP65 Protection for Outdoor Reliability
◆ Built for challenging outdoor environments, this LED totem display is rated IP56, providing robust protection against dust ingress and powerful water jets. Whether exposed to sandstorms, rain, or humidity — especially in Middle Eastern climates — it ensures stable, long-term performance for outdoor DOOH deployments.

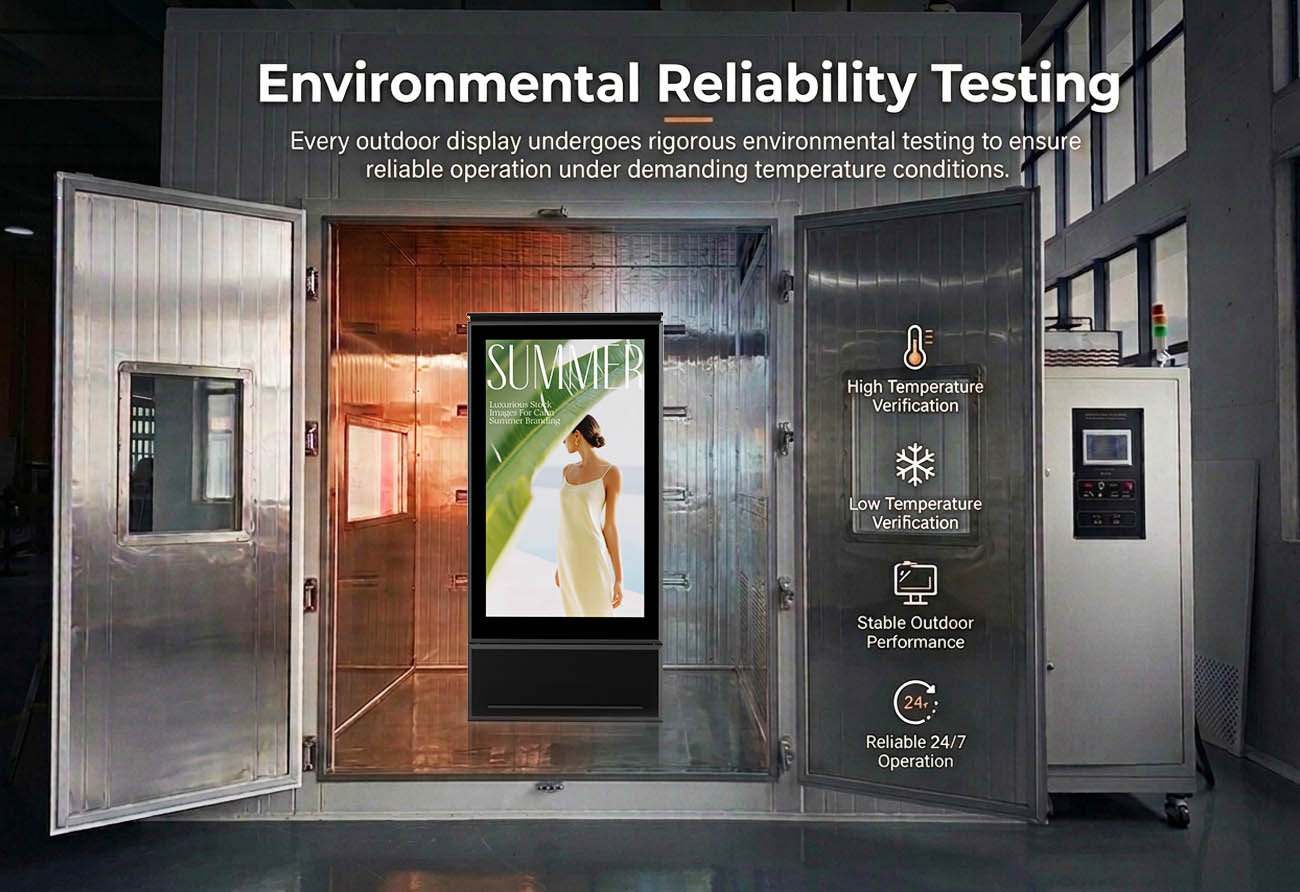

Stable Performance in Extreme Temperatures
◆ Designed for demanding outdoor environments, our outdoor LED display maintains stable brightness, reliable operation, and long-term performance under both high and low temperature conditions. Every unit is validated in our environmental testing chamber to ensure dependable performance before delivery.
Professional Impact Resistance Validation
◆ Every design is verified through in-house IK10 impact testing to ensure outstanding resistance against accidental impacts and vandalism. Rigorous validation helps deliver reliable performance and long-term durability for demanding outdoor installations.
TECHNICAL SPECIFICATIONS
| Pixel Pitch(mm) | 2.976mm | ||

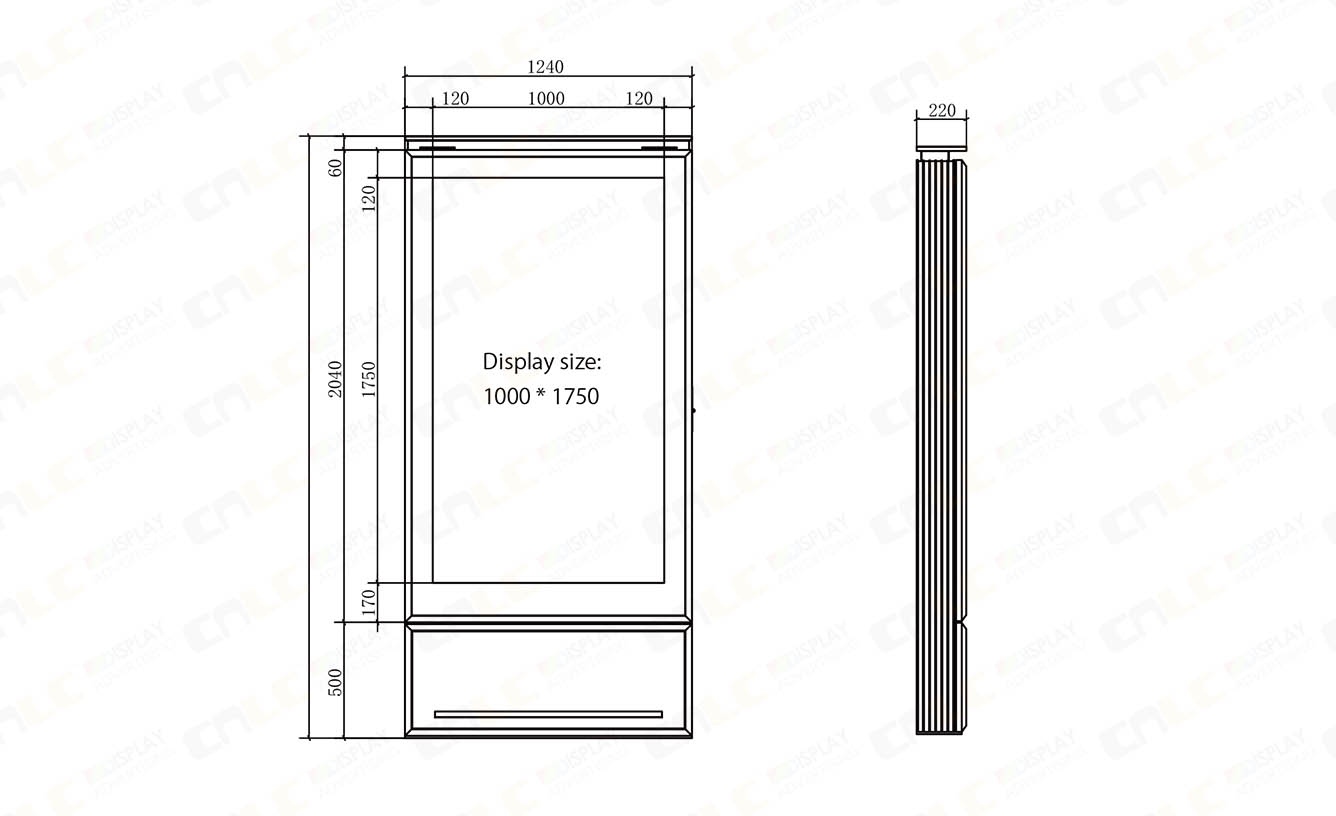

| Display Size(mm) | 1000*1750 | ||
| Module size (mm) | 250*250 | ||
| Pixel Density(Dots/m²) |
112896 |
||
| Scan method | 1/21scan | ||
|
LED Encapsulation
|
SMD1415
|
||
| Material of Frame and Support Structural | Aluminum profile | ||

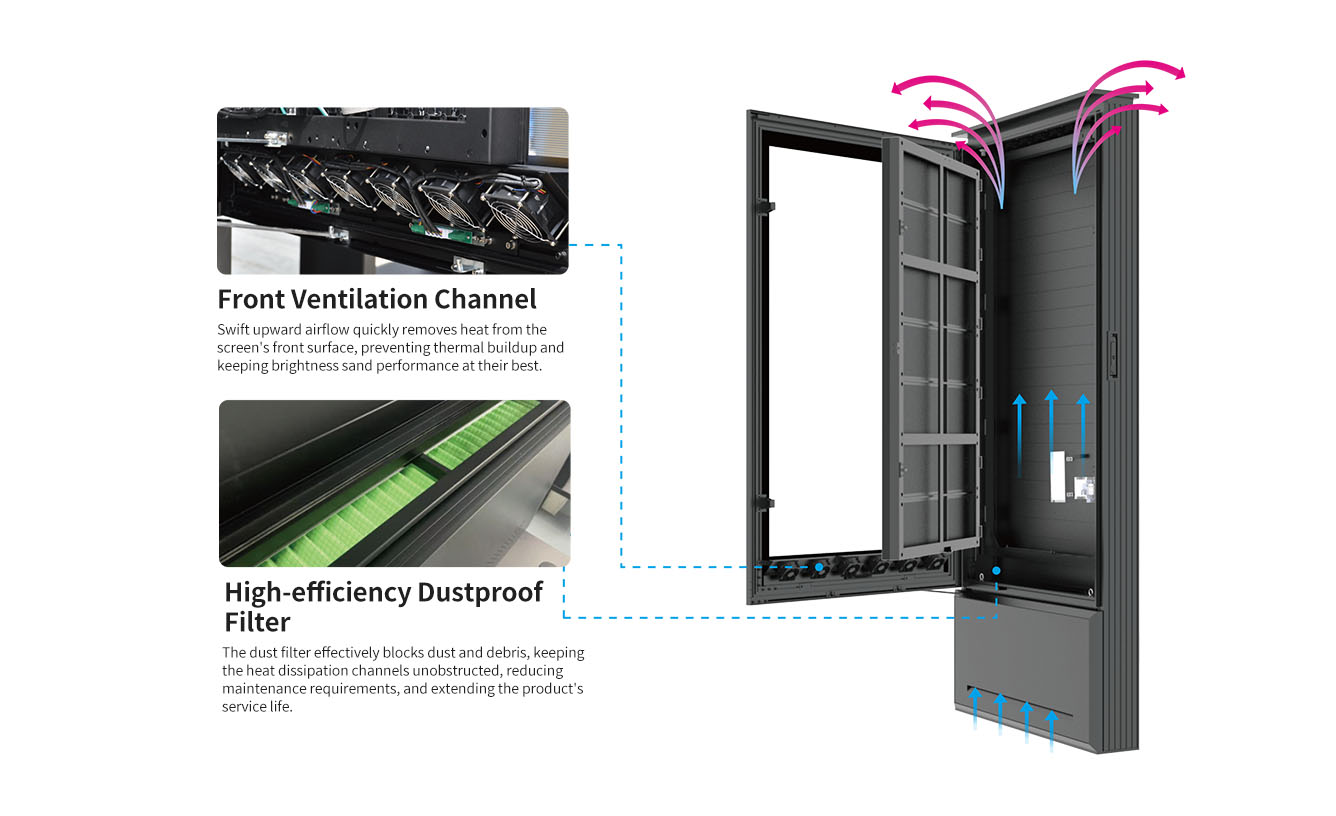

| Cooling system | Build in cooling fans | ||
| Embedded heater | Optional | ||
| Media update | Remote control (LAN and WIFl) | ||
| Operating Ambient Temperature | -20℃~+50℃ | ||
| Waterproof level |
IP65
|
||

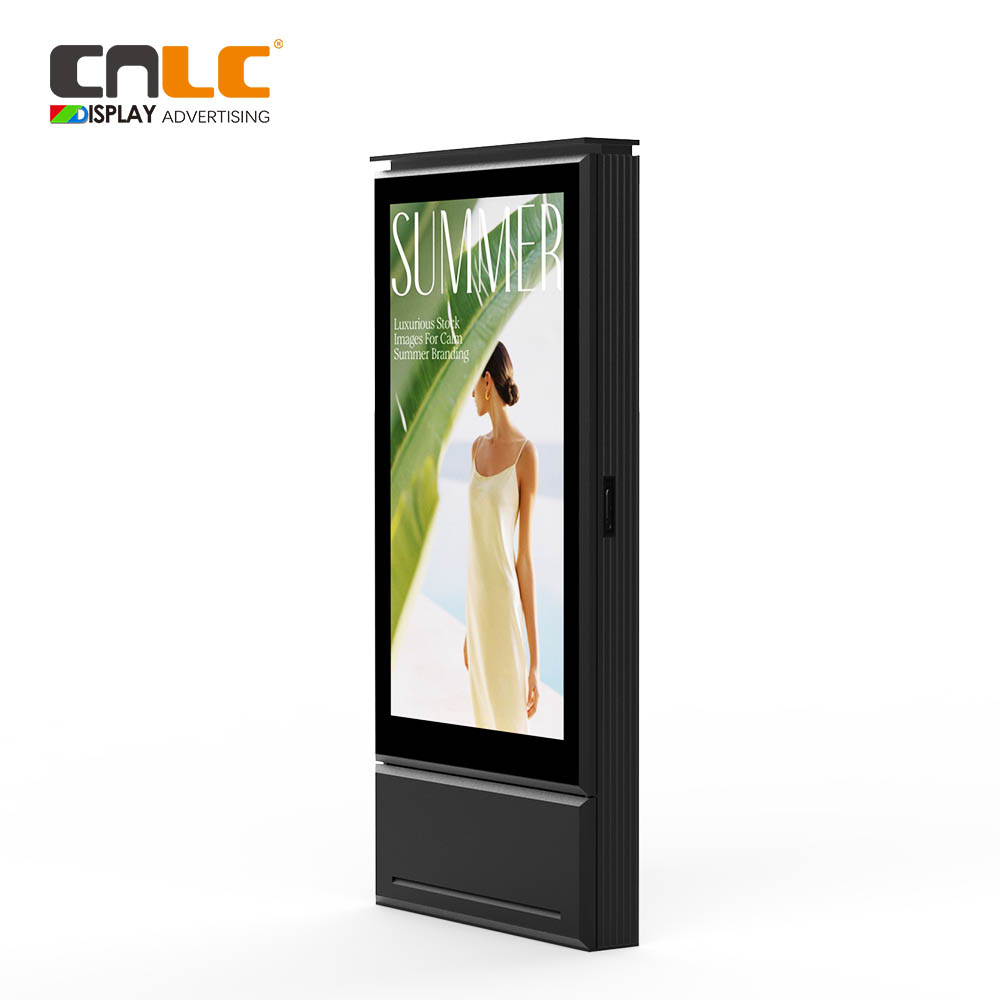

| Maintenance method | Front or rear maintenance | ||
| Refresh frequency (Hz) | 1920/3840 | ||
| Brightness(nits) | 5000/6500 | ||
| Viewing angle (horizontal/vertical) | 170°/170°±5° | ||
| Thickness of Tempered Glass | 6mm / 8mm(Laminated glass) IK10 | ||
|
Maximum Power(W/m²)
|
800
|
||

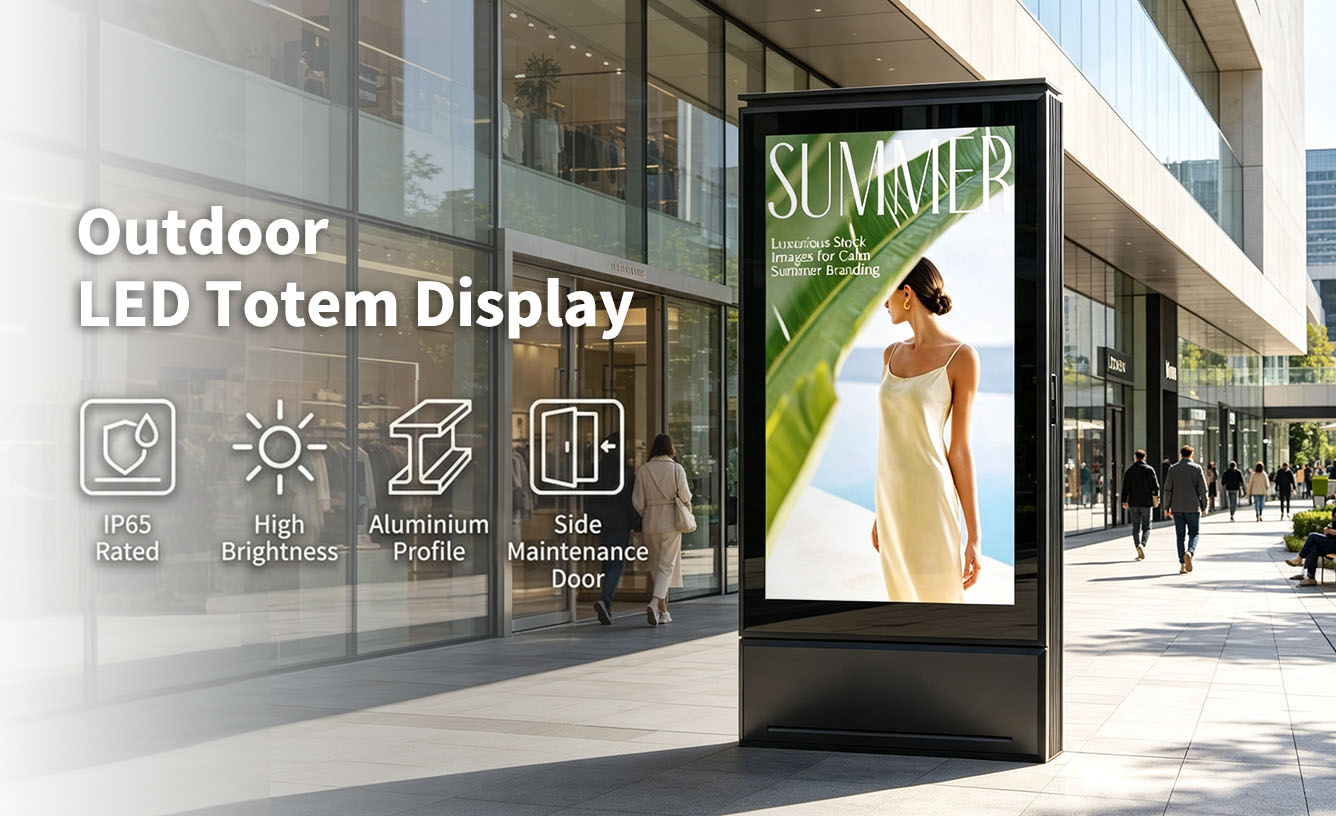

Built for demanding outdoor environments, this commercial LED totem features a precision aluminum housing, IP65 weatherproof protection, IK10-rated impact resistance, and an intelligent thermal management system for stable year-round operation. With P2.9 high-brightness LED technology delivering up to 6500 nits, it provides exceptional image quality for DOOH advertising, retail media networks, transportation facilities, and smart city digital signage.
