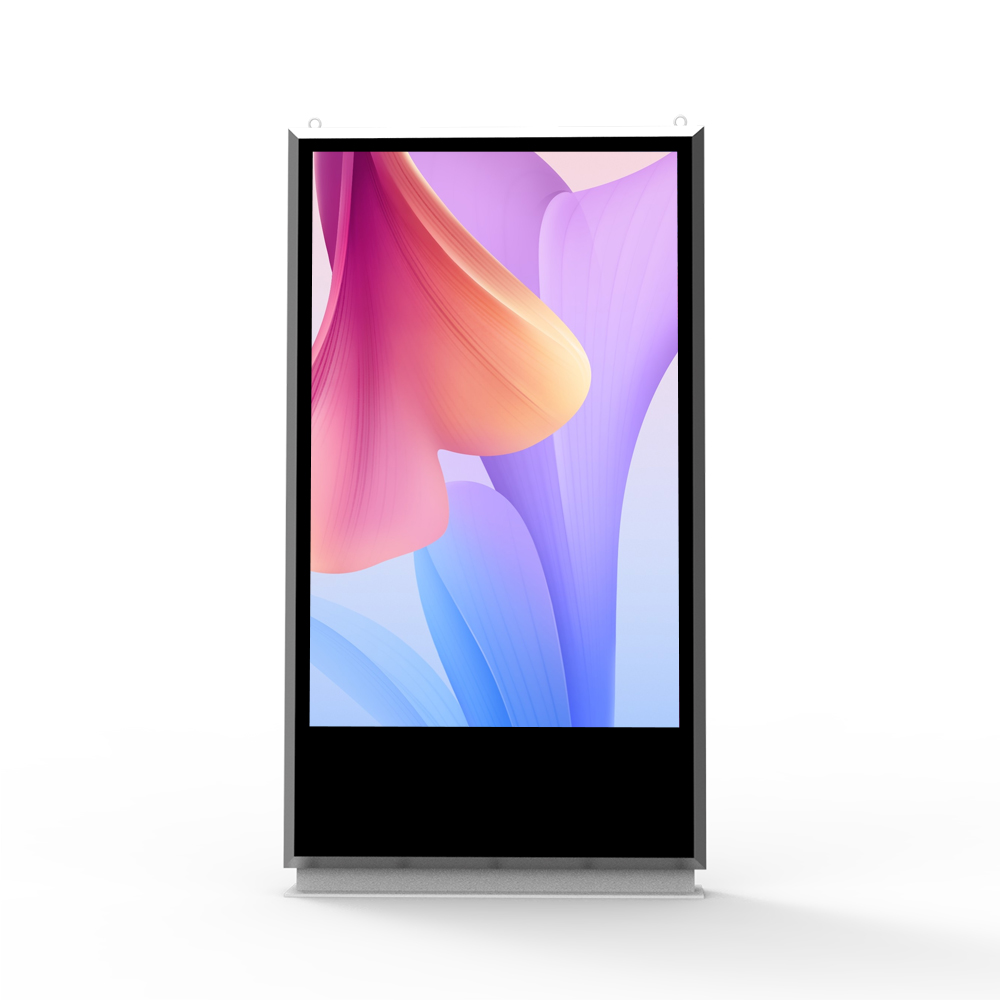

Digital Exterior Totem LED is widely standing beside the road for advertising,it’s waterproof and withstand high temperature for rainy or windy.
Item No :
CNLC-ED-DMSize :
CustomizeBrightness :
5000 cd/m2resolution ratio :
SMDMaterial :
Aluminum StructureColor :
Black / Silver / Grey / CustomizeWaterproof grade :
IP56
Aluminum Structure
Anti-rusting & Good for heat dissipation
◆ The aluminum enclosure is very good for heat dissipation,which is helpful for an exterior advertising LED totem, especially in summer.
Waterproof
IP Rating Protection
◆IP rating protecting grade to make sure the exterior Totem LED is available for different outdoor applications.Prevent from water and sand.
Temperature sensor
Intelligent Temperature Management
◆High efficient air cooling system is necessary for the exterior LED Totem .There’s an air curtain in front of the surface of LED screens ,which discharge the heat efficiently.
◆The suitable ambient temperature makes great help to extend the service life of the LED advertising screen.
USER SCENE
Specification
| Pixel Pitch(mm) | 2.5mm | 3.076mm |
4mm |
| Module resolution | 128*64 | 104*52 | 80*40 |
| Module size (mm) | 320*160 | ||
| Density (points/m²) | 160000 | 105625 | 62500 |
| Scan method | 1/16scan | 1/13scan | 1/10scan |
| Material of Frame and Support Structural | Aluminum profile and steel frame | ||
| Cooling system | Build in cooling fans | ||
| Embedded heater | Optional | ||
| Media update | Remote control (LAN and WIFl) | ||
| Operating Ambient Temperature | -20℃~+60℃ | ||
| Waterproof level | IP56 | ||
| Maintenance method | Back | ||
| Refresh frequency (Hz) | 3840 | ||
| Brightness(nits) | 5000 | ||
| Viewing angle (horizontal/vertical) | 170°/170°±5° | ||
| Contrast Ratio | 4000:1 | ||
| Power consumption(w/m²) | 684 | 895 | 645 |
