Item No :
CNLC-ED-SM0515Size :
CustomizeBrightness :
5000 cd/m²resolution ratio :
SMDMaterial :

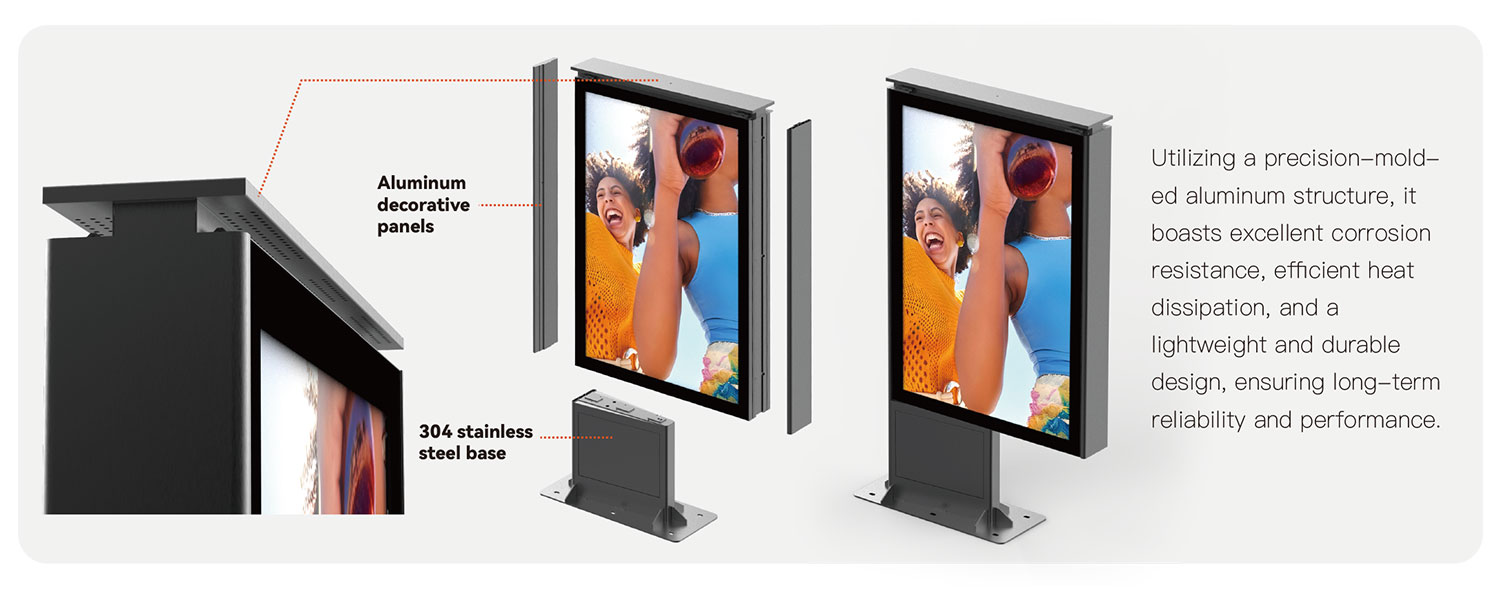

Aluminum StructureColor :
Black / Silver / Grey / CustomizeWaterproof grade :
IP56High Brightness
◆ With a high-brightness design of 5000 nits, the Outdoor LED Billboard ensures clear visibility even in direct sunlight. It optimizes visual performance with high contrast and vibrant color display, ensuring your advertisements are always presented at their best, making a strong impact in any outdoor environment.
IP65 LED Display
◆ The IP65 rating ensures that our outdoor LED display is perfect for a range of outdoor applications, including smart city LED billboards. This robust waterproof design provides reliable protection against water ingress, dust, rain, moisture, and sand, ensuring exceptional durability and performance in harsh outdoor environments.
Tempered Glass IK10
Flexible LED Display Solutions

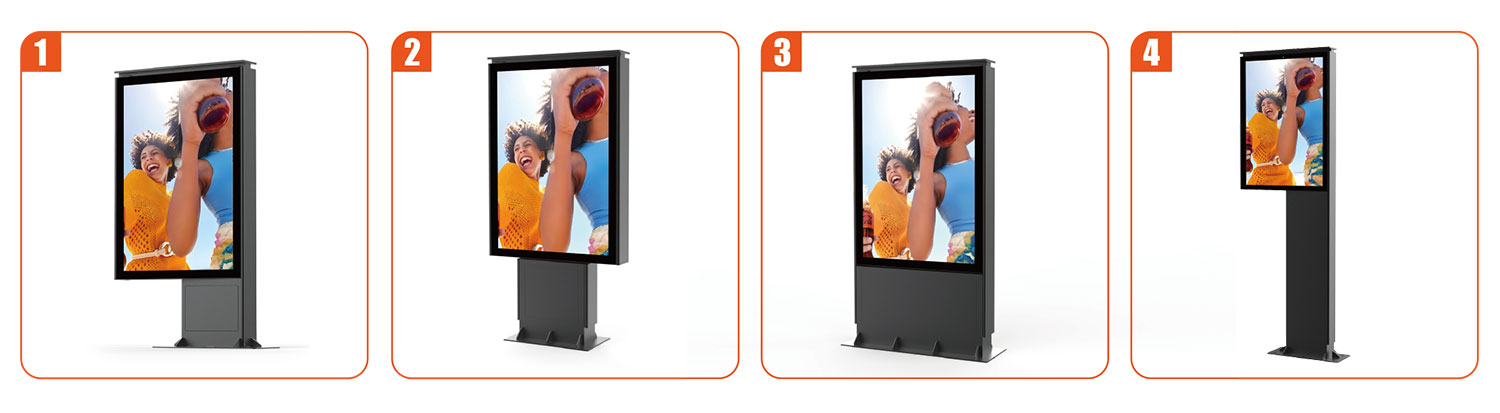

Our product features a high-brightness P2.9 fine-pitch LED display with multiple base options to suit various installation needs. Whether for outdoor advertising, shopping mall windows, or transportation hubs, it delivers outstanding visual performance and flexible installation solutions.
PROJECT CASE
TECHNICAL SPECIFICATIONS
| Pixel Pitch(mm) | 2.976mm | ||
| Module resolution | 84*84 | ||
| Module size (mm) | 250*250 | ||
| Density (points/m²) | 112896 | ||
| Scan method | 1/13scan | ||
|
LED Encapsulation
|
SMD1415
|
||
|
Pixel configuration
|
1R1G1B
|
||

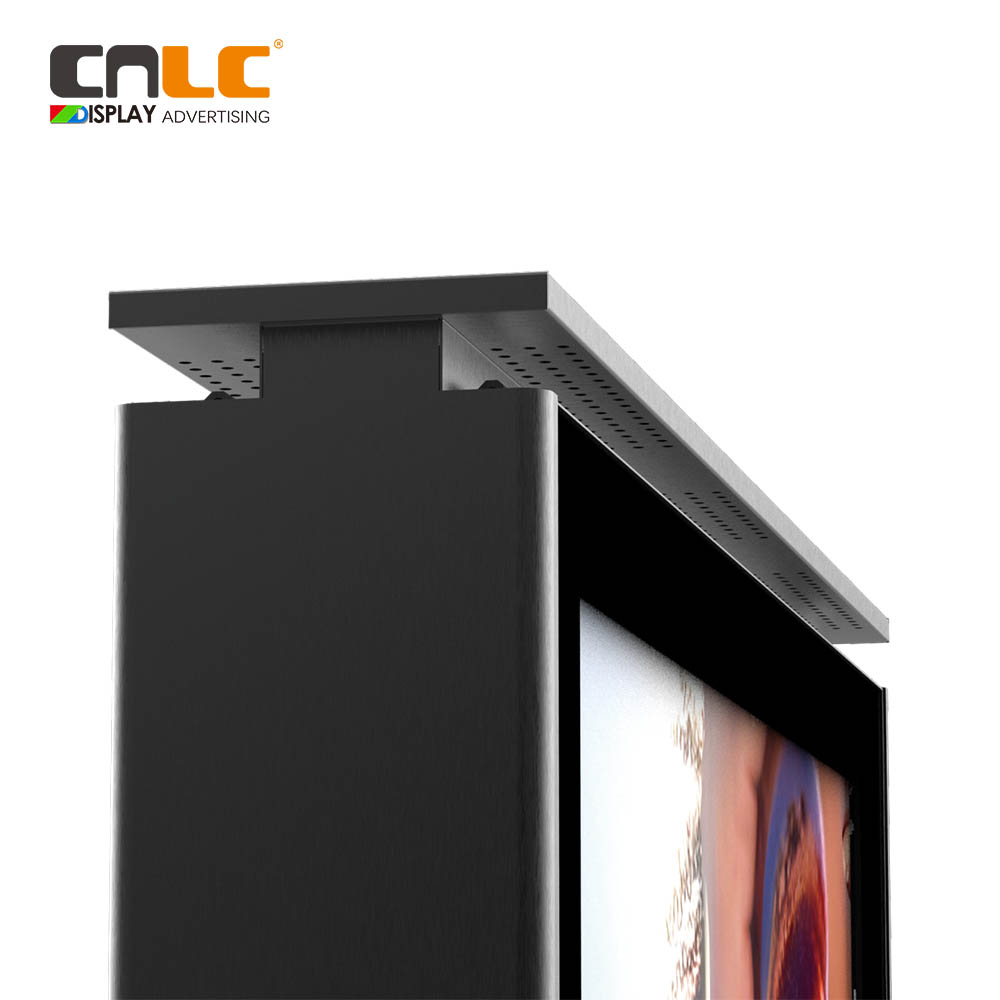

| Material of Frame and Support Structural | Aluminum profile and steel frame | ||

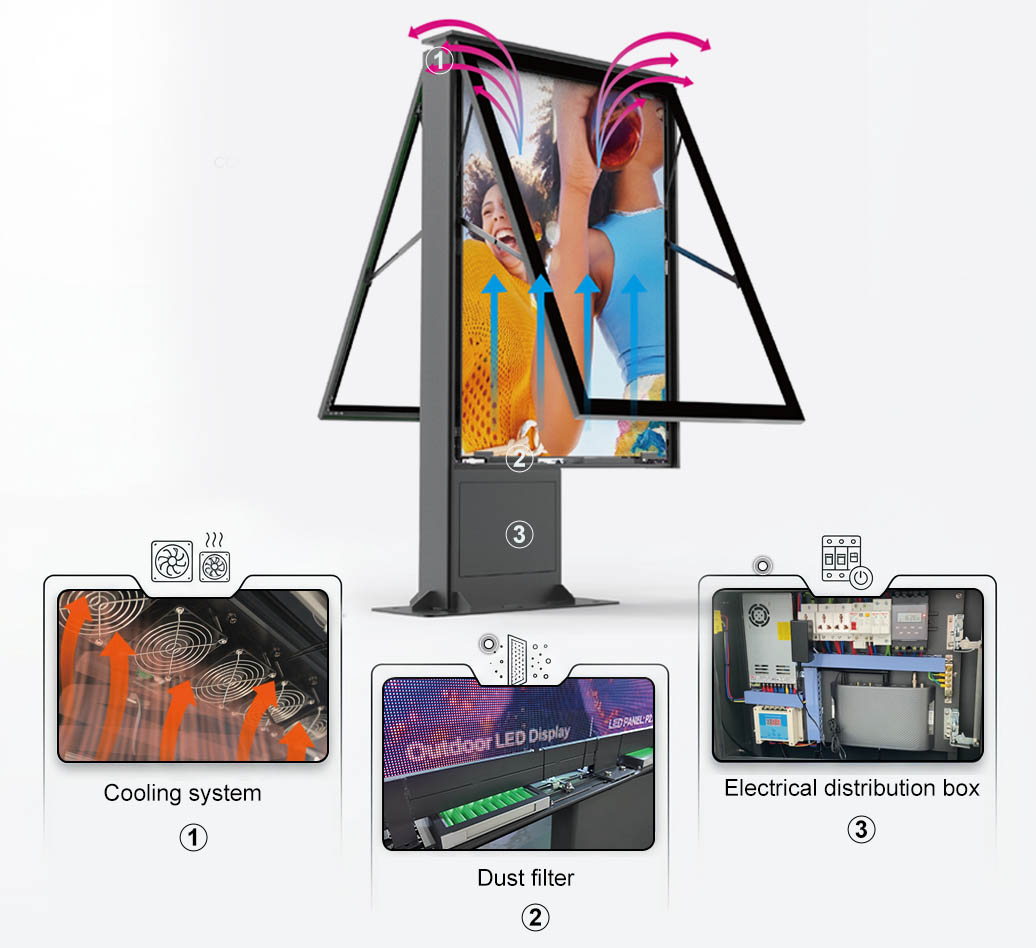

| Cooling system | Build in cooling fans | ||
| Embedded heater | Optional | ||
| Media update | Remote control (LAN and WIFl) | ||
| Operating Ambient Temperature | -20℃~+60℃ | ||
| Waterproof level |
Front IP65
|
||
| Maintenance method | Back | ||
| Refresh frequency (Hz) | 3840 | ||
| Brightness(nits) | 5500 | ||
| Viewing angle (horizontal/vertical) | 170°/170°±5° | ||
| Contrast Ratio | 4000:1 | ||
|
Energy Saving design
|
4.2-5Vvoltagedesign
|
||
|
Ave.Power Consumption(W/m²)
|
342
|
||
|
Max. Power Consumption(W/m²)
|
684 | ||
This outdoor LED Mupi billboard integrates a high-brightness, small pixel pitch P2.9 LED screen with an IP56 protection rating, ensuring clear visibility in all weather conditions. Its dual camera system and IK10-rated aluminum casing offer enhanced monitoring and durability. The built-in cooling system effectively extends the device's lifespan, making it ideal for efficient information dissemination and advertising in smart city environments.
