The Outdoor IP66 P1.25 COB LED Totem Display is engineered for premium outdoor digital signage, combining ultra-fine P1.25 COB technology with IP66 weather protection for exceptional image quality and all-weather reliability. Featuring intelligent air conditioning, front ventilation cooling, a precision aluminum enclosure, IK10 protective glass, and cloud-based remote management, it ensures stable, low-maintenance 24/7 operation in commercial and smart city environments.
Item No :
LE-OU-320CBSize :
CustomizeBrightness :
3500 cd/m²resolution ratio :
2k / 4kMaterial :
Aluminum StructureColor :
Black / Silver / Grey / CustomizeWaterproof grade :

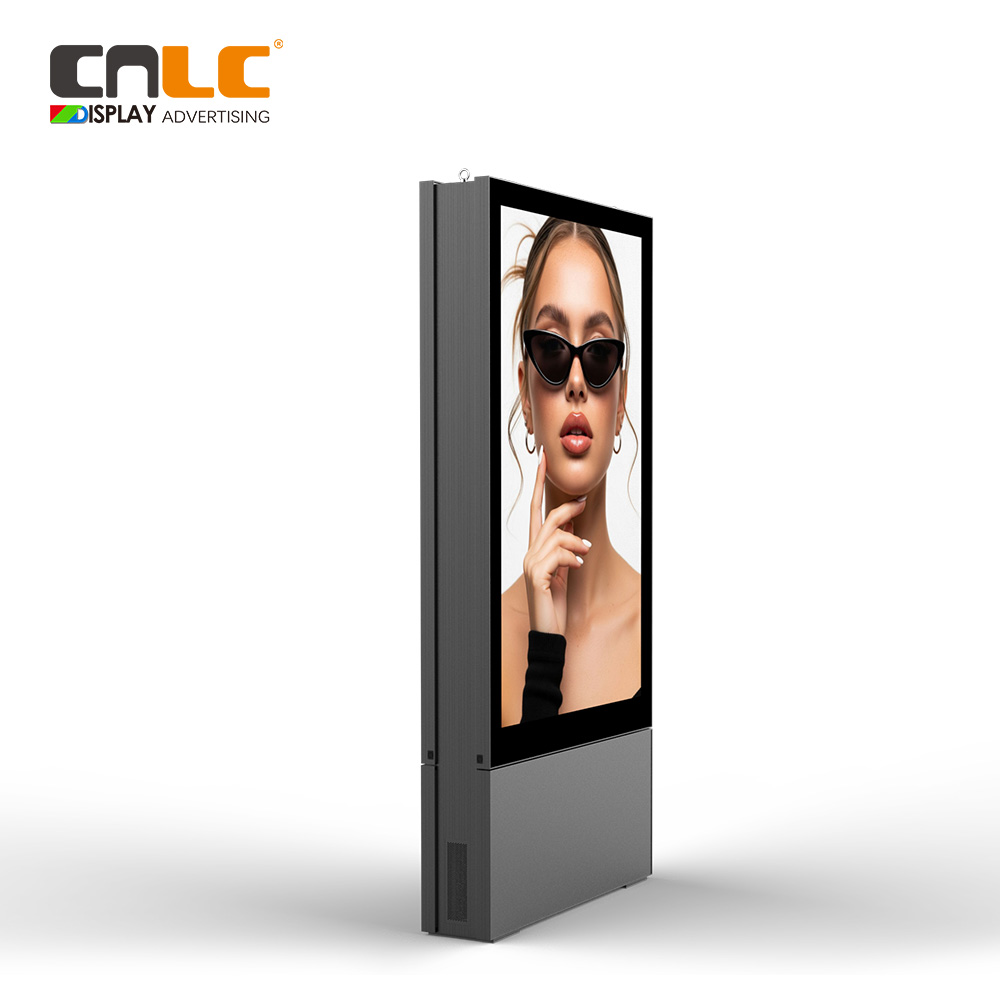

IP663500 nits Ultra-High Brightness Display
◆With a high-brightness design of 3500 nits, the Outdoor COB LED Mupi ensures clear visibility even in direct sunlight. It optimizes visual performance with high contrast and vibrant color display, ensuring your advertisements are always presented at their best, making a strong impact in any outdoor environment.

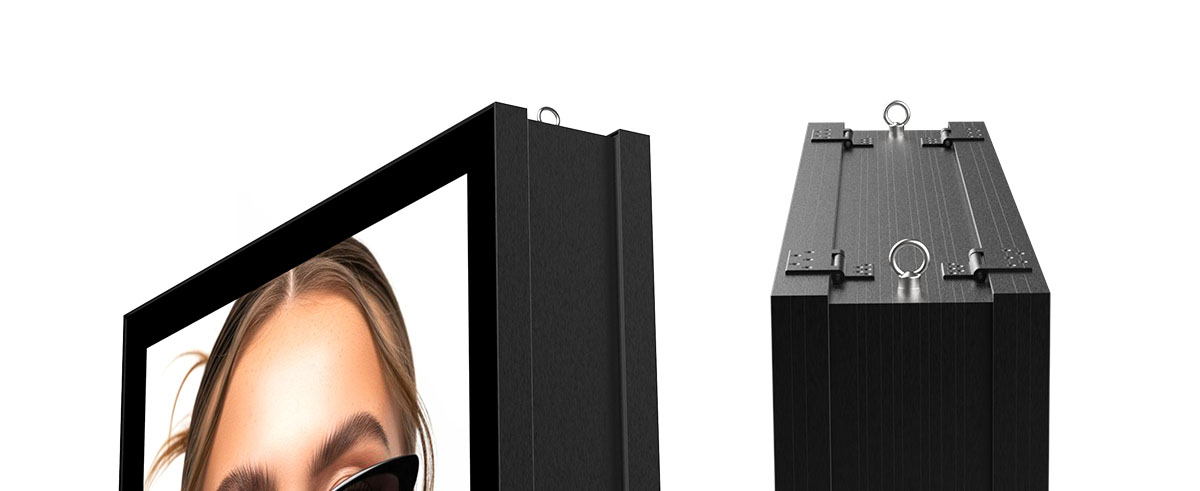

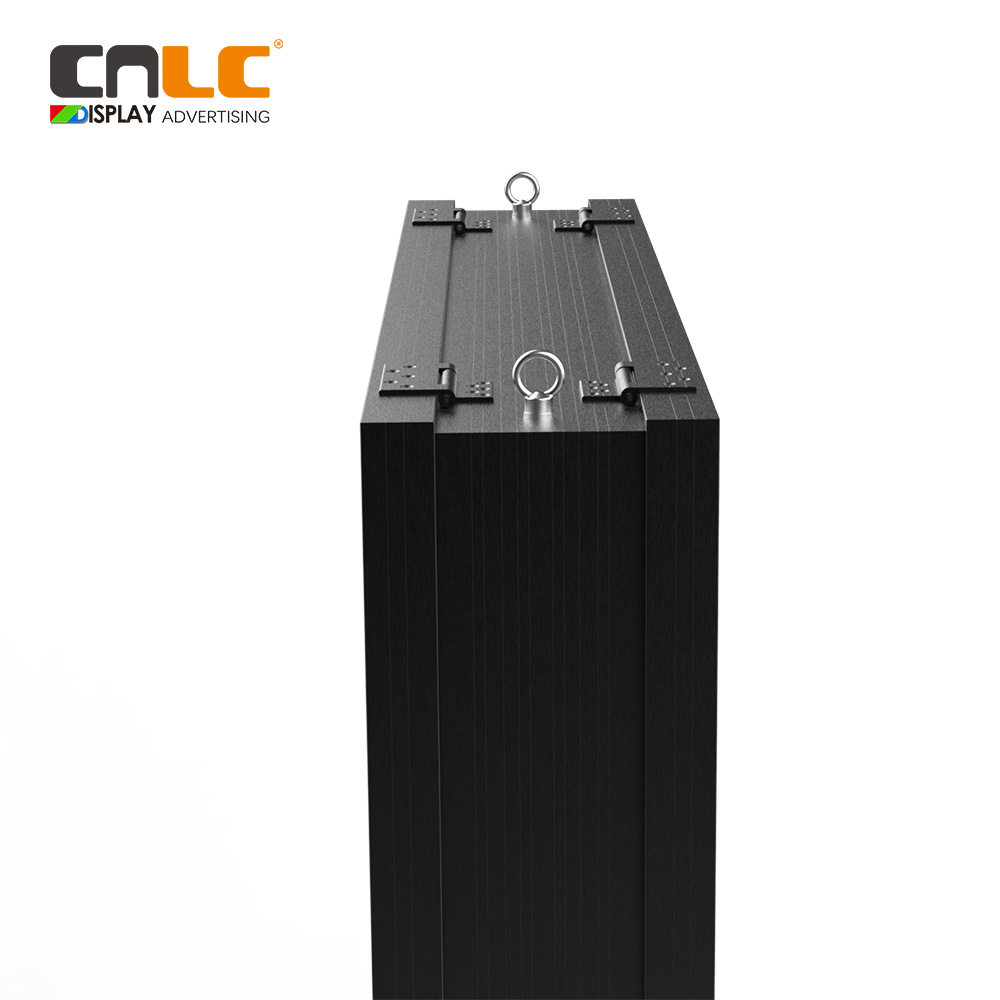

Aluminum Structure
◆ Engineered with a precision-molded aluminum structure, our 86-inch outdoor COB LED Totem delivers superior corrosion resistance, optimized heat dissipation, and a lightweight yet robust design, ensuring enhanced durability and long-term performance.

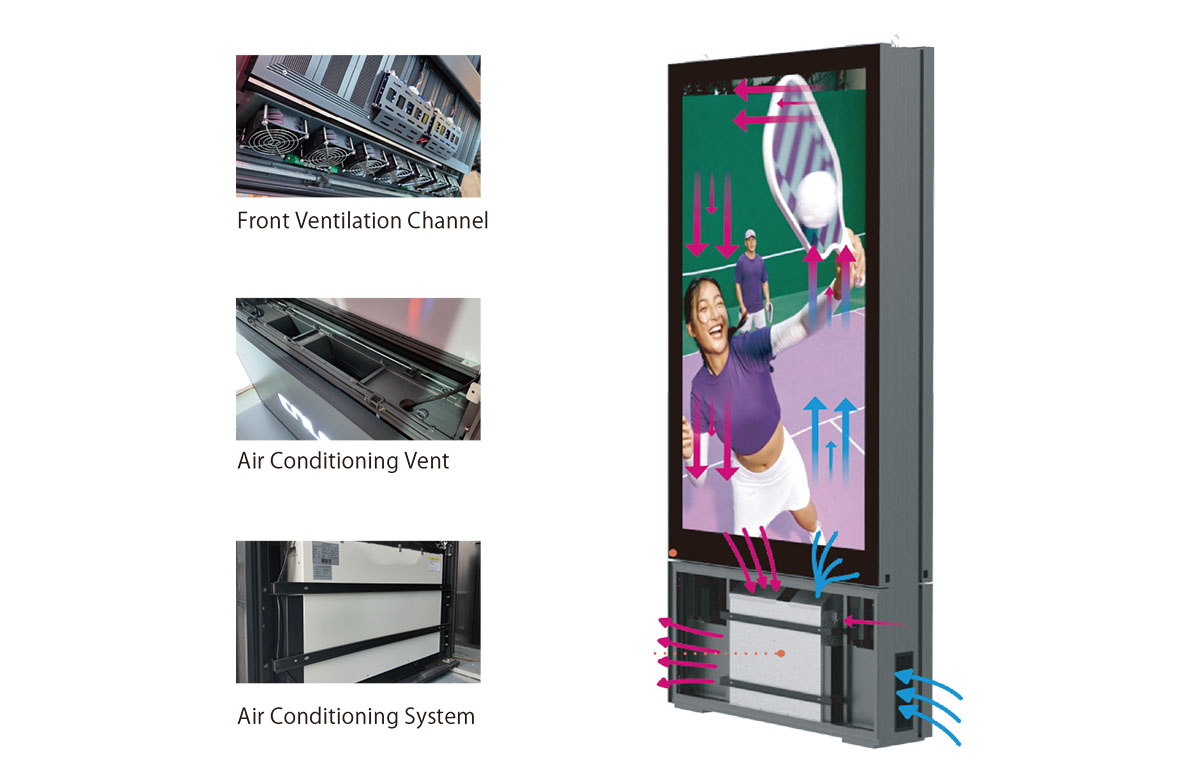

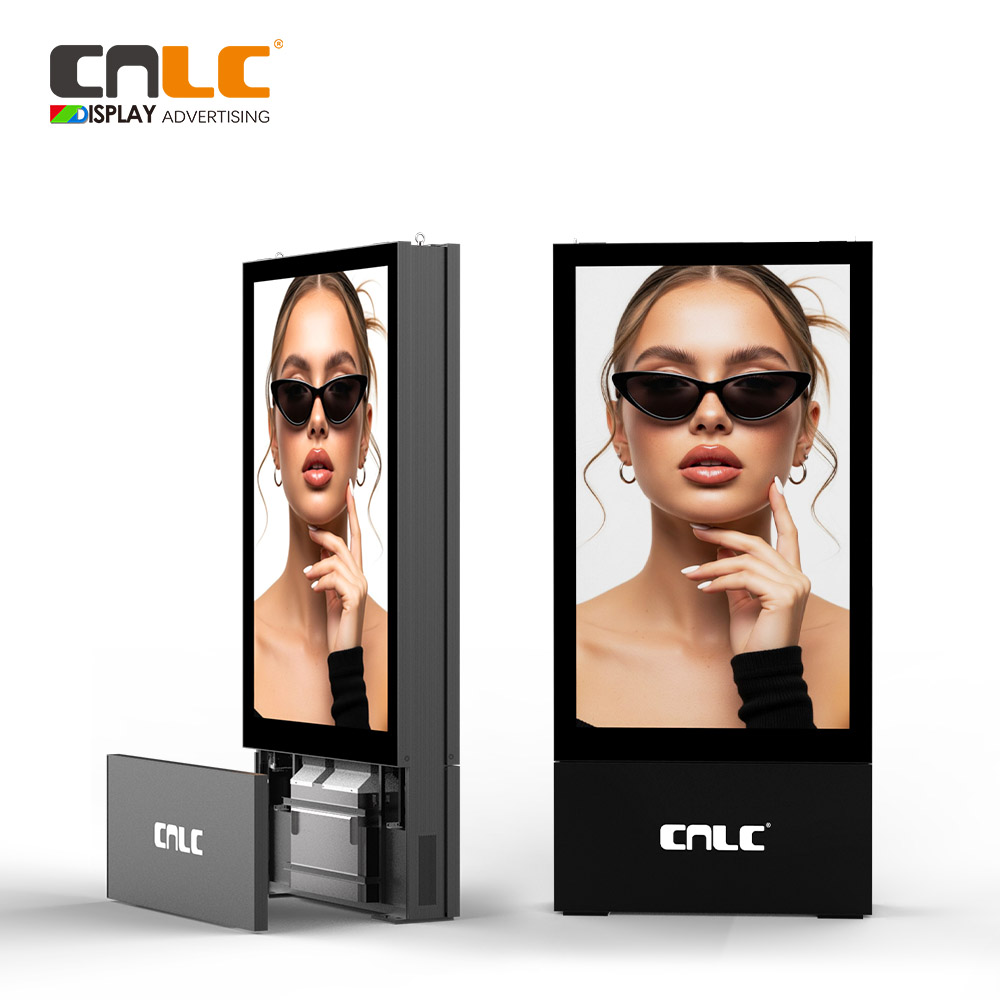

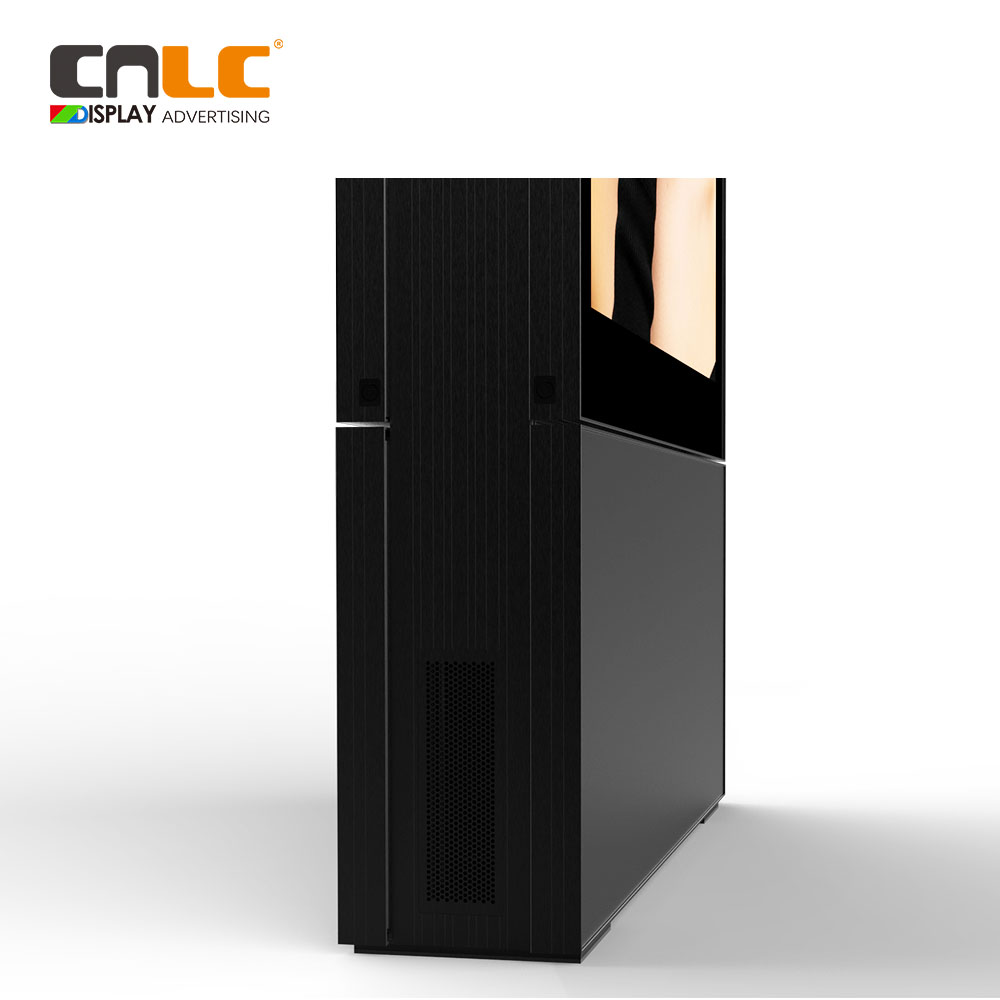

Dual Cooling System for Outdoor LED COB Totem
◆ Equipped with a professional air conditioning system and front ventilation channel, this outdoor digital signage display ensures stable performance even in extreme conditions like scorching summers and direct sunlight.
◆ Air Conditioning System: Actively regulates internal temperature for rapid heat dissipation, preventing performance issues caused by overheating.
◆ Front Ventilation Channel: Swiftly directs heat from the screen’s front upward, effectively preventing heat buildup and maintaining optimal brightness and performance.

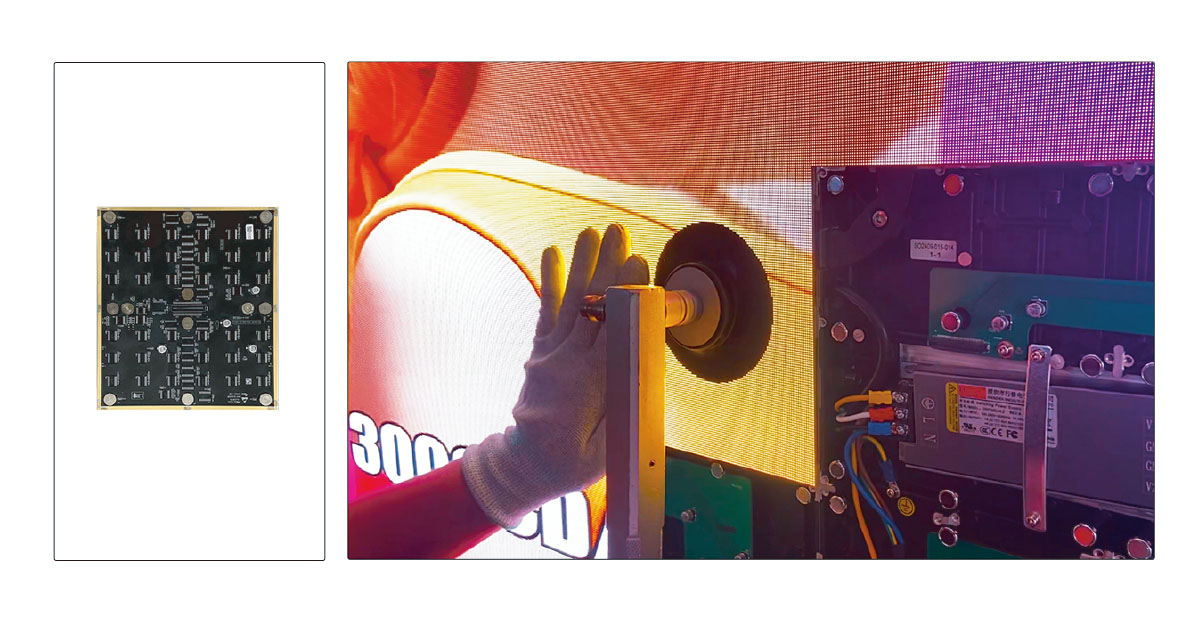

P1.25 COB Modules
◆ The COB LED MUPI with P1.25 COB modules offers ultra-high resolution and uniform brightness for clearer display quality. The lightweight and space-saving module is ideal for high-end displays and commercial advertising applications.

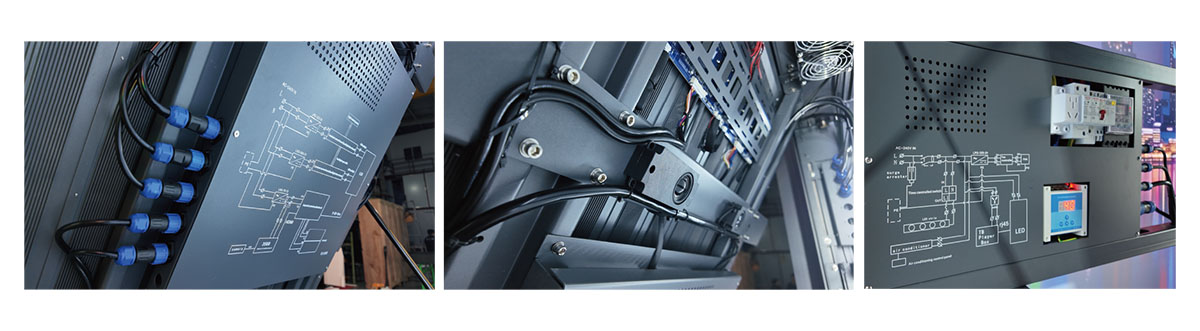

Engineered for Easy Maintenance
◆ The modular internal structure is designed for reliable performance and simplified servicing. Carefully arranged electrical components, intelligent cable routing, and a maintenance-friendly layout improve installation efficiency, reduce downtime, and ensure long-term stability in outdoor applications.
Waterproof lP 66 Rating Protection
◆ With an Ip66 rating, this totem LED is designed for various outdoor applications, providing robust protection against water and dust.

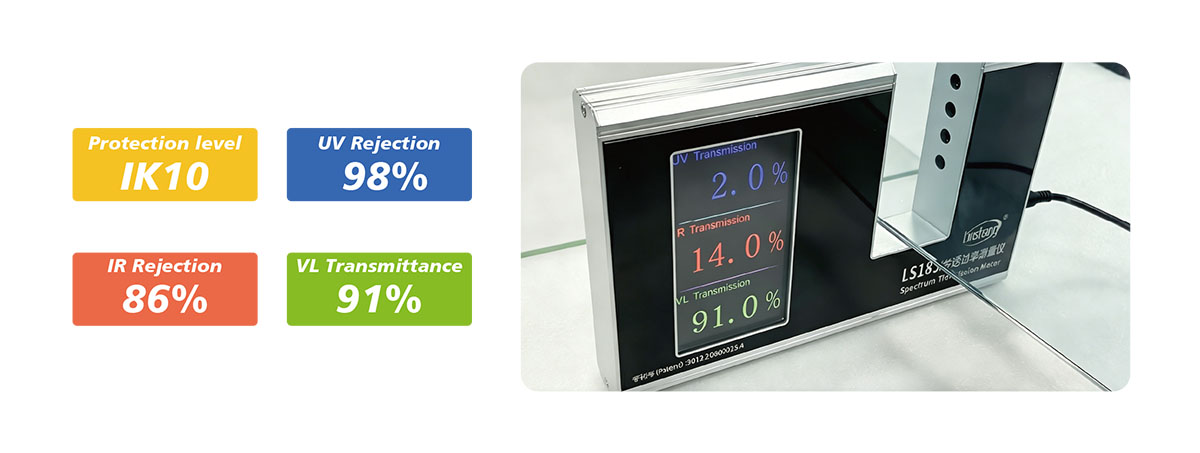

High-Performance IK10 Protective Glass
◆ Designed for demanding outdoor environments, the IK10 protective glass delivers 98% UV rejection, 86% infrared rejection, and 91% visible light transmittance. It effectively reduces heat buildup while maintaining exceptional display clarity, protecting the LED screen from impact, sunlight, and harsh weather conditions.

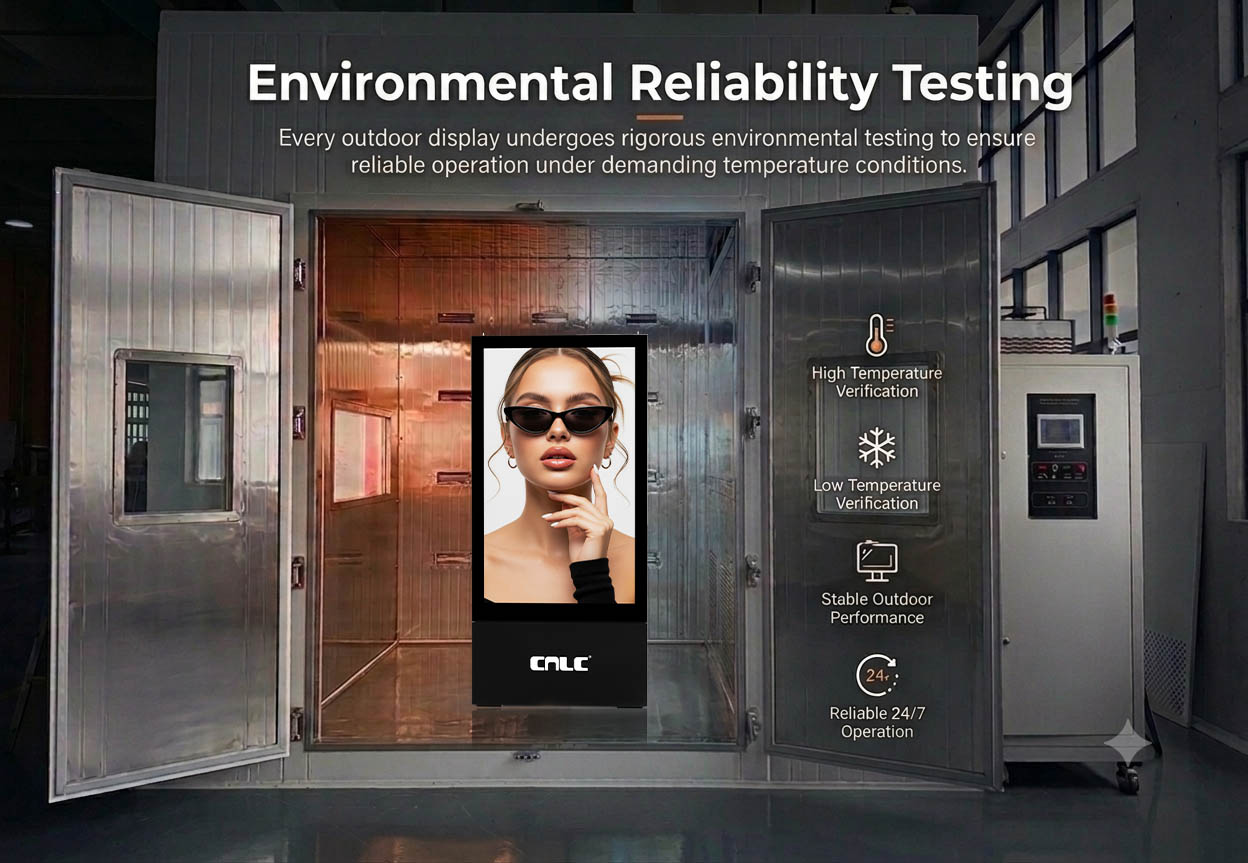

Stable Performance in Extreme Temperatures
◆ Designed for demanding outdoor environments, our outdoor LED display maintains stable brightness, reliable operation, and long-term performance under both high and low temperature conditions. Every unit is validated in our environmental testing chamber to ensure dependable performance before delivery.

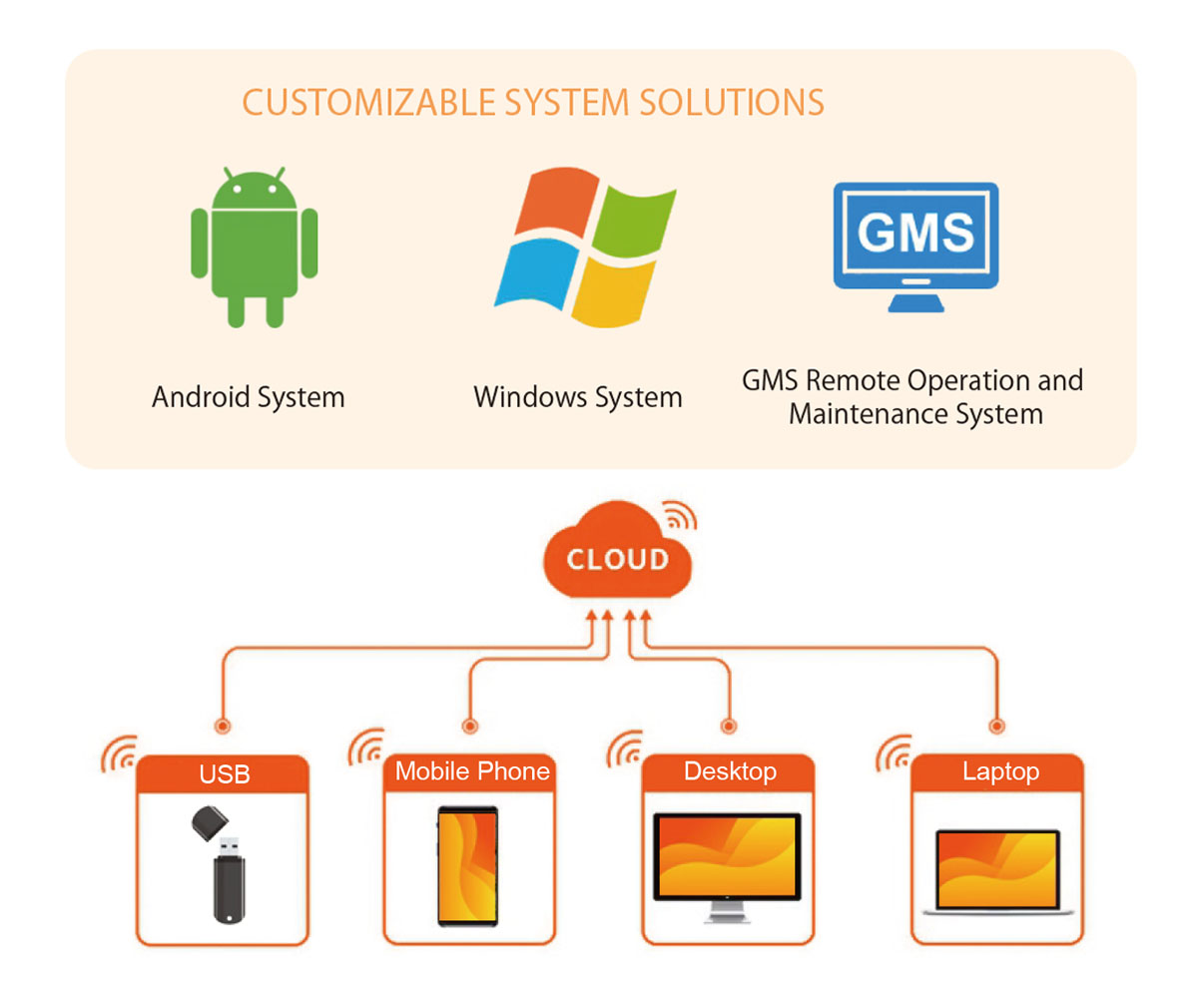

Remote Content Management
| Model No. | 1.25 | |||
| Pixel Configuration | COB | |||
| Pixel Pitch(mm) | 1.25mm | |||
| Brightness (nits) | 3500nits |
|||
| Pixel Density(dots/m²) | 640,000 | |||
| Module Size（mm） | 150 x 168.75mm |
|||
| Module Resolution | 120 x 135 | |||
| Cabinet size (mm) | 600 x 337.5mm |
|||
| Cabinet Resolution | 480 x 270 | |||
| Material of Enclosure | Aluminum profile | |||
| IP Rating | IP66 | |||
| Contrast Ratio | 30000:1 |
|||
| Max. Power Consumption(W/m²) | 330 |
|||
| Ave. Power Consumption(W/m²) | 110 |
|||
| Cabinet weight (kg) | 5kg |
|||
| Refresh Rates (Hz) | 3840Hz |
|||
| Grey Level |
18 bit |
|||
| COB Control System |
Novastar A series |
|||
